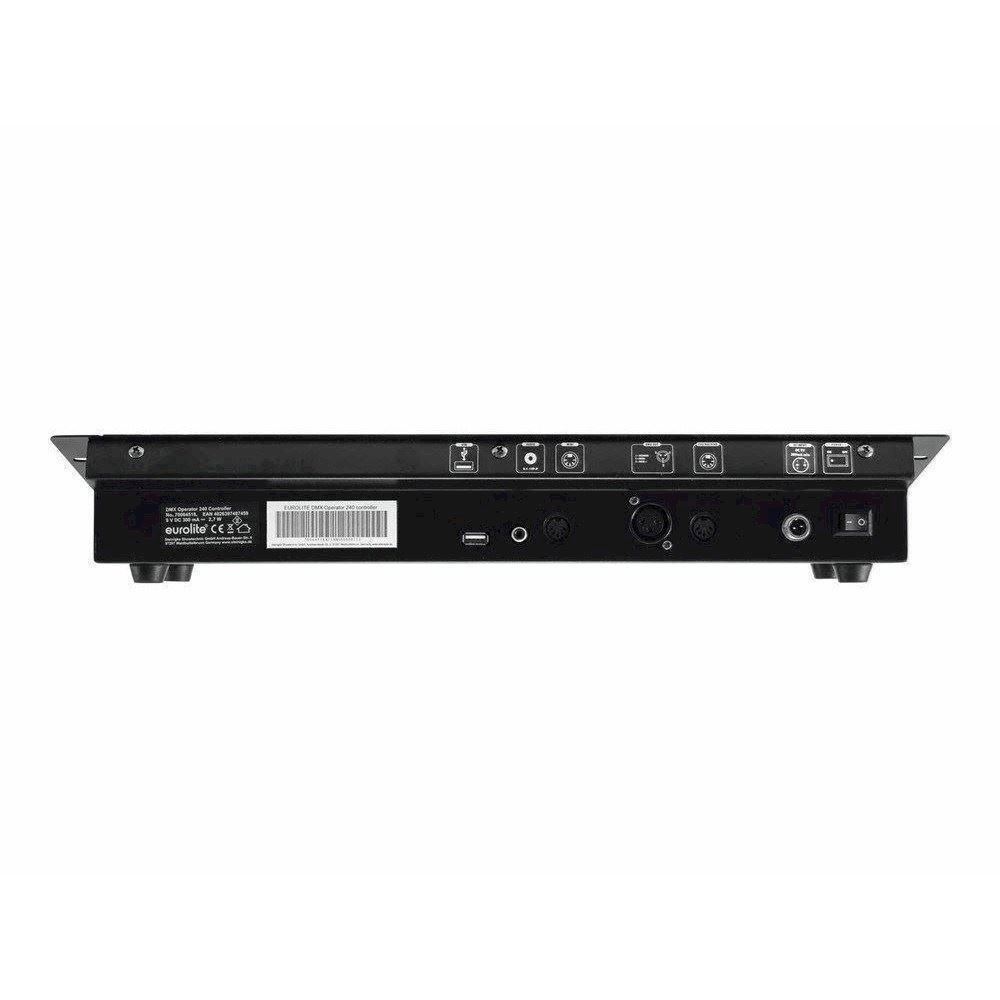

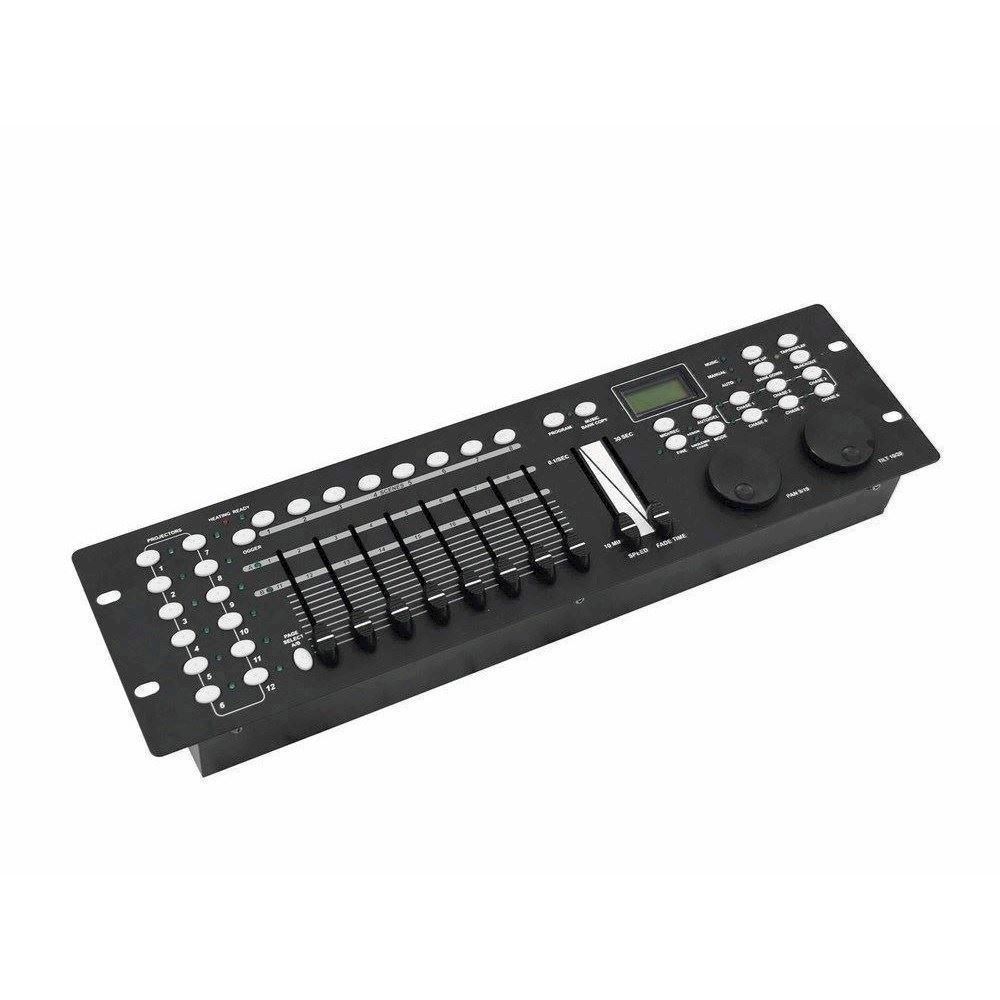

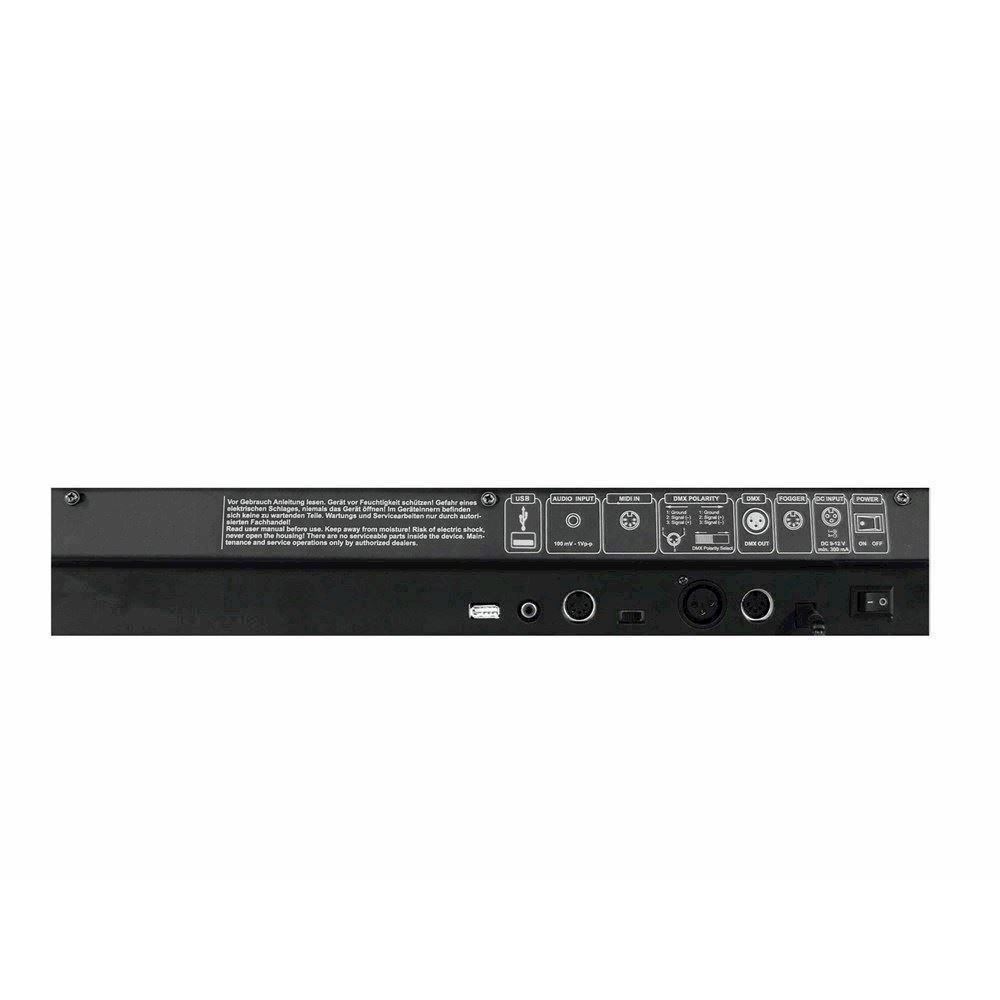

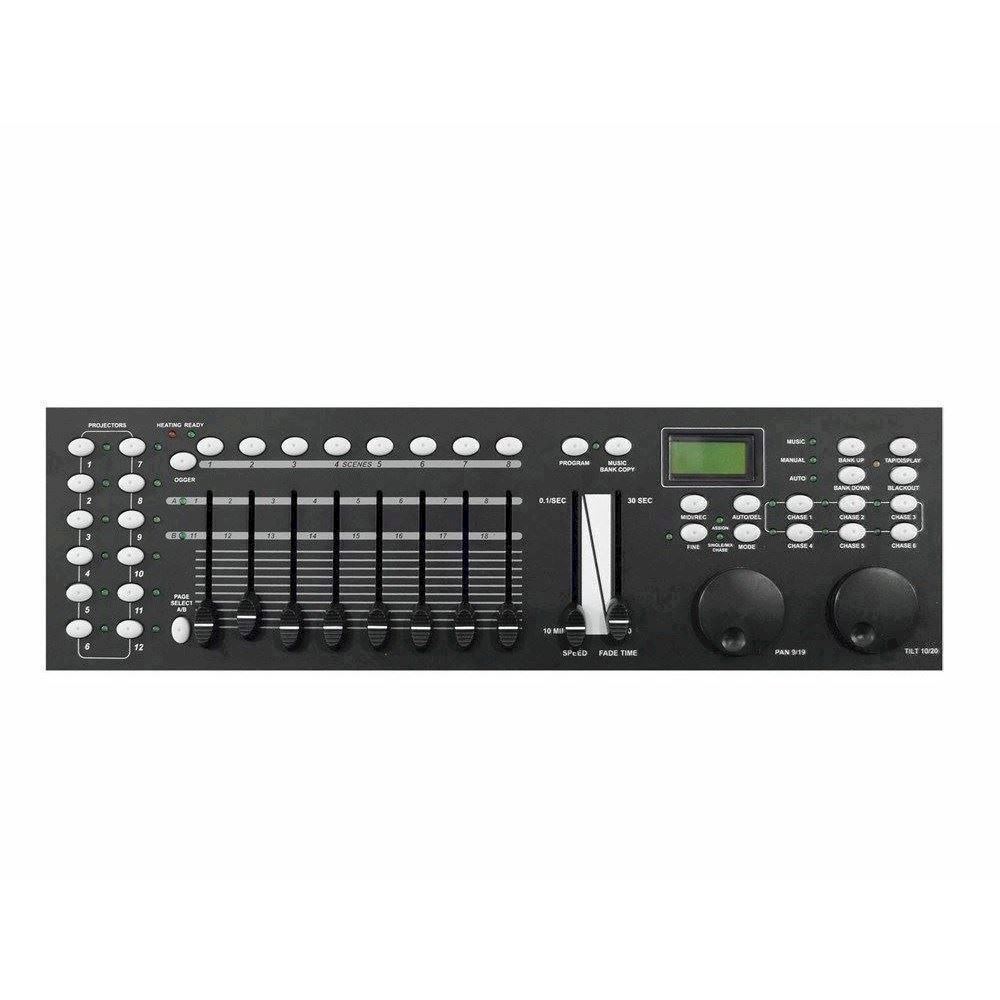

EUROLITE DMX Operator 240 controller

Console for 12 light effect units (max.20 DMX channels), 2 jog wheels

• DMX controller for 12 light effect units such as moving heads, scanners and LED spot lights
• 12 fixtures with up to 20 channels each can be controlled
• 240 DMX channels can be assigned and inverted as desired to 20 control channels (softpatch)
• USB port for storing program data
• 240 programmable scenes (30 banks x 8 scenes)
• 6 programmable chases with 240 scenes each can be stored
• Manual, time-controlled or sound-controlled chase running mode
• Fade between scenes adjustable between 0-30 s
• Copy function for scenes and banks
• 2 DMX fixture levels can be controlled, each with up to 10 channels
• 8 DMX channel faders
• 2 jog wheels for pan/tilt
• Blackout function
• Sound control via built-in microphone or line input with adjustable sensitivity
• Backlit LCD (2 x 8 characters)
• RDM support (DMX address setup and identify)
• Fog machine control possible
• Supports standard MIDI
• 3-pin XLR connector with polarity selector
• Firmware update via USB
• Desktop console
• Rack installation with 3 units
• Controller useable for: RGB
• Controller useable for: RGBA
• Controller useable for: RGBW
• Controller useable for: RGBA+RGBW
• Controller useable for: RGBWA
• Controller useable for: RGBWA+UV
• Controller useable for: RGB+WA
• Controller useable for: CW/WW
• Controller useable for: W/A
• Controller useable for: RGBW+UV
• Controller useable for: CW
• Controller useable for: WW
• Controller useable for: RGB+UV
• Controller useable for: UV
• Controller useable for: Colour wheel
• Controller useable for: Controls DMX-effects
• Controller useable for: Controls Moving Lights
• Controller useable for: Controls KLS classic
• Controller useable for: Controls KLS in general
