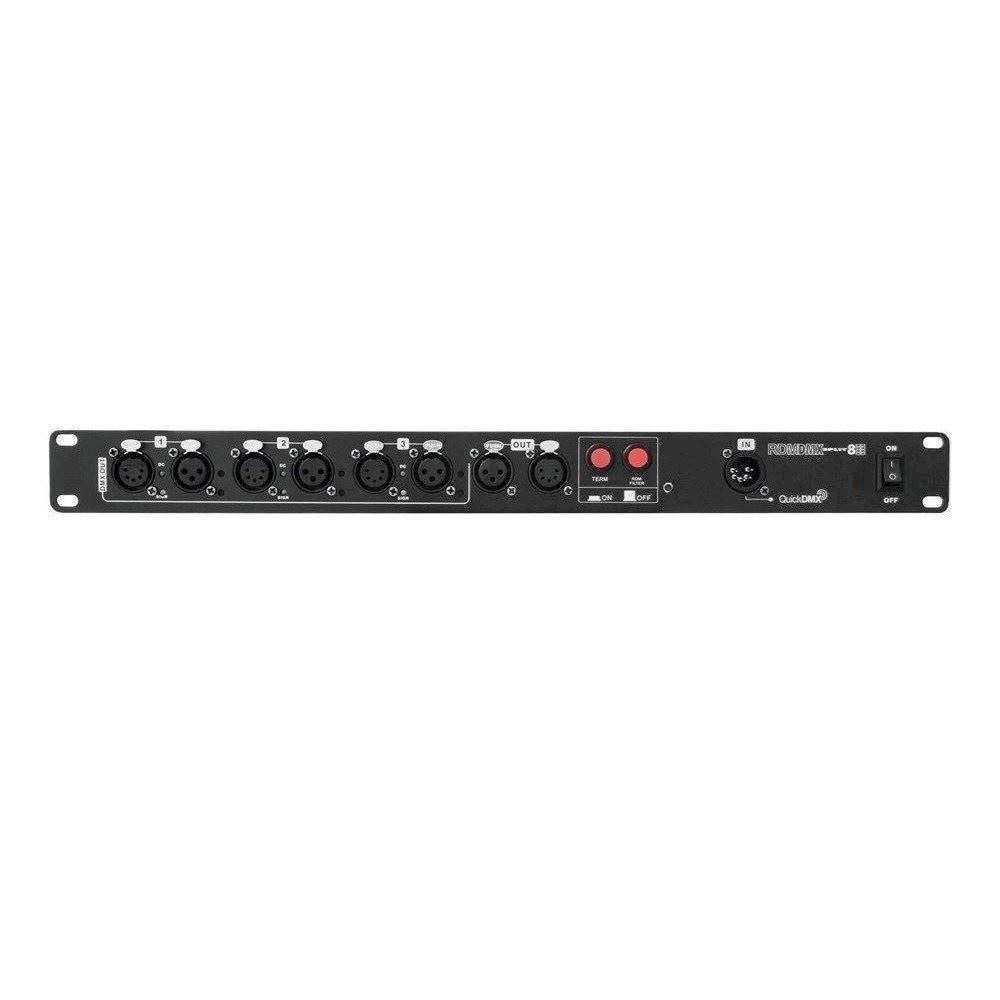

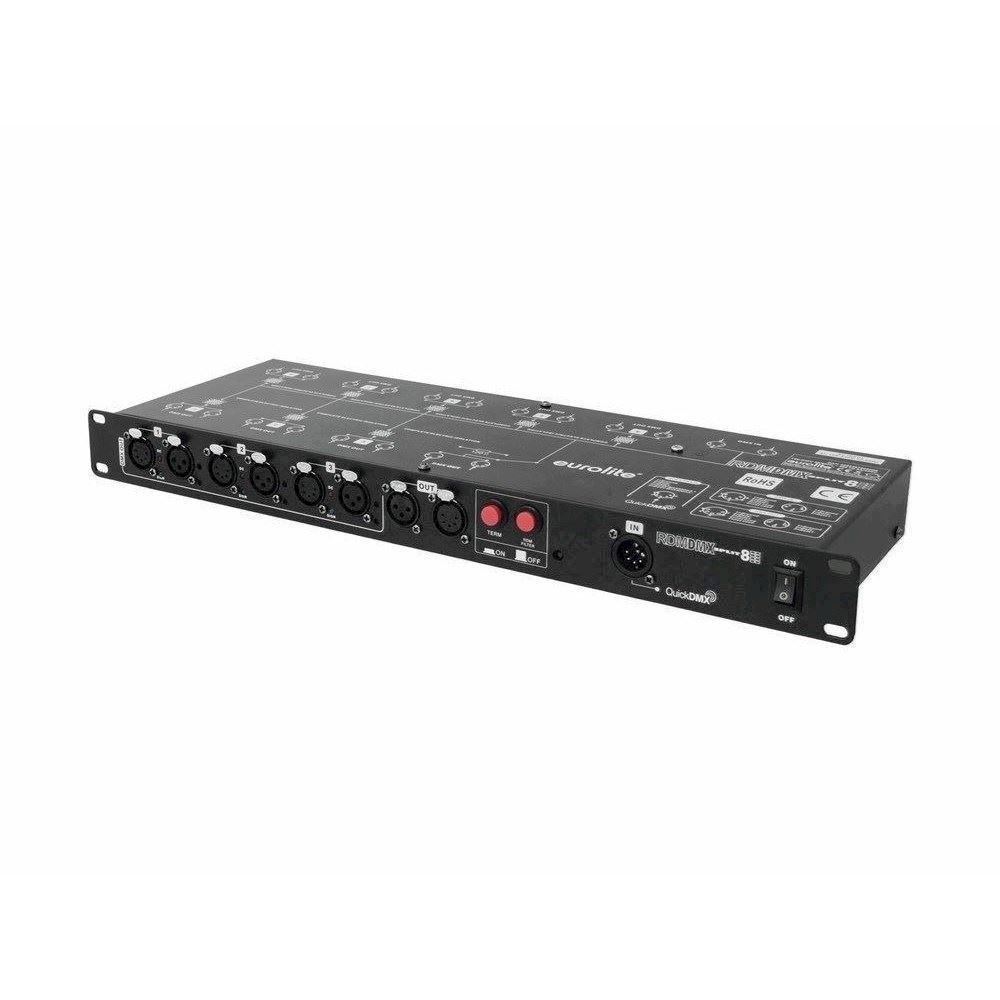

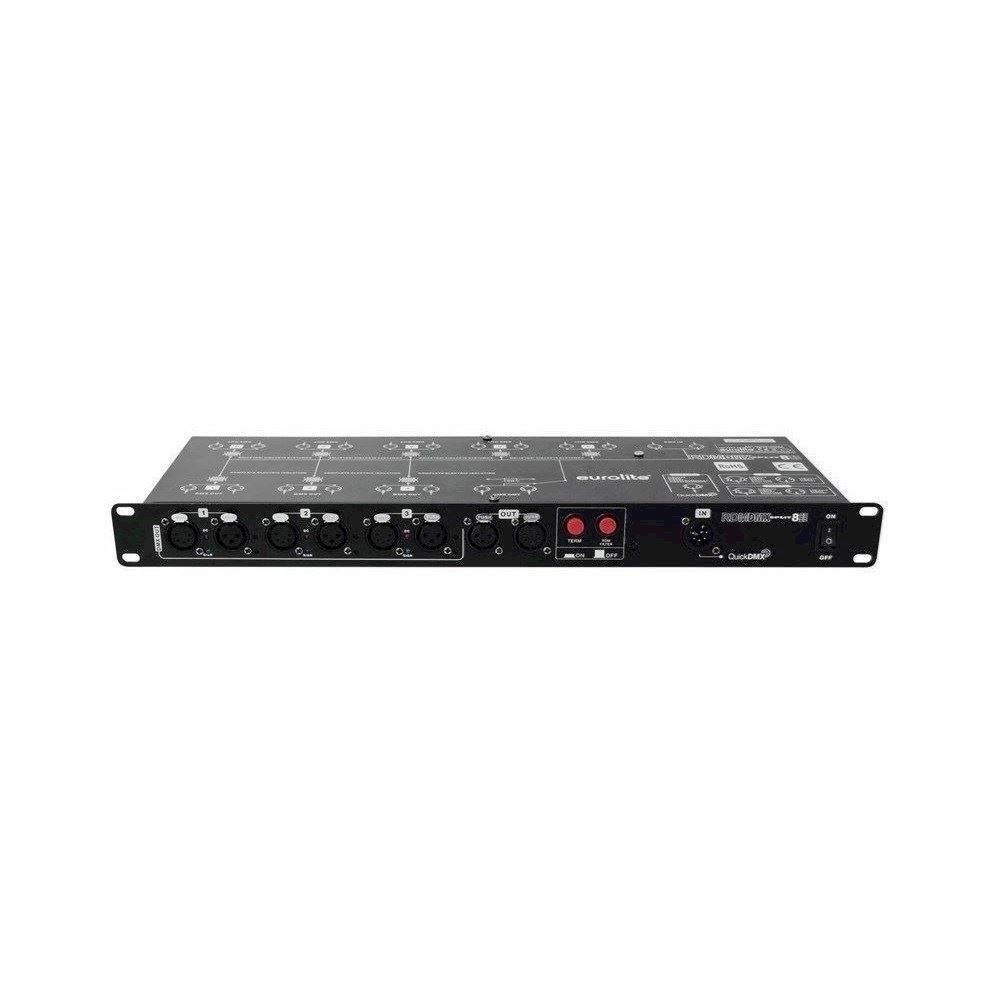

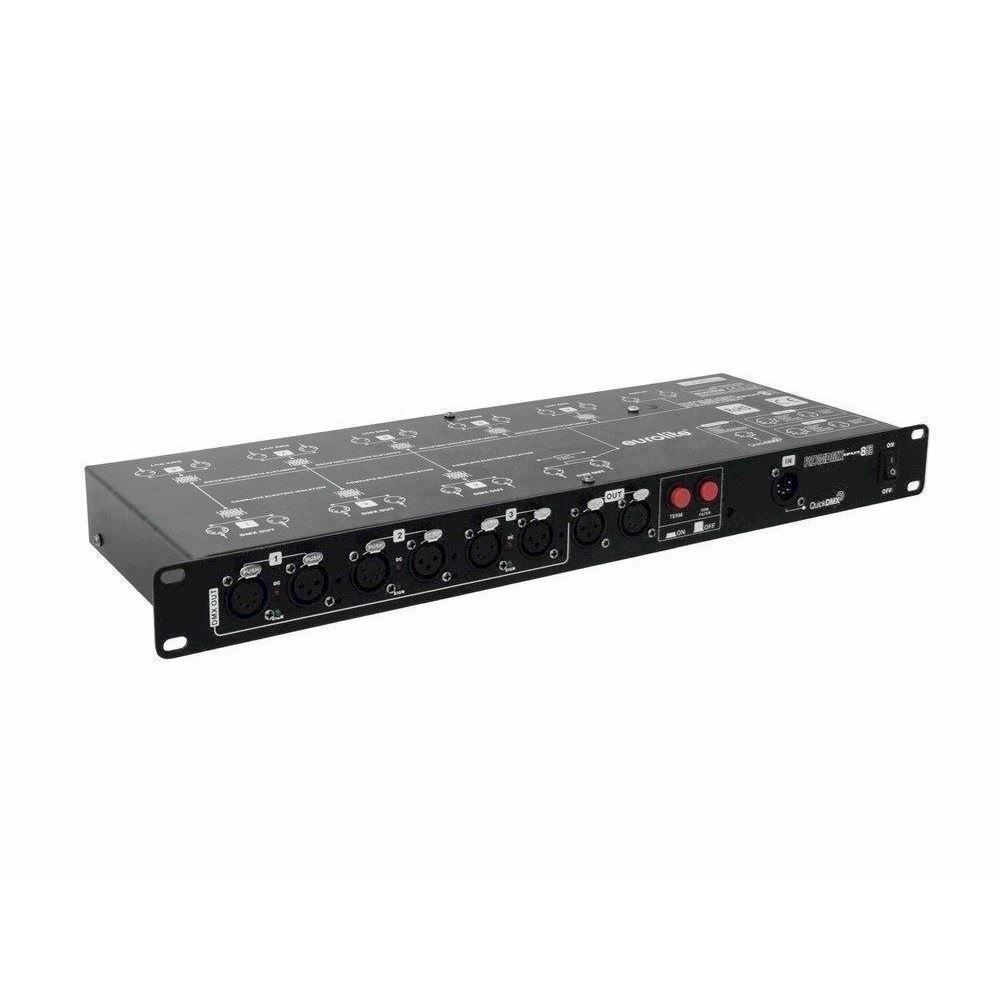

EUROLITE DMX Split 8X RDM Splitter, 3/5-pin XLR & QuickDMX

Splitter with 8 galvanically isolated outputs, 3/5-pin & QuickDMX XLR sockets

• DMX splitter for splitting one DMX input signal to 8 DMX outputs

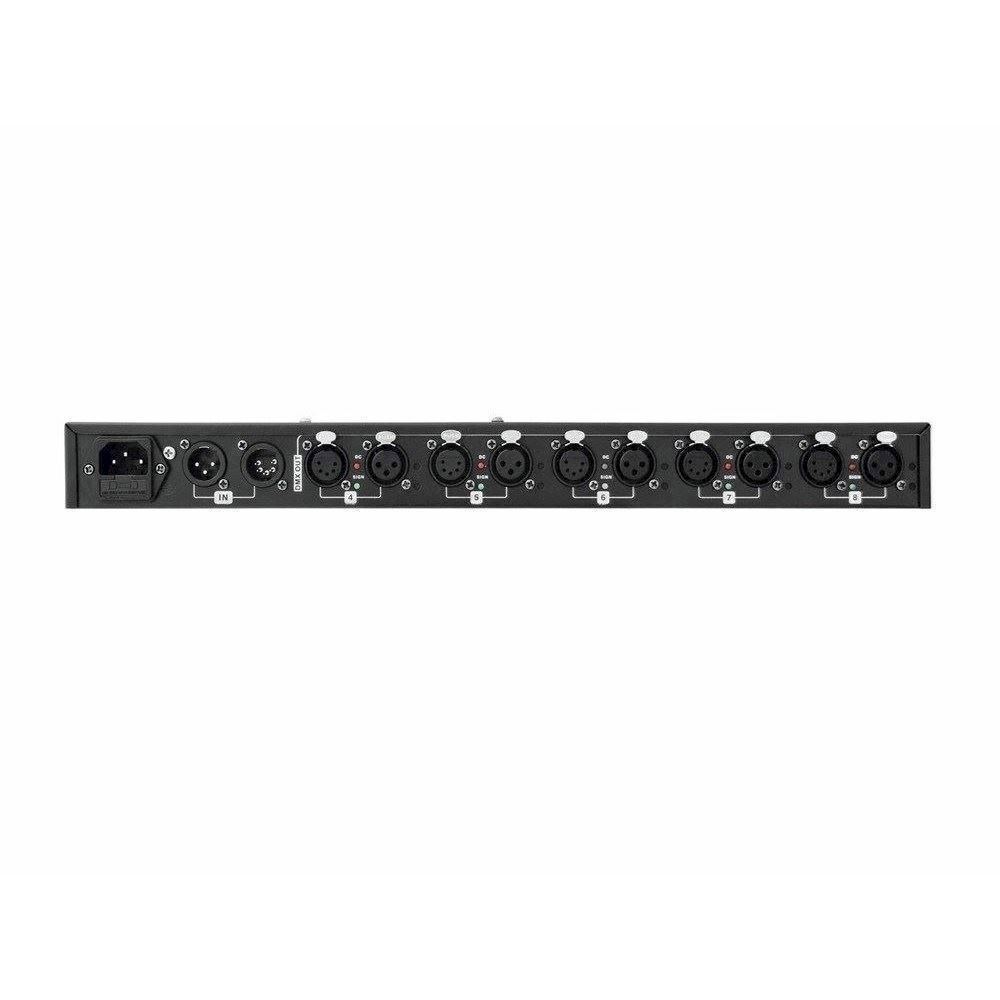

• Connections: 1 x DMX input, 1 x DMX feed-through output, 8 x DMX output
• Additional QuickDMX input for wireless reception of DMX signals
• Supports RDM for bidirectional communication over the DMX line
• Switchable filter mode allows all RDM data to be filtered out in order to prevent problems when using fixtures intolerant of RDM
• Input and outputs XLR 3-pin and 5-pin each
• Input and outputs galvanically isolated
• Each DMX output with independent driver and status indicators
• Input and outputs with a set of respective power supply and internal fuse
• Switchable termination resistor
• Rack mounting
