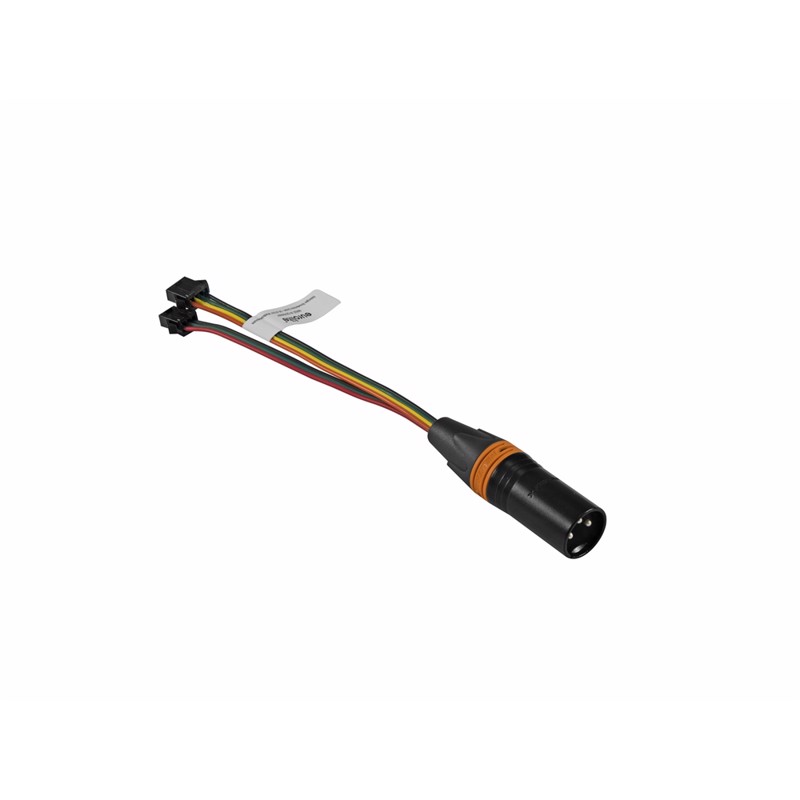

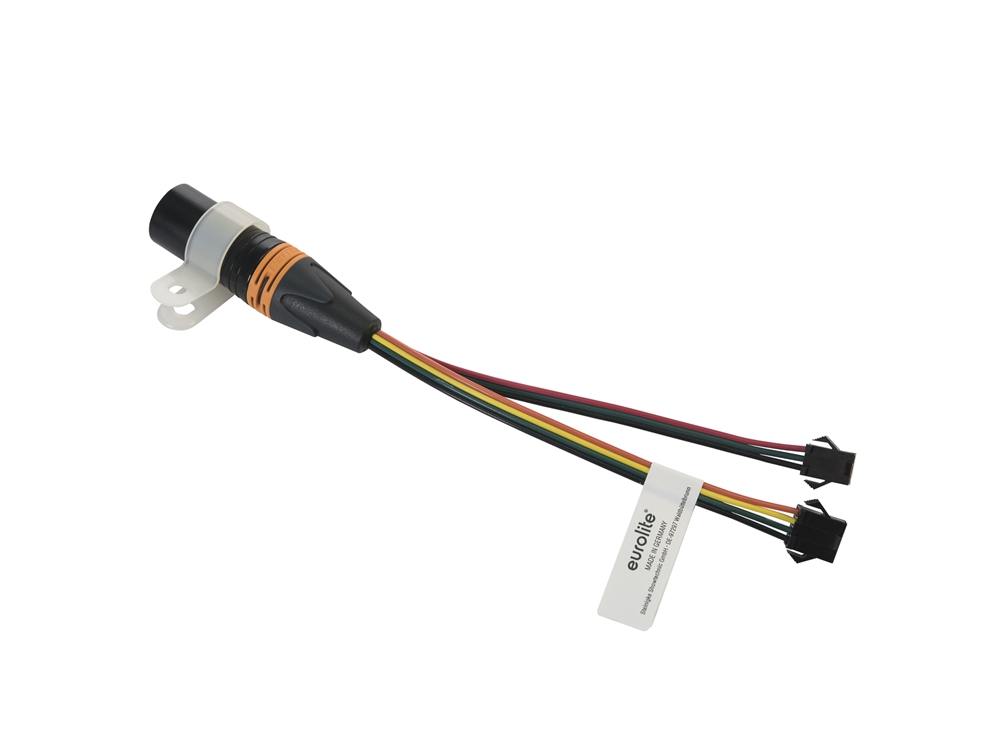

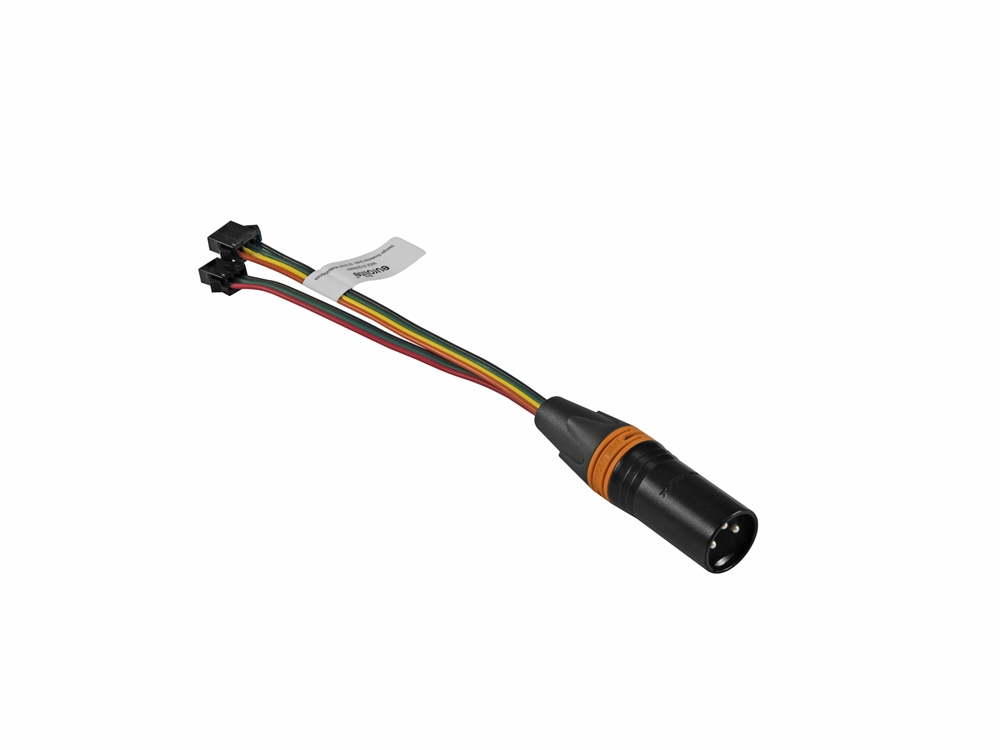

Compact DMX converter for LED pixel strips
- Can control up to 18,000 digital LED pixels via a DMX512 signal
- Extremely compact design placed in the XLR plug
- 1 x DMX input via 3-pin XLR plug (Neutrik)

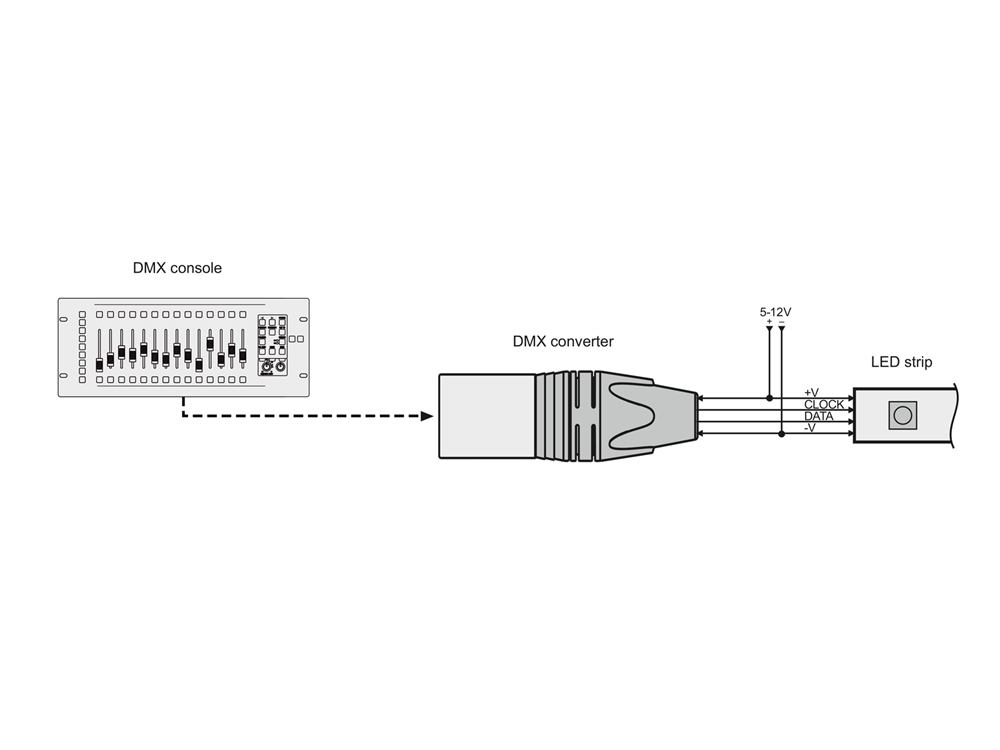

- 1 x 4-pin JST connector with Data and Clock output
- 1 x 3-pin JST connector with Data output
- Multiple LEDs can be grouped together to form virtual pixels, e.g. a strip with 300 LEDs can be controlled with 3 DMX channels
- 1 to 6 colors per pixel
- Refresh rate: DMX, 40 Hz, 20 Hz, 10 Hz, 5 Hz
- Supported LED types: WS2801, WS2811, WS2812, etc. (all standard 800 kHz types)
- Does not require a separate adapter - power supply is via LED strip (5-12 V)
- Mounting via supplied plastic clip

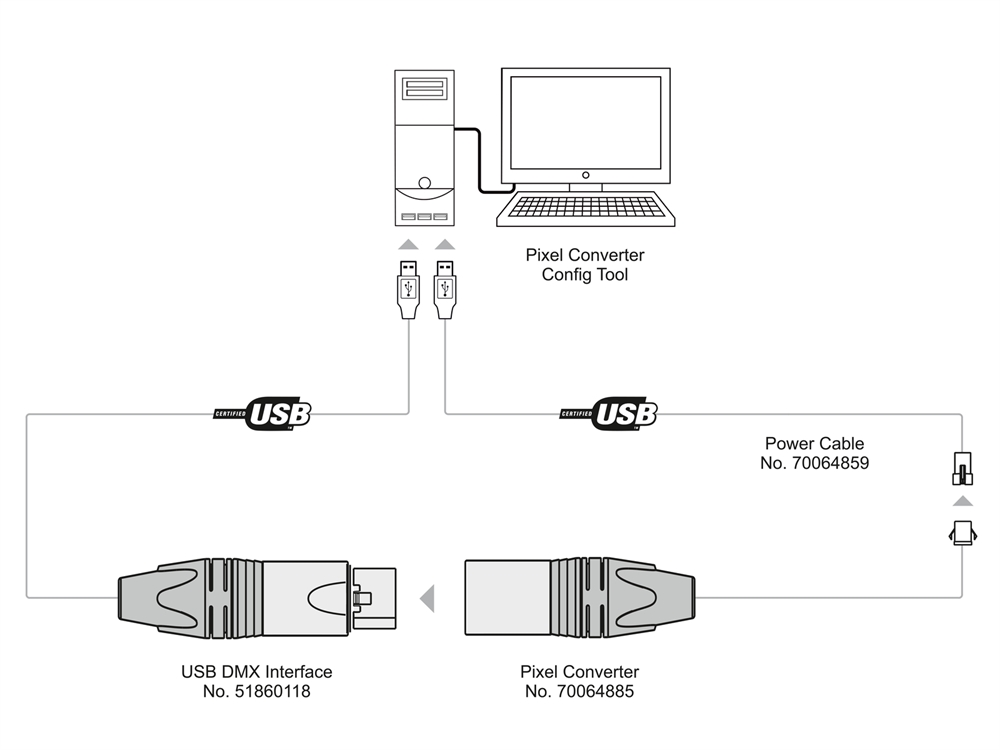

- Configuration via software tool (Windows) and the Eurolite USB-DMX adapter (item 51860118)
- The "Pixel Converter Config Tool" is available for download from the product page at www.eurolite.de
- Made in Germany
