EUROLITE LED IP Atmo Blinder 9

Ikke på lager
Forventet levering om ukendt antal uger
Bedømmelse for EUROLITE LED IP Atmo Blinder 9
Produktet er endnu ikke bedømt

10.059,00DKK ved 1 stk.

Vis uden moms

Weather-proof blinder with pixel control and atmo cluster

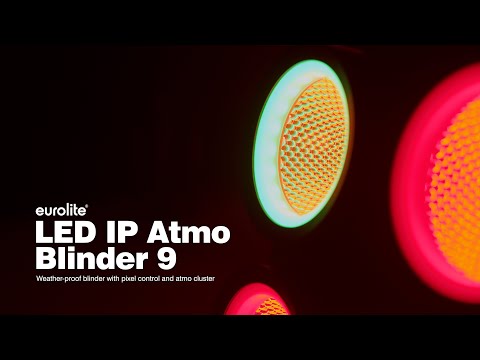

EUROLITE LED IP Atmo Blinder 9

EUROLITE LED KLS Laser Bar Next FX-Lichtset Titelbild

Atmo Blinder 9 from Eurolite:

3 x 3 Blinder with pixel control and RGB illuminated reflector

The LED IP Atmo Blinder 9 from Eurolite is a cluster of 3 x 3 powerful WW/CW LEDs, each of which sits in a reflector. Each of these reflectors can be additionally illuminated with RGB LEDs. In addition, at the edge of each reflector sits a ring of milky RGB LEDs, which can also be controlled individually.

EUROLITE LED KLS Laser Bar Next FX-Lichtset Frontansicht

Eye-catching effect

Thanks to this equipment, the Atmo Blinder 9 can be used in different ways: Of course, it meets the requirements of a classic, white-emitting blinder. But it can also be used as an eye-catching, colorful pixel effect in the stage background or as a soft, atmospheric light.

EUROLITE LED KLS Laser Bar Next FX-Lichtset Effektbild

Control

Since each LED can be controlled individually, the Atmo Blinder 9 can be controlled via DMX as well as via ArtNet. For larger installations with pixel effects, we recommend using MADRIX for control.

EUROLITE LED KLS Laser Bar Next FX-Lichtset Ansteuerung

Robust and weatherproof

The IP Atmo Blinder 9 has a robust housing, which makes it suitable for touring as well as outdoor use. The Blinder is best suited for festival and concert stages.

Weather-proof blinder with pixel control and atmo cluster

360 powerful LEDs 0,2 W SMD 3528 3in1 TCL RGB (homogenous color mix)
18 segments separate controlling
Variable color temperature 1800 K - 6000 K
9 powerful LEDs 24 W COB (chip-on-board) CW/WW (homogenous color mix)
LEDs separate controlling
Each of the 9 COB blinder LEDs is surrounded by 2 RGB segments for atmospheric light
One RGB LED segment is directed towards the front, one towards the reflector
Color blend stepless; color change adjustable; color fade adjustable; Dimmer electronic; dimmer curves with adjustable response; white balance adjustable
15 integrated Showprograms
Strobe effect
With a beam angle of 20°
Can be operated in 13; 18; 72; 85 CH mode
Controlling by stand-alone; DMX; ArtNet; RDM; Master/slave function
Multicolor LCD display
Flicker-free
With Mounting bracket; with Omega bracket
The device is cooled by low-noise cooling fan
Preprogrammed in Light´J
Mains input and output for power linking up to 4 units

Package contents

1 x user manual, 1 x power cord, 1 x xLR cable, 2 x omega bracket

Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	330 W
IP classification:	IP65
Protection class:	Protection class I
Power connection:	Mains input via IP T-Con (M) mounting version power supply cord with safety plug (provided)
Power output:	IP T-Con (F) mounting version
Lamp type:	LED lamp
LED:	360 x 0,2 W SMD 3528 3in1 TCL RGB (homogenous color mix) 9 x 24 W COB (chip-on-board) CW/WW (homogenous color mix)
Color temperature:	1800K - 6000K adjustable
DMX channels:	13; 18; 72; 85
DMX input:	3-pin XLR (M) mounting version IP
DMX output:	3-pin XLR (F) mounting version IP
Cooling:	Low-noise cooling fan
Control:	Stand-alone; DMX; ArtNet; RDM; Master/slave function
Preprogrammed in:	Light´J
Beam angle:	20°
Beam angle (1/2 peak):	20°
Beam angle (1/10 peak):	58°
Housing color:	Black
Attachment system:	Mounting bracket 2x Omega bracket
Display type:	Multicolor LCD display
Connections:	2 x RJ-45 (F) mounting version
Dimensions:	Width: 37,7 cm Depth: 20,5 cm Height: 38,4 cm
Weight:	14,00 kg
Legal specifications
Special product:	Not designed for household room illumination
Intended use:	Show effect lighting

Varenr.: E-41606430
