EUROLITE LED KLS-120 Laser FX II Compact Light Set

LED KLS-120 Laser FX II by EUROLITE

3in1: Compact light bar with derby effects and laser

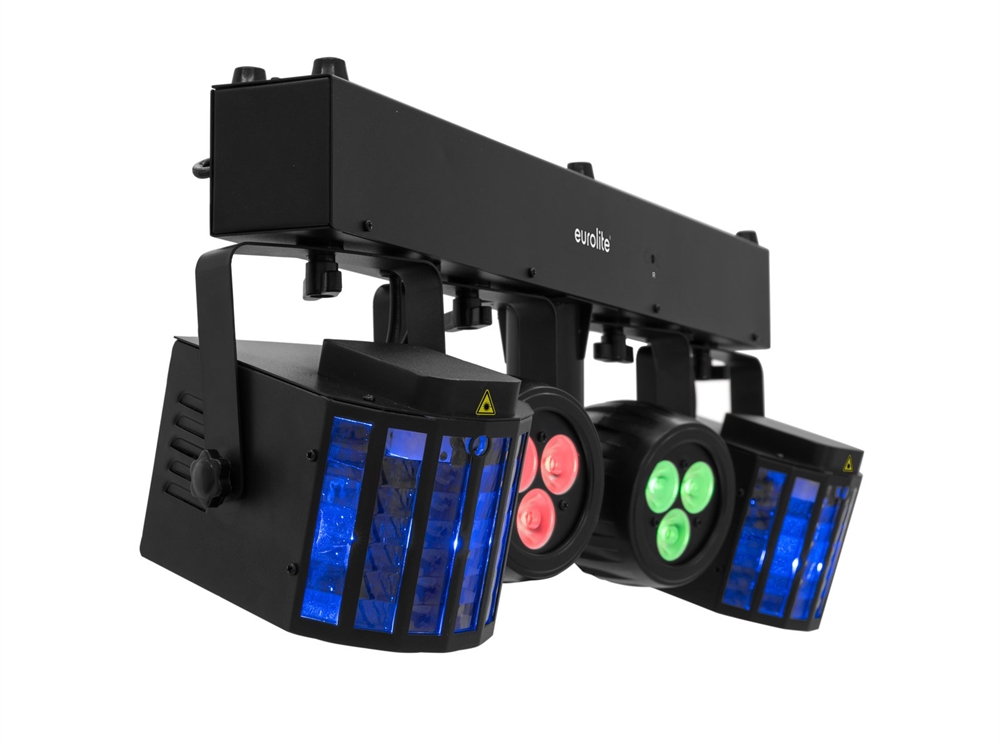

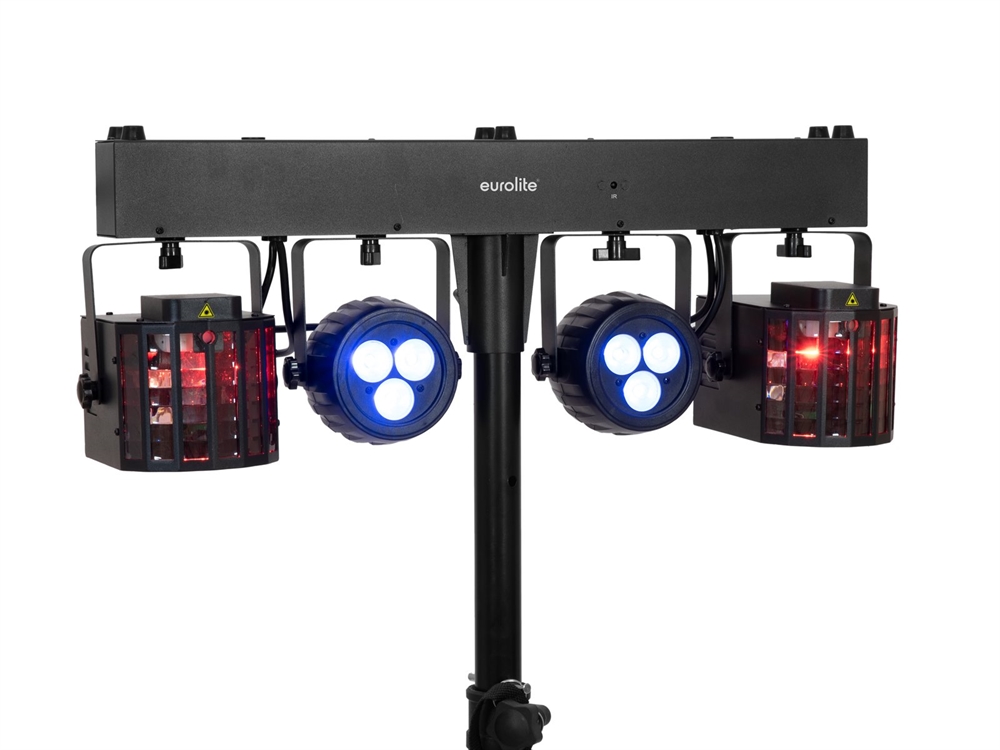

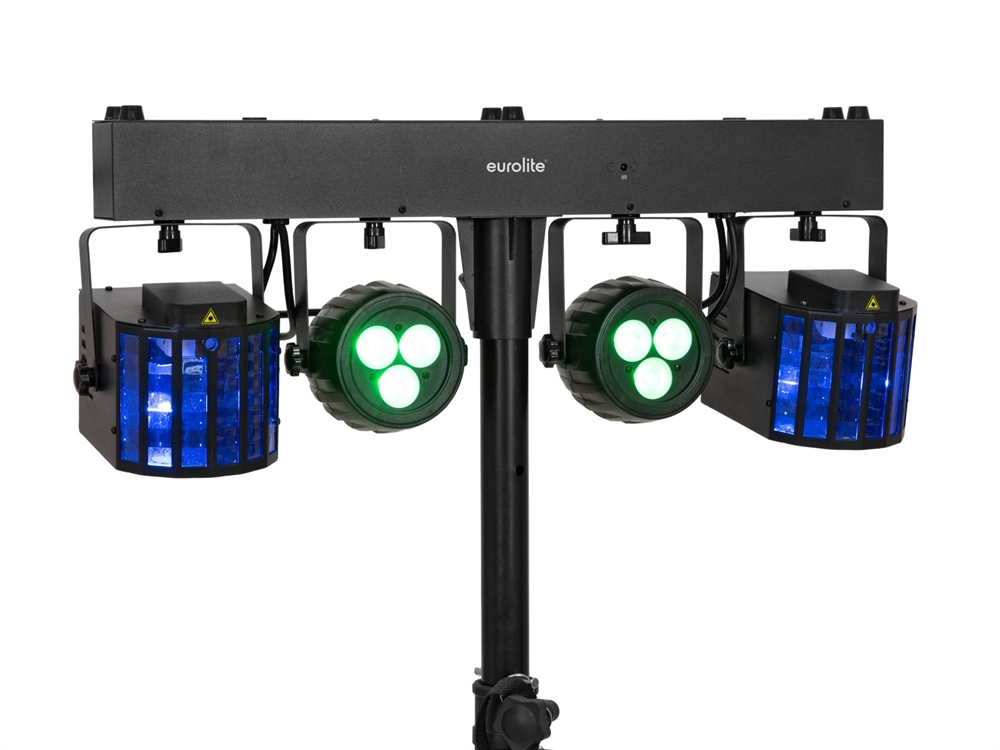

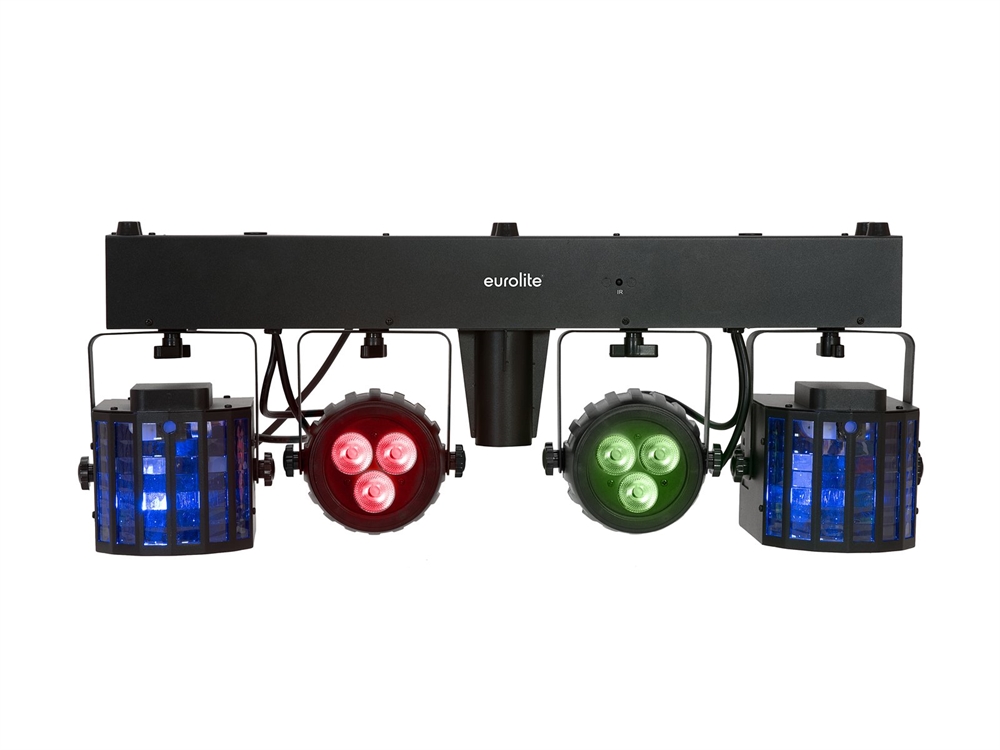

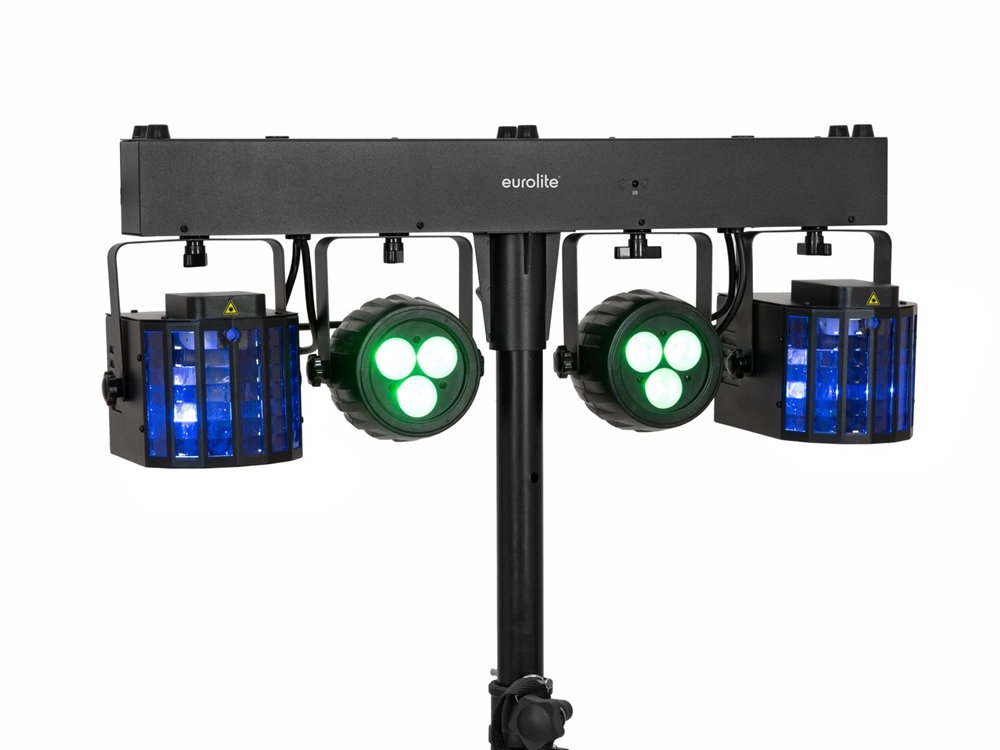

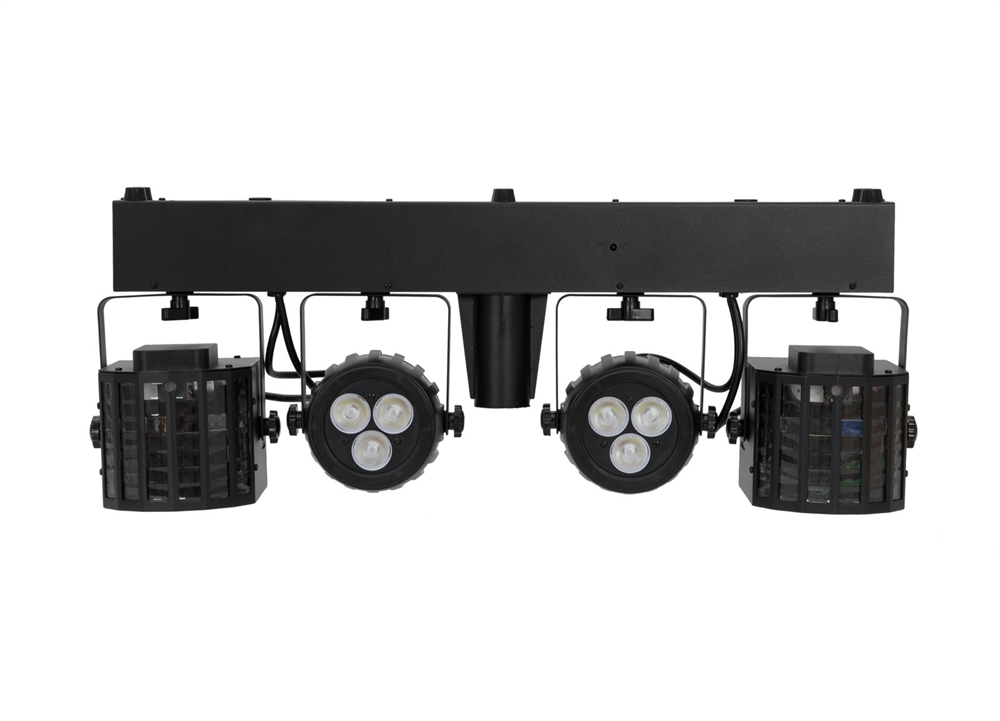

The KLS-120 Laser FX II from Eurolite offers two spots and two derby effects in addition to two show lasers integrated in the derbies. Thus, the compact light bar combines basic light, effects and laser into one practical device.

Scope of delivery

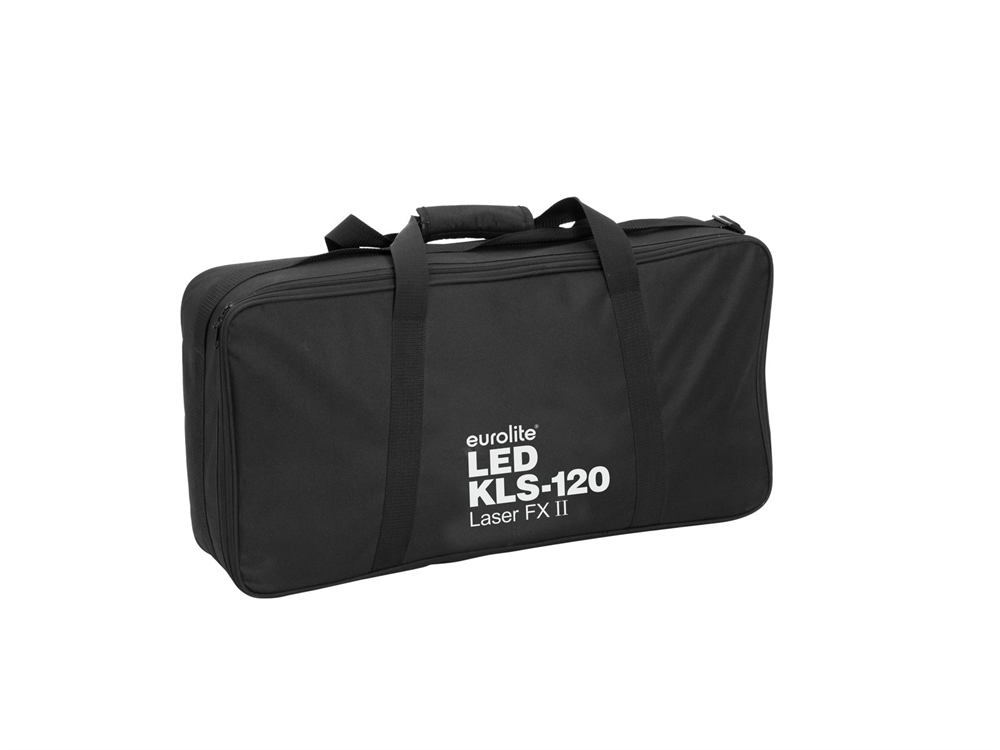

The scope of delivery includes an IR remote control with which colors and programs can be called up, and a practical carrying bag.

Equipment

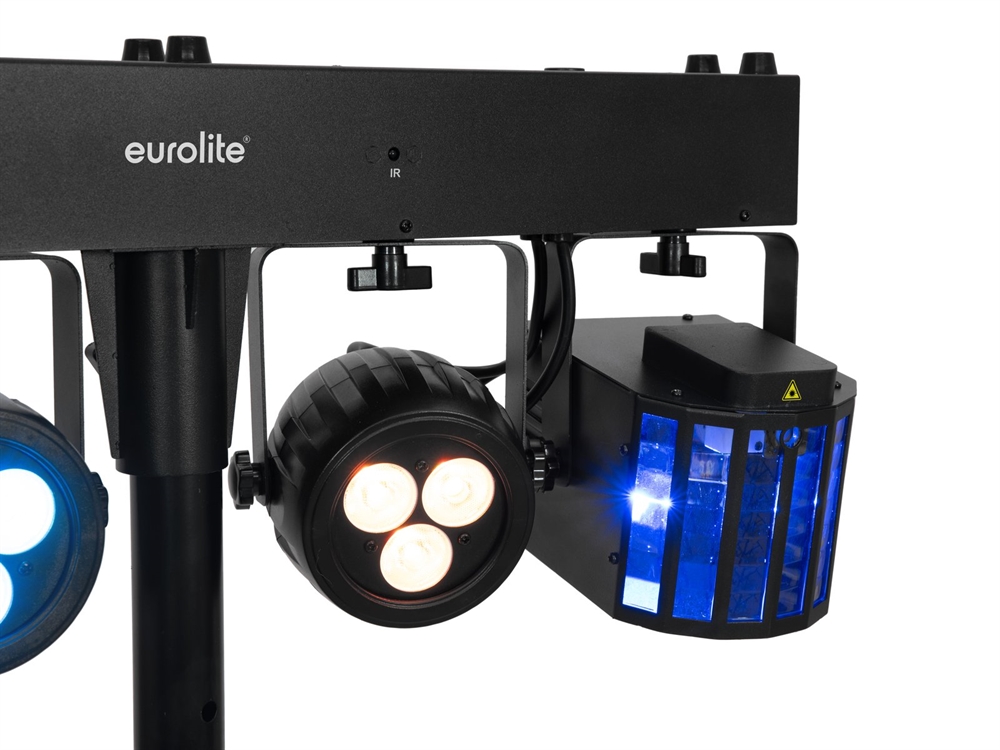

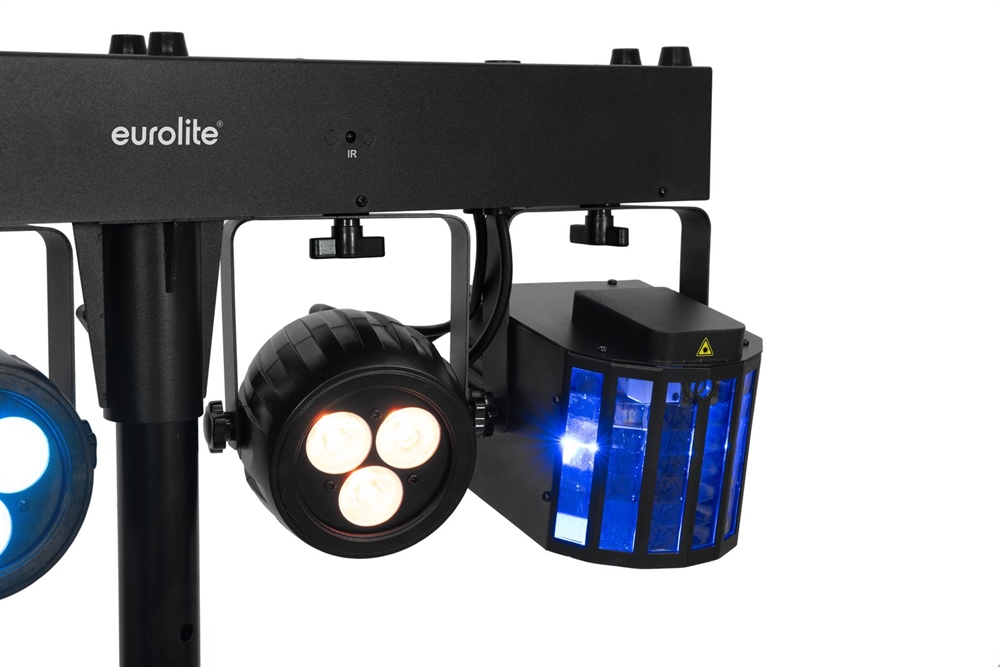

The two spots are each equipped with 3 COB high-power LEDs based on RGBW color mixing. The rotating derby beam effects each house four 3-watt RGBW LEDs that produce colorful beams; the two star lasers are integrated into the derbies' housing. The lasers produce a huge number of red and green dots that can rotate on their own axes. rotate. The classification of the lasers is Class 2M, so they may be operated just like that without instruction, registration or major safety requirements.

Control

The KLS-120 FX II can be controlled via DMX; but there are also seven different automatic programs stored, which can be called up either in stand-alone mode or music-controlled.

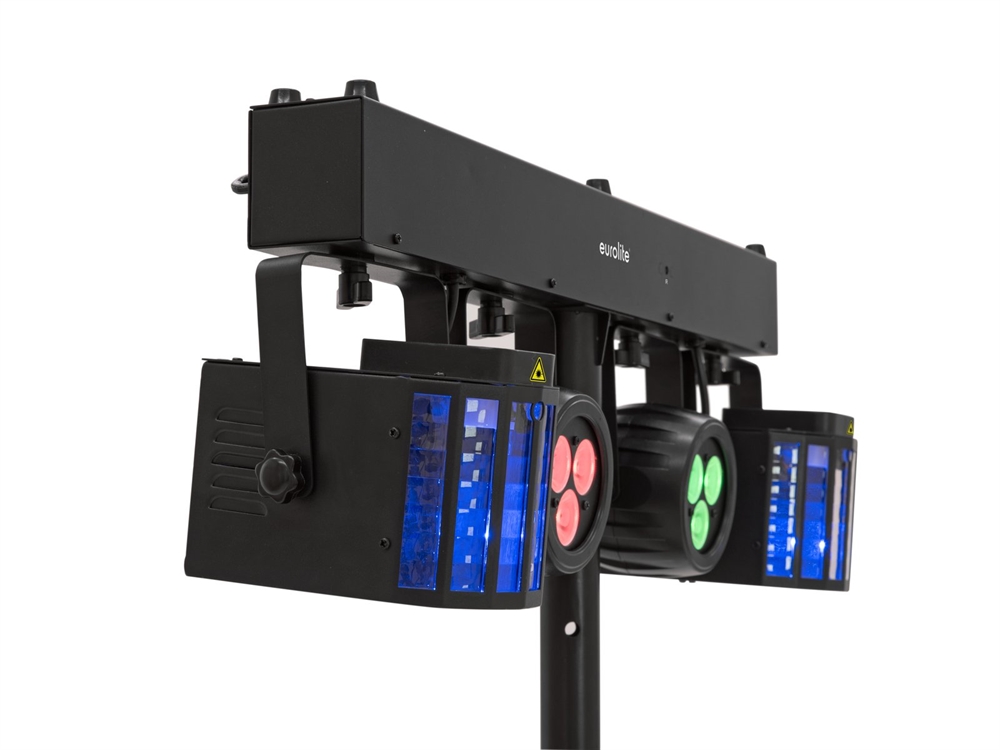

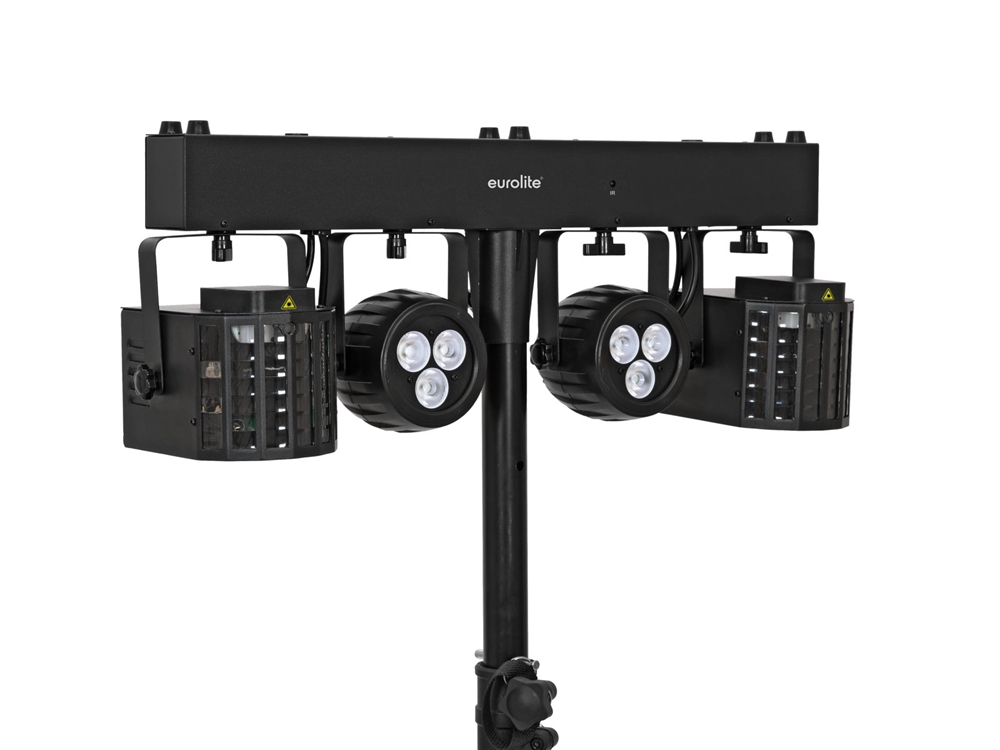

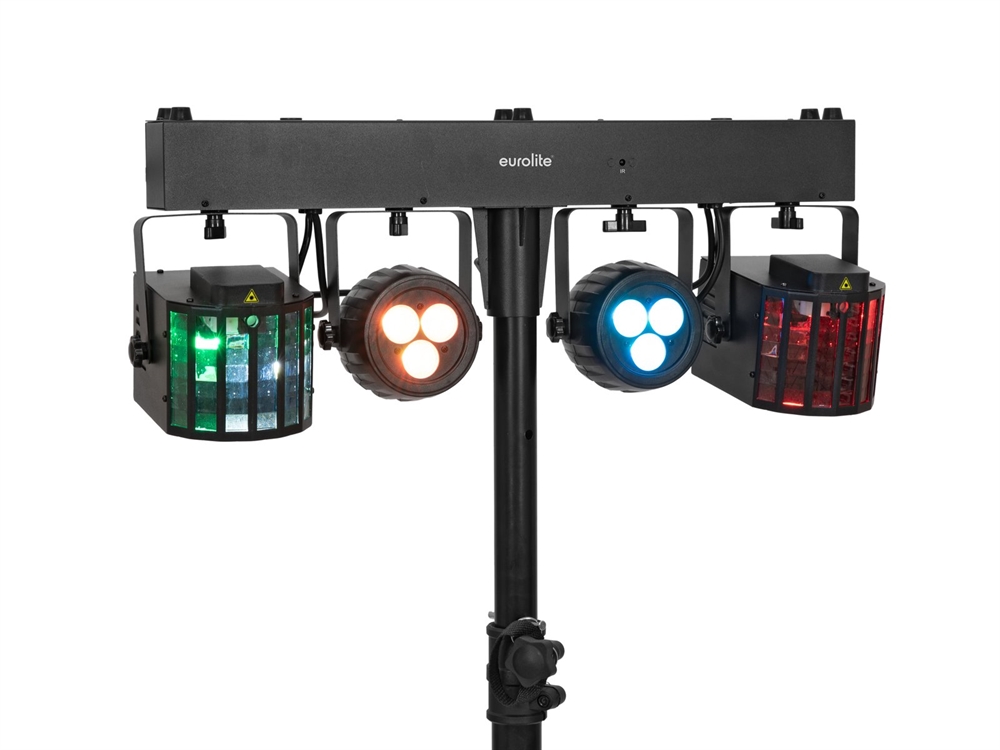

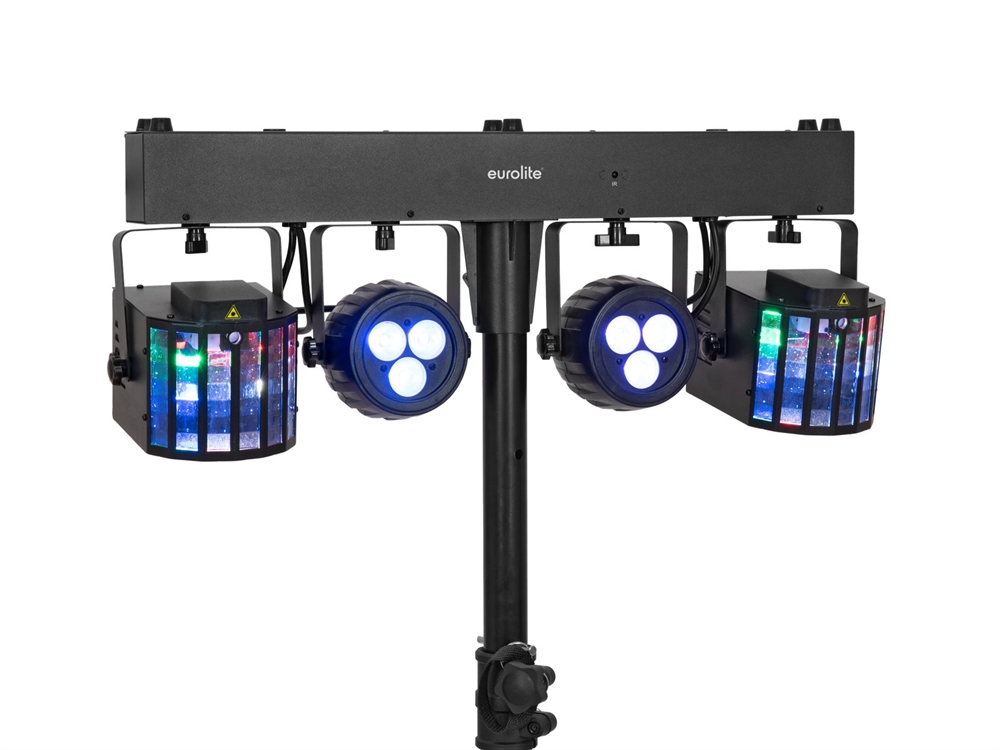

DMX light effect bar with 2 rotating LED derbies, 2 LED spots and 2 Laser (RG/2M)

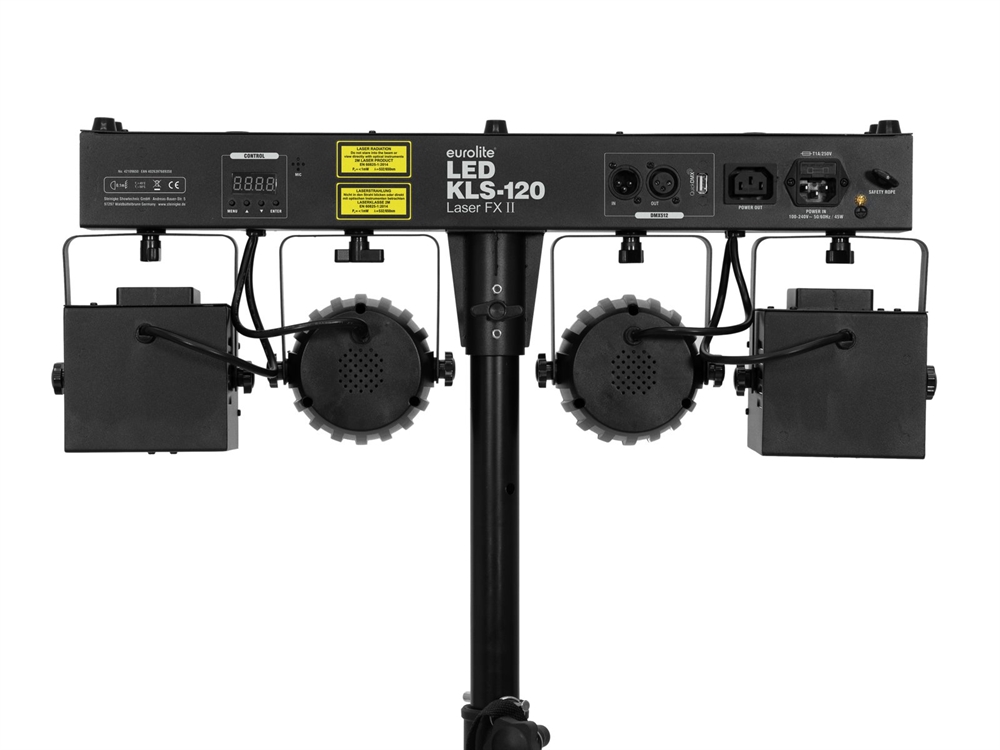

• Crossbar with integrated DMX control unit and stand sleeve
• Ultra-light ideally suited for mobile use
• Suited for installation on a speaker stand (not included) or truss
• Comes pre-assembled with practical transport bag
• 2 laser diodes project thousands of red and green laser beams
• Laser class 2M: does not require additional protective measures or appointment of a laser safety officer
• 2 rotating derbies for mirror ball effects with 4 bright 3W RGBW LEDs each
• 2 spots with 3 bright COB 8W RGBW LEDs (4in1) each
• Auto, music, master/slave and DMX mode
• 7 built-in auto and music show programs
• Direct color selection for 15 preset colors
• Stepless color blend, color change, color fade, dimmer and strobe effect
• Sound-control via built-in microphone with sensitivity control
• Supports QuickDMX - the wireless DMX system from Eurolite
• Built-in phantom-powered USB port for QuickDMX receivers (accessory)
• 3, 13 or 25 DMX channels selectable
• Addressing and setting via control panel with 4-digit LED display
• Convenient wireless control via included IR remote control EUROLITE IR-7
• Additional rubber feet when the spot shall be positioned on the floor
• IEC terminals for power linking up to 8 units
• Switch-mode power supply for operation between 100 and 240 volts
• LED: Wash effect each with separate controlling 3 x COB (chip-on-board) 8 W 4in1 QCL RGBW (homogenous color mix)
• LED: Multi beam effect each with separate controlling 4 x high-power 3 W R/G/B/W
• Can be operated in 3; 13; 25 CH mode
• The device is cooled by passive convection
• Controlling by DMX; IR remote control; Stand-alone; QuickDMX via USB (optional); Sound to light via Microphone built-in; Master/slave function
• Flicker-free projection
