EUROLITE LED PIX-72 RGB Bar

EUROLITE LED PIX-72 RGB Bar
  • På lager
  • På lager, 3-5 hverdage
  • Bedømmelse for EUROLITE LED PIX-72 RGB Bar
    Produktet er endnu ikke bedømt
  •
    609,00DKK ved 1 stk.
Vis uden moms
Billigst på PriceRunner

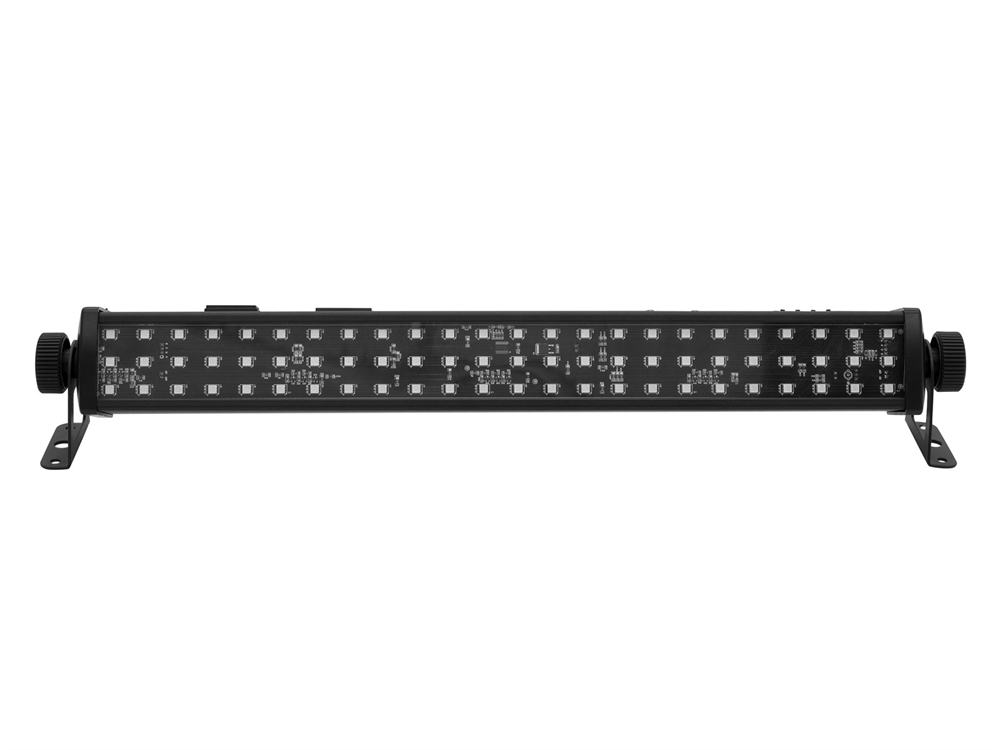

Bar (50 cm) with 72 wide beam RGB LEDs, 4 segments

EUROLITE LED PIX-72 RGB Bar



EUROLITE LED PIX-72 RGB Bar title image

EUROLITE LED PIX-72 RGB Bar

No half portion!

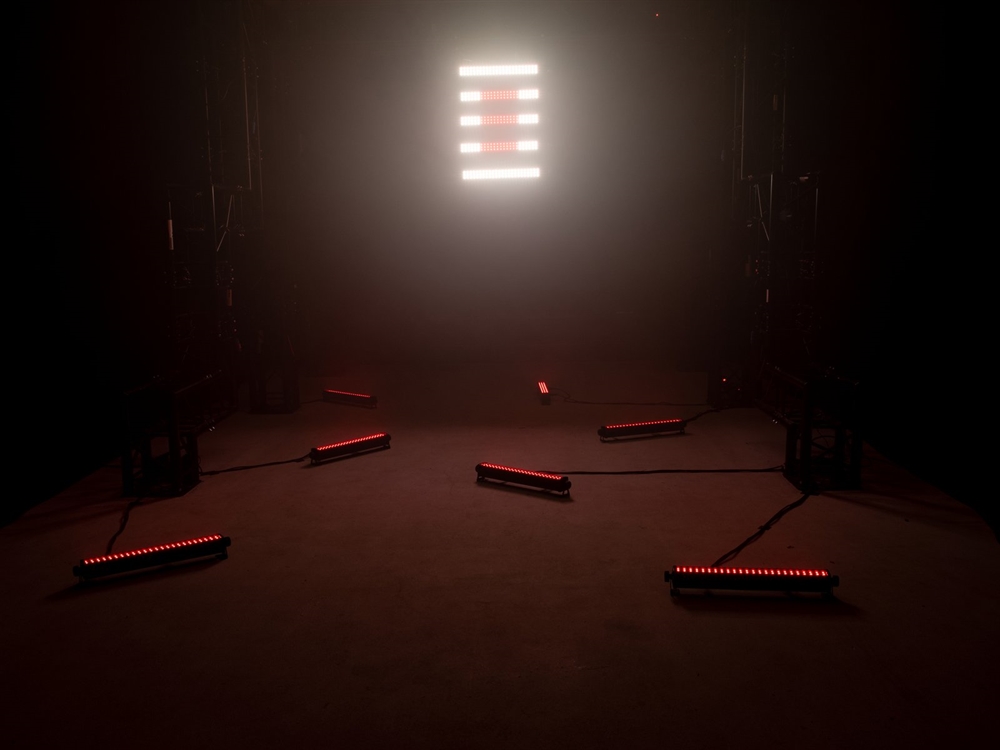

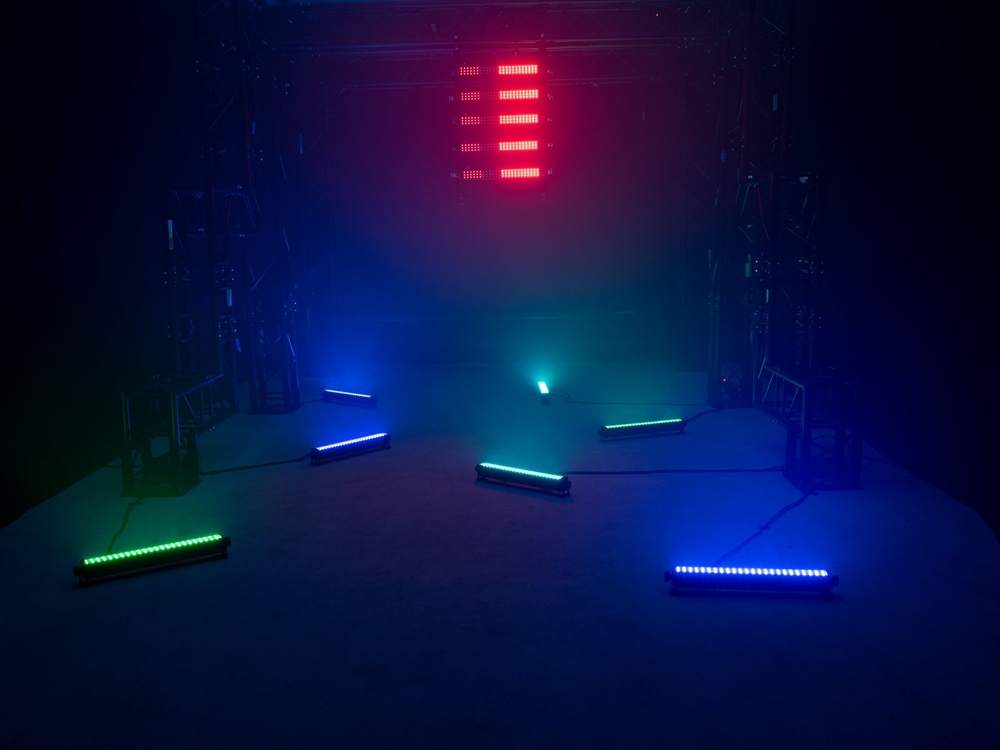

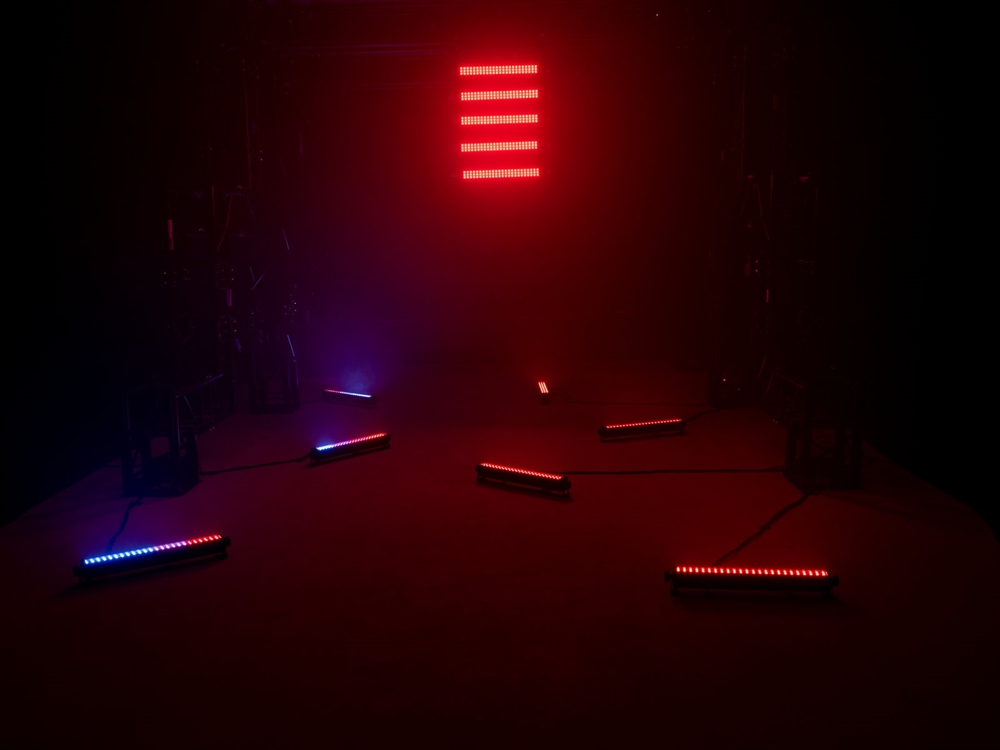

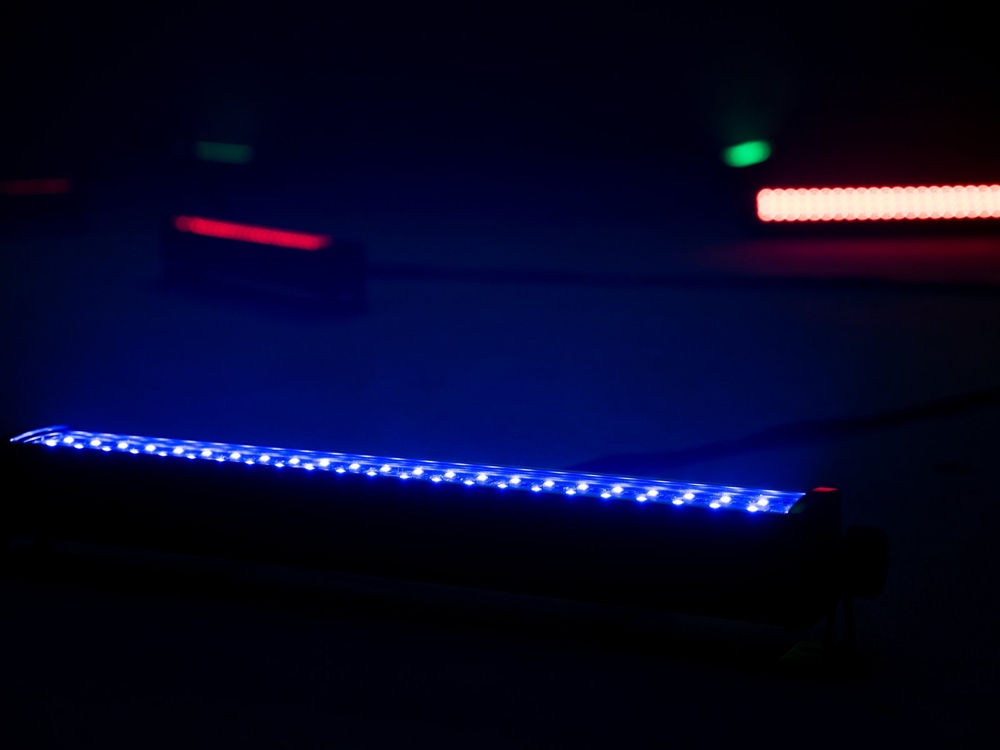

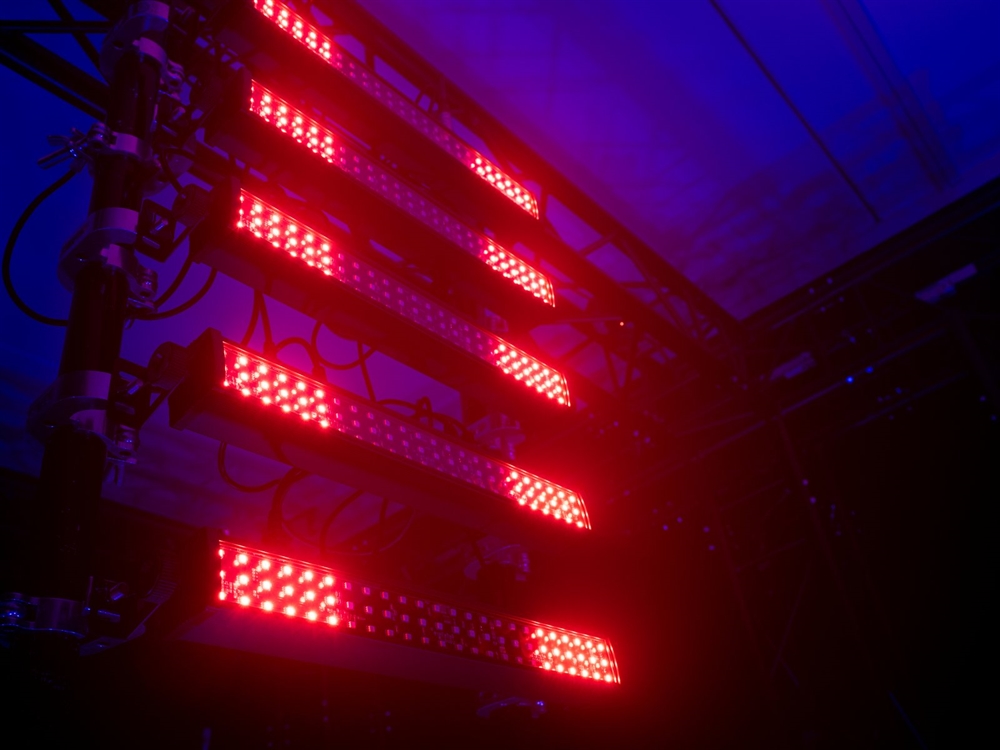

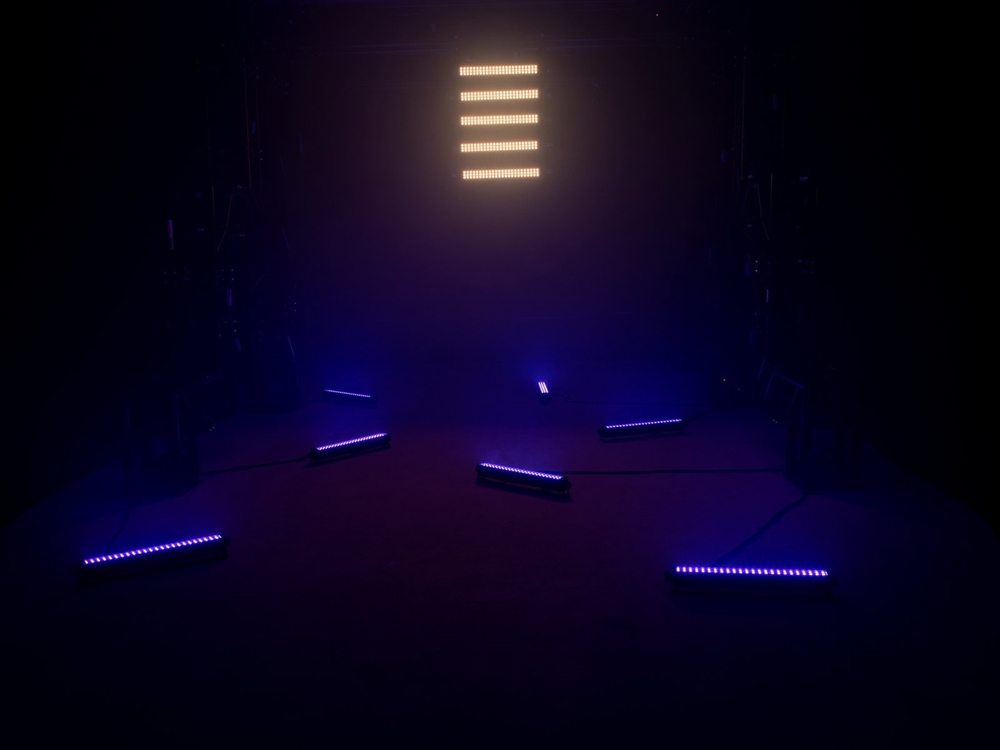

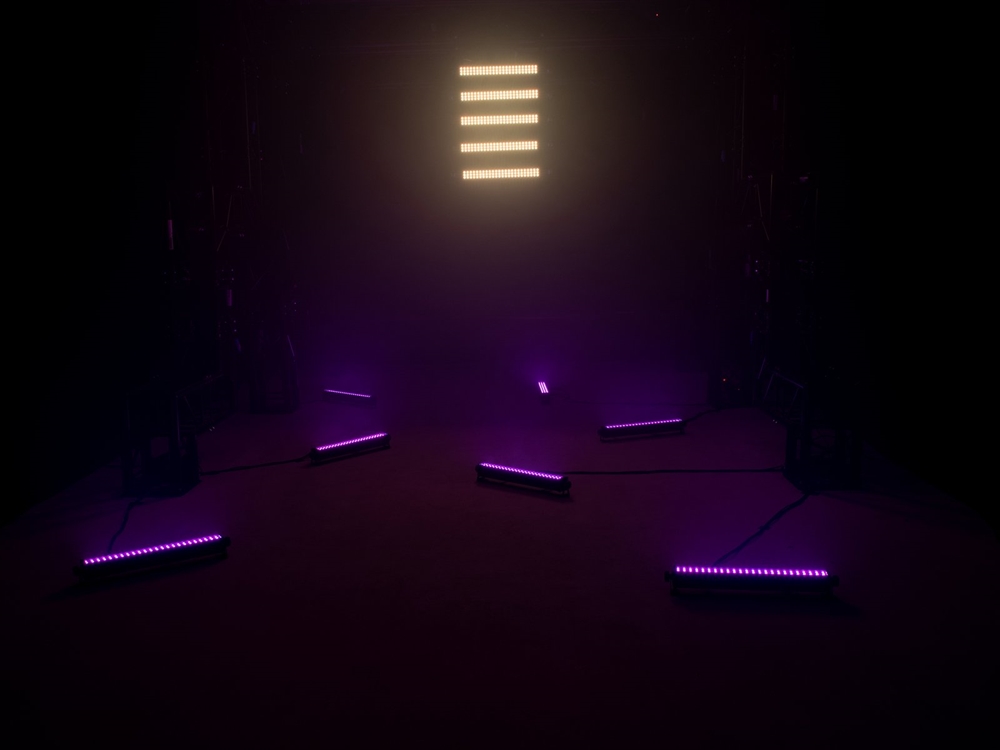

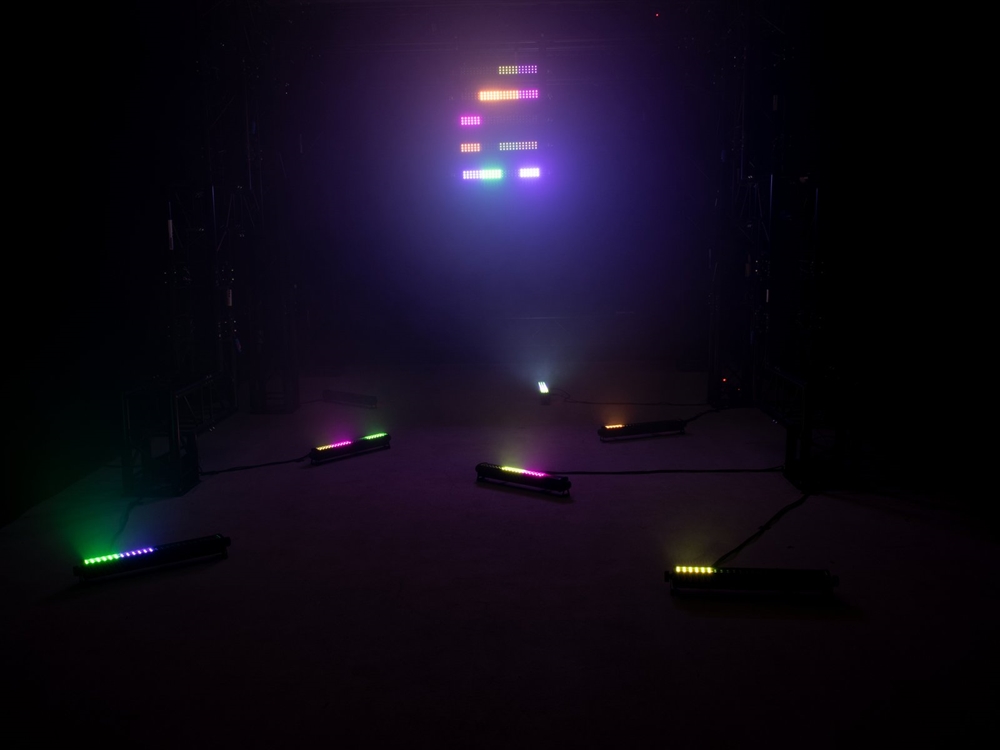

With the PIX-72, Eurolite has cut another LED bar in half: The PIX-72 is the half-brother of the PIX-144, so its light surface consists “only” of 72 SMD LEDs that can be controlled in four segments. The extremely broad emitting light of these bars is perfectly suited to illuminate surfaces or to integrate the bar into the stage set in such a way that the audience looks directly at the illuminated surfaces. The color mixture is based on red, green and blue.


Bar (50 cm) with 72 wide beam RGB LEDs, 4 segments

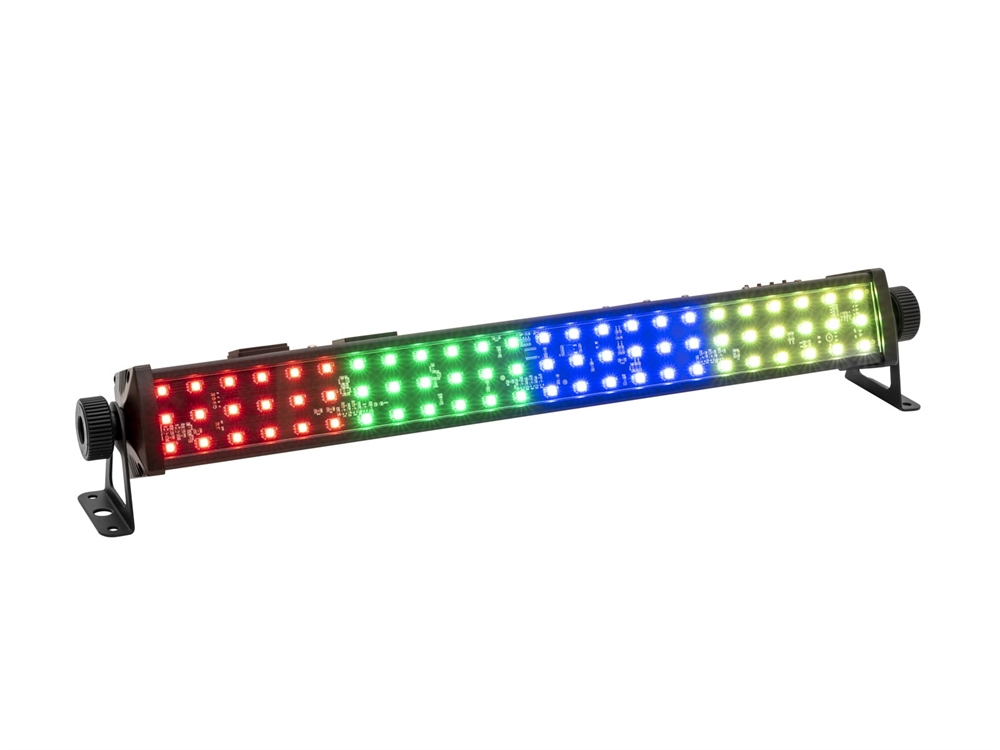

  • 4 individually controllable pixels (illumination units with 18 LED each)
  • 72 RGB LEDs (SMD 5050)
  • Stand-alone, master/slave and DMX mode
  • Stepless color blend, color change, preset colors, dimmer and strobe effect

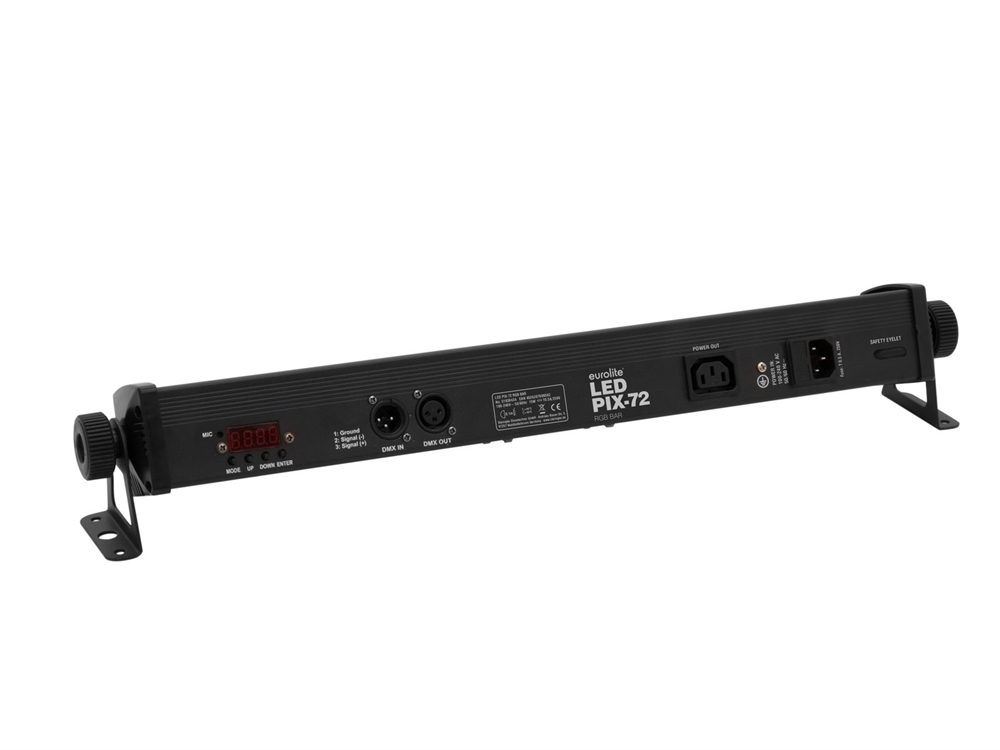

  • Control panel with LED display for easy configuration

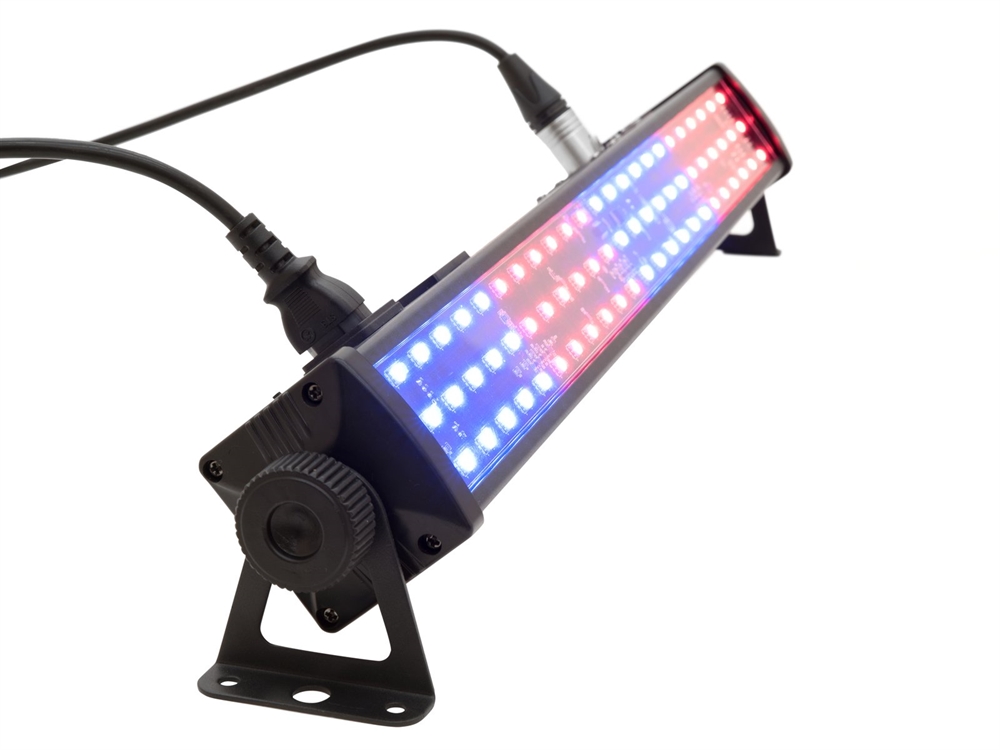

  • 2 swivel mounting brackets
  • Mains input and output for power linking up to 8 units
  • LED: 72 x SMD 5050 3in1 TCL RGB (homogenous color mix)
  • Can be operated in 3; 5; 6; 12; 12 CH mode
  • The device is cooled by passive convection
  • Controlling by stand-alone; DMX; Master/slave function; Sound to light via Microphone
  • Preprogrammed in Light Captain
  • Flicker-free projection




Power supply:100-240 V AC, 50/60 Hz
Power consumption:15 W
IP classification:IP20
Protection class:Class I
Power connection:Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided)
Power output:IEC connector (F) mounting version
Fuse:T 0,5 A Fuse replaceable
Lamp type:LED lamp
LED:72 x SMD 5050 3in1 TCL RGB (homogenous color mix)
Flash rate:0 - 20 Hz
DMX channels:3; 5; 6; 12; 12
DMX input:3-pin XLR (M) mounting version
DMX output:3-pin XLR (F) mounting version
Cooling:Passive convection
Control:Stand-alone; DMX; Master/slave function; Sound to light via Microphone; Light Captain
Beam angle:120°
Beam angle (1/2 peak):120°
Housing color:Black
Display type:4 digits 7-segment LED display
Dimensions:Length: 56,5 cm
Depth: 7,0 cm
Height: 9,0 cm
Weight:1,03 kg
Legal specifications
Special product:Not designed for household room illumination
Intended use:Show effect lighting
Varenr.: E-51930434
