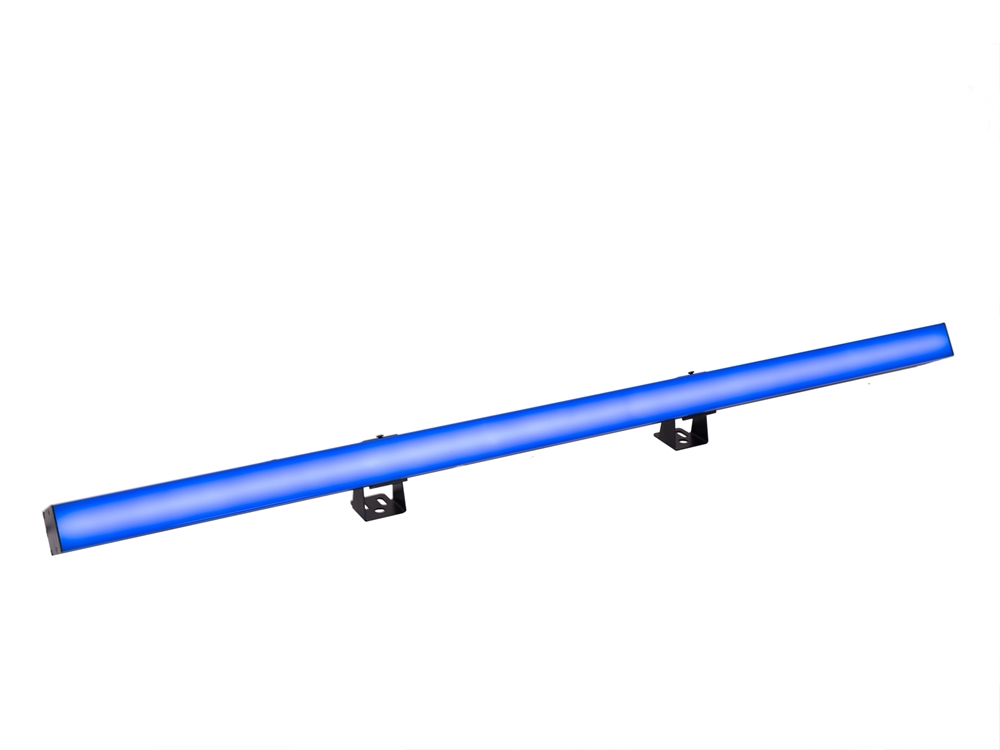

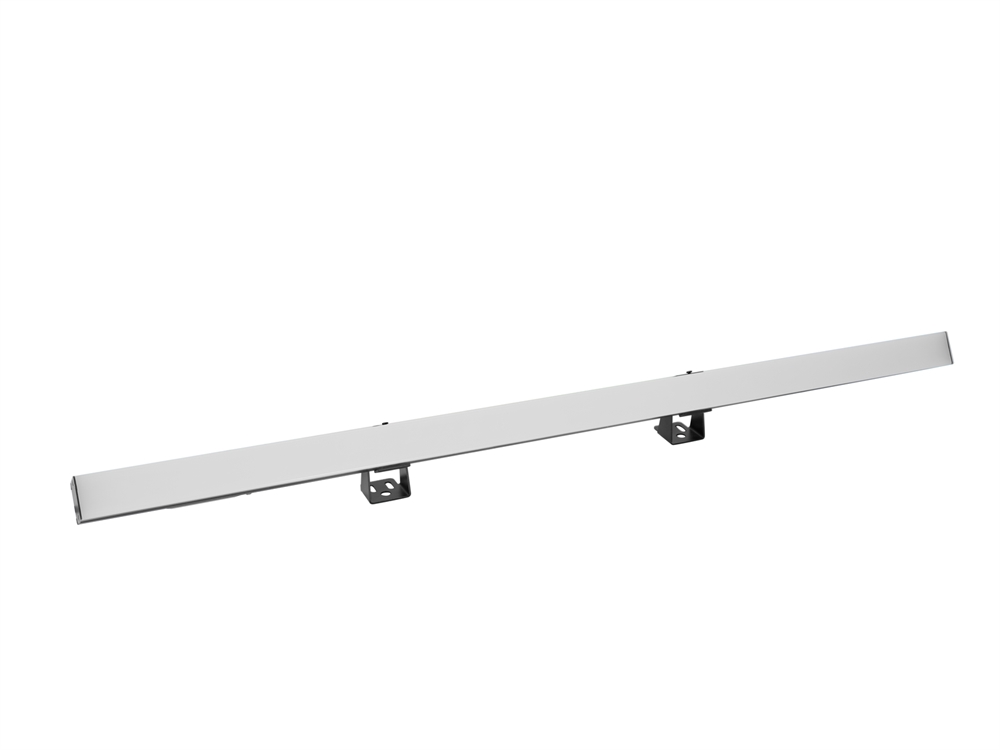

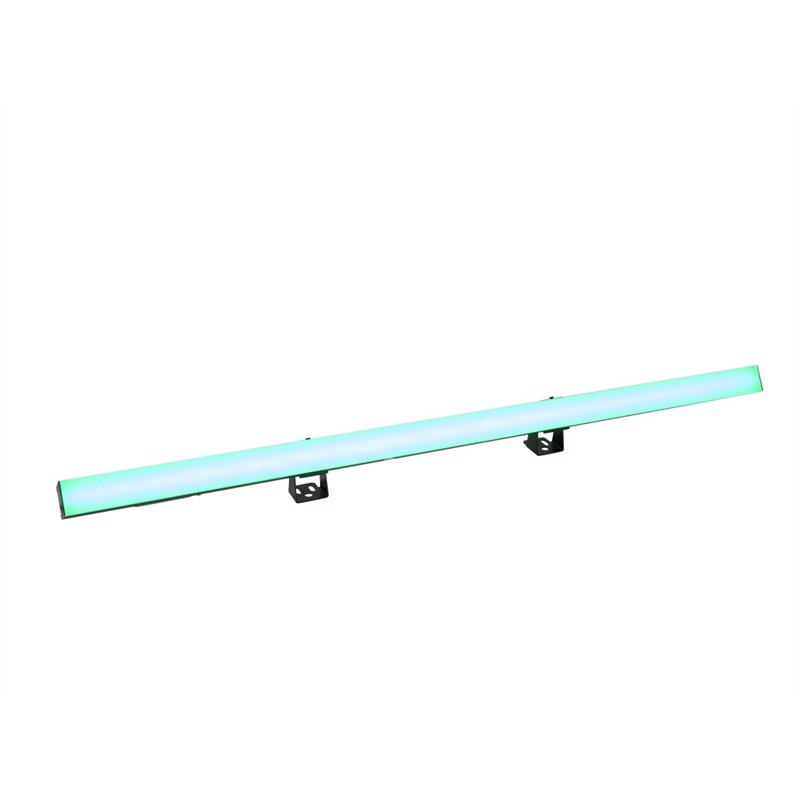

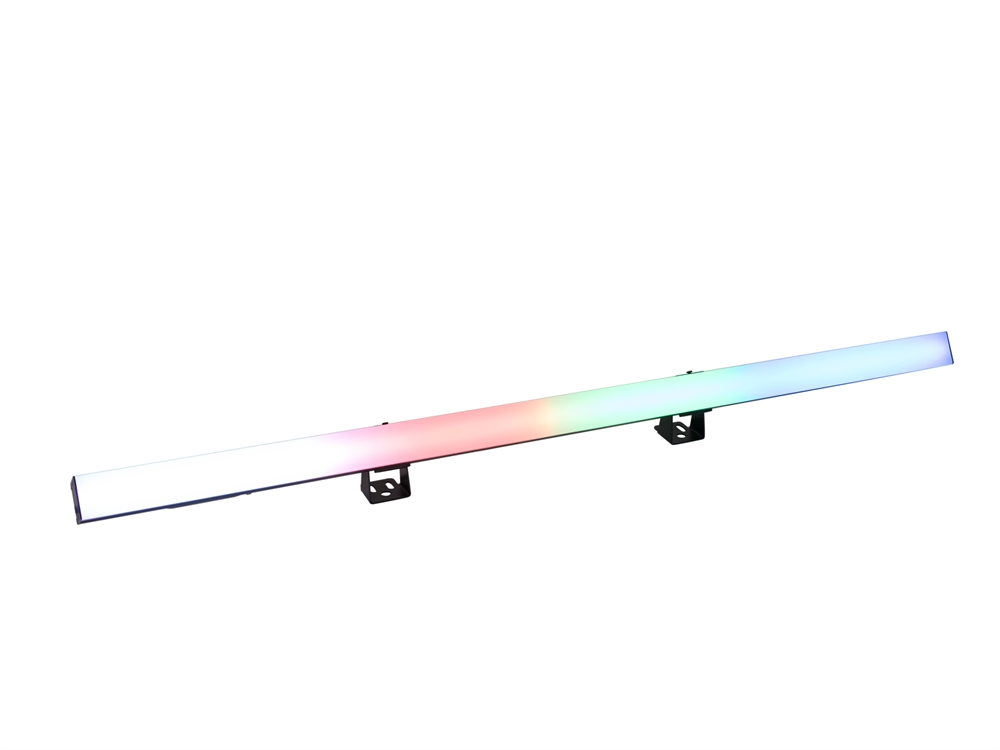

EUROLITE LED PL-100/32 Pixel DMX rail

DMX-controllable pixel rail with RGB color mixing

• Tube with 96 high power RGB LEDs (3in1) for light effects
• Subdivided into 32 pixels (illumination units à 3 LEDs) which can be controlled individually by DMX
• Auto, music, master/slave and DMX mode
• Static colors, automatic color change, internal programs with variable speed, dimmer settings
• 12 built-in auto and music show programs
• Direct color selection for 17 preset colors
• 3, 5, 8, 48 or 96 DMX channels selectable
• DMX and power terminals intelligently designed for easy wiring
• Sound-control via built-in microphone with adjustable microphone sensitivity
• Addressing and setting via control panel with 4-digit LED display
• Metal housing with brackets for hanging as well as standing installation indoors
• Front cover: milky
• Swivel mounting bracket
• P-Con terminals for power linking up to 8 units
• Switch-mode power supply for operation between 100 and 240 volts
• LED: 96 x SMD 5050 3in1 TCL RGB (homogenous color mix)
• Can be operated in 3; 5; 8; 48; 96 CH mode
• The device is cooled by passive cooling by convection
• Controling by Stand-alone; DMX; Sound to light via Microphone
• Flicker-free projection
