Power supply: | 100-240 V AC, 50/60 Hz |
Power consumption: | 200 W |
IP classification: | IP20 |
Protection class: | Protection class I |
Power connection: | Mains input via P-Con (blue), mounting version power supply cord with safety plug |
Power output: | P-Con (gray), mounting version |
Lamp type: | LED lamp |
LED: | 2688 x R/G/B/A/L/C (homogenous color mix) |
Flash rate: | 12 Hz |
DMX channels: | 5 (HSI hue/saturation/intensity); 8; 9; 11 |

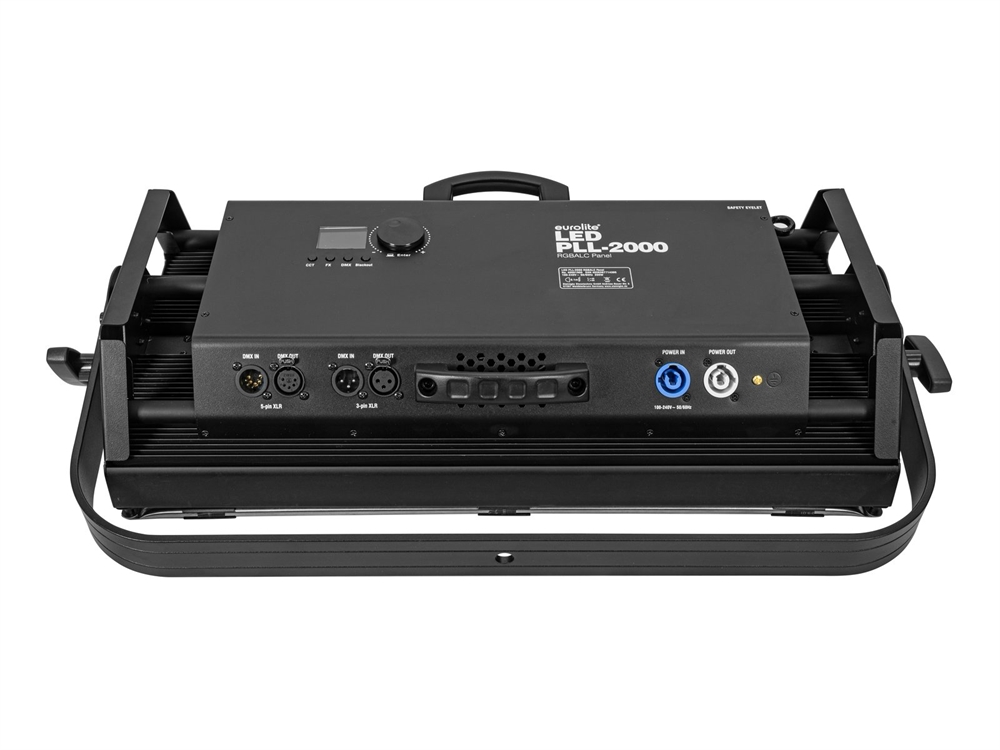

DMX input: | 3-pin XLR (M) mounting version 5-pin XLR (M) mounting version |
DMX output: | 3-pin XLR (F) mounting version 5-pin XLR (F) mounting version |
Cooling: | Passive convection cooling |
Control: | Stand-alone; DMX; Master/slave function |
Preprogrammed in: | Light´J; Light Captain |
Beam angle: | 120° |
Beam angle (1/2 peak): | 120° |
Color rendering index (CRI): | 96 Ra |
Illuminance in Lux (lx): | Red (R) 1m: 185 lx, 3m: 6 lx, 6m: 0 lx Green (G) 1m: 913 lx, 3m: 123 lx, 6m: 32 lx Blue (B) 1m: 243 lx, 3m: 34 lx, 6m: 7 lx Amber (A) 1m: 1307 lx, 3m: 148 lx, 6m: 29 lx Lime 1m: 3712 lx, 3m: 519 lx, 6m: 127 lx Cyan 1m: 642 lx, 3m: 88 lx, 6m: 22 lx All 1m: 4587 lx, 3m: 643 lx, 6m: 155 lx |
Lamp life: | 50000 h |
Luminous flux: | 16000 lm |
Housing color: | Black |
Attachment system: | Mounting bracket |

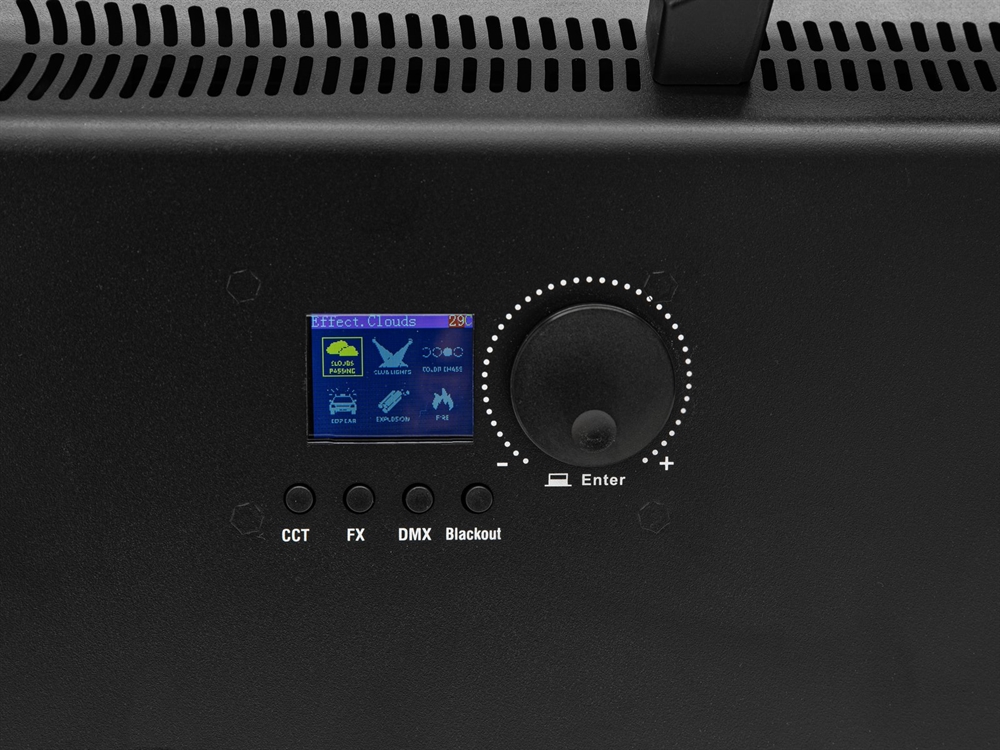

Display type: | Multicolor LCD display |
Carrying handle: | 2 pc/pcs |
Dimensions: | Width: 64,5 cm Depth: 14,0 cm Height: 34,5 cm |
Weight: | 9,80 kg |
Energy efficiency class (A - G): | F |
