EUROLITE LED PLL-480 QCL Panel

EUROLITE LED PLL-480 QCL Panel

  • På lager
  • På lager, 3-5 hverdage
  • Bedømmelse for EUROLITE LED PLL-480 QCL Panel
    Produktet er endnu ikke bedømt
  •
    7.169,00DKK ved 1 stk.
Vis uden moms
Billigst på PriceRunner


DMX-controlled surface light with 480 4in1 RGBW LEDs

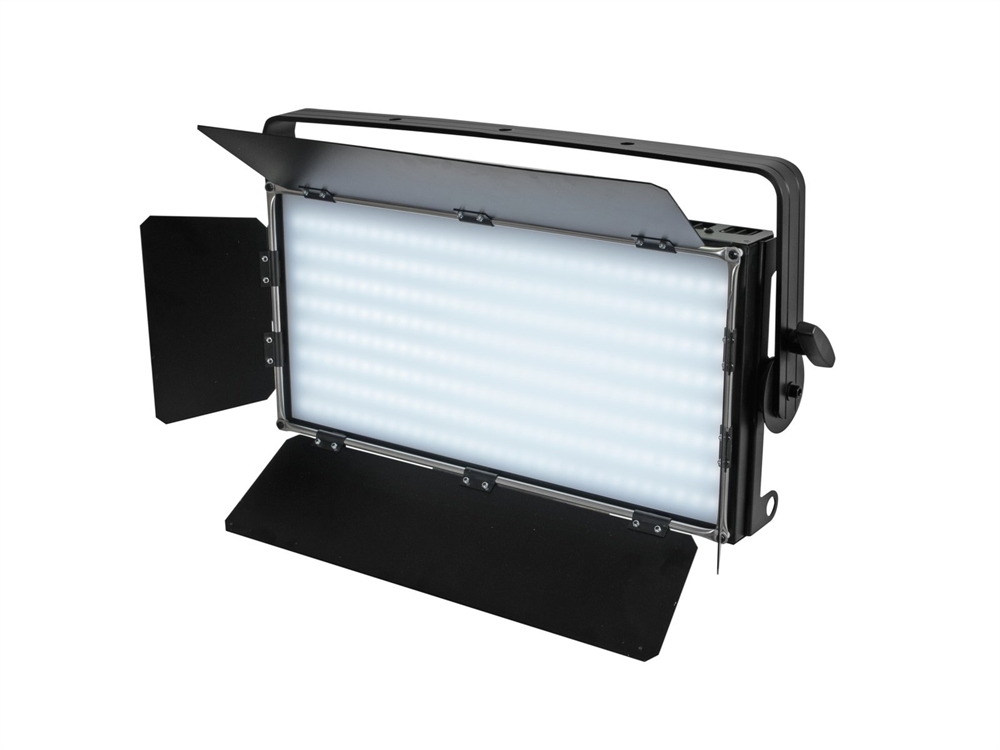

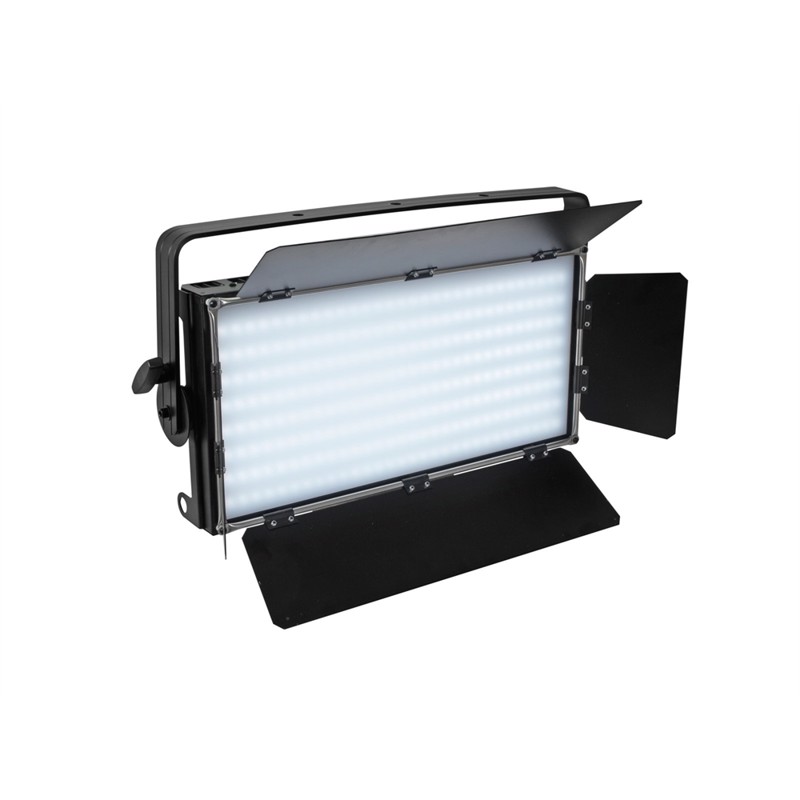

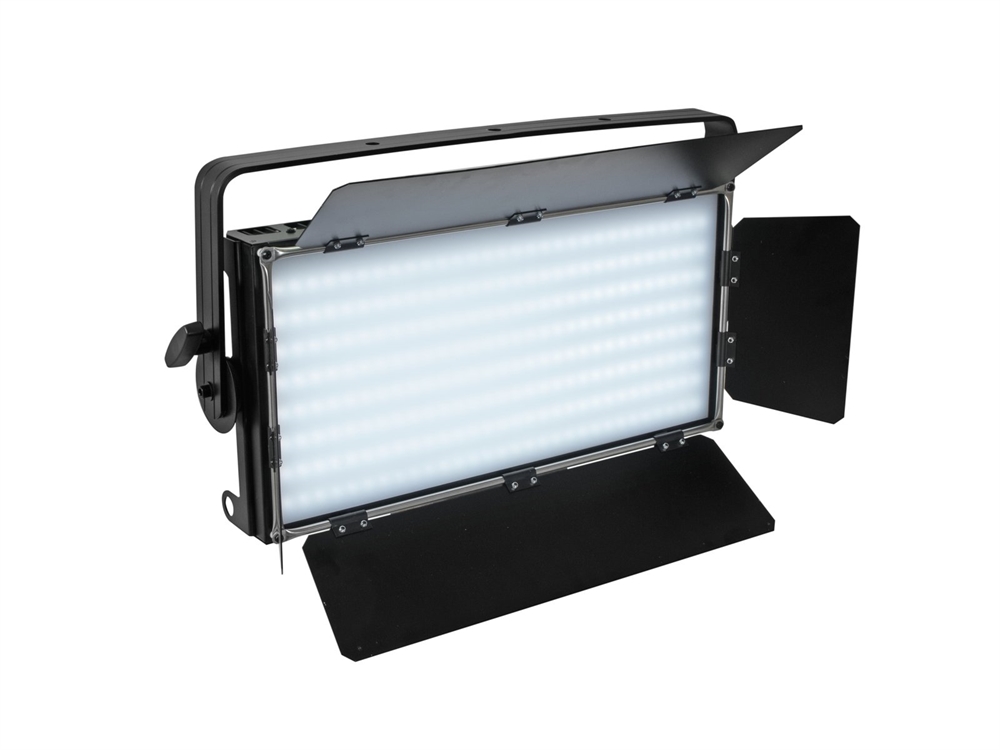

EUROLITE LED PLL-480 QCL Panel





DMX-controlled surface light with 480 4in1 RGBW LEDs

  • High-grade surface light with 480 super bright LEDs

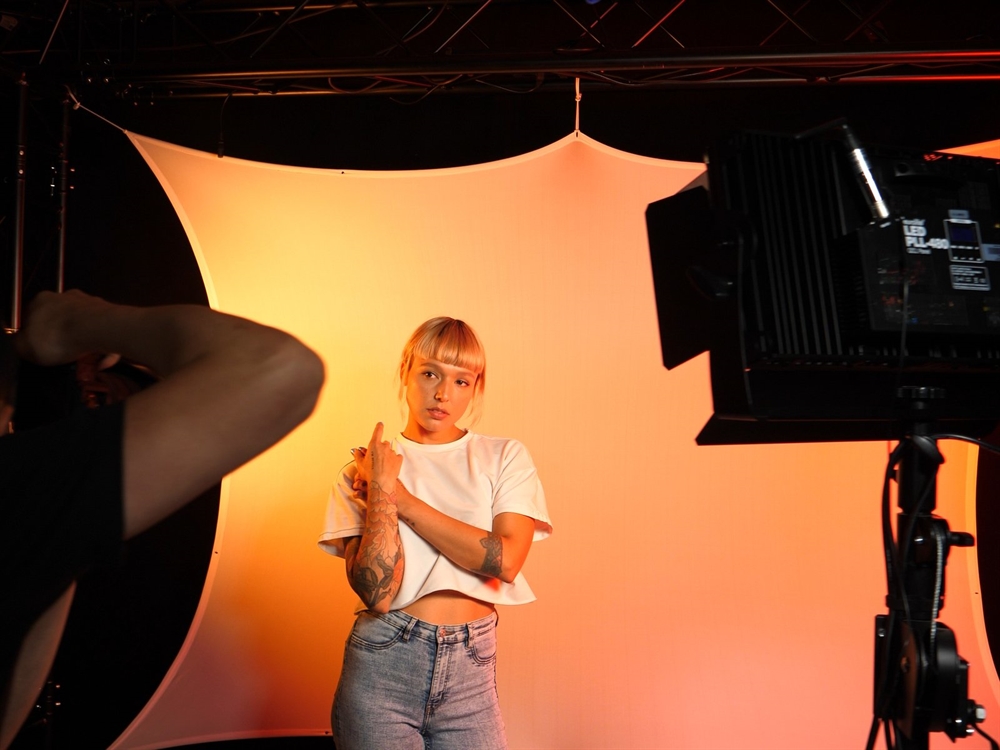

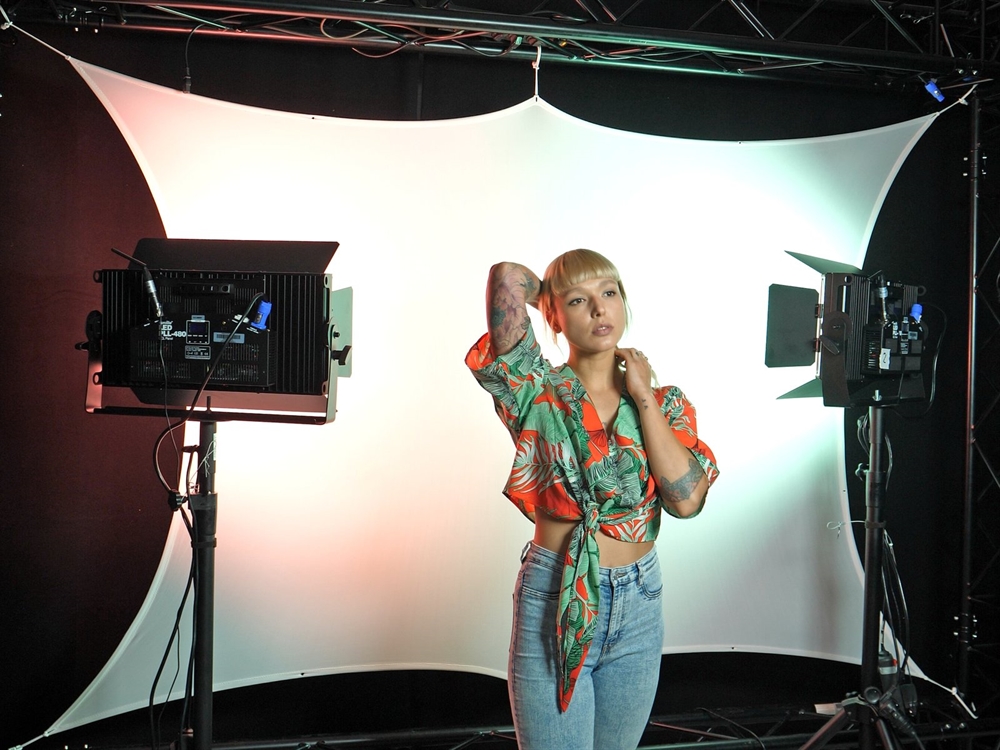

  • Ideal for photography, film, stage and trade fair lighting
  • Energy saving, durable and environmental friendly

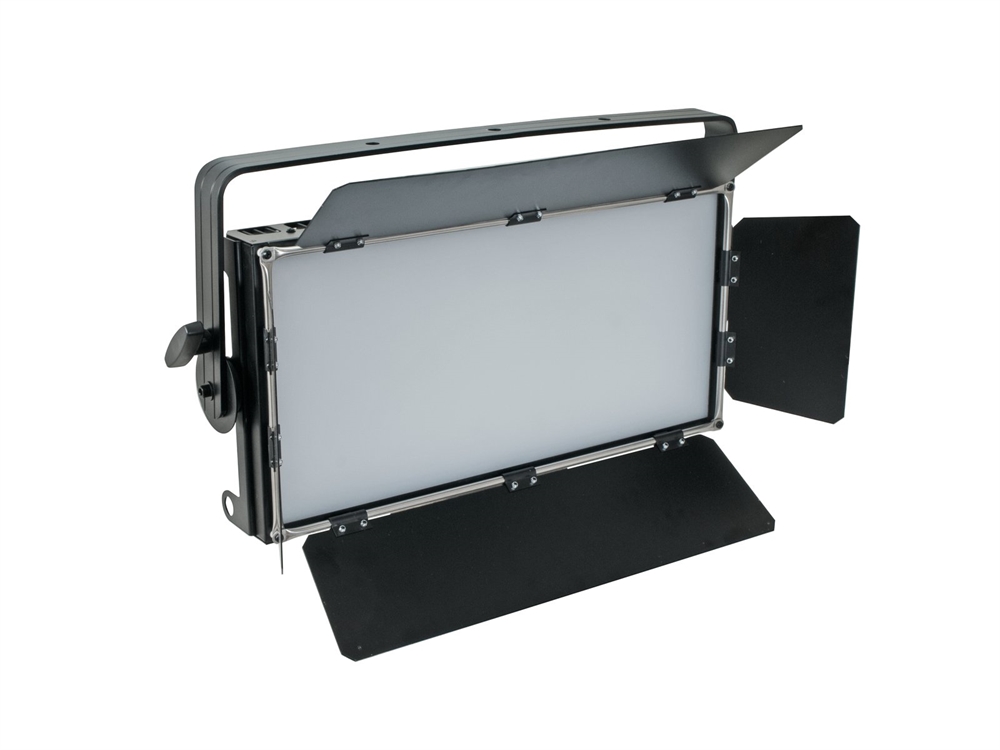

  • Milky diffuser provides a homogeneous and soft continuous light
  • 4 barn doors to avoid blinding the audience and for protection during transport
  • Stepless RGBW color blend, color change, color fade, dimmer and strobe effect
  • Variable PWM frequency (pulse-width modulation)
  • Master/slave function

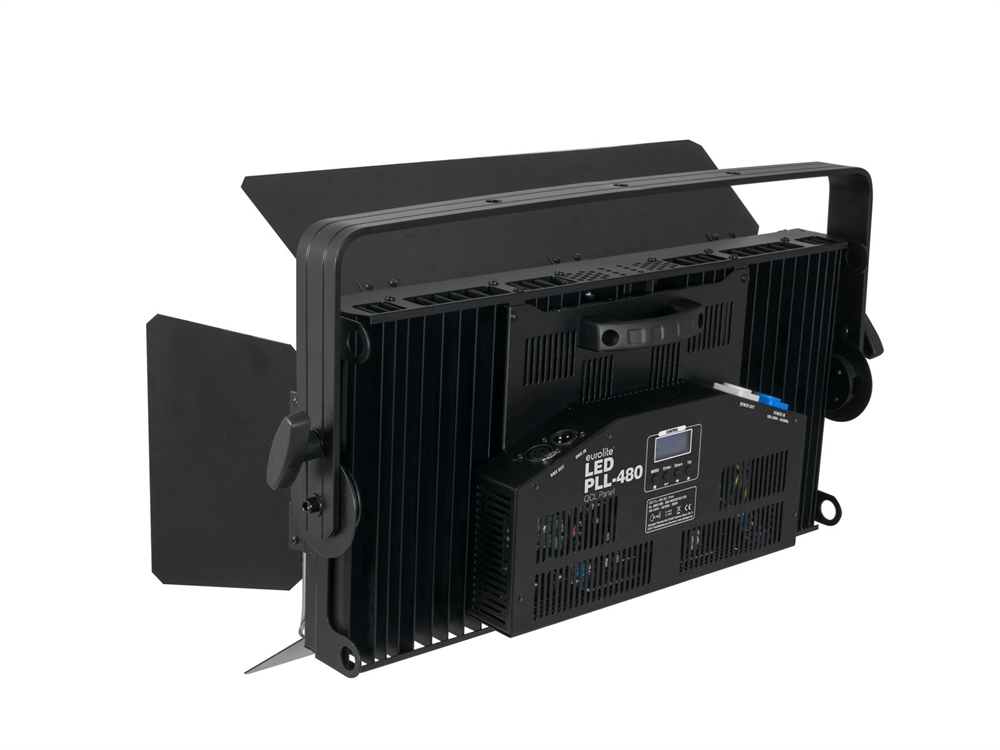

  • Addressing and setting via control panel with LCD

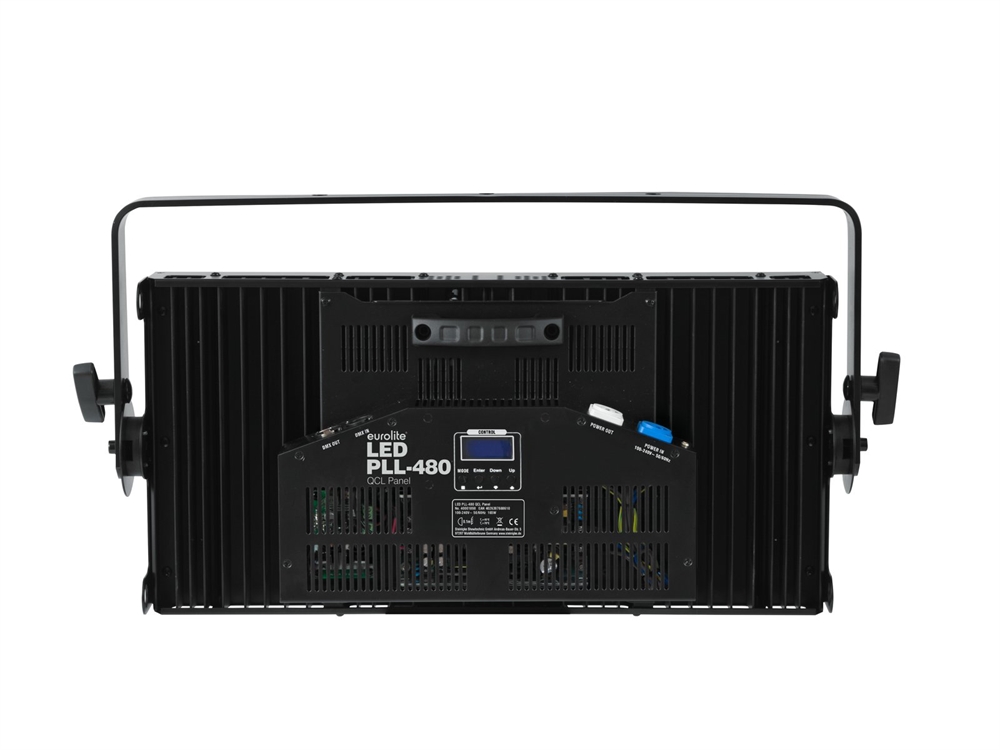

  • Slim, rugged metal housing
  • Swivel mounting bracket
  • Comfortable carrying handle
  • Stand or crossbeam installation
  • P-Con terminals for power linking up to 8 units
  • LED: 480 x SMD 5050 4in1 QCL RGBW (homogenous color mix)
  • Can be operated in 6; 4 CH mode
  • The device is cooled by passive convection
  • Controlling by DMX; Stand-alone; Master/slave function
  • Is in Light J Software already preprogrammed
  • Flicker-free projection




Power supply:100-240 V AC, 50/60 Hz
Power consumption:165 W
IP classification:IP20
Protection class:Class I

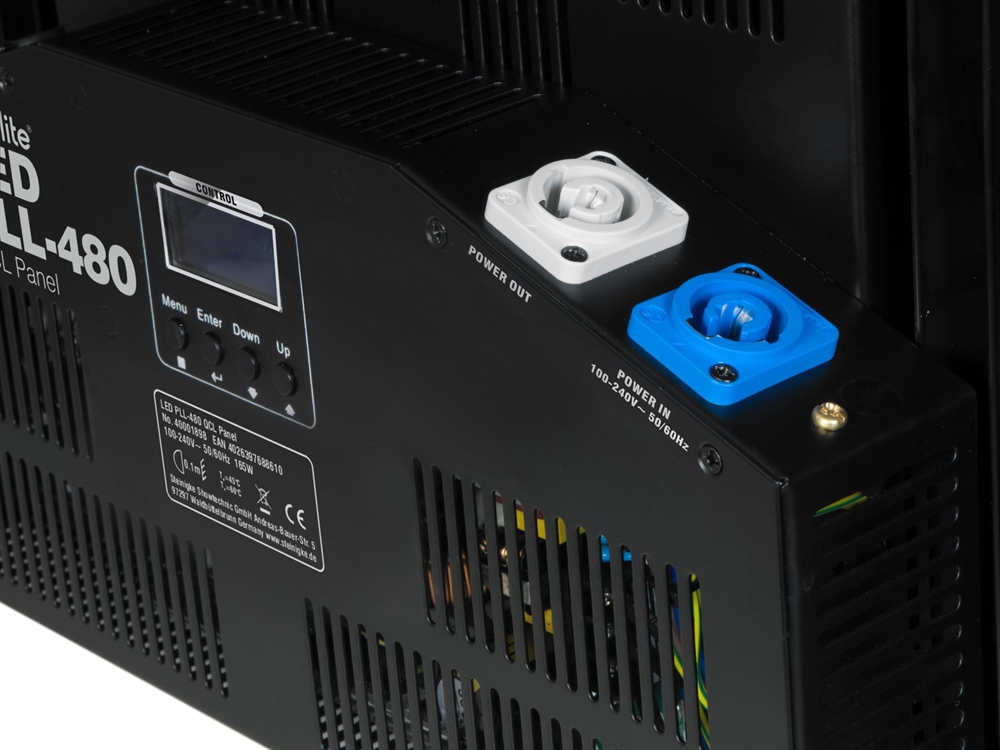

Power connection:Mains input P-Con (blue), mounting version Power supply cord with safety plug (provided)
Power output:1 x P-Con (gray), mounting version
Lamp type:LED lamp
LED:480 x SMD 5050 4in1 QCL RGBW (homogenous color mix)
DMX channels:6; 4
DMX input:3-pin XLR (M) mounting version
DMX output:3-pin XLR (F) mounting version
Cooling:Passive convection
Control:DMX; Light J Software; Stand-alone; Master/slave function
Beam angle:120°
Beam angle (1/2 peak):120°
Illuminance in Lux (lx):R red 1m: 438 lx, 3m: 61 lx, 6m: 18 lx
G green 1m: 633 lx, 3m: 88 lx, 6m: 25 lx
B blue 1m: 209 lx, 3m: 29 lx, 6m: 8 lx
CW 1m: 2130 lx, 3m: 296 lx, 6m: 87 lx
All 1m: 2696 lx, 3m: 380 lx, 6m: 112 lx
Housing color:Black
Display type:LCD display
Dimensions:Width: 64 cm
Depth: 13 cm
Height: 33,5 cm
Weight:12,60 kg
Noise classification:Class 0 (no noise at all)
Legal specifications
Special product:Not designed for household room illumination
intended use:show effect lighting
Varenr.: E-40001898
