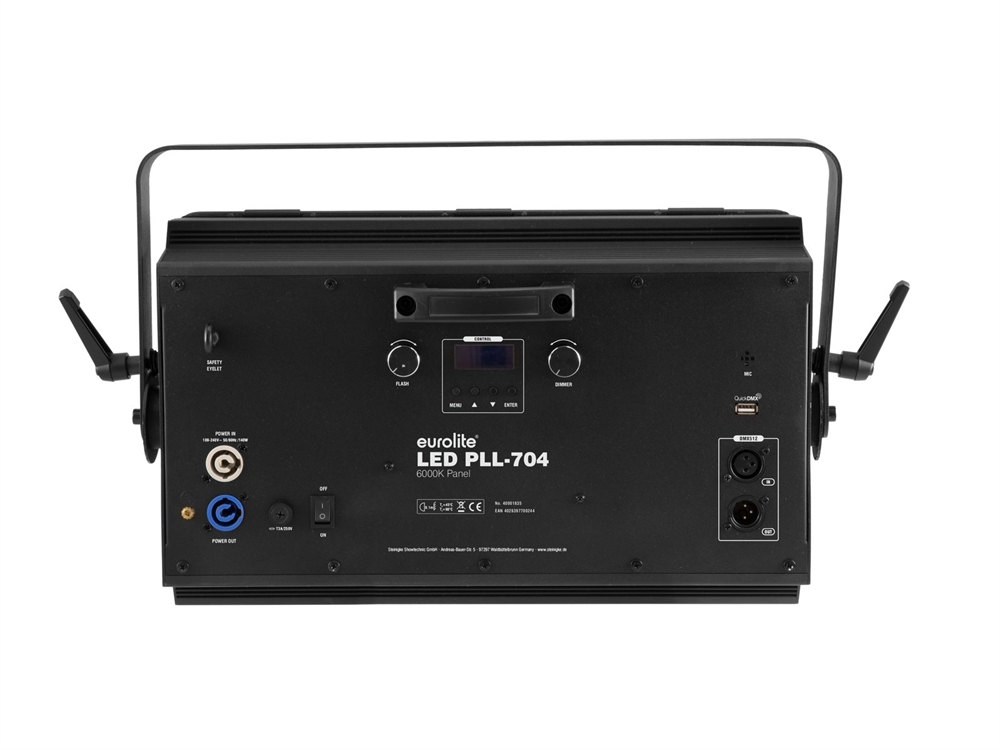

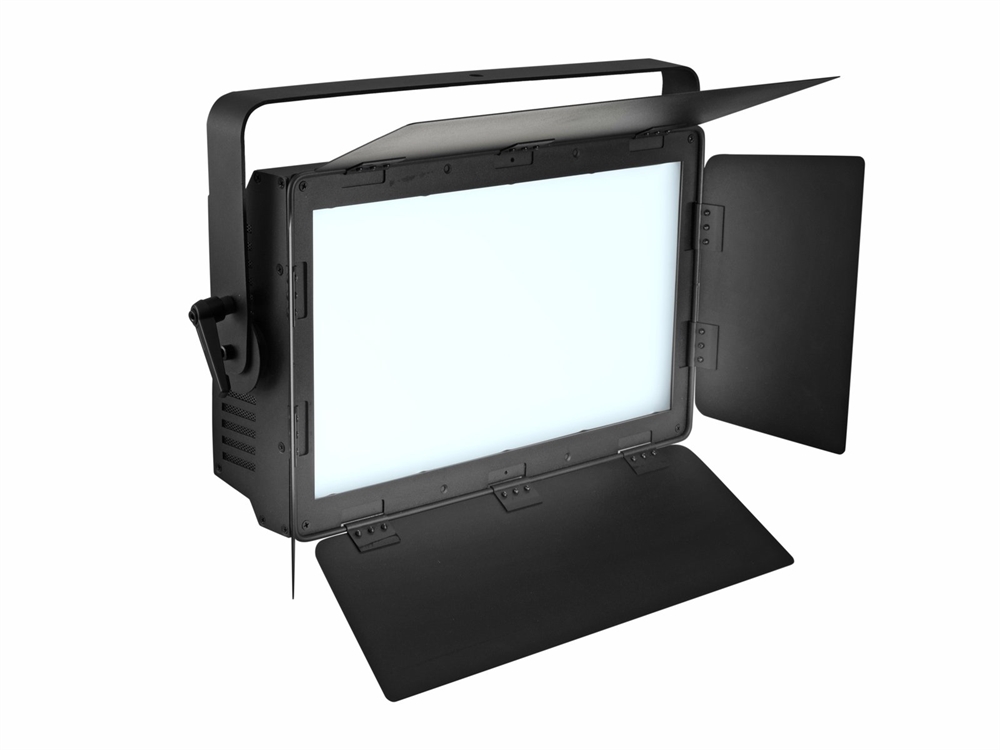

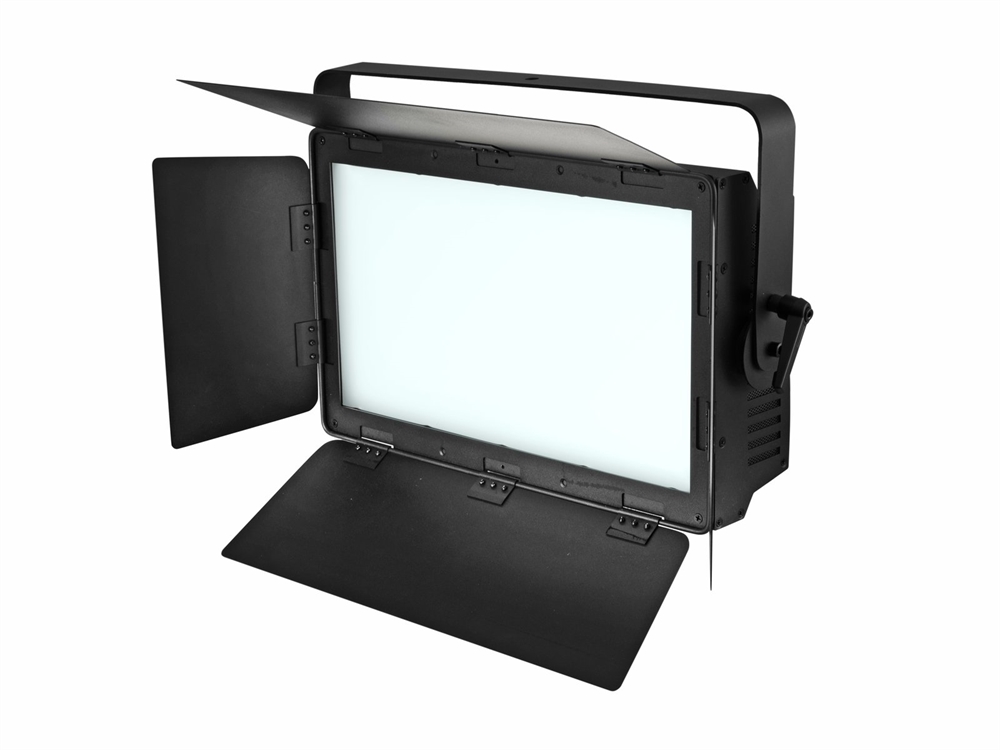

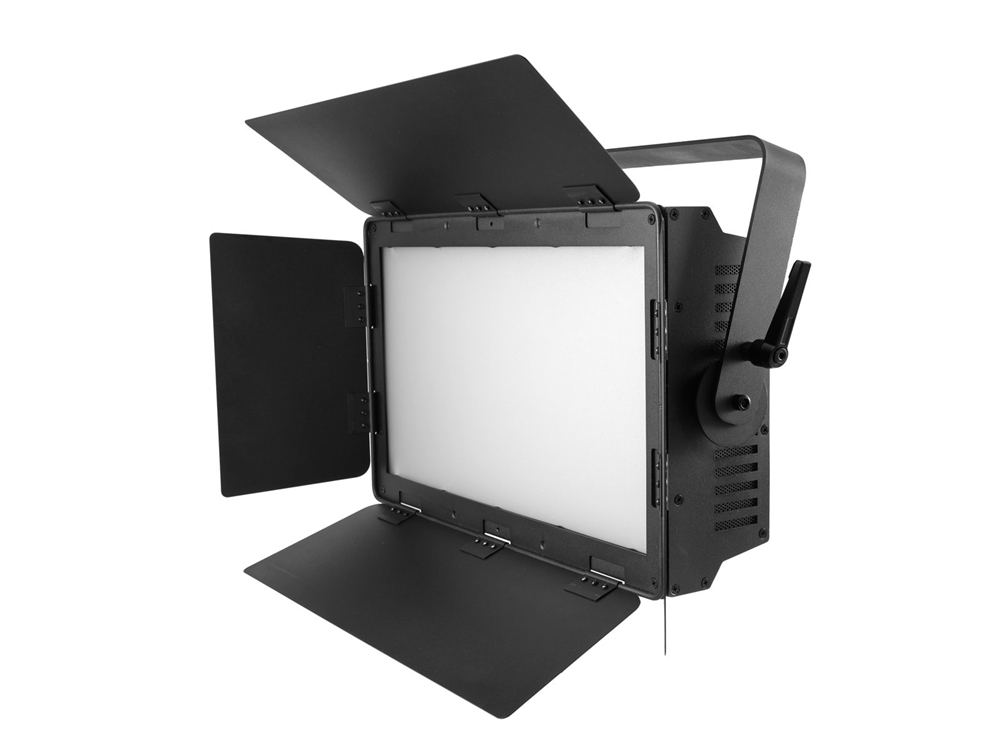

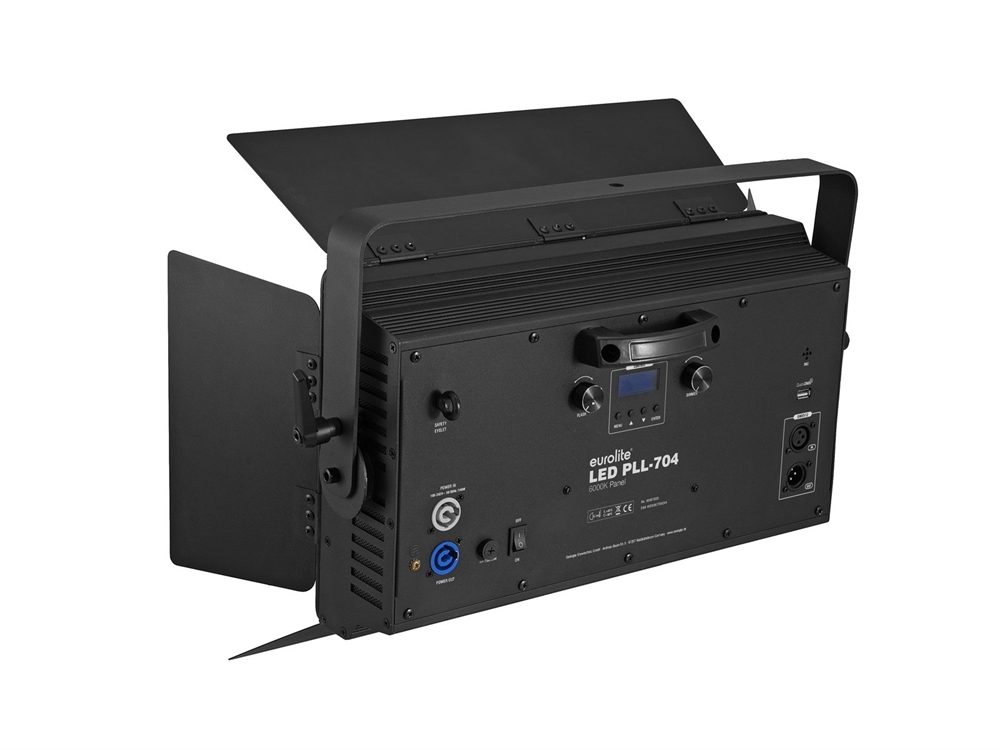

EUROLITE LED PLL-704 6000K Panel

DMX-controlled surface light with 704 cold white LEDs, QuickDMX port and barn doors

EUROLITE LED PLL-704 6000K Panel

DMX-controlled surface light with 704 cold white LEDs, QuickDMX port and barn doors

High-grade surface light with 704 super bright, white LEDs
Ideal for photography, film, stage and trade fair lighting
Color temperature 6000 K
120° beam angle
Energy-saving, durable and environmental friendly
Music, master/slave and DMX mode
Strobe effect 0-20 Hz
Quick strobe and brightness setting via rotary dials
Variable PWM frequency (pulse-width modulation)
Control panel with LC display for easy configuration
Supports QuickDMX - the wireless DMX system from Eurolite
Built-in phantom-powered USB port for QuickDMX, CRMX and WDMX receivers (optional)
4 barn doors to avoid blinding the audience and for protection during transport
Slim, rugged metal housing
Comfortable carrying handle
Swivel mounting bracket
Mains input and output for power linking up to 8 units
LED: 704 x SMD 2835 cold white (CW)
Can be operated in 1; 2; 3 CH mode
The device is cooled by passive convection
Controlling by stand-alone; DMX; Quick select potentiometer for brightness and flash rate; Master/slave function; Sound to light via Microphone; W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); QuickDMX via USB (optional)
Flicker-free projection
Good color rendering index (CRI)

Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	140 W
IP classification:	IP20
Power connection:	Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided)
Power output:	P-Con (gray), mounting version
Fuse:	T 3 A Fuse replaceable
Lamp type:	LED lamp
LED:	704 x SMD 2835 cold white (CW)
Flash rate:	0 - 20 Hz
DMX channels:	1; 2; 3
DMX input:	3-pin XLR (M) mounting version
DMX output:	3-pin XLR (F) mounting version
Cooling:	Passive convection
Control:	Stand-alone; DMX; Quick select potentiometer for brightness and flash rate; Master/slave function; Sound to light via Microphone; W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); QuickDMX via USB (optional)
Beam angle:	120°
Beam angle (1/2 peak):	120°
Color rendering index (CRI) more than:	80 Ra
Illuminance in Lux (lx):	Cold white (CW) 1m: 4111 lx, 3m: 598 lx, 6m: 182 lx
Housing color:	Black
Display type:	LCD display
Dimensions:	Width: 56,5 cm Depth: 25,5 cm Height: 42,2 cm
Weight:	7,65 kg
Legal specifications
Special product:	Not designed for household room illumination
Intended use:	Show effect lighting

Varenr.: E-40001835
