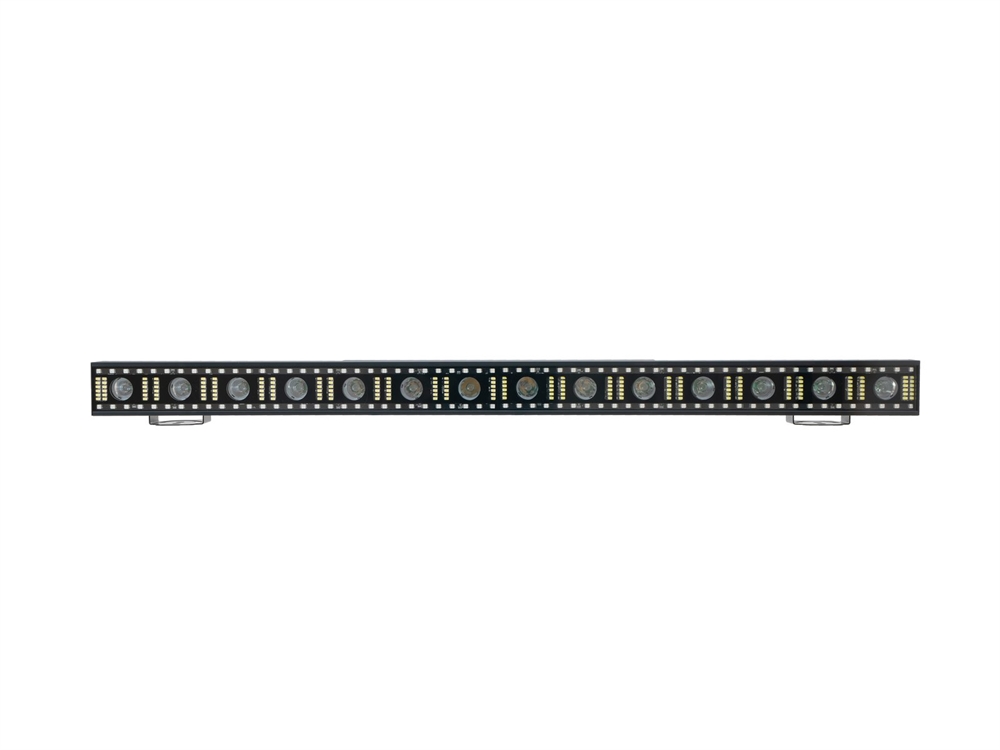

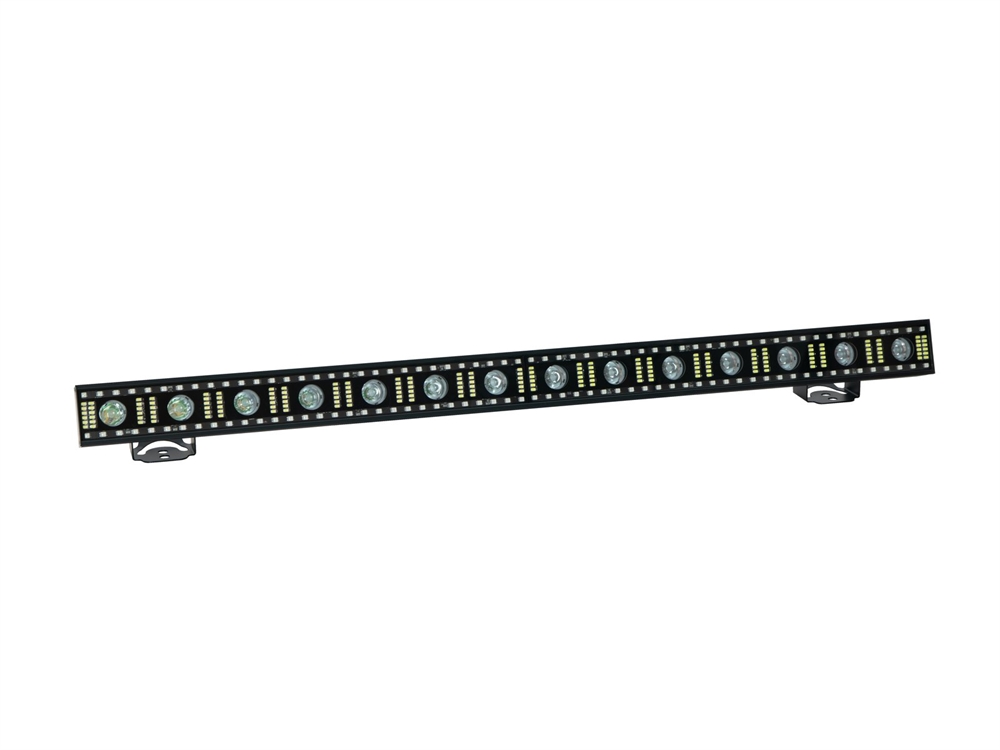

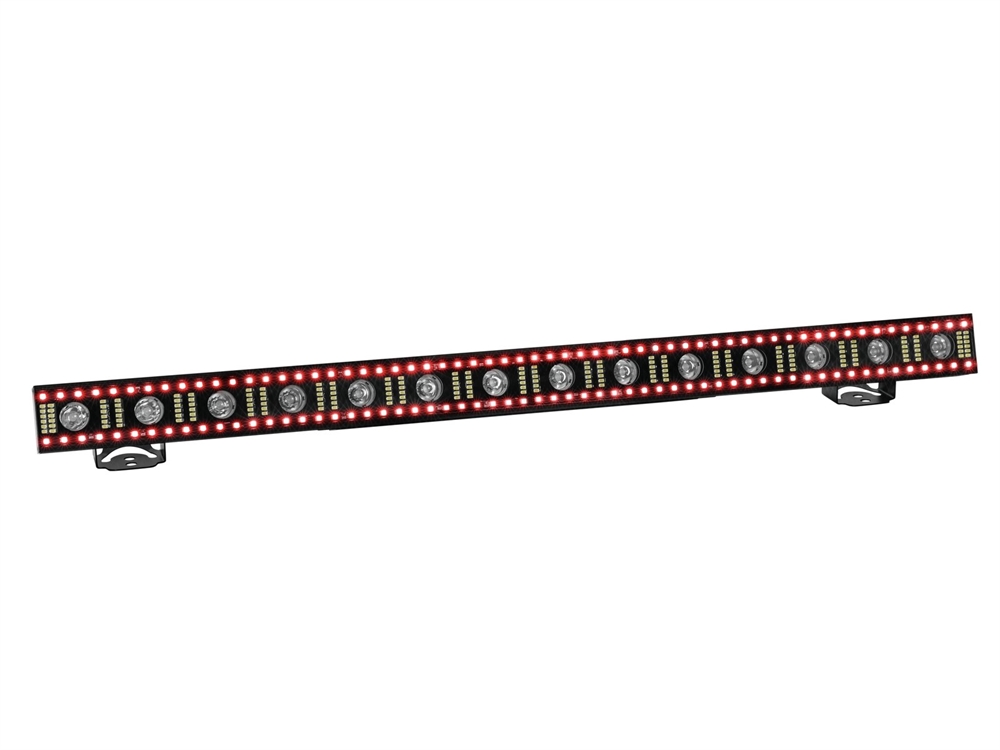

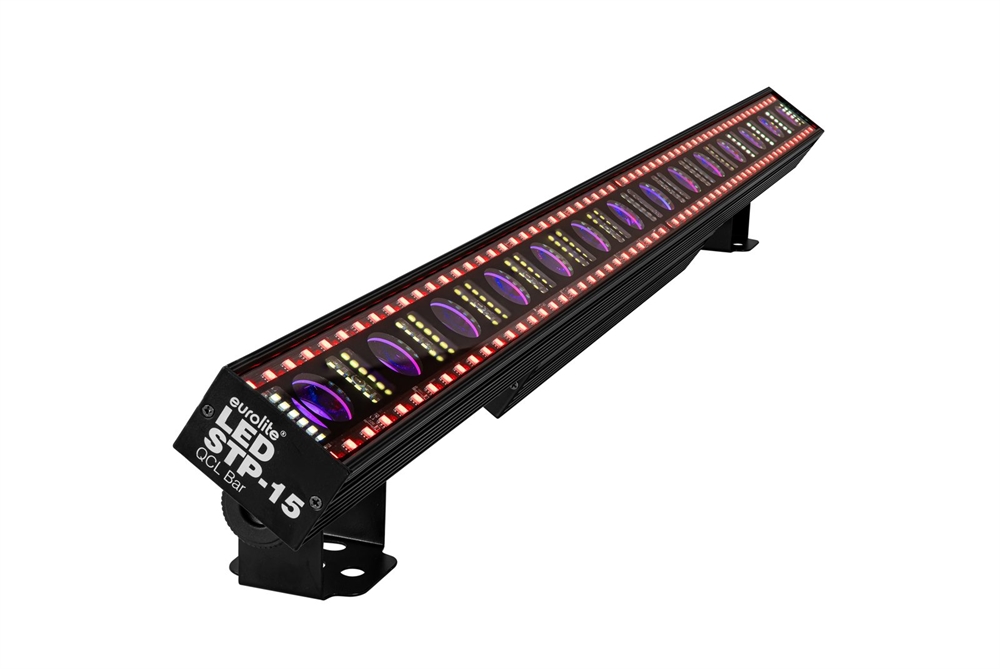

EUROLITE LED STP-15 QCL Bar

3in1 LED bar with RGBW beam effects, color animations and stroboscope

EUROLITE LED STP-15 QCL Bar

3in1 LED bar with RGBW beam effects, color animations and stroboscope

Stepless color blend, running light, preset colors, dimmer and strobe effect
Electronic dimmer
Mains input and output for power linking up to 8 units
Background color macros controllable via DMX

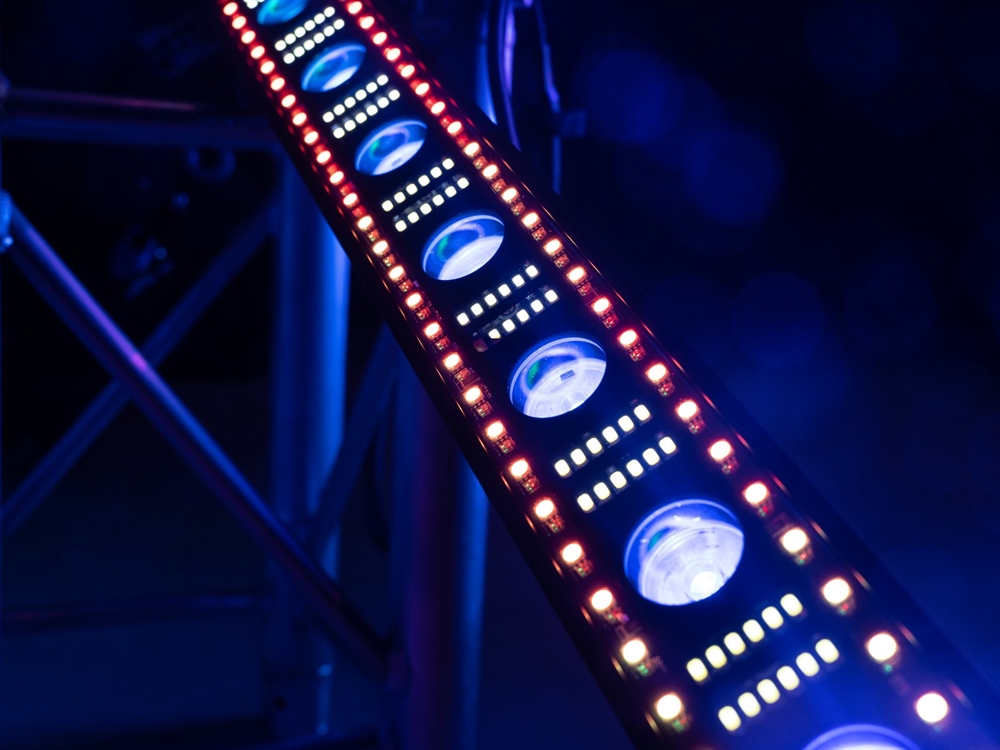

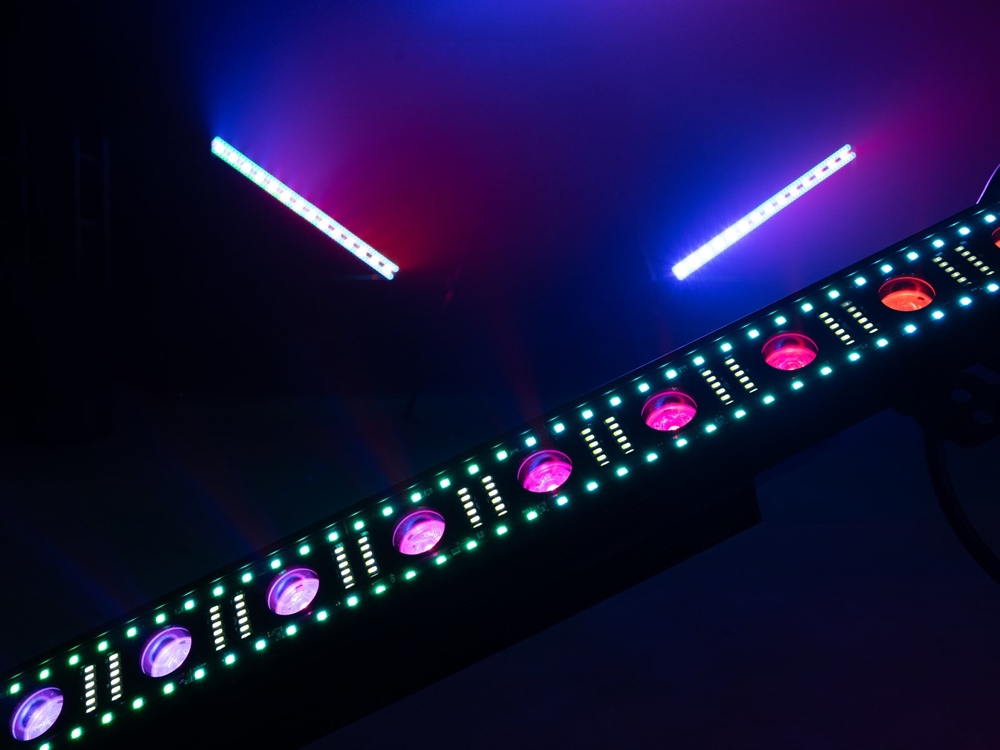

14 powerful LEDs 5 W high-power 4in1 QCL RGBW (homogenous color mix)
120 powerful LEDs SMD 5050 3in1 TCL RGB (homogenous color mix)
180 powerful LEDs SMD 5730 cold white (CW)
7 integrated Showprograms
Direct color selection for 38-42 preset colors
Can be operated in 9; 11; 17; 19 CH mode
The device is cooled by passive convection cooling
Controlling by stand-alone; Sound to light via Microphone; Master/slave function; DMX
Flicker-free
With a beam angle of 10°

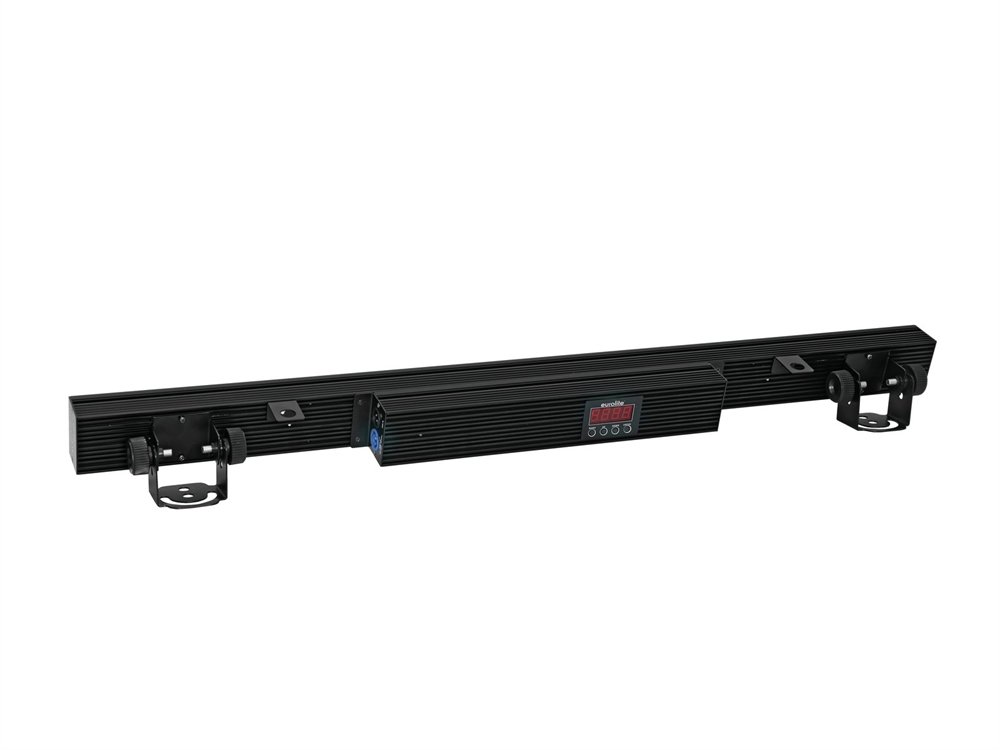

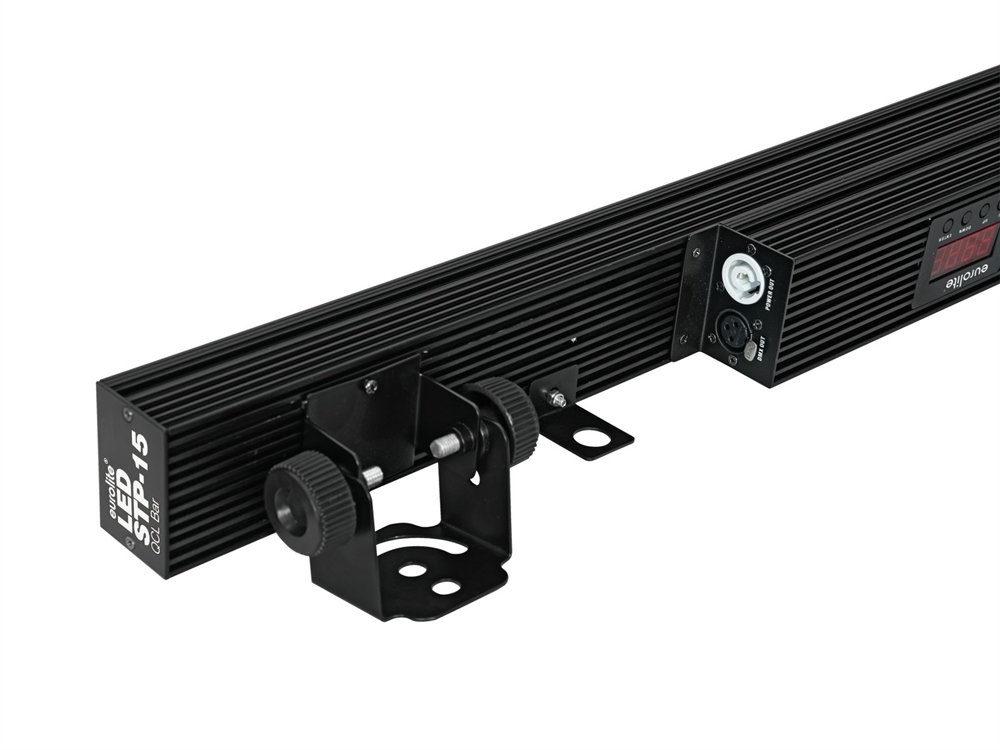

With Mounting bracket

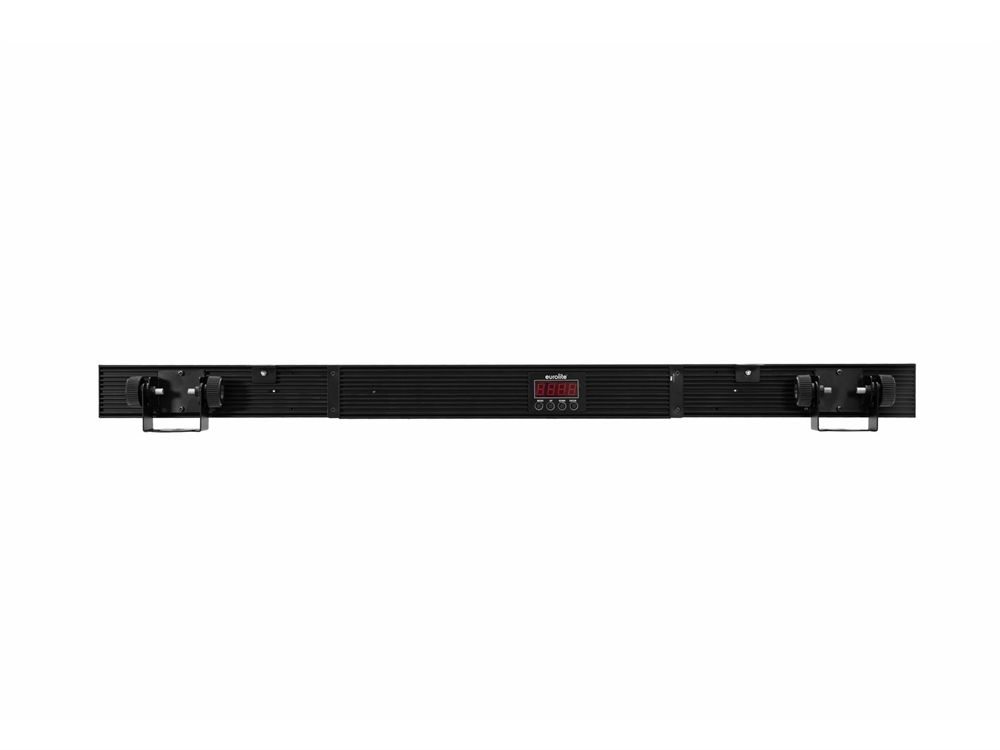

4 digits 7-segment LED display

Package contents

Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	120 W
IP classification:	IP20
Protection class:	Protection class I

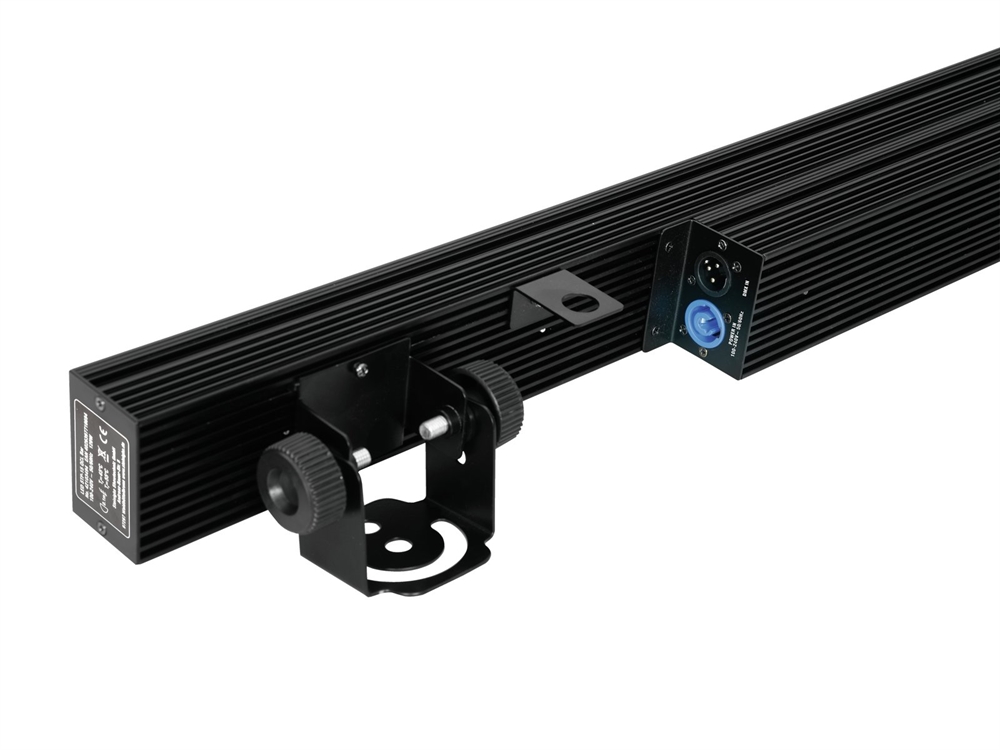

Power connection:	Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided)
Power output:	P-Con (gray), mounting version
Lamp type:	LED lamp
LED:	14 x 5 W high-power 4in1 QCL RGBW (homogenous color mix) 120 x SMD 5050 3in1 TCL RGB (homogenous color mix) 180 x SMD 5730 cold white (CW)
Flash rate:	0 - 20 Hz
DMX channels:	9; 11; 17; 19
DMX input:	3-pin XLR (M) mounting version
DMX output:	3-pin XLR (F) mounting version
Cooling:	Passive convection cooling
Control:	Stand-alone; Sound to light via Microphone; Master/slave function; DMX
Beam angle:	10°
Beam angle (1/2 peak):	Beam 10° Ambient light 120°
Beam angle (1/10 peak):	Beam 20°
Housing color:	Black
Attachment system:	2x Mounting bracket
Display type:	4 digits 7-segment LED display
Dimensions:	Length: 1 m Depth: 6,7 cm Height: 12,0 cm
Weight:	3,96 kg
Legal specifications
Special product:	Not designed for household room illumination
Intended use:	Show effect lighting
