Power supply: | 100-240 V AC, 50/60 Hz |
Power consumption: | 45 W |
IP classification: | IP20 |
Protection class: | Class I |

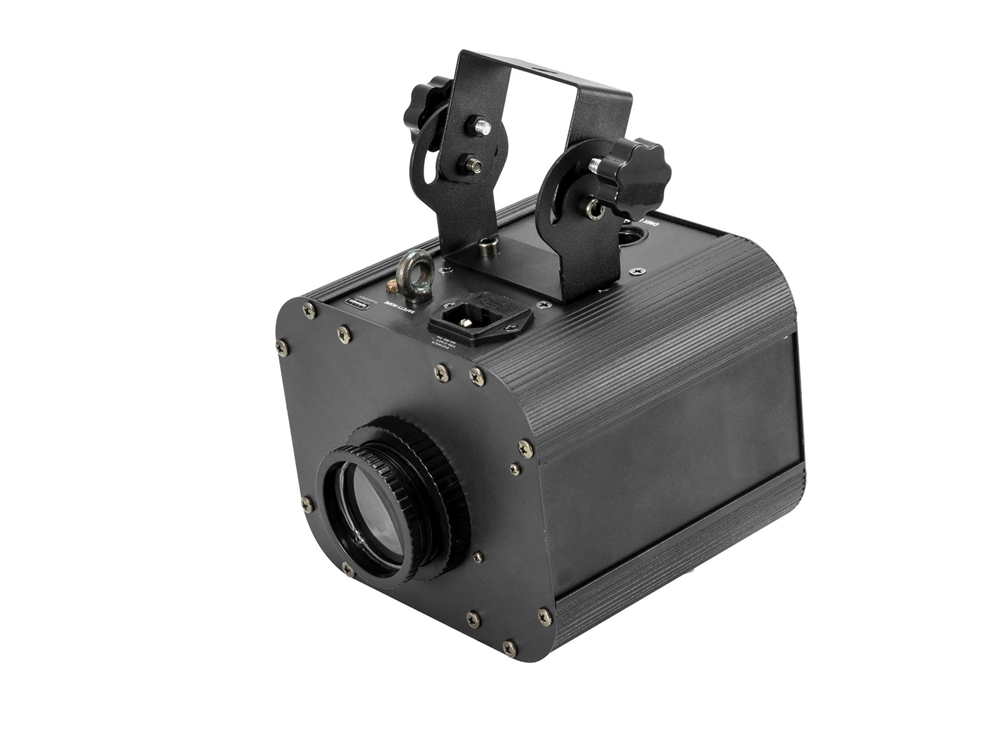

Power connection: | Mains input IEC connector (M) mounting version Power supply cord with safety plug (provided) |
Fuse: | Device fuse 5 x 20 mm, T 1 A Fuse replaceable |
Lamp type: | LED lamp |
LED: | 1 x COB (chip-on-board) 30 W CW |
Flash rate: | 2 - 18 Hz |
Equipment: | Color wheel; gobo wheel with static gobos; Focus manual |
Color generation: | Color wheel 7 dichroic filters plus open |
Gobos: | Gobo wheel with static gobos, 4 gobos, 3 color dichros and open Shake effect |
DMX channels: | 6 |

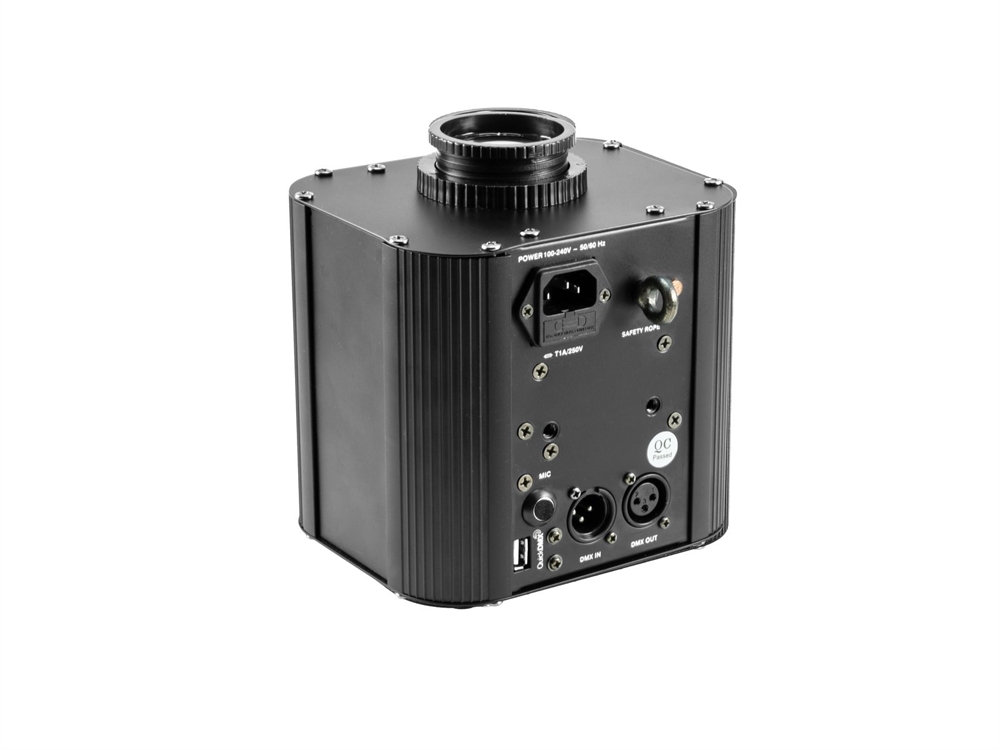

DMX input: | 3-pin XLR (M) mounting version |
DMX output: | 3-pin XLR (F) mounting version |

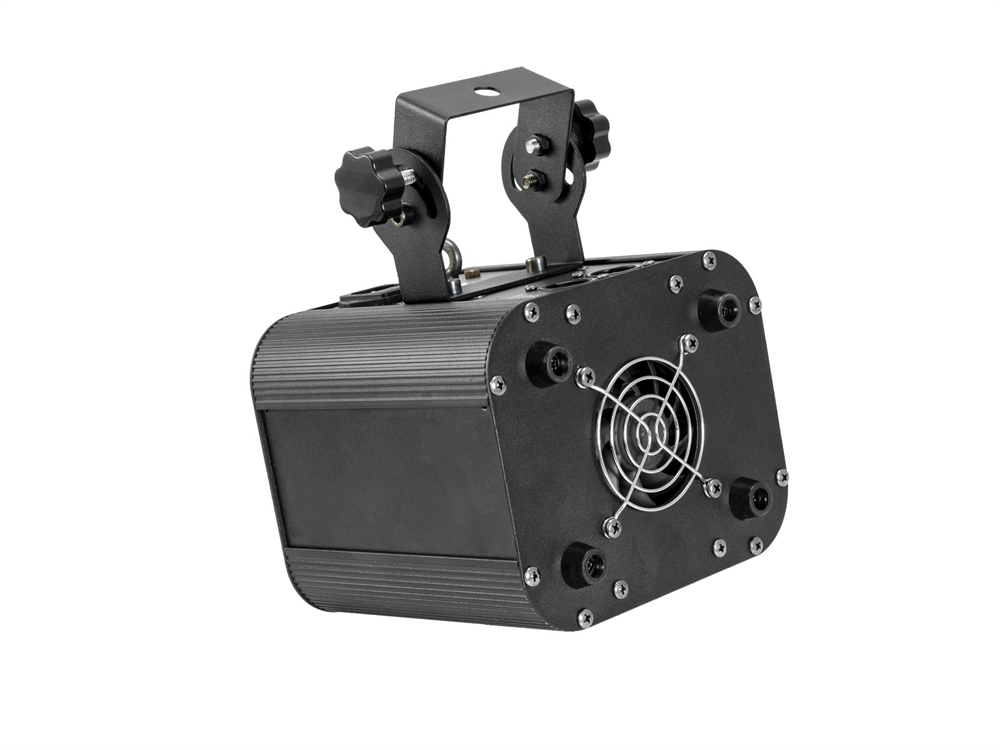

Cooling: | Cooling fan |
Control: | DMX; Sound to light via Microphone; Master/slave function; Stand-alone; QuickDMX via USB (optional) |
Beam angle: | 12° |
Beam angle (1/2 peak): | 12° |
Illuminance in Lux (lx): | CW 1m: 12082 lx, 3m: 1172 lx, 6m: 281 lx |
Housing color: | Black |
Display type: | LCD display |
Dimensions: | Length: 17,5 cm Width: 16,0 cm Height: 21,5 cm |
Weight: | 2,12 kg |
Legal specifications |
Special product: | Not designed for household room illumination |

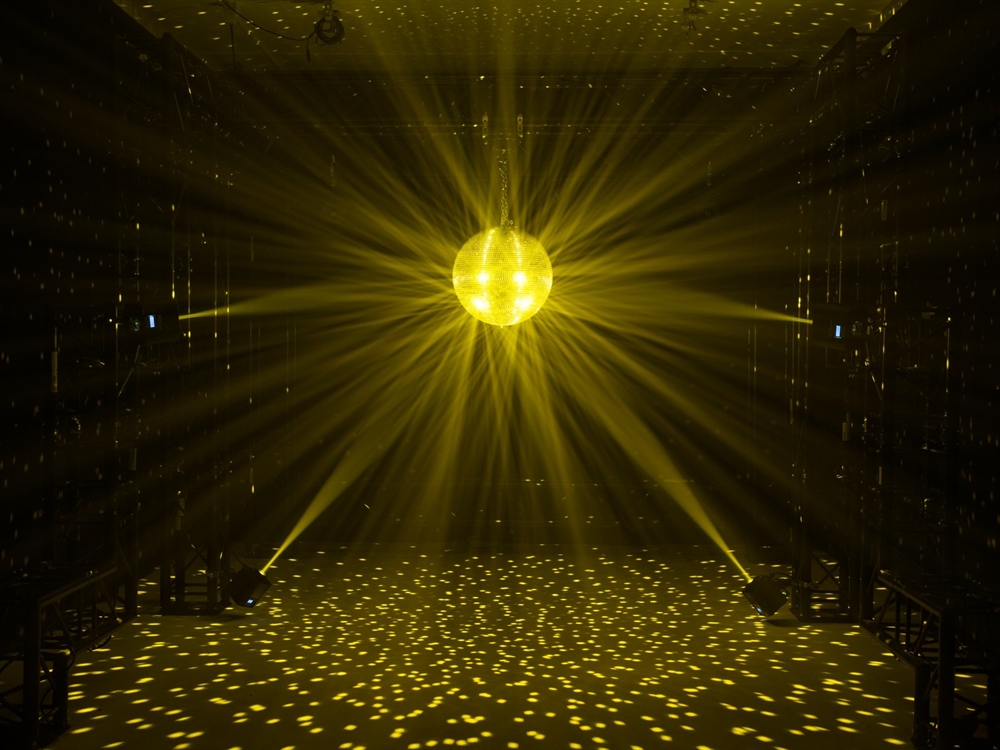

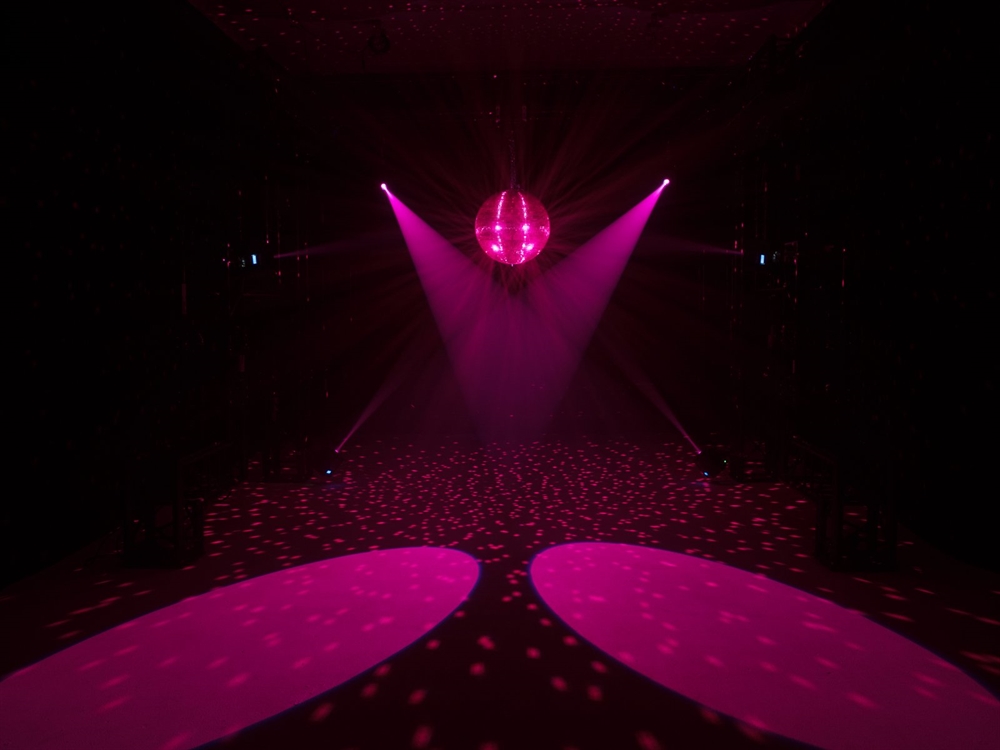

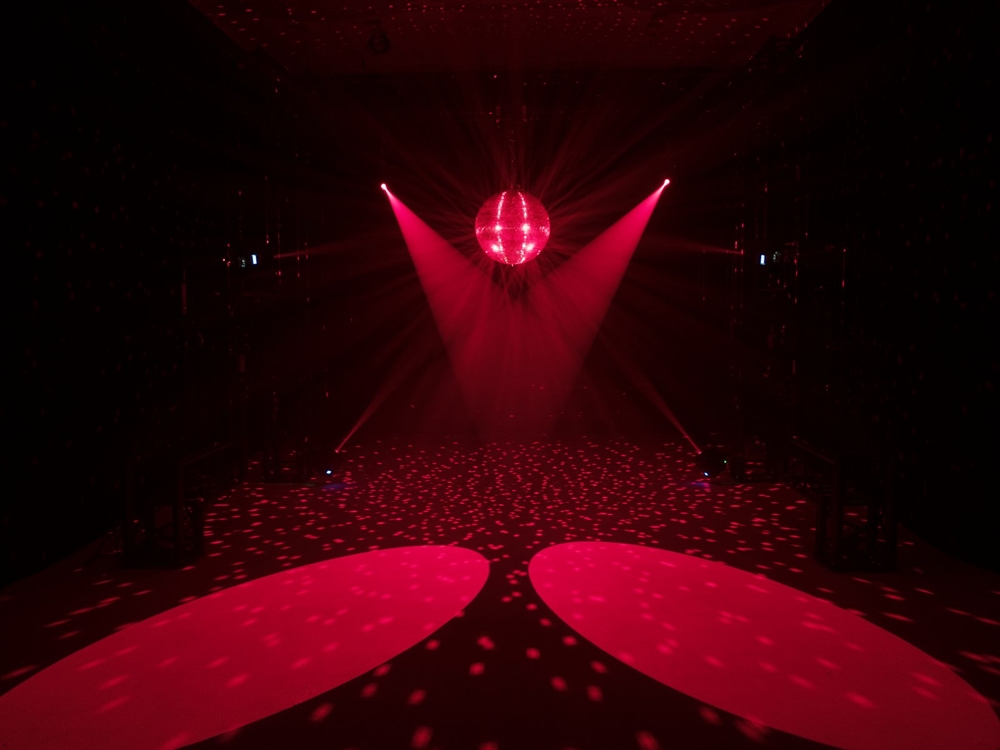

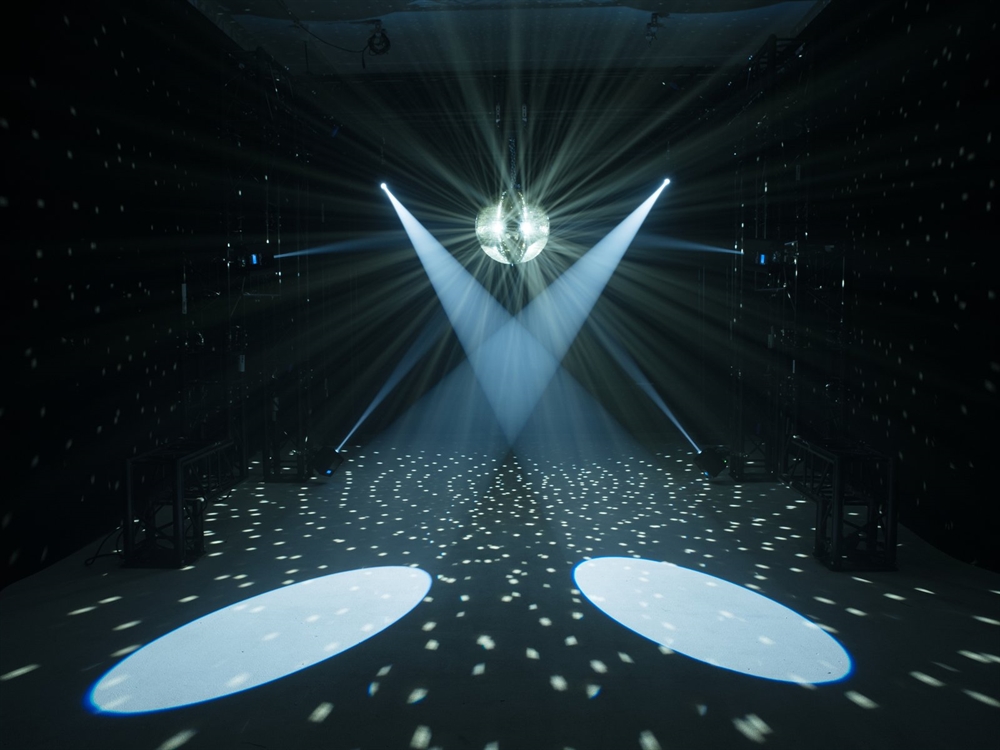

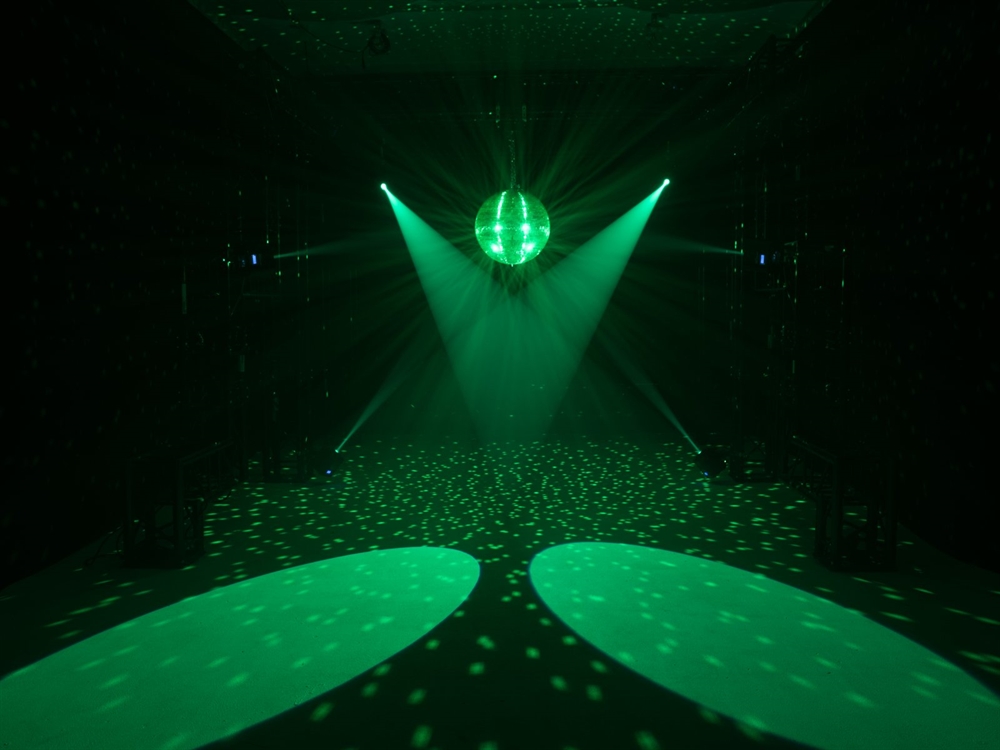

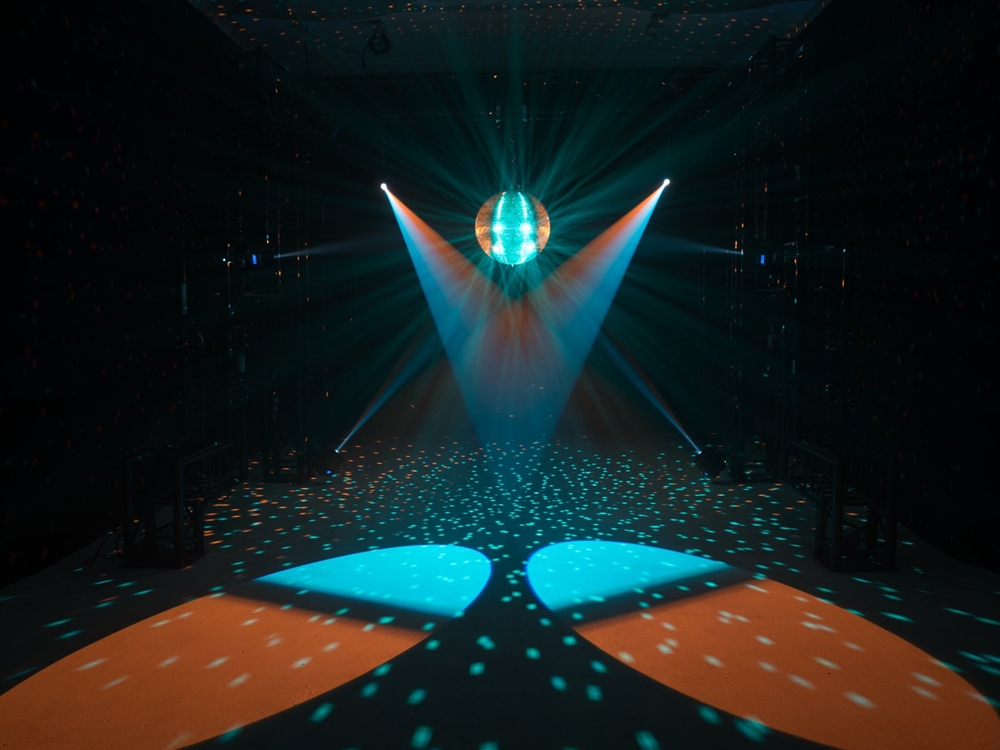

intended use: | show effect lighting |
