| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 135 W |
| IP classification: | IP20 |
| Protection class: | Class I |

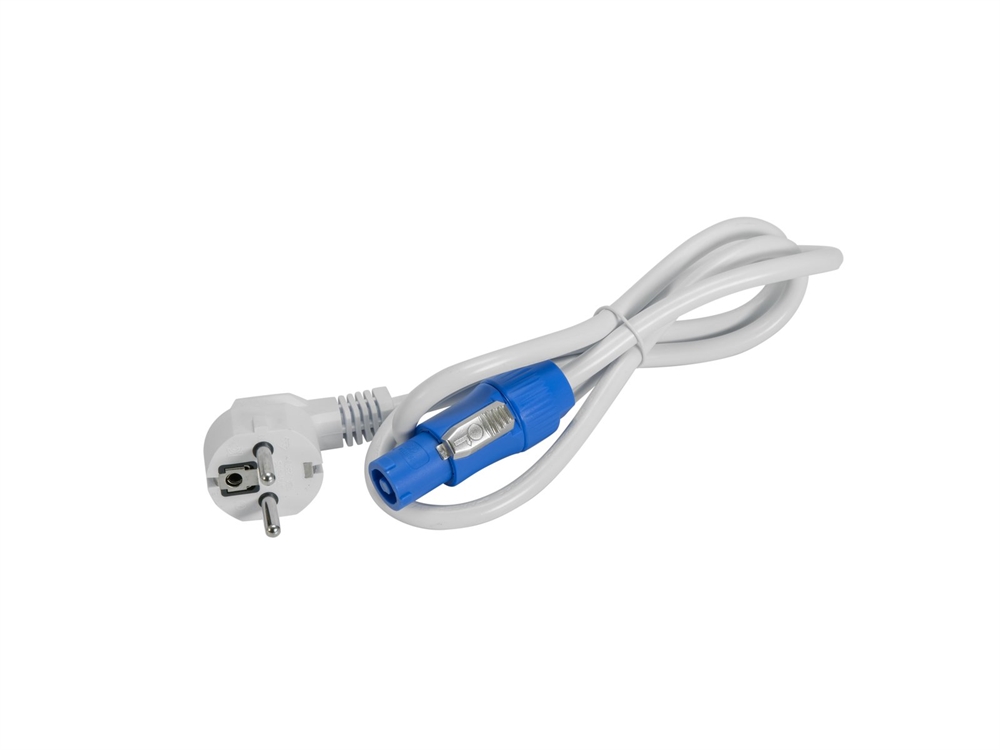

| Power connection: | Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided) |
| Power output: | P-Con (gray), mounting version |
| Fuse: | 5 x 20 mm, T 2 A Fuse replaceable |
| Lamp type: | LED lamp |

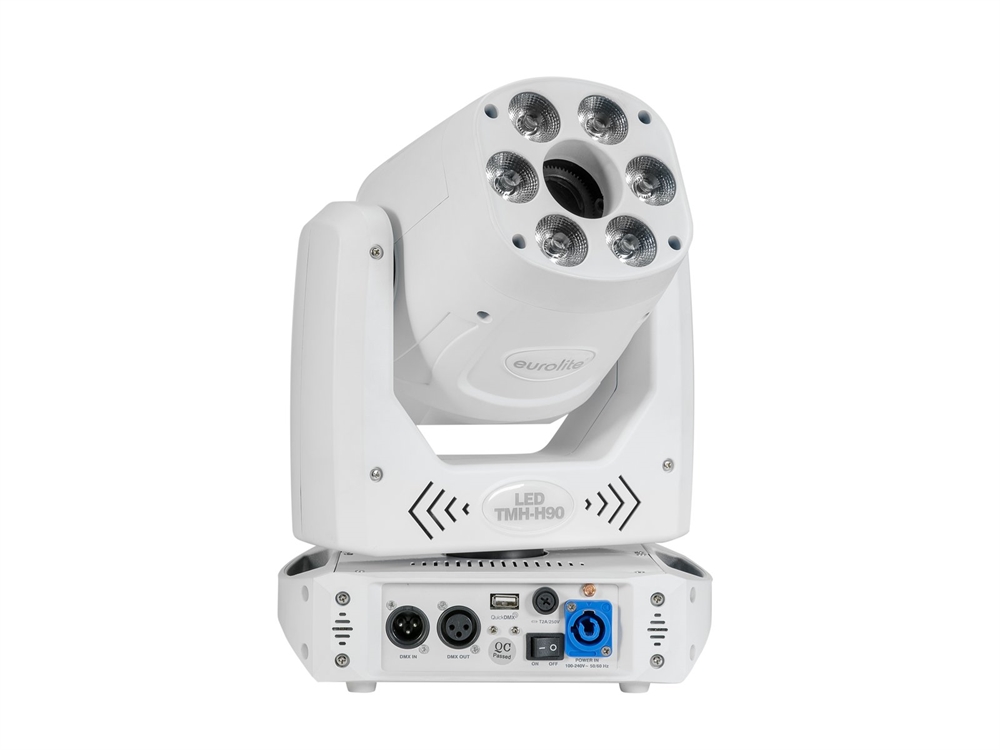

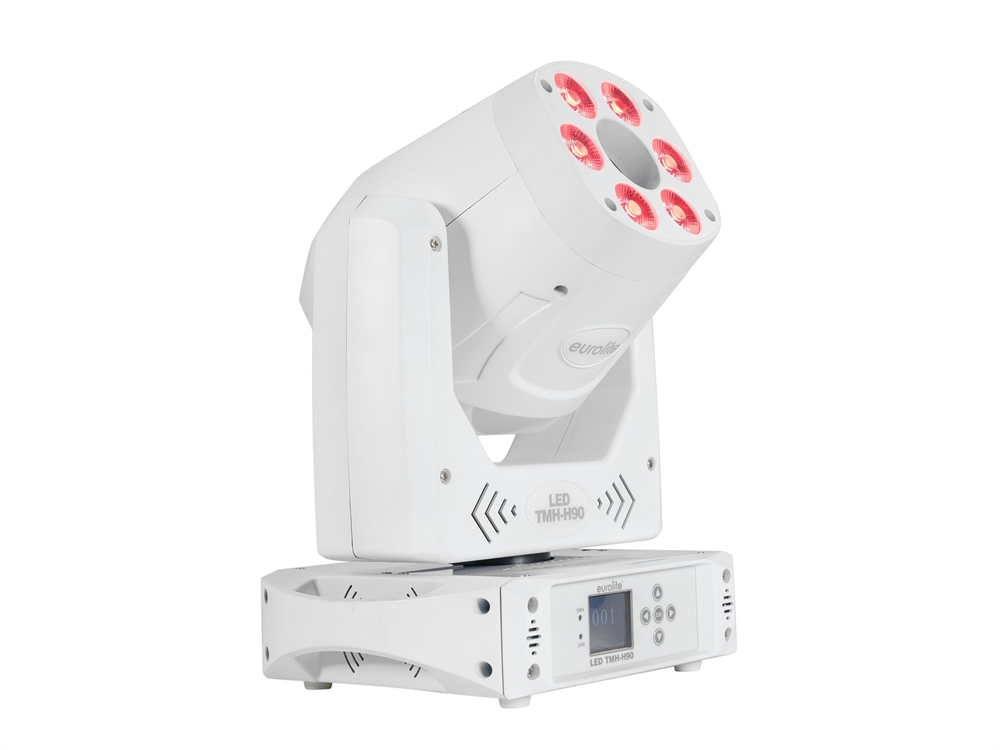

| LED: | 1 x COB (chip-on-board) 90 W cold white (CW)
6 x high-power 10 W 6in1 HCL RGBWA/UV (homogenous color mix) |
| Max. TILT movement: | Exact positioning (16 bit resolution) 200° Auto position correction (feedback) |
| Max. PAN movement: | Exact positioning (16 bit resolution) 540° Auto position correction (feedback) |
| Flash rate: | 2 - 30 Hz |
| Equipment: | Prism 3-fold; gobo wheel with rotating gobos Single in slot; gobo wheel with static gobos; Focus motor-driven; color wheel |
| Color generation: | Color wheel 1 x 7 dichroic filters plus open |
| Gobos: | Gobo wheel with static gobos, 7 gobos and open
Shake effect
Gobo wheel with rotating gobos, 6 gobos and open
Outside diameter 21,8mm
Image diameter 16mm
Shake effect
Gobos changeable
Slot-in gobo system for exchanging gobos without tools |
| DMX channels: | 25 |

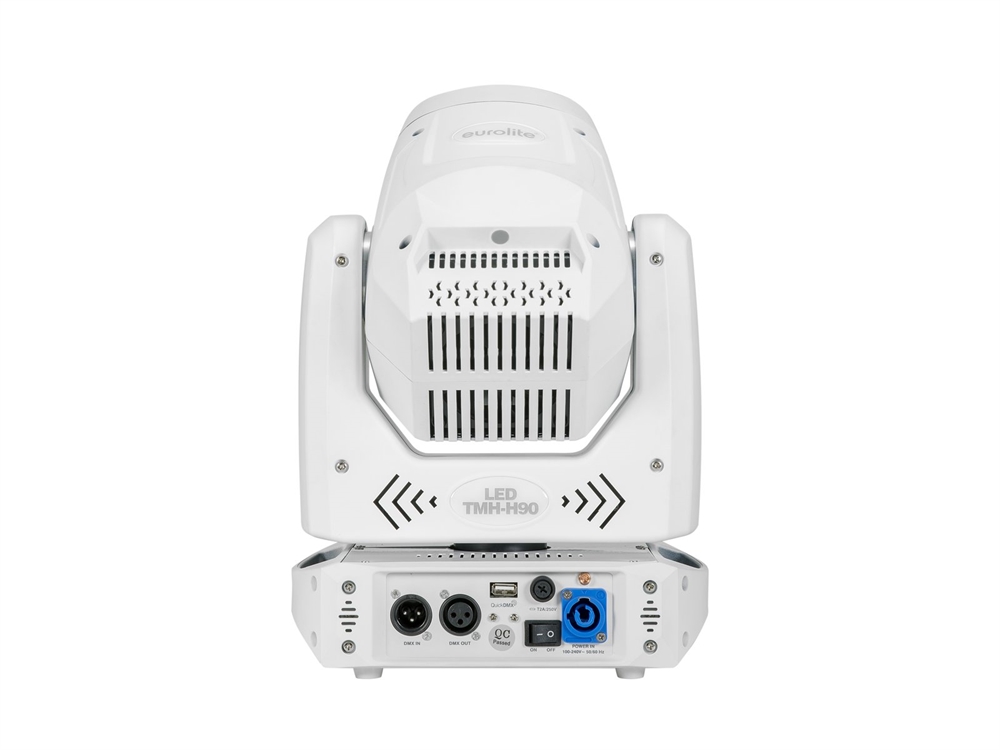

| DMX input: | 3-pin XLR (M) mounting version |
| DMX output: | 3-pin XLR (F) mounting version |
| Cooling: | Cooling fan |
| Control: | Stand-alone; DMX; Sound to light via Microphone; Master/slave function; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); Light Captain |
| Beam angle: | 13° |
| Beam angle (1/2 peak): | Spot 13°
Wash effect 20° |
| Beam angle (1/10 peak): | Wash effect 38° |
| Illuminance in Lux (lx): | Spot cold white (CW) 1m: 49373 lx, 3m: 6186 lx, 6m: 1606 lx
Wash effect red (R) 1m: 974 lx, 3m: 101 lx, 6m: 26 lx
Wash effect green (G) 1m: 2008 lx, 3m: 244 lx, 6m: 66 lx
Wash effect blue (B) 1m: 518 lx, 3m: 49 lx, 6m: 13 lx
Wash effect cold white (CW) 1m: 2527 lx, 3m: 257 lx, 6m: 69 lx
Wash effect amber (A) 1m: 733 lx, 3m: 83 lx, 6m: 21 lx
Wash effect ultra violet (UV) 1m: 16 lx, 3m: 2 lx, 6m: 1 lx
Wash effect all 1m: 5885 lx, 3m: 703 lx, 6m: 184 lx |
| Housing color: | White |
| Display type: | Multicolor LCD display |
| Dimensions: | Width: 25,0 cm
Depth: 22,0 cm
Height: 36,0 cm |
| Weight: | 6,50 kg; 6,50 kg |
| Noise classification: | Class 3 (clearly perceptible sounds) |
| Legal specifications |
| Special product: | Not designed for household room illumination |
| Intended use: | Show effect lighting |
