| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 265 W |
| IP classification: | IP20 |
| Protection class: | Class I |

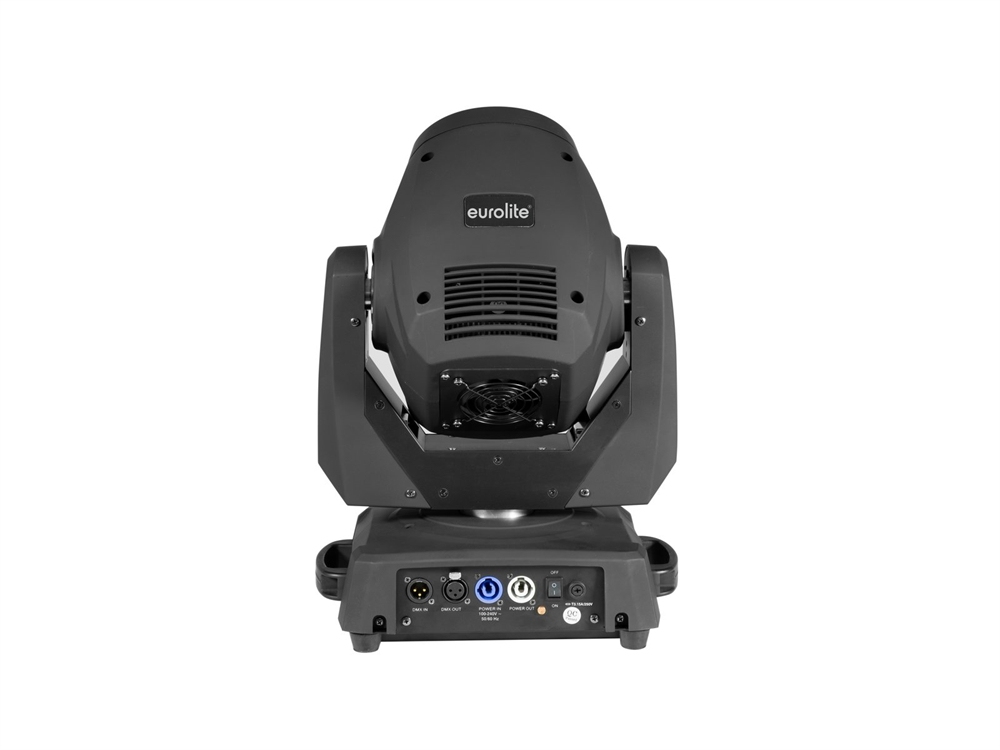

| Power connection: | Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided) |
| Power output: | P-Con (gray), mounting version |
| Fuse: | 5 x 20 mm, T 3,15 A Fuse replaceable |
| Lamp type: | LED lamp |
| LED: | 1 x COB (chip-on-board) 200 W cold white (CW) |
| Max. TILT movement: | Exact positioning (16 bit resolution) 270° Auto position correction (feedback) |
| Max. PAN movement: | Exact positioning (16 bit resolution) 540° Auto position correction (feedback) |
| Flash rate: | 0 - 18 Hz |
| Equipment: | Gobo wheel with rotating gobos; Prism 3-fold; Focus motor-driven |
| Color generation: | Color wheel 8 dichroic filters plus open |
| Gobos: | Gobo wheel with rotating gobos, 7 gobos and open
Outside diameter 23,5mm
Image diameter 15mm
Shake effect
Gobos changeable
Slot-in gobo system for exchanging gobos without tools |
| DMX channels: | 13; 15 |
| DMX input: | 3-pin XLR (M) mounting version |
| DMX output: | 3-pin XLR (F) mounting version |
| Cooling: | Cooling fan |
| Control: | Stand-alone; DMX; Sound to light via Microphone; Light´J; LED PC-Control 512; QuickDMX via USB (optional); CRMX by LumenRadio via USB (optional); W-DMX by wireless solution via USB (optional); Light Captain |
| Beam angle: | 10° |
| Beam angle (1/2 peak): | 10° |
| Illuminance in Lux (lx): | Cold white (CW) 3m: 20700 lx, 6m: 5273 lx |
| Housing color: | Black |

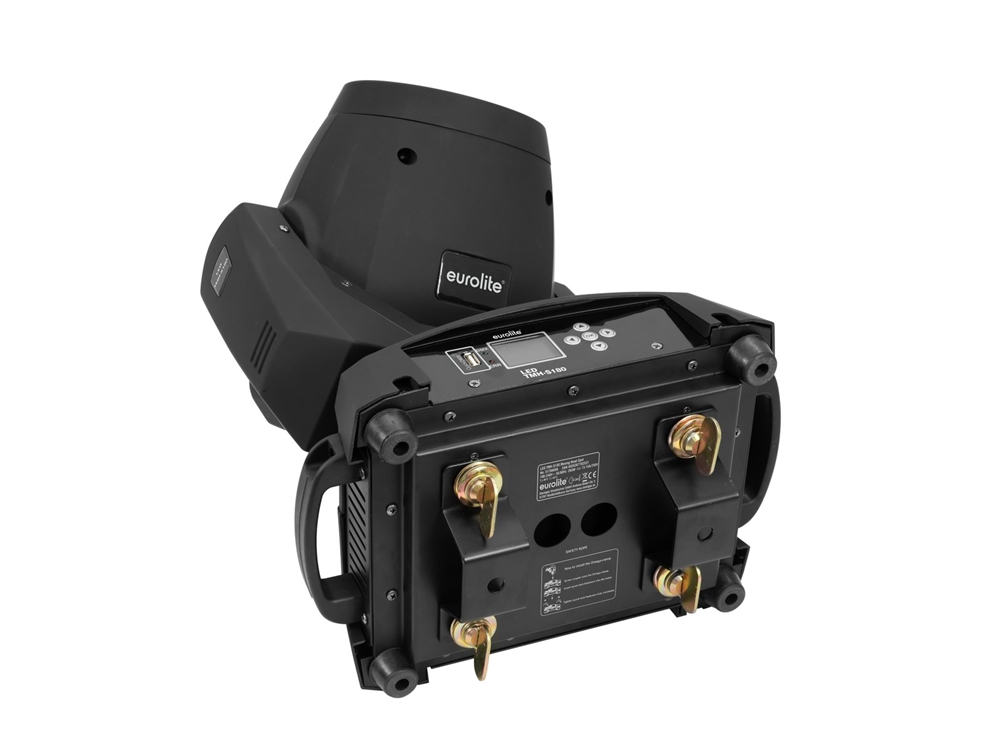

| Display type: | LCD display |
| Dimensions: | Width: 32,5 cm
Depth: 27,0 cm
Height: 45,5 cm |
| Weight: | 11,60 kg |
| Legal specifications |
| Special product: | Not designed for household room illumination |
| Intended use: | Show effect lighting |
