| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 45 W |
| IP classification: | IP20 |

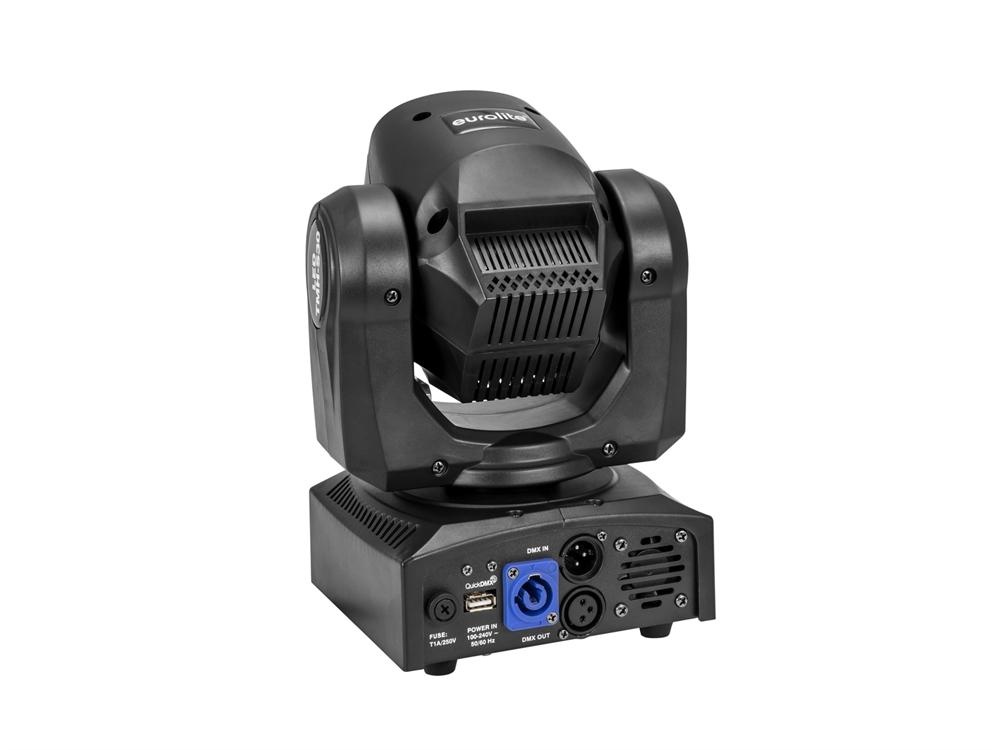

| Power connection: | Mains input P-Con (blue), mounting version Power supply cord with safety plug (provided) |
| Fuse: | T, 1 A Fuse replaceable |
| LED: | 1 x COB (chip-on-board) 30 W CW |
| Color temperature: | 8000K |
| Max. TILT movement: | Exact positioning (16 bit resolution) 170° |
| Max. PAN movement: | Exact positioning (16 bit resolution) 540° |
| Equipment: | Color wheel; Focus manual; Gobo wheel with rotating gobos |
| Color generation: | Color wheel 7 dichroic filters plus open |
| Gobos: | Shake effect |
| Gobo wheel with rotating gobos, 7 gobos and open
outside diameter 14mm
image diameter 10mm
Gobos changeable |
| DMX channels: | 10; 12 |

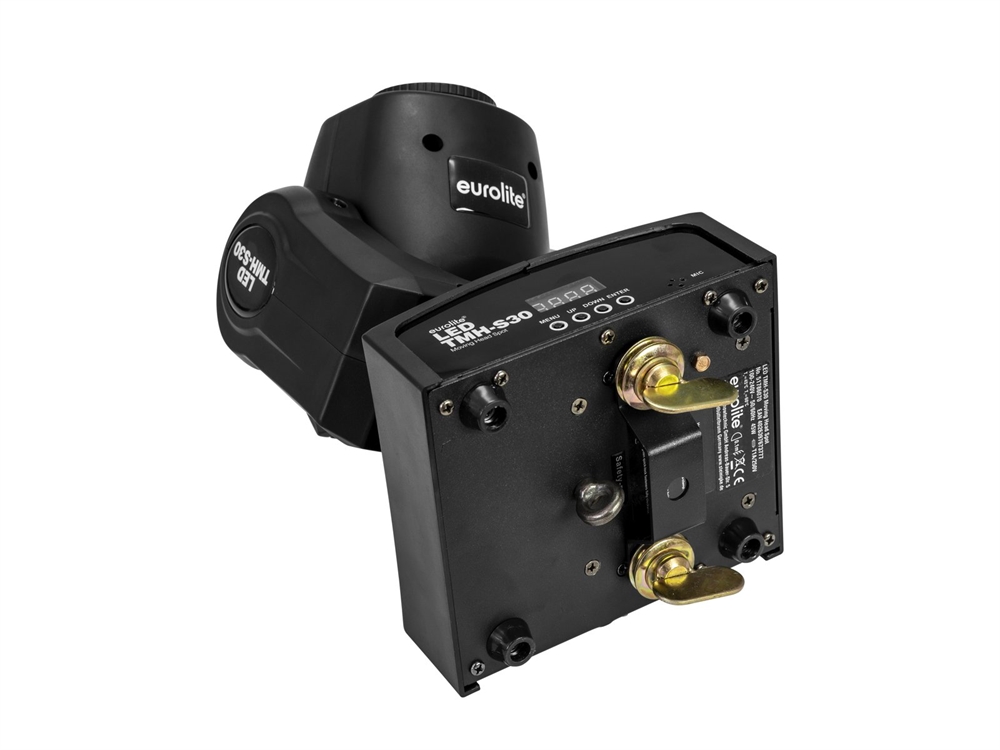

| DMX input: | 3-pin XLR (M) mounting version |
| DMX output: | 3-pin XLR (F) mounting version |
| Cooling: | Cooling fan |
| Control: | Stand-alone |
| DMX |
| Sound to light via Microphone |
| Master/slave function |
| QuickDMX via USB (optional) |
| Beam angle (1/2 peak): | 8° |
| Housing color: | Black |
| Width: | 17.0 cm |
| Height: | 24.0 cm |
| Depth: | 15.0 cm |
| Weight: | 3.03 kg |
| Legal specifications |
| Ecodesign regulation: | Yes |
| Special product: | Not designed for household room illumination |
| Purpose: | Show effect lighting |
