| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 140 W |
| IP classification: | IP20 |
| Power connection: | Mains input P-Con (blue), mounting version Power supply cord with safety plug |
| Fuse: | 5 x 20 mm, T 2 A |
| LED: | 1 x COB (chip-on-board) 90 W CW |
| Max. TILT movement: | Exact positioning (16 bit resolution) 200° Auto position correction (feedback) |
| Max. PAN movement: | Exact positioning (16 bit resolution) 540° Auto position correction (feedback) |
| Flash rate: | 2 - 30 Hz |
| Equipment: | Prism 3-fold; gobo wheel with rotating gobos rotating; gobo wheel with static gobos; Focus motor-driven; color wheel |
| Color generation: | Color wheel 1 x 7 dichroic filters plus open |
| Gobos: | Gobo wheel with static gobos, 6 gobos,1 multi color gobo and open
Shake effect
Gobo wheel with rotating gobos, 6 gobos and open
Outside diameter 21.8mm
Image diameter 16mm
Shake effect
Gobos changeable
Slot-in gobo system for exchanging gobos without tools |
| DMX channels: | 15 |

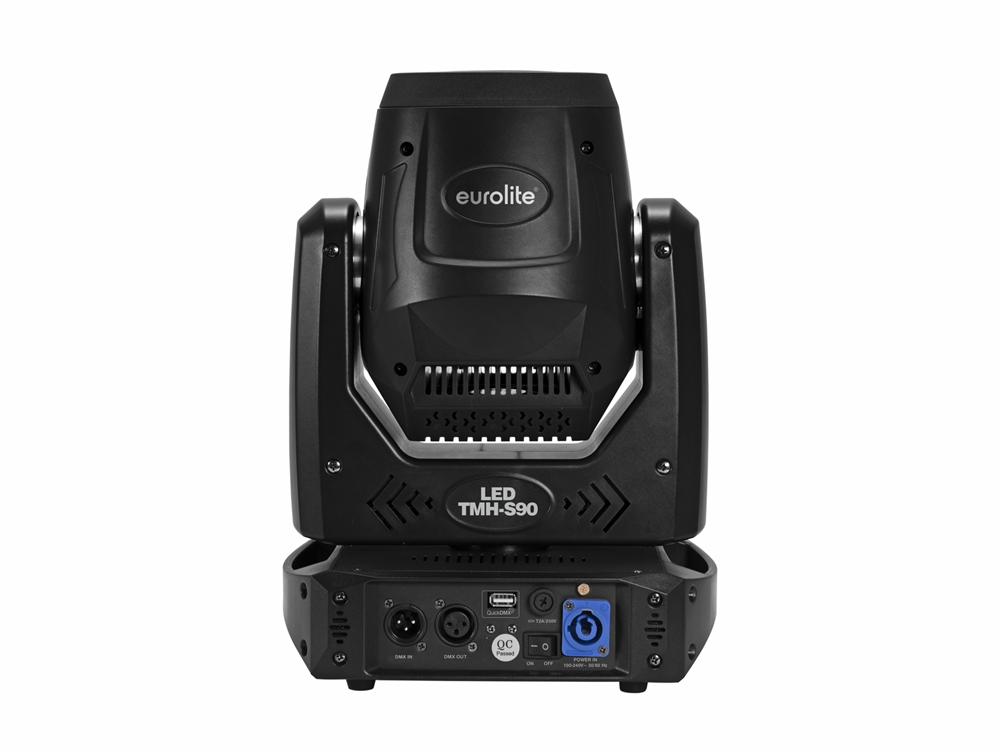

| DMX input: | 3-pin XLR (M) mounting version |
| DMX output: | 3-pin XLR (F) mounting version |
| Cooling: | Cooling fan |
| Control: | DMX
Sound to light via Microphone
Stand-alone
QuickDMX via USB (optional)
Master/slave function |
| Beam angle: | 12° |
| Beam angle (1/2 peak): | 12° |
| Housing color: | Black |
| Width: | 25.0 cm |
| Height: | 35.0 cm |
| Depth: | 20.5 cm |
| Weight: | 6.20 kg |
| Legal specifications |
| Ecodesign regulation: | Yes |
| Special product: | Not designed for household room illumination |
| Purpose: | Show effect lighting |
