Bright washlight with 400 W COB LED and motorized zoom

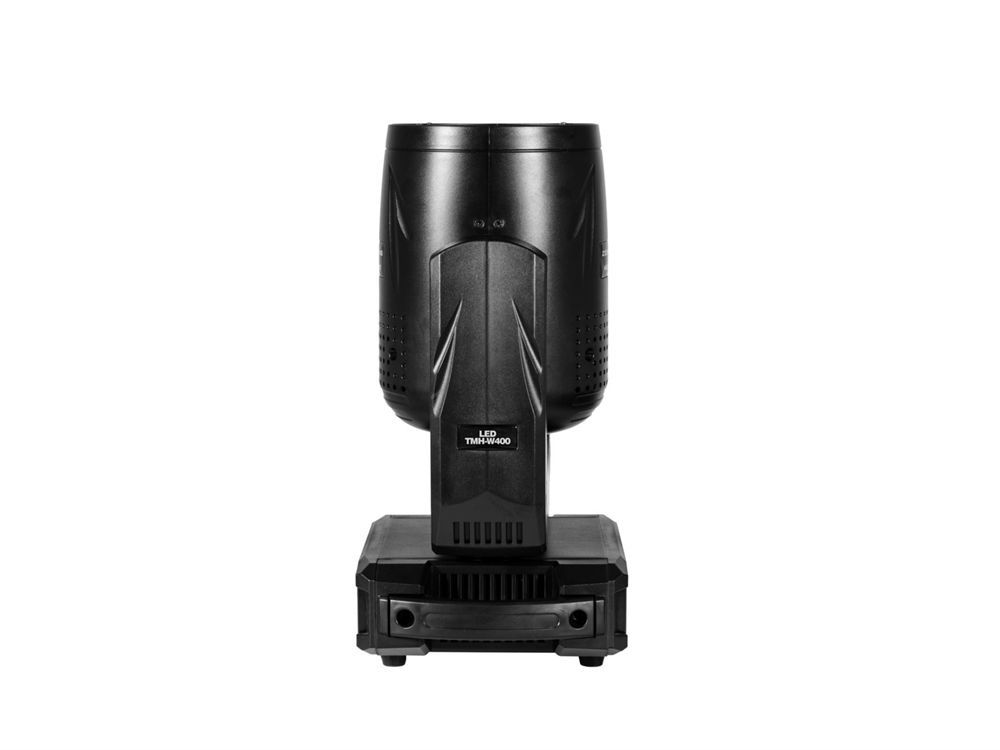

EUROLITE LED TMH-W400 Moving Head Wash Zoom

Eurolite LED TMH-W400

Moving Head Wash Zoom

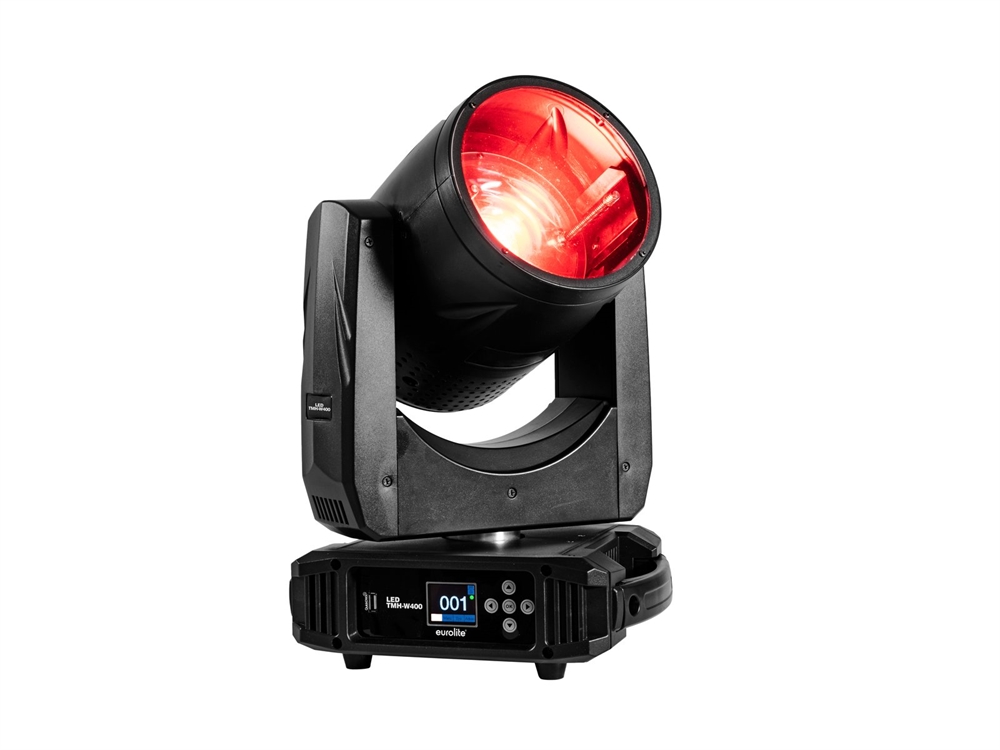

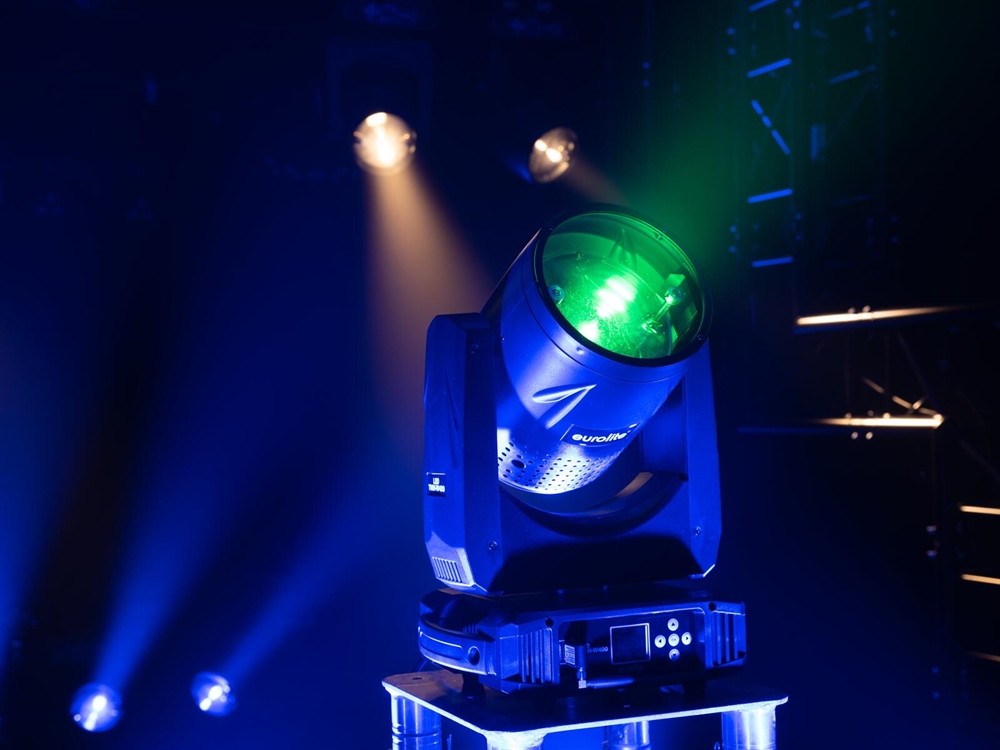

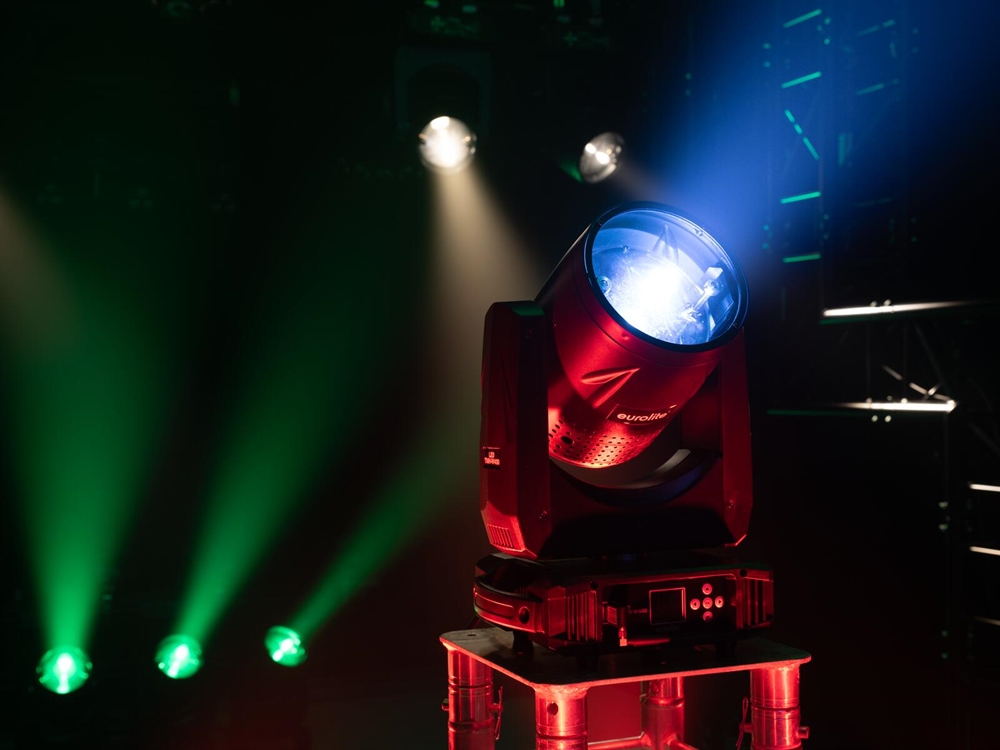

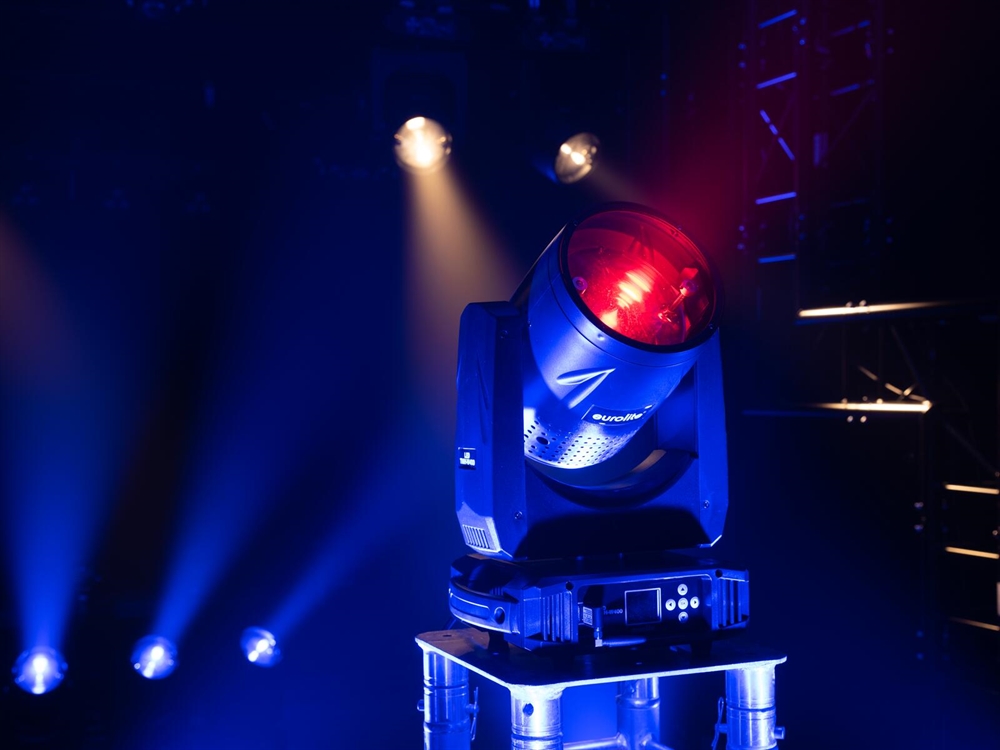

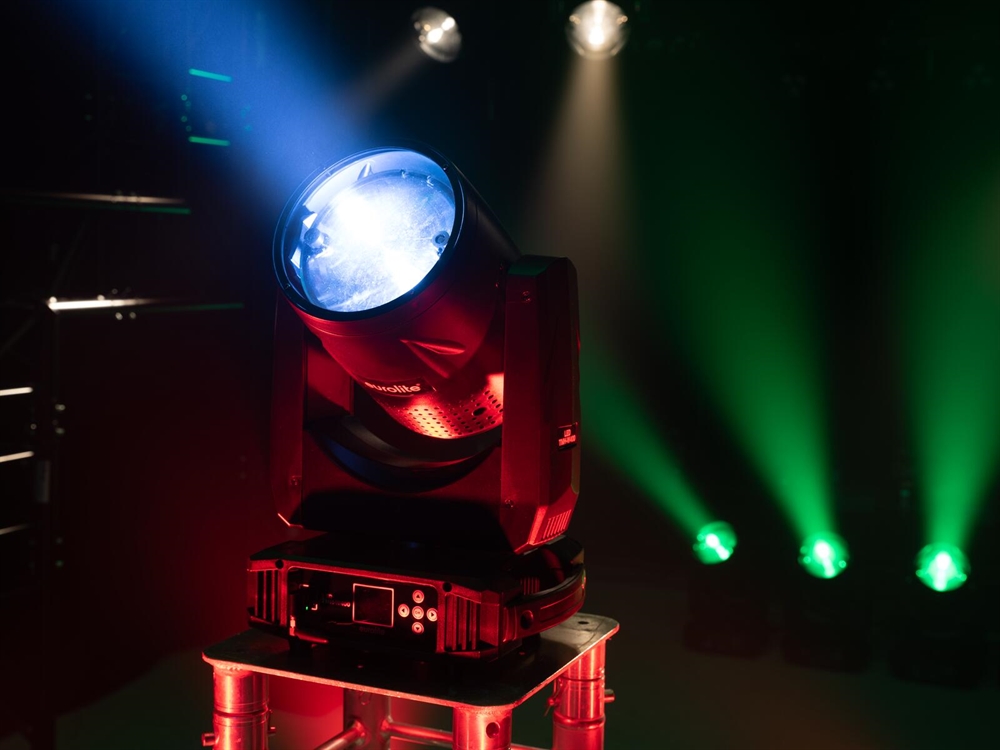

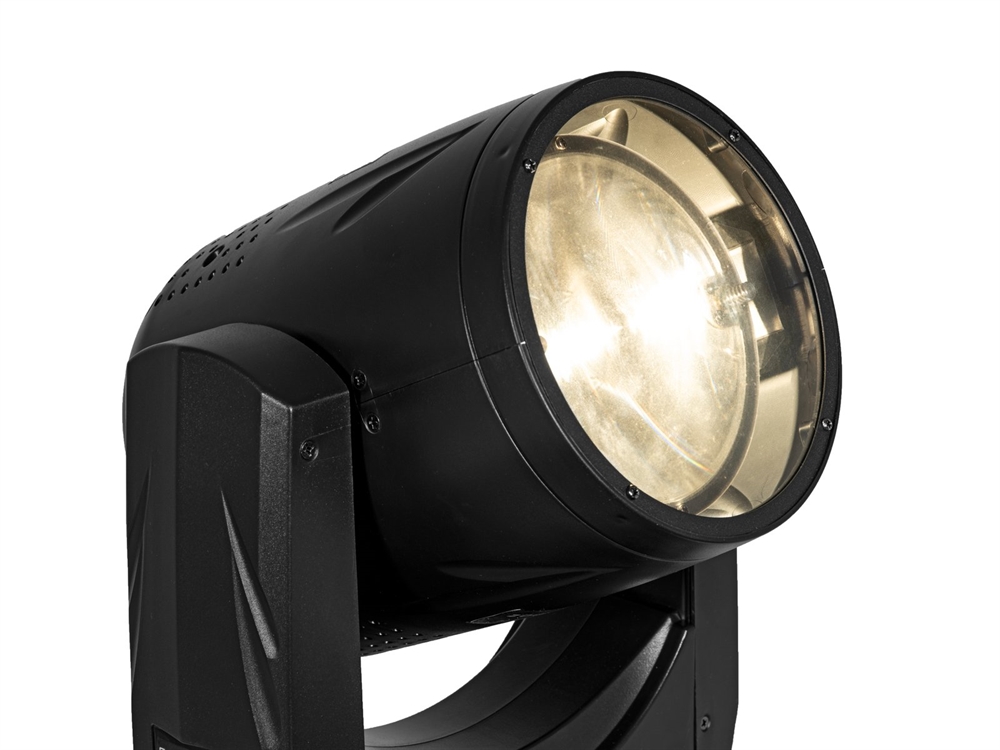

The Eurolite LED TMH-W400 is a moving head wash light, but its design is different than you would expect: Its head is not dominated by a multitude of LEDs, but by an elongated tube. This tube and a lens built into it together create a homogeneous, large light area. Inside the tube, state-of-the-art LED technology is used; a 400-watt LED COB module provides a very decent light output.

Color mixing and CRI

The color mixture of the wash light is based on red, green, blue, and white. A special feature here is the white: It is not cold white as usual, but warm white, and its color rendering index, i.e. the quality of the light, is an extremely good value of over 90. This also makes the spotlight an excellent choice as a front light on concert stages. The lens in the spotlight is motorized and the beam angle can therefore range from 9° to 48°.

Equipment

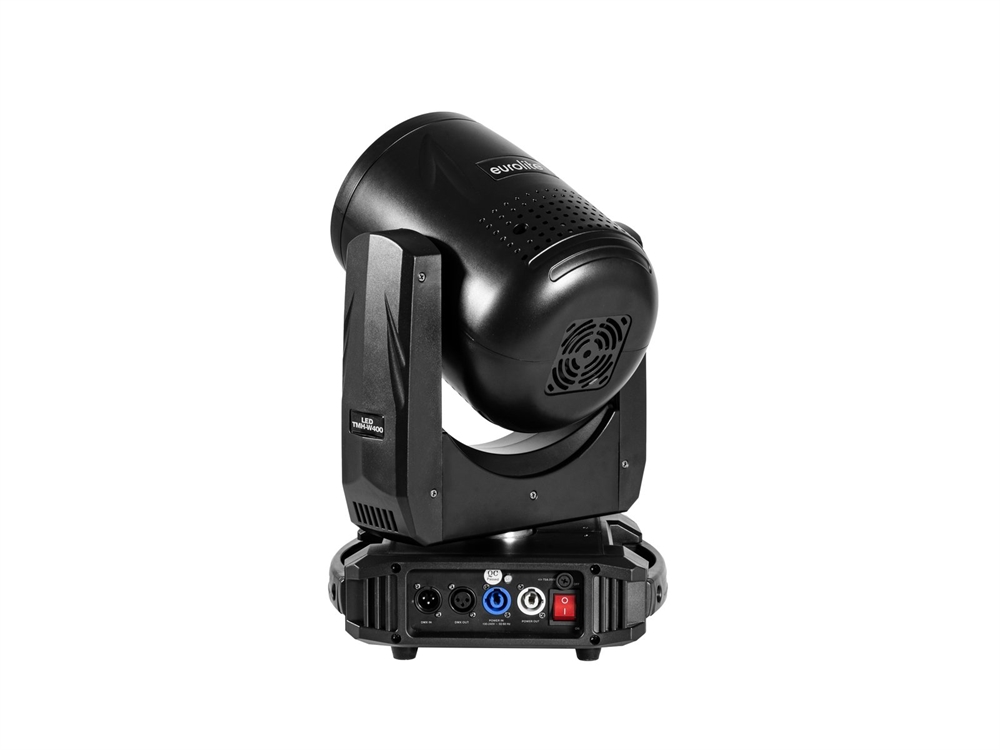

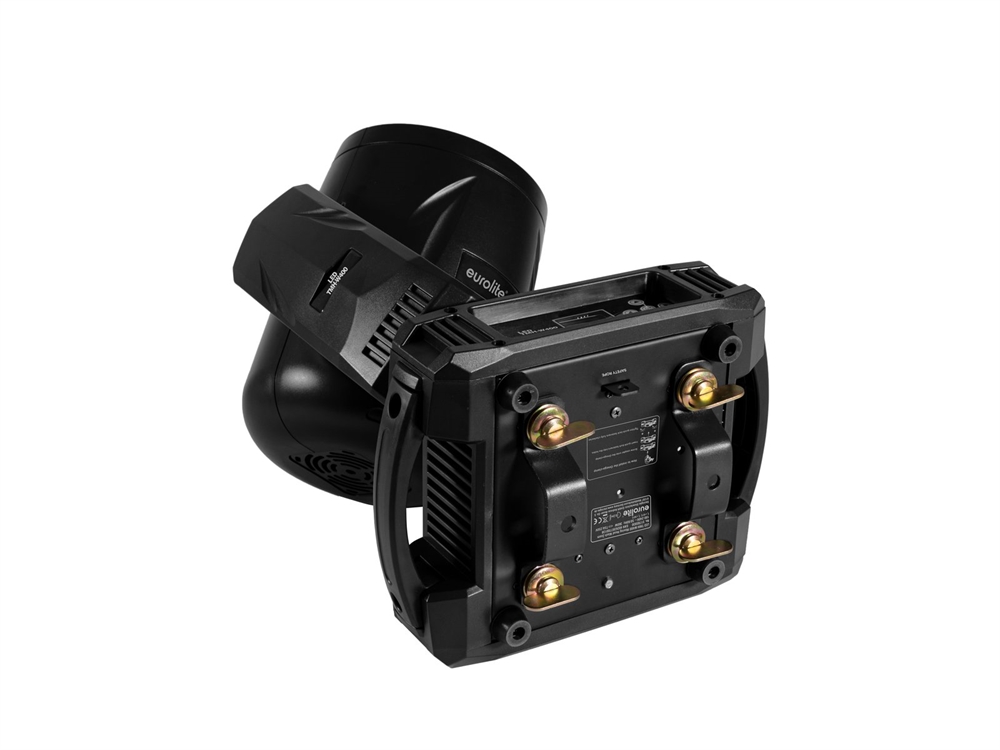

The power connection is realized via P-Con in and outputs. In addition to the normal DMX connections, a USB socket is also installed, with which the device can be equipped for wireless DMX operation in a flash. A comfortable display and 5 buttons allow a quick and easy adjustment of the menu functions. Like all modern moving heads from Eurolite, the spotlight is mounted via Omega brackets with quick-release fasteners.

Bright washlight with 400 W COB LED and motorized zoom

One high-power 400 W RGB/WW LED (4in1)
Motorized zoom with 9-48° beam angle
Stepless RGBW color mixture
Auto, music, master/slave and DMX mode
Built-in auto and music show programs
Strobe effect 1-25 Hz
Random strobe effect
Electronic dimmer (0-100%)
Automatic position correction
Positioning within 540° PAN and 230° TILT
Exact positioning via 16-bit PAN/TILT movement resolution
Supports QuickDMX - the wireless DMX system from Eurolite
Control panel with color LC display for easy configuration
Built-in phantom-powered USB port for QuickDMX, CRMX and WDMX receivers (optional)
Mains input and output for power linking up to 4 units
LED: 1 x COB (chip-on-board) 400 W 4in1 QCL RGB/WW (homogenous color mix)
Can be operated in 13 CH mode
The device is cooled by cooling fan
Controlling by stand-alone; DMX; Sound to light via Microphone; Master/slave function; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
Preprogrammed in Light Captain
Flicker-free projection
Very high color rendering index (CRI)

Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	360 W
IP classification:	IP20
Protection class:	Class I
Power connection:	Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided)
Power output:	P-Con (gray), mounting version
Fuse:	5 x 20 mm, T 5 A Fuse replaceable
Lamp type:	LED lamp
LED:	1 x COB (chip-on-board) 400 W 4in1 QCL RGB/WW (homogenous color mix)
Max. TILT movement:	Exact positioning (16 bit resolution) 230° Auto position correction (feedback)
Max. PAN movement:	Exact positioning (16 bit resolution) 540° Auto position correction (feedback)
Flash rate:	1 - 25 Hz
Equipment:	Zoom motor-driven
DMX channels:	13
DMX input:	3-pin XLR (M) mounting version
DMX output:	3-pin XLR (F) mounting version
Cooling:	Cooling fan
Control:	Stand-alone; DMX; Sound to light via Microphone; Master/slave function; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); Light Captain
Beam angle:	9 - 48°
Beam angle (1/2 peak):	9 - 25°
Beam angle (1/10 peak):	16 - 48°
Color rendering index (CRI) more than:	90 Ra
Illuminance in Lux (lx):	Narrow red (R) 1m: 14250 lx, 3m: 2003 lx, 6m: 470 lx Narrow green (G) 1m: 36558 lx, 3m: 4533 lx, 6m: 1085 lx Narrow blue (B) 1m: 4869 lx, 3m: 959 lx, 6m: 235 lx Narrow warm white (WW) 1m: 33844 lx, 3m: 3508 lx, 6m: 837 lx Narrow all 1m: 75609 lx, 3m: 9660 lx, 6m: 2293 lx Wide red (R) 1m: 2821 lx, 3m: 359 lx, 6m: 97 lx Wide green (G) 1m: 6107 lx, 3m: 809 lx, 6m: 227 lx Wide blue (B) 1m: 1410 lx, 3m: 188 lx, 6m: 53 lx Wide warm white (WW) 1m: 5425 lx, 3m: 706 lx, 6m: 195 lx Wide all 1m: 13817 lx, 3m: 1798 lx, 6m: 495 lx
Housing color:	Black
Display type:	Multicolor LCD display
Dimensions:	Width: 30,0 cm Depth: 23,0 cm Height: 45,0 cm
Weight:	10 kg
Noise classification:	Class 2 (slight noise)
Legal specifications
Special product:	Not designed for household room illumination
Intended use:	Show effect lighting
