| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 475 W |
| IP classification: | IP20 |
| Protection class: | Protection class I |

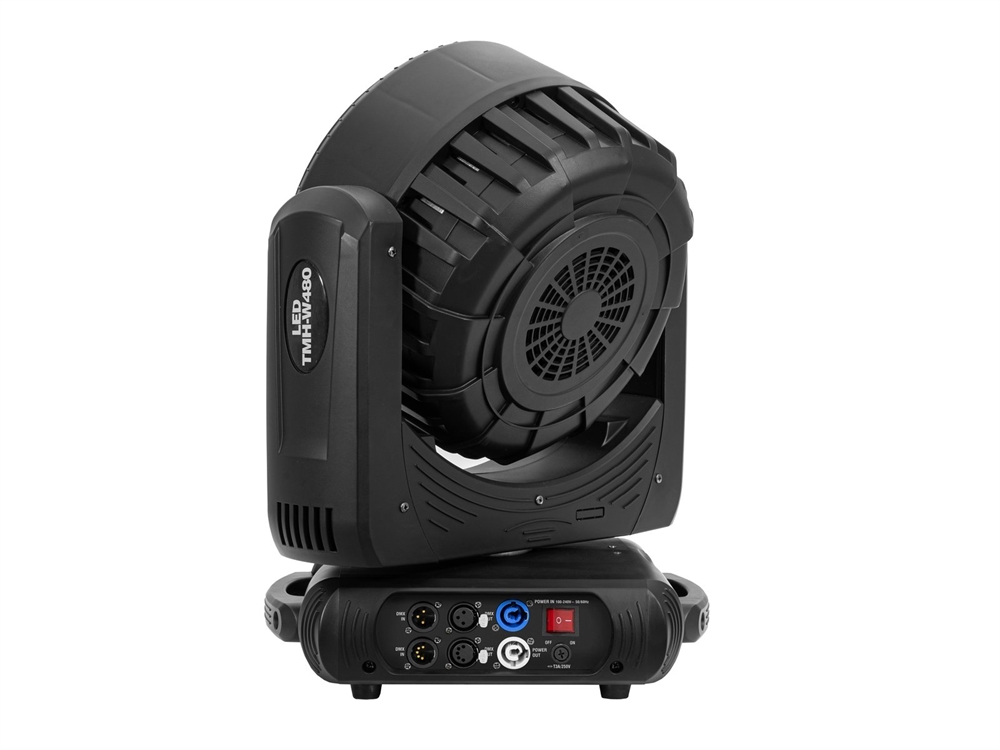

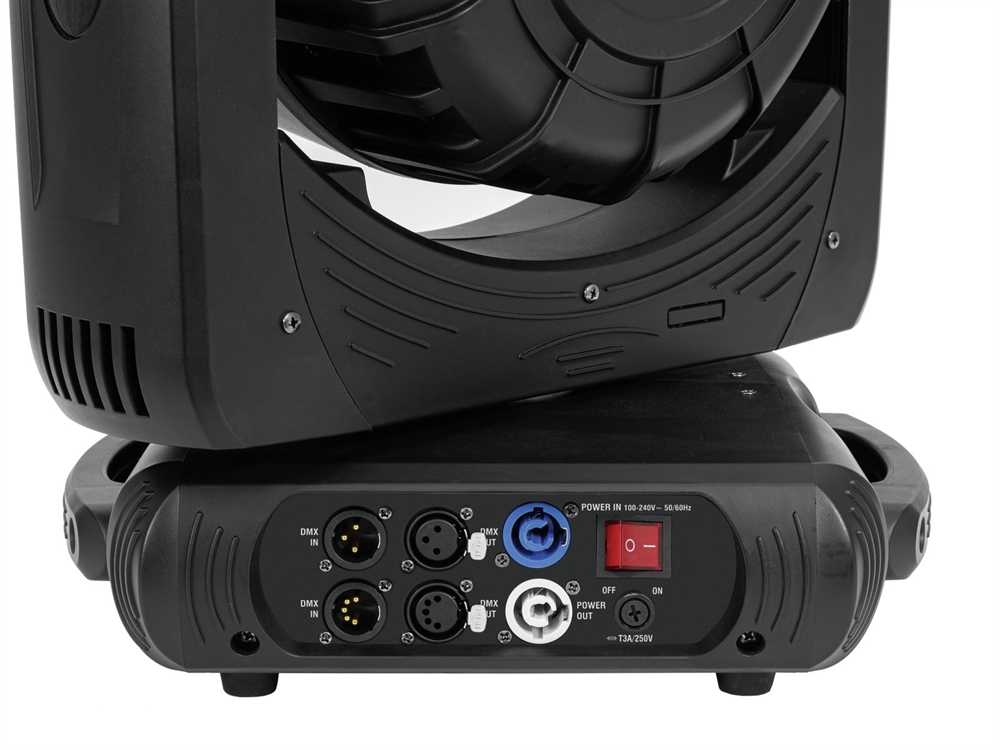

| Power connection: | Mains input via P-Con (blue), mounting version power supply cord with safety plug |
| Power output: | P-Con (gray), mounting version |
| Lamp type: | LED lamp |

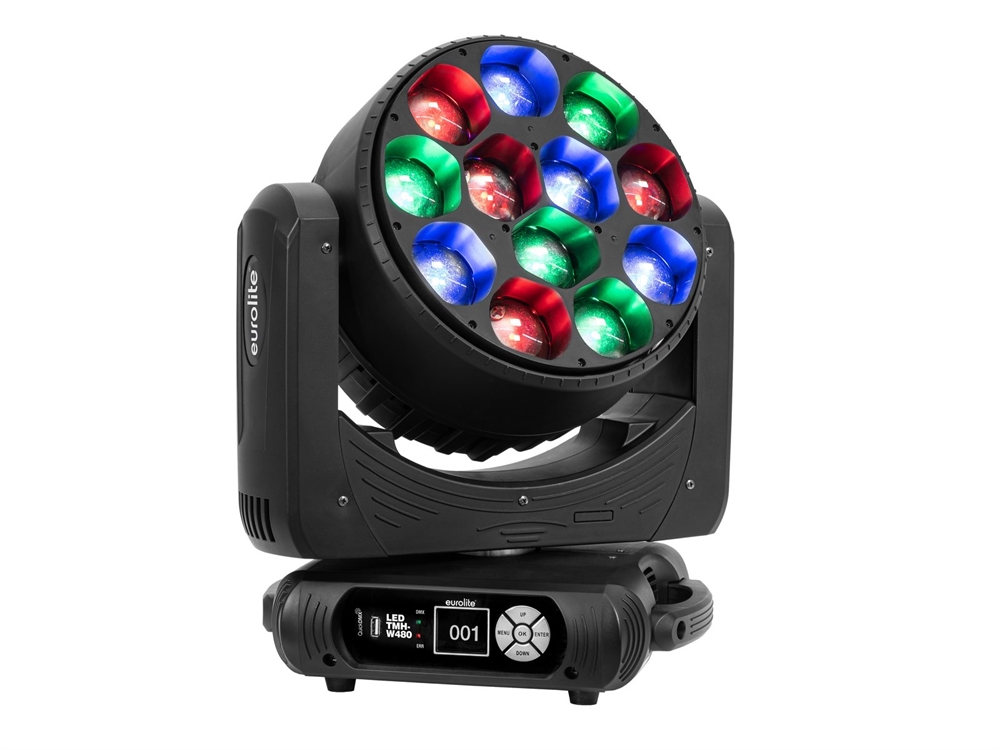

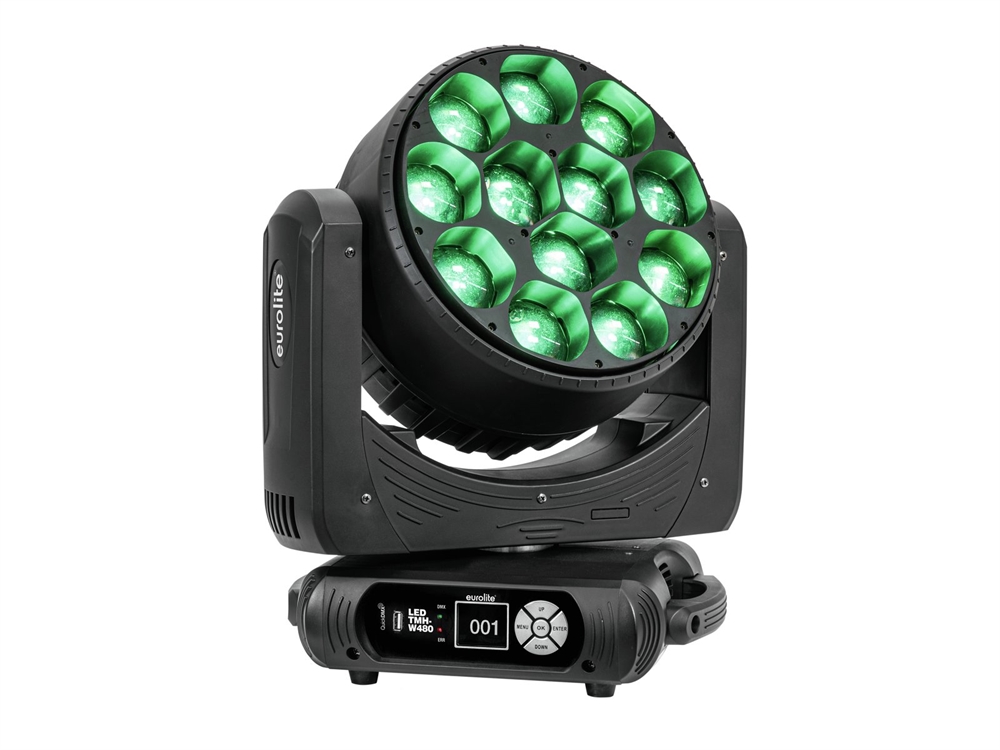

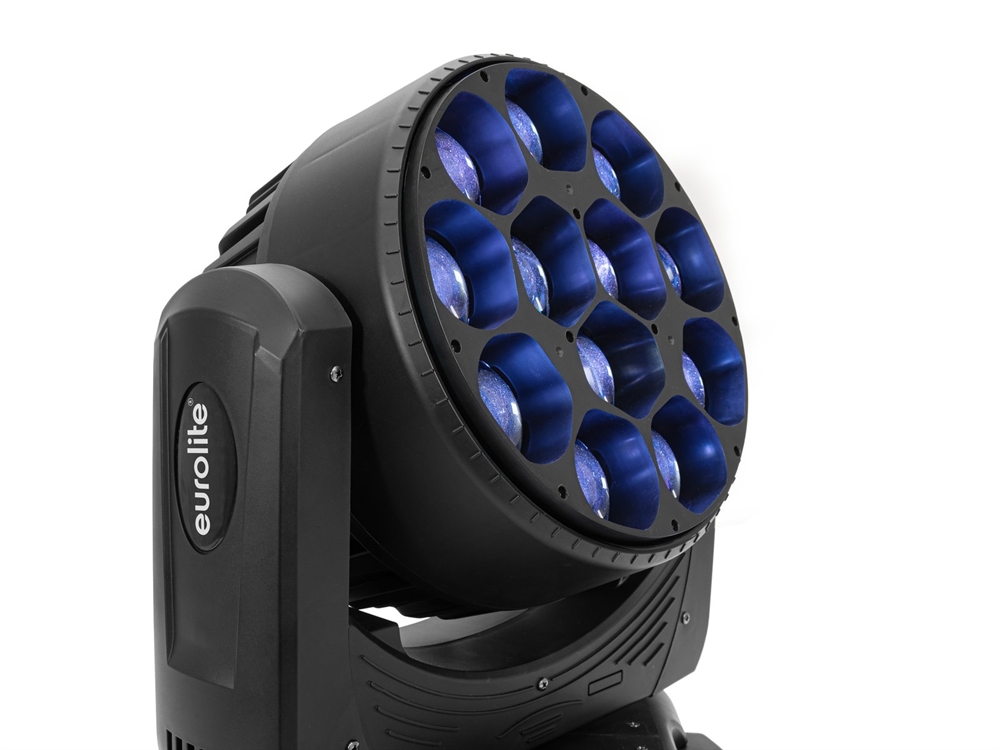

| LED: | 12 x 40 W 4in1 QCL RGBW (homogenous color mix) |
| Max. TILT movement: | 215° Exact positioning (16 bit resolution) Auto position correction (feedback) |
| Max. PAN movement: | 540° Exact positioning (16 bit resolution) Auto position correction (feedback) |
| Equipment: | Zoom motor-driven; Dimmer |
| DMX channels: | 11; 16; 18; 58 |
| DMX input: | 3-pin XLR (M) mounting version
5-pin XLR (M) mounting version |
| DMX output: | 3-pin XLR (F) mounting version
5-pin XLR (F) mounting version |
| Cooling: | Temperature-controlled fan at the Head
Low-noise cooling fan at the Base |
| Control: | Stand-alone; DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); Sound to light via Microphone; Master/slave function |
| Preprogrammed in: | Light´J; Light Captain |
| Beam angle: | 1° - 35° |
| Beam angle (1/2 peak): | 1 - 18° |
| Beam angle (1/10 peak): | 6 - 35° |
| Illuminance in Lux (lx): | Narrow red (R) 1m: 10753 lx, 3m: 4966 lx, 6m: 1572 lx
Narrow green (G) 1m: 30231 lx, 3m: 12941 lx, 6m: 4189 lx
Narrow blue (B) 1m: 3586 lx, 3m: 2214 lx, 6m: 830 lx
Narrow cold white (CW) 1m: 29150 lx, 3m: 12657 lx, 6m: 4024 lx
Narrow all 1m: 66539 lx, 3m: 31156 lx, 6m: 10125 lx
Wide red (R) 1m: 2592 lx, 3m: 363 lx, 6m: 99 lx
Wide green (G) 1m: 7263 lx, 3m: 966 lx, 6m: 265 lx
Wide blue (B) 1m: 1368 lx, 3m: 188 lx, 6m: 51 lx
Wide cold white (CW) 1m: 6610 lx, 3m: 887 lx, 6m: 242 lx
Wide all 1m: 16995 lx, 3m: 2285 lx, 6m: 622 lx |
| Housing color: | Black |

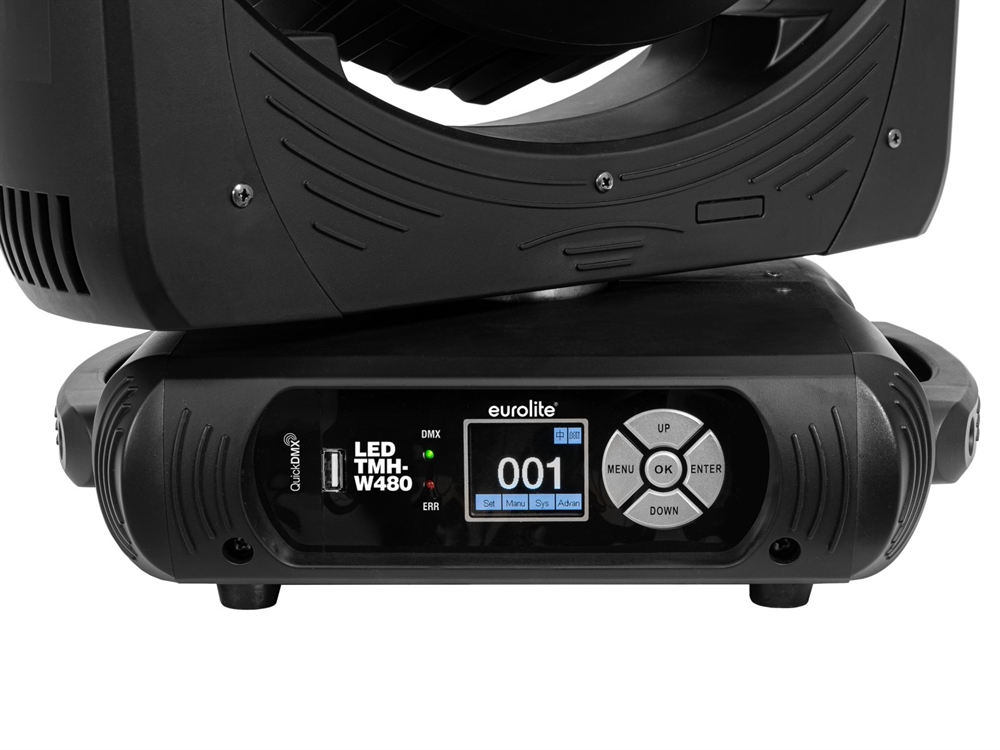

| Display type: | Multicolor LCD display |
| Dimensions: | Width: 39,0 cm
Depth: 27,0 cm
Height: 47,0 cm |
| Weight: | 14,6 kg |
| Legal specifications |
| Special product: | Not designed for household room illumination |
| Intended use: | Show effect lighting |
