Power supply: | 100-240 V AC, 50/60 Hz |
Power consumption: | 490 W |
IP classification: | IP20 |
Protection class: | Class I |

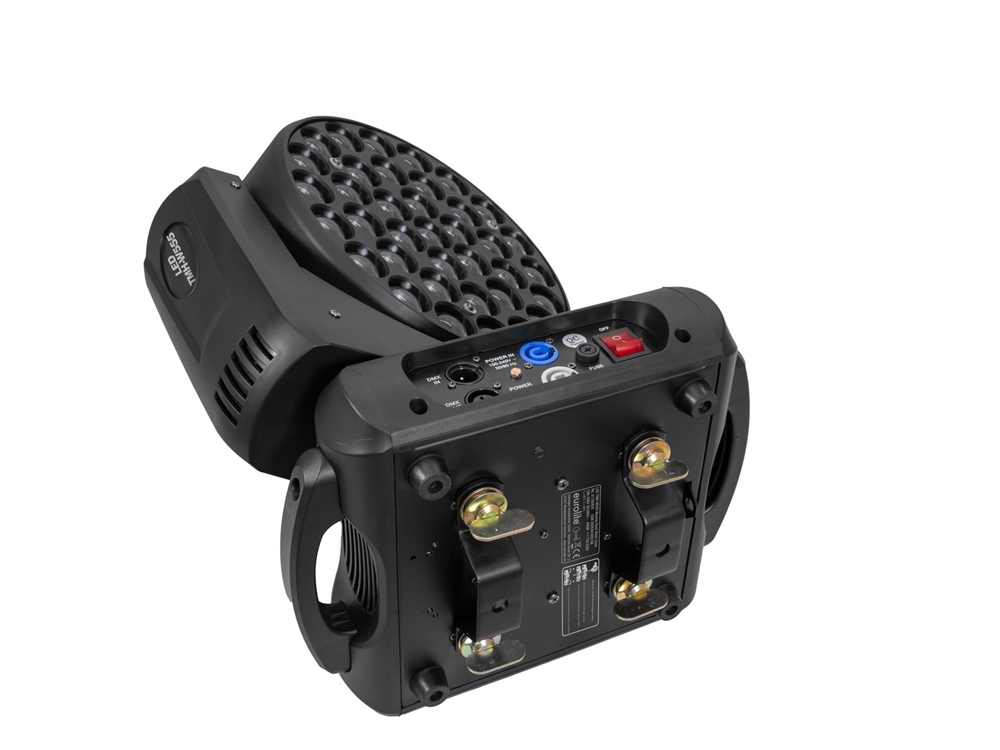

Power connection: | Mains input P-Con (blue), mounting version Power supply cord with safety plug (provided) |
Power output: | P-Con (gray), mounting version |
Fuse: | 5 x 20 mm, T 4 A Fuse replaceable |
Lamp type: | LED lamp |

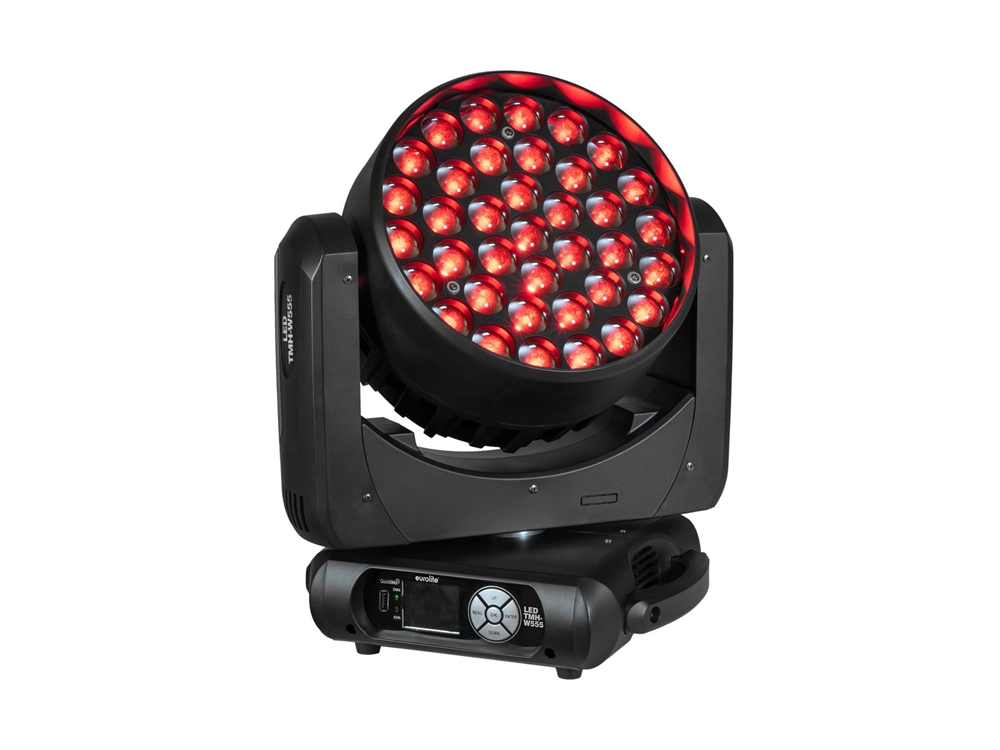

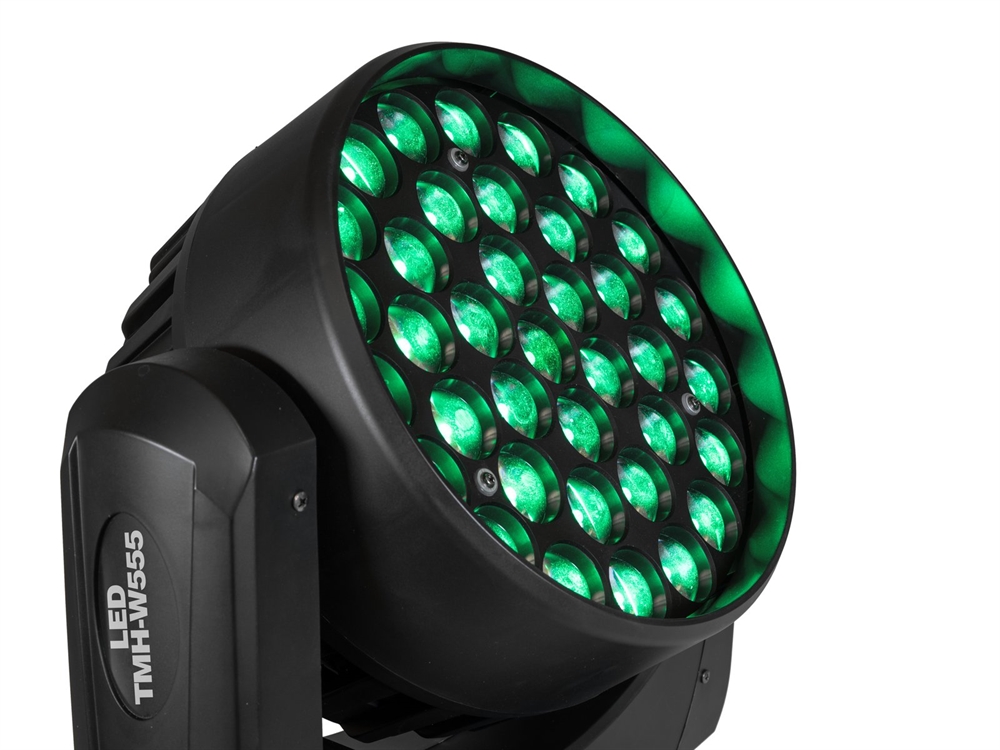

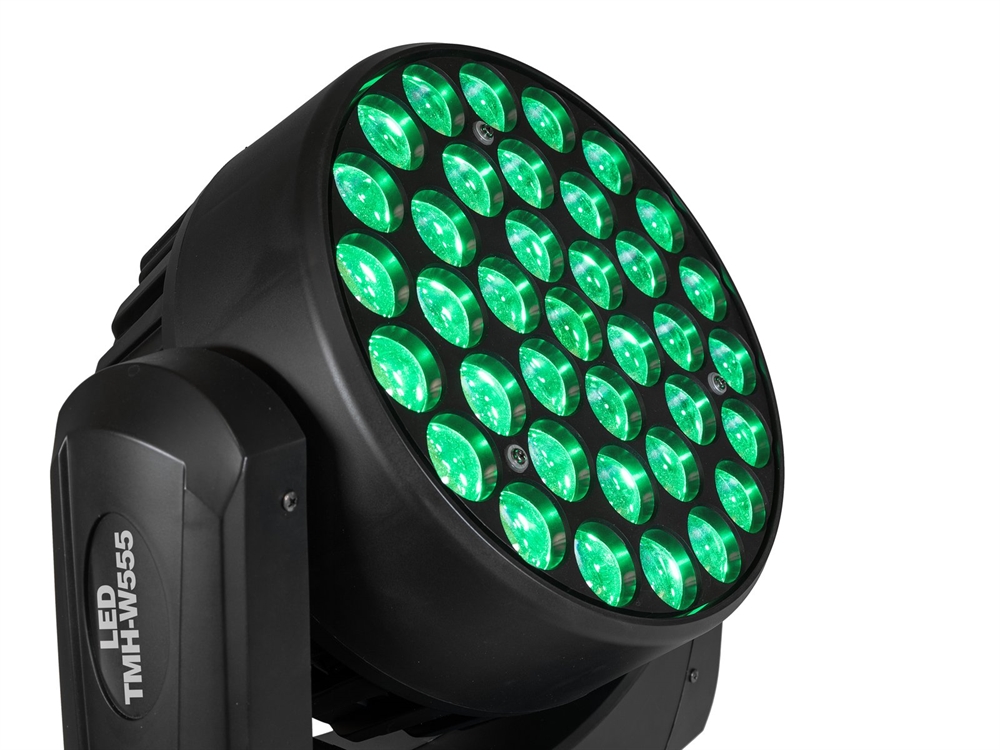

LED: | 37 x 15 W 4in1 QCL RGBW (homogenous color mix) |
Max. TILT movement: | Exact positioning (16 bit resolution) 270° |
Max. PAN movement: | Exact positioning (16 bit resolution) 540° |
DMX channels: | 24; 36; 48 |

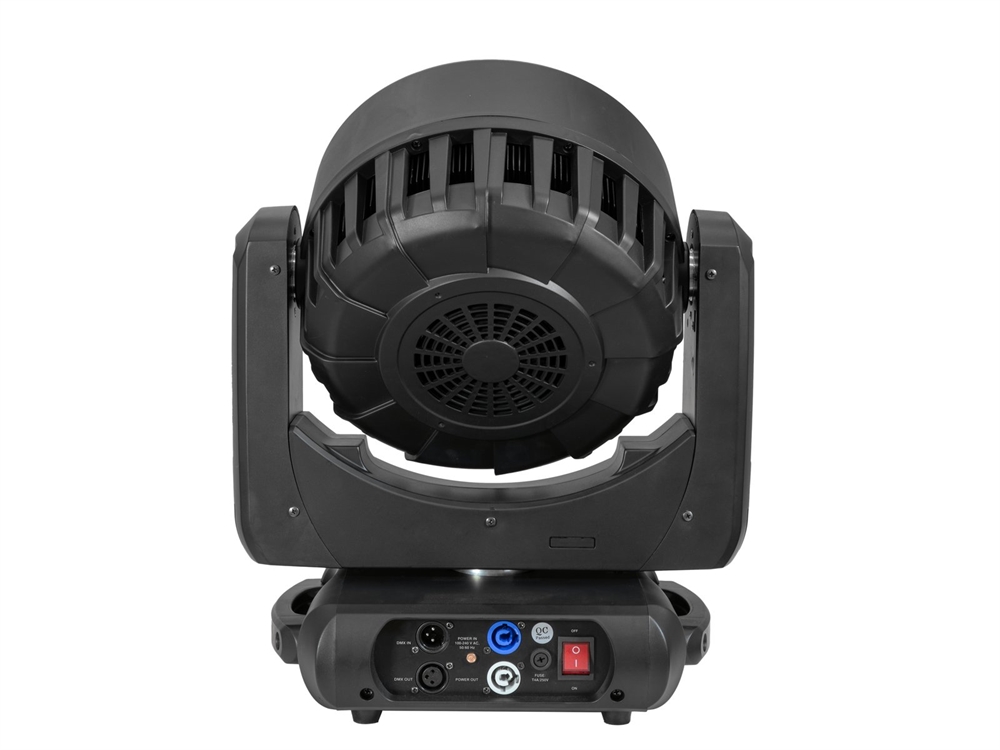

DMX input: | 3-pin XLR (M) mounting version |
DMX output: | 3-pin XLR (F) mounting version |
Cooling: | Temperature-controlled fan at the Head Cooling fan at the Base |
Control: | DMX; Stand-alone; Sound to light via Microphone; QuickDMX via USB (optional); Master/slave function |
Beam angle: | 1 - 38° |
Beam angle (1/2 peak): | 1 - 20° |
Beam angle (1/10 peak): | 8 - 38° |
Illuminance in Lux (lx): | Narrow R red 1m: 14703 lx, 3m: 6338 lx, 6m: 1581 lx Narrow G green 1m: 36582 lx, 3m: 14313 lx, 6m: 3581 lx Narrow B blue 1m: 4622 lx, 3m: 2444 lx, 6m: 666 lx Narrow CW 1m: 47065 lx, 3m: 15572 lx, 6m: 3872 lx Narrow all 3m: 35914 lx, 6m: 9025 lx Wide R red 1m: 4769 lx, 3m: 624 lx, 6m: 165 lx Wide G green 1m: 10949 lx, 3m: 1431 lx, 6m: 386 lx Wide B blue 1m: 2021 lx, 3m: 274 lx, 6m: 77 lx Wide CW 1m: 11357 lx, 3m: 1505 lx, 6m: 397 lx Wide all 1m: 27092 lx, 3m: 3575 lx, 6m: 956 lx |
Housing color: | Black |

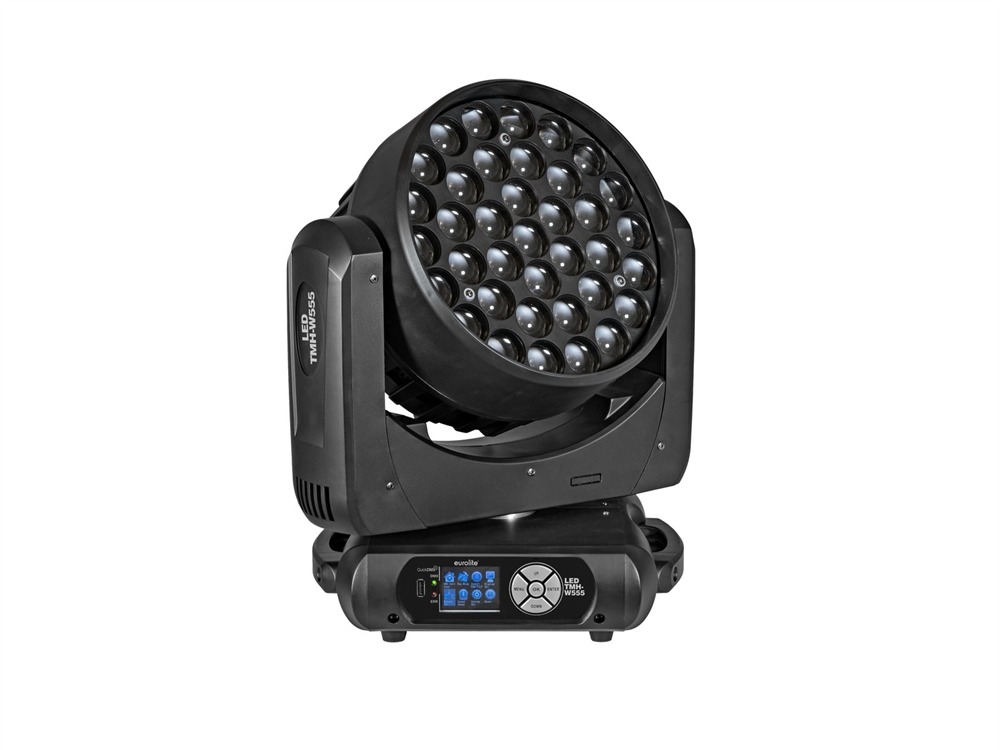

Display type: | Multicolor LCD display |
Dimensions: | Width: 39,0 cm Depth: 26,5 cm Height: 47,5 cm |
Weight: | 13,90 kg |
Legal specifications |
Special product: | Not designed for household room illumination |
intended use: | show effect lighting |
