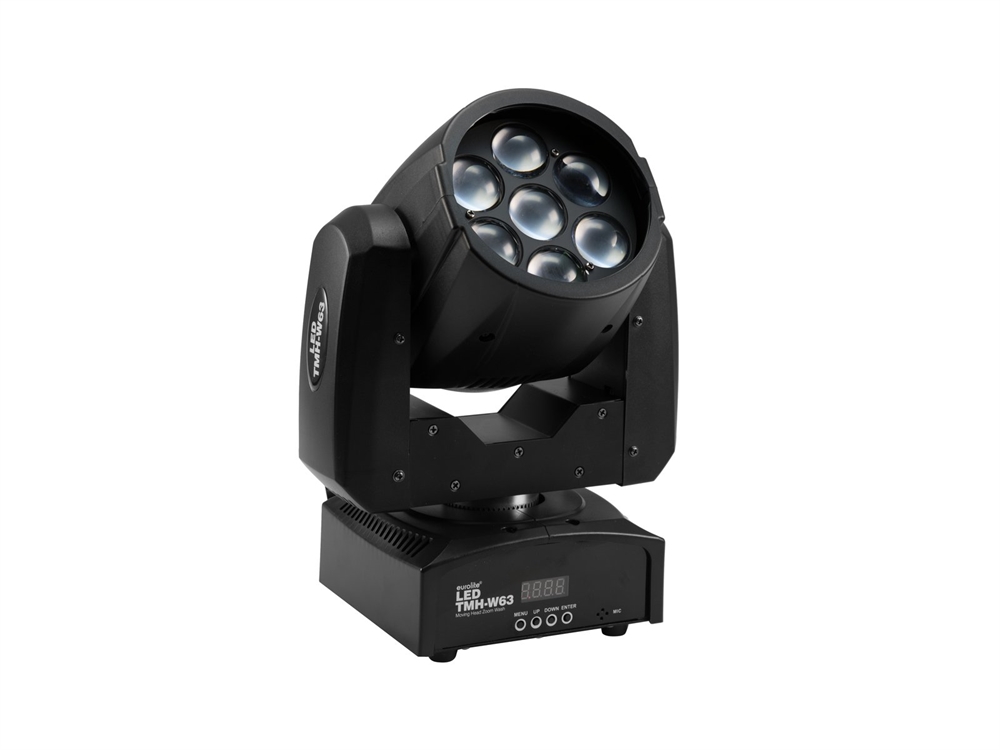

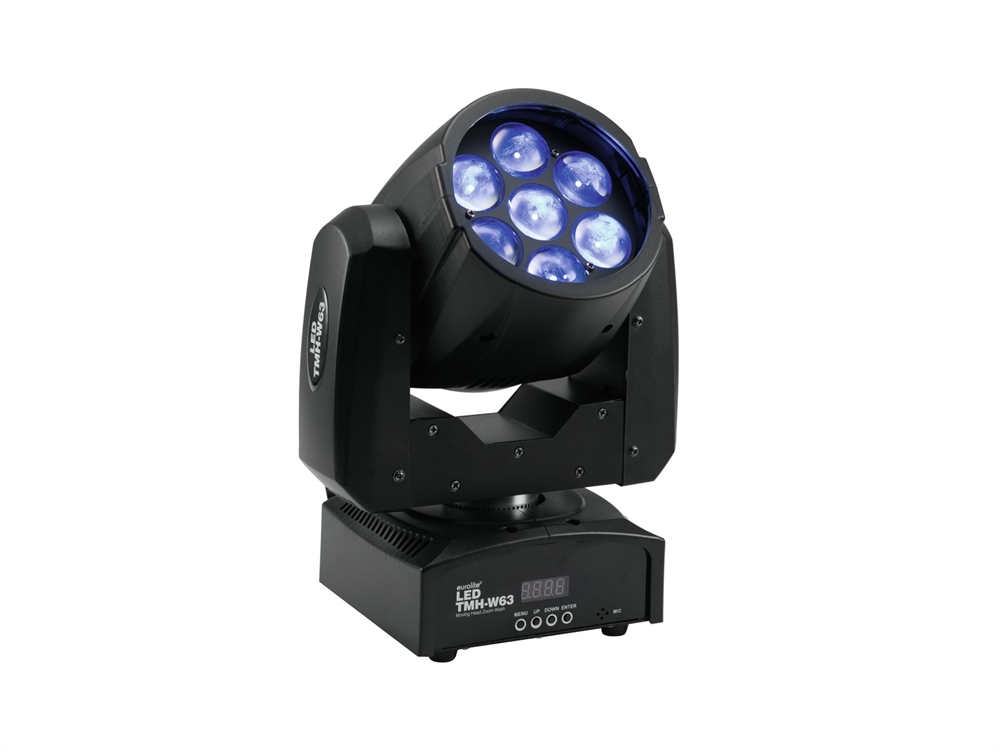

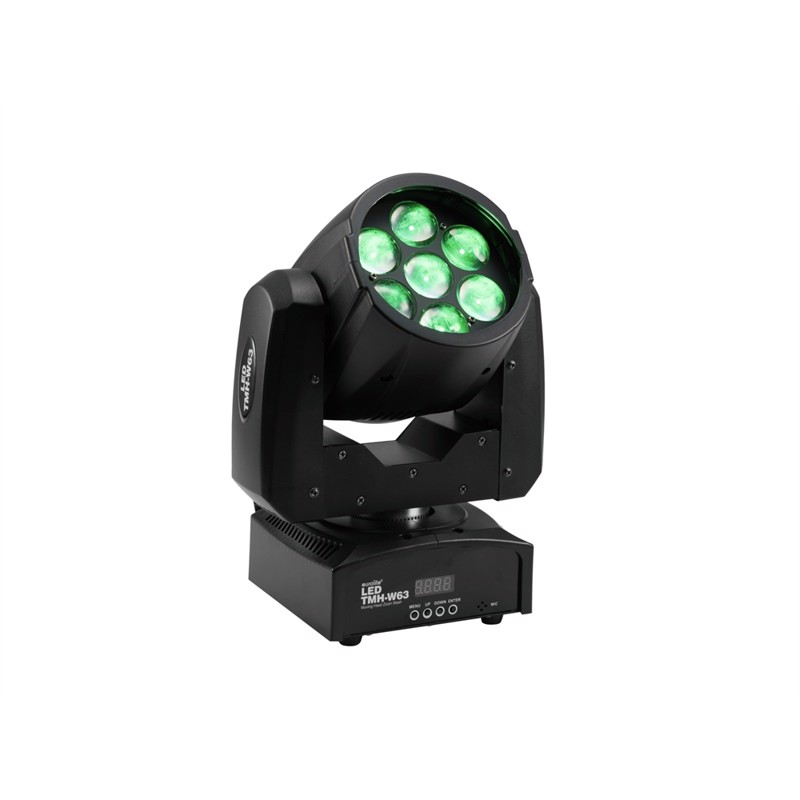

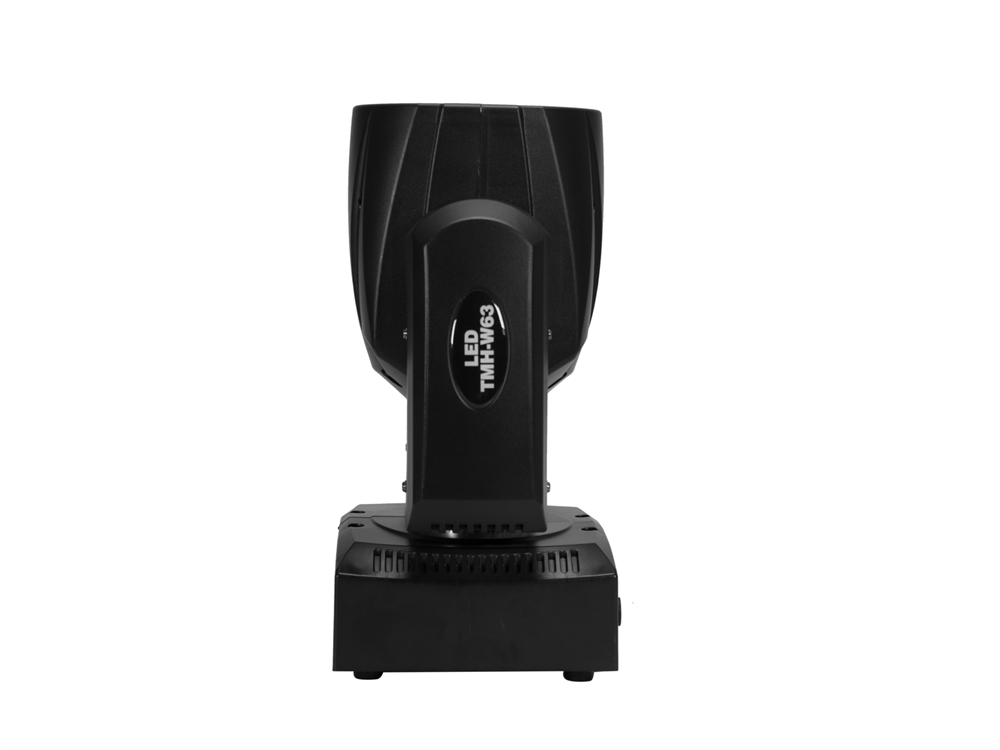

EUROLITE LED TMH-W63 Moving Head Zoom Wash

På lager
På lager, 3-5 hverdage
Bedømmelse for EUROLITE LED TMH-W63 Moving Head Zoom Wash
Produktet er endnu ikke bedømt

Washlight with 7 intense 9 W LEDs (4in1) and motorized zoom

7 high-power 9 W RGBW LEDs (4in1)
Positioning within 540Â° PAN and 220Â° TILT

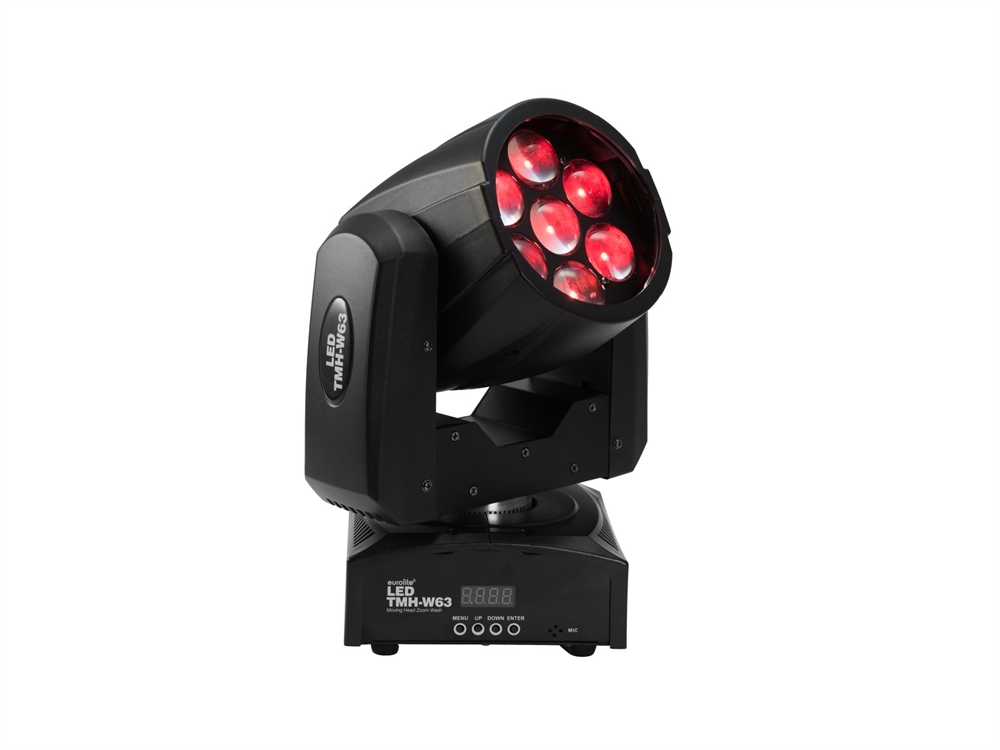

Stepless RGBW color mixture
Built-in auto and music show programs
Motion macros
Strobe effect with variable speed
Strobe effect by random generator
Dimmer
Motorized zoom with 6-18Â° beam angle
Supports QuickDMX - the wireless DMX-system from Eurolite
Built-in phantom-powered USB port for QuickDMX receivers (accessories)
Sound-control via built-in microphone with adjustable microphone sensitivity
Exact positioning via 16 bit PAN/TILT movement resolution
Fan-cooled
Auto, music, master/slave and DMX mode
Control board with 4-digit LED display for adjusting the DMX-starting address, PAN/TILT Reverse, Program, Reset
Switch-mode power supply for operation between 100 and 240 volts
Additional rubber feet when the spot shall be positioned on the floor

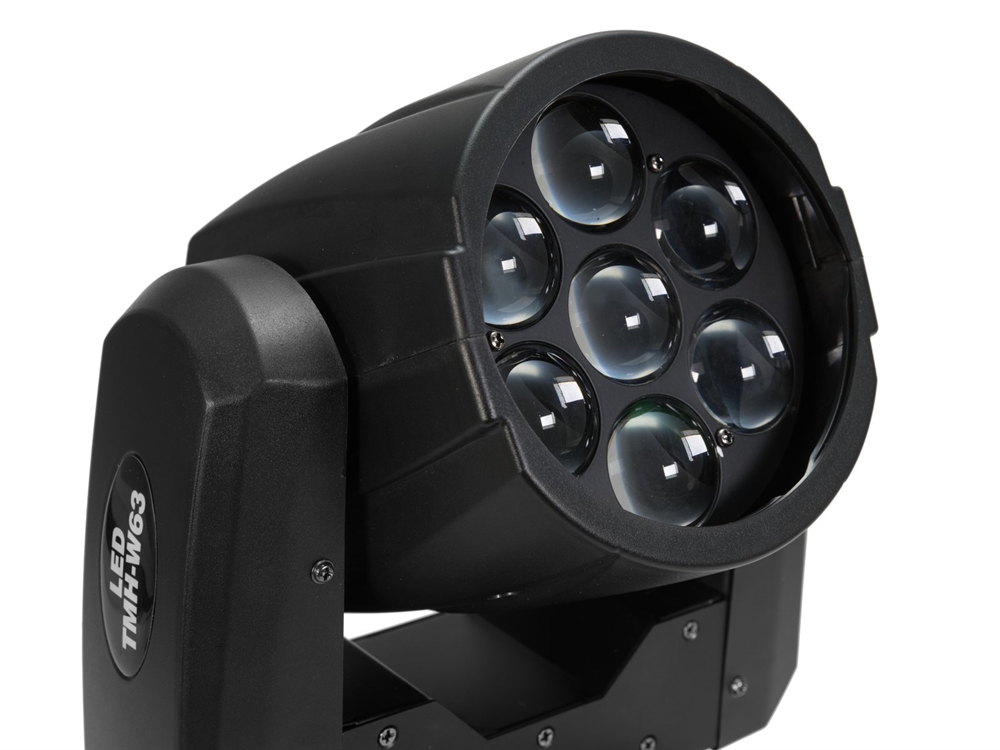

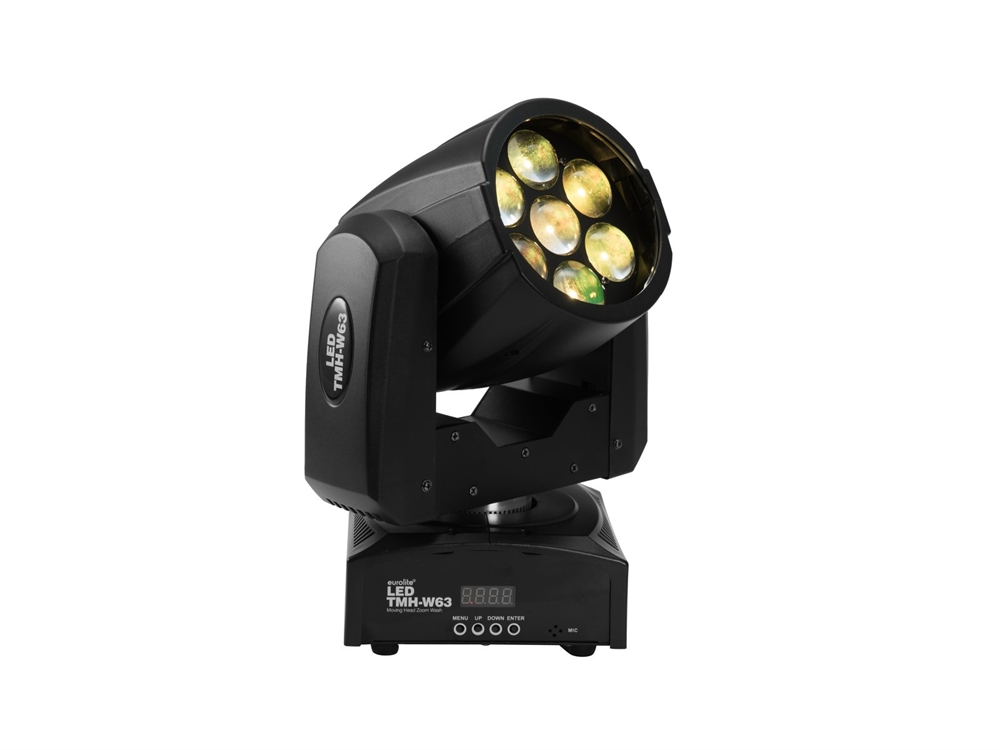

LED: 7 x high-power 9 W 4in1 QCL RGBW (homogenous color mix)
Control: Stand-alone; DMX; QuickDMX via USB (optional); Master/slave function; Sound to light via Microphone
Projection: flicker-free

Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	100 W
IP classification:	IP20

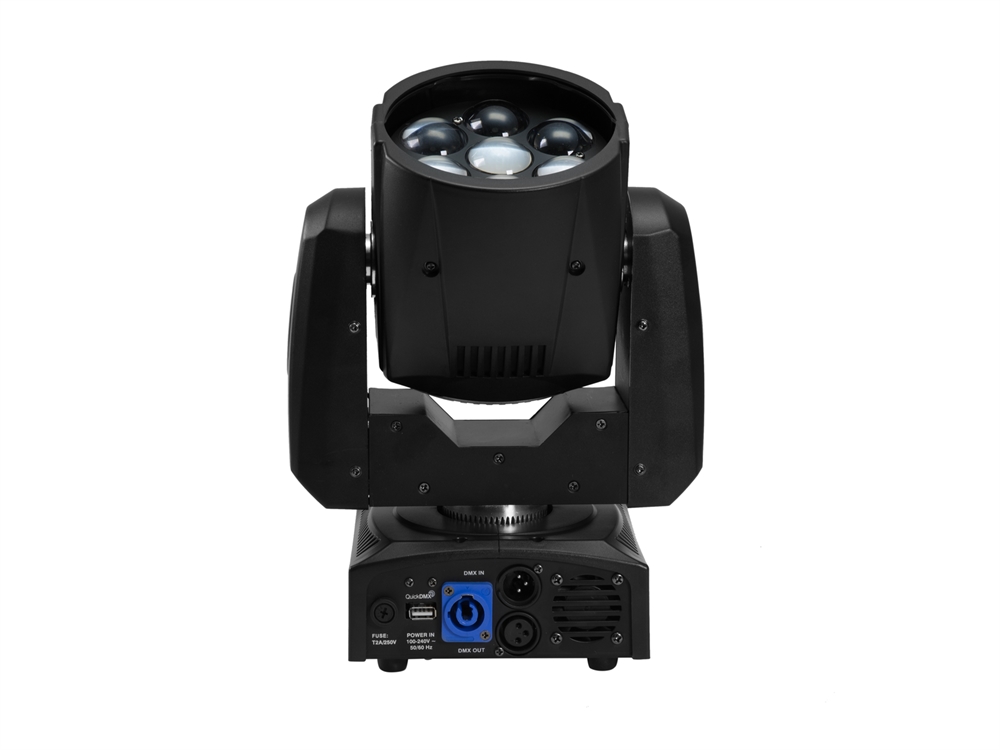

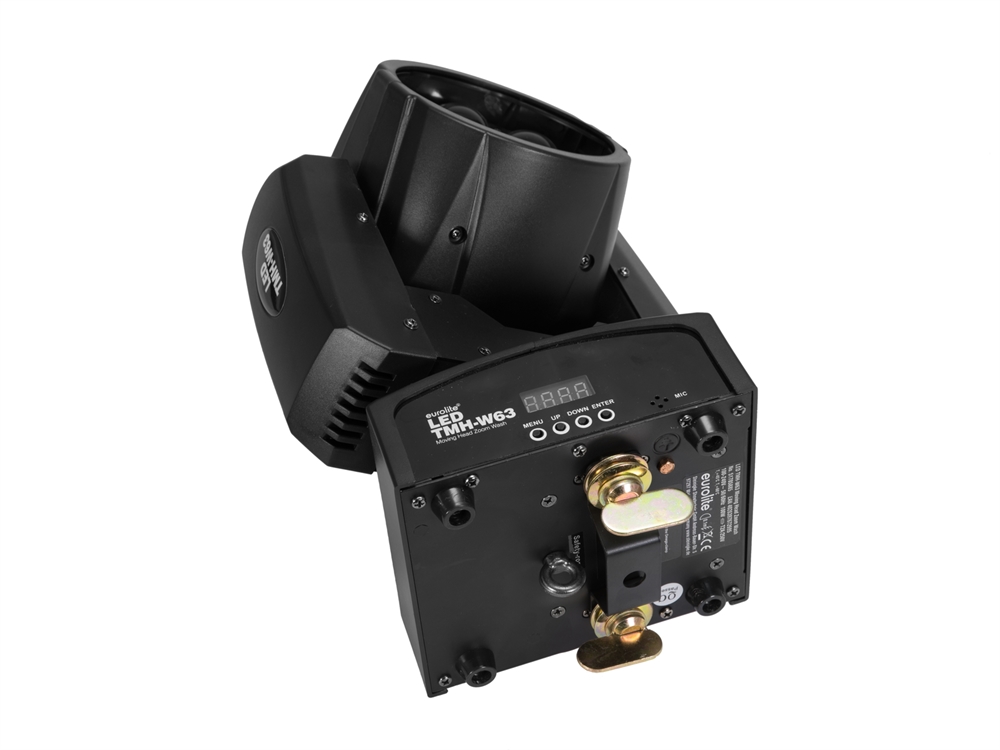

Power connection:	Mains input P-Con (blue), mounting version Power supply cord with safety plug (provided)
Fuse:	5 x 20 mm T, 2 A Fuse replaceable
LED:	7 x high-power 9 W 4in1 QCL RGBW (homogenous color mix)
Max. TILT movement:	Exact positioning (16 bit resolution) 220Â°
Max. PAN movement:	Exact positioning (16 bit resolution) 540Â°
Equipment:	Zoom motor-driven
DMX channels:	15

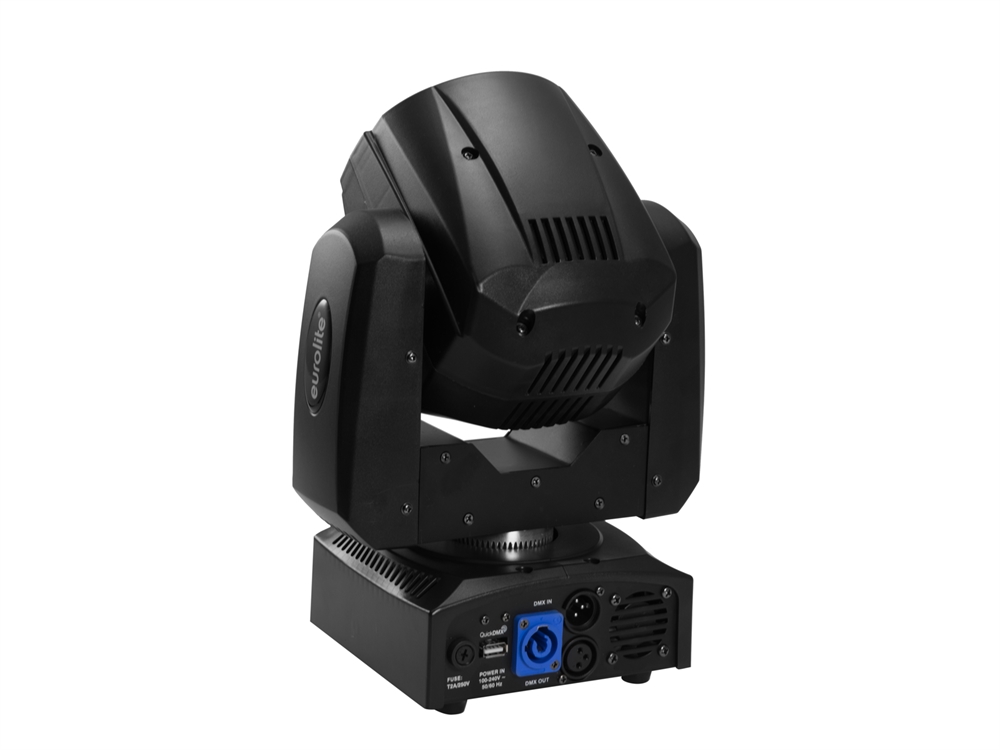

DMX input:	3-pin XLR (M) mounting version
DMX output:	1 x 3-pin XLR (F) mounting version
Cooling:	Cooling fan
Control:	Stand-alone
	DMX
	QuickDMX via USB (optional)
	Master/slave function
	Sound to light via Microphone
Beam angle (1/2 peak):	6 - 18Â°
Beam angle (1/10 peak):	11 - 29Â°
Illuminance in Lux (lx):	R red 1m: 7863 lx, 3m: 1074 lx, 6m: 269 lx
	G green 1m: 15691 lx, 3m: 2179 lx, 6m: 549 lx
	B blue 1m: 2497 lx, 3m: 406 lx, 6m: 103 lx
	CW 1m: 17115 lx, 3m: 2398 lx, 6m: 605 lx
	all 1m: 40258 lx, 3m: 5714 lx, 6m: 1432 lx
Housing color:	Black
Width:	21.0 cm
Height:	29.5 cm
Depth:	16.0 cm
Weight:	4.17 kg
Legal specifications
Ecodesign regulation:	Yes
Special product:	Not designed for household room illumination

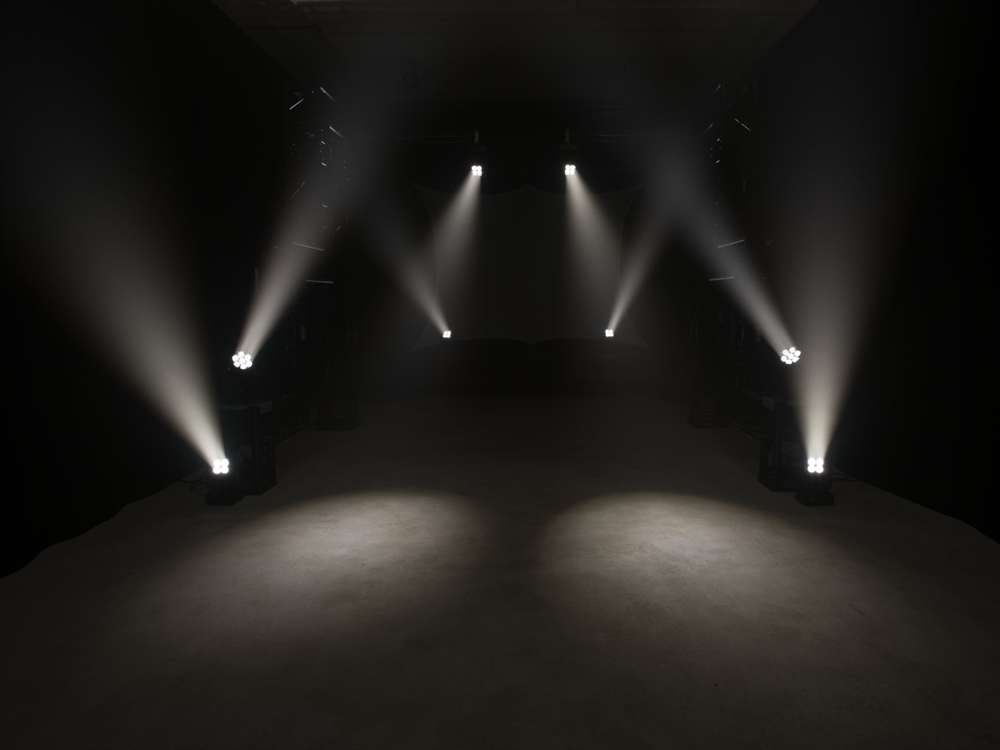

Purpose:	Show effect lighting

Varenr.: E-51785885
