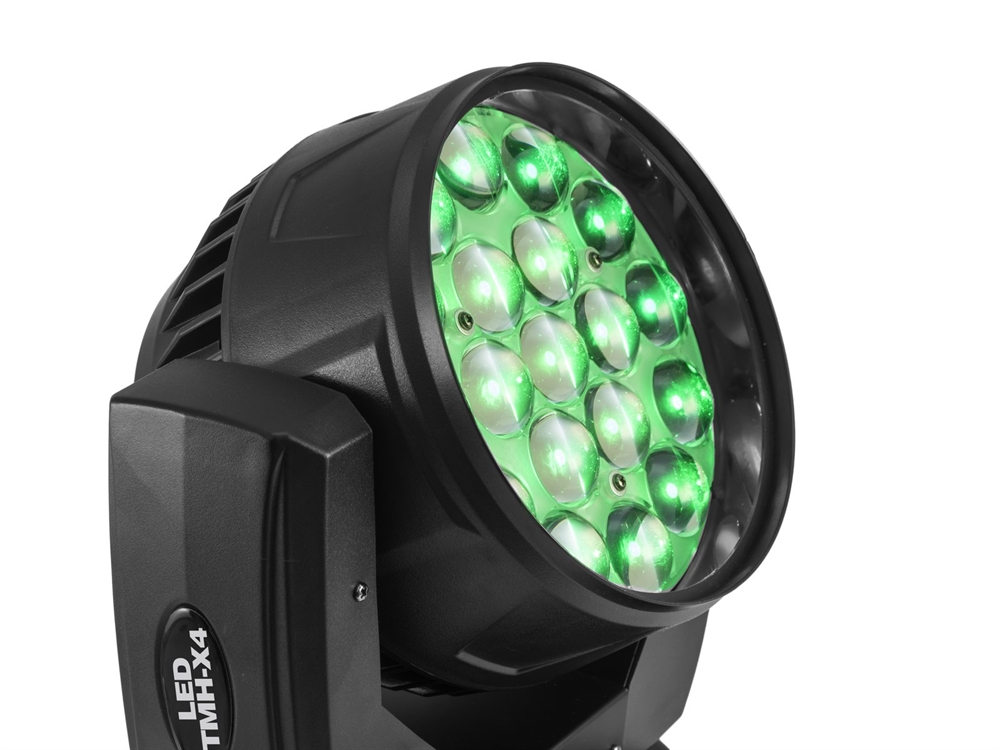

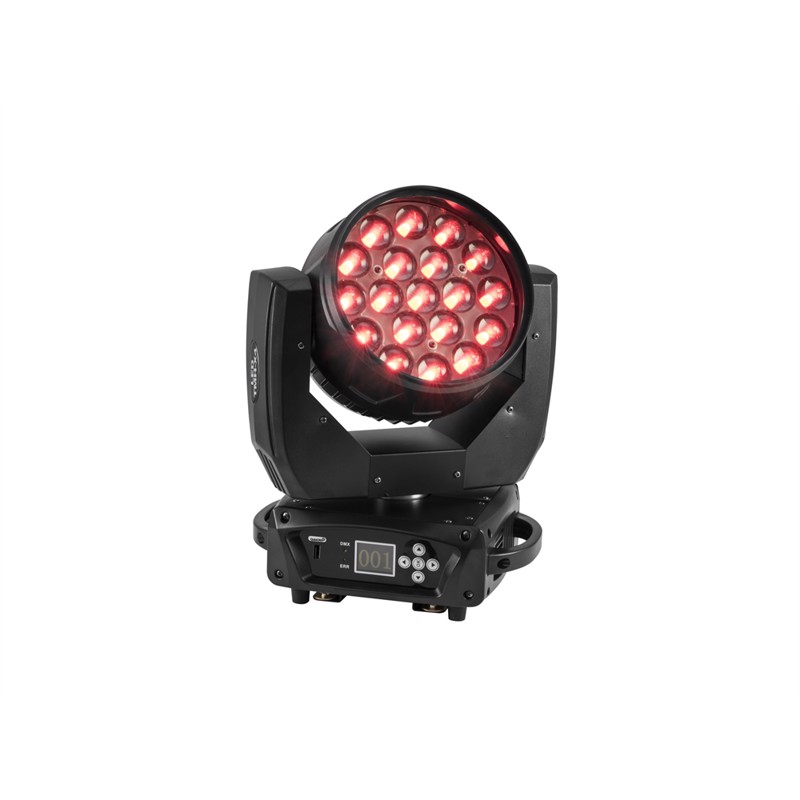

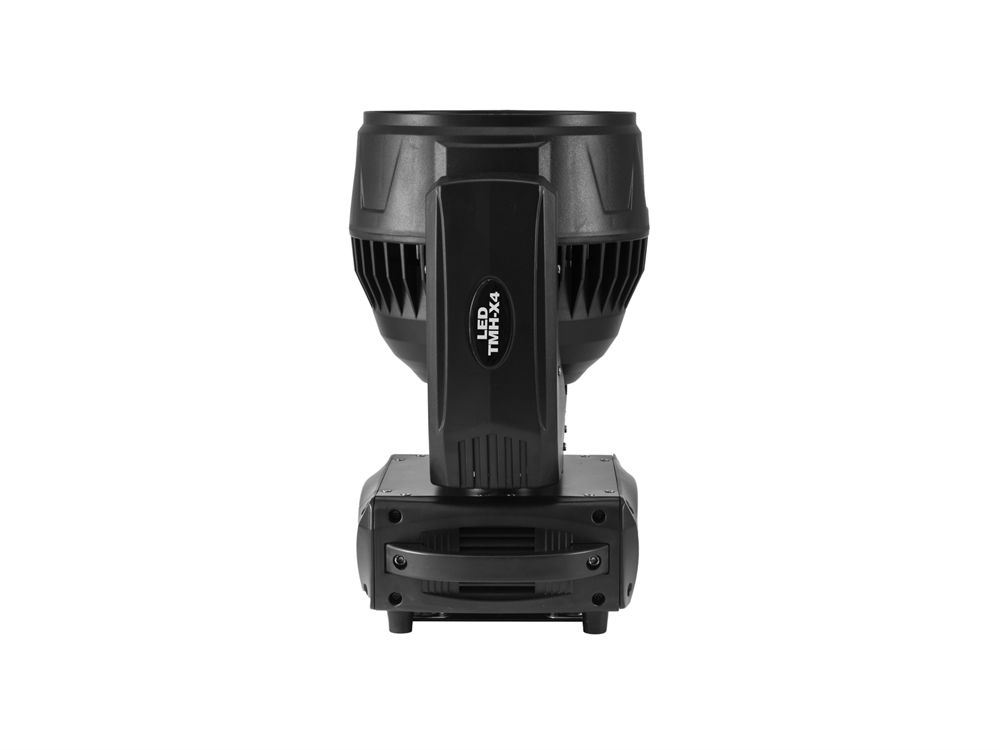

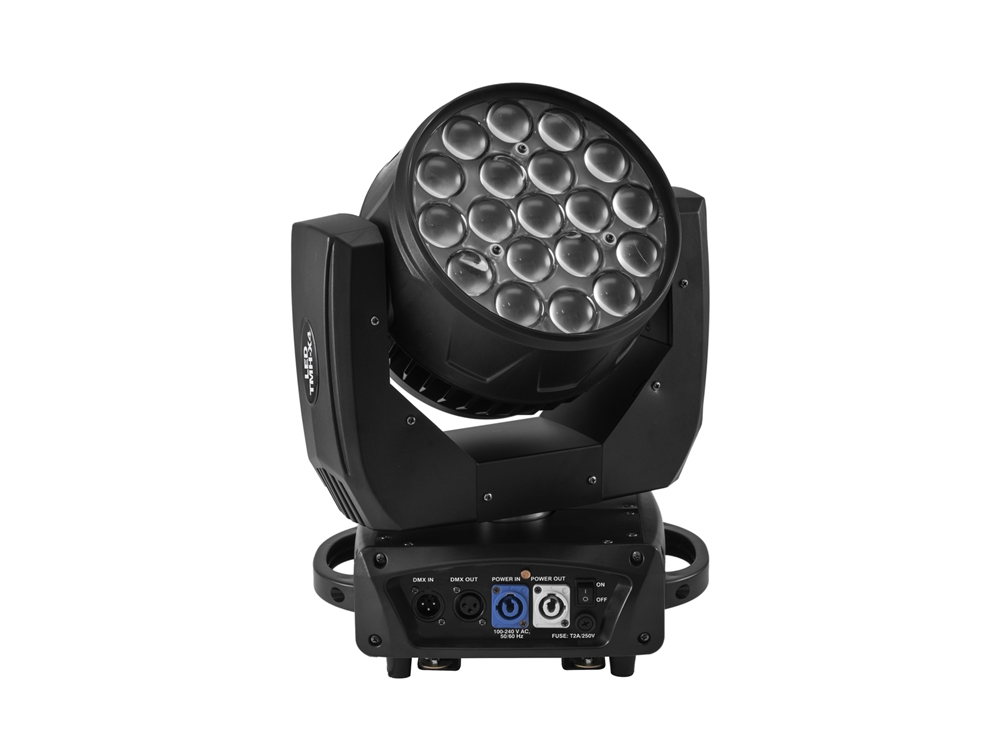

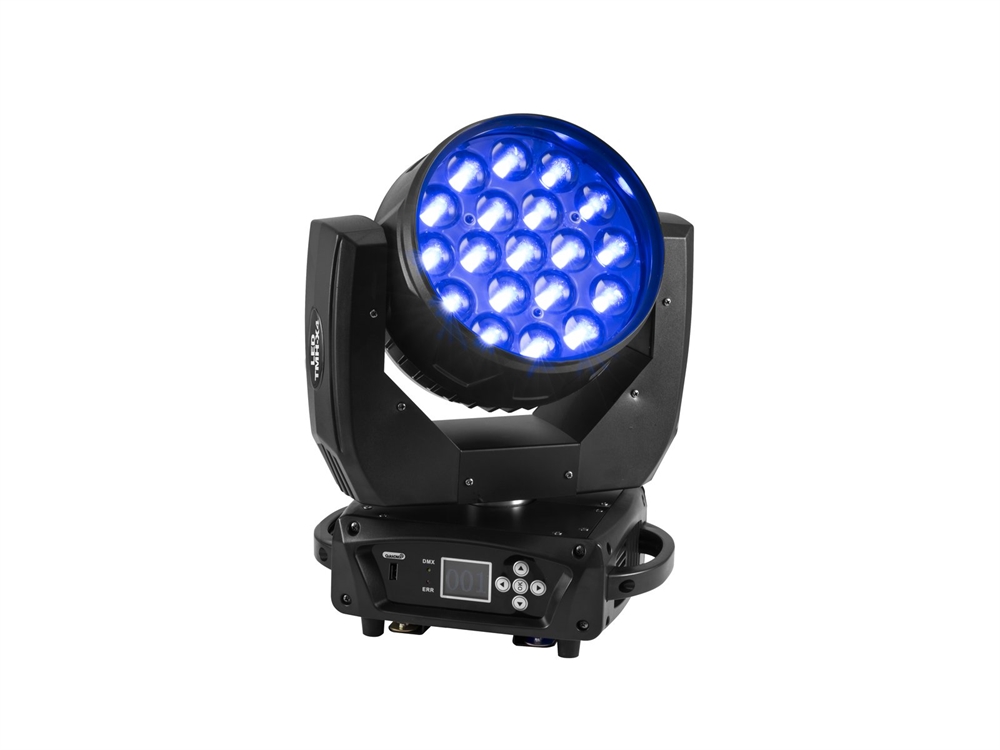

EUROLITE LED TMH-X4 Moving Head Wash Zoom

På lager
Lagervare 1-2 dage
Bedømmelse for EUROLITE LED TMH-X4 Moving Head Wash Zoom
Produktet er endnu ikke bedømt

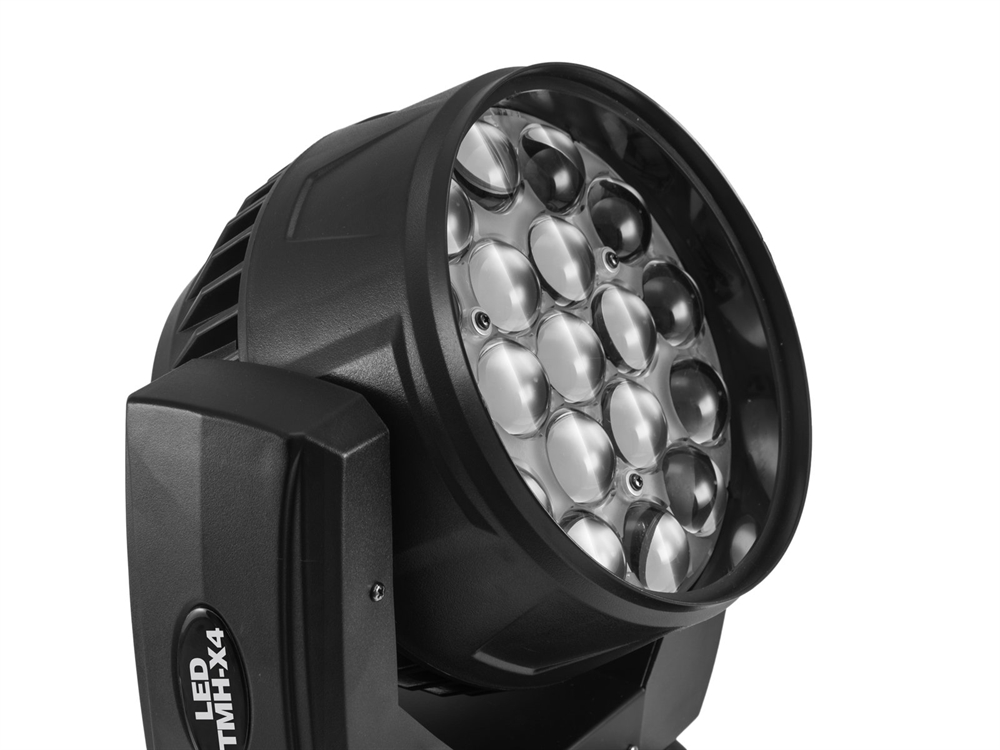

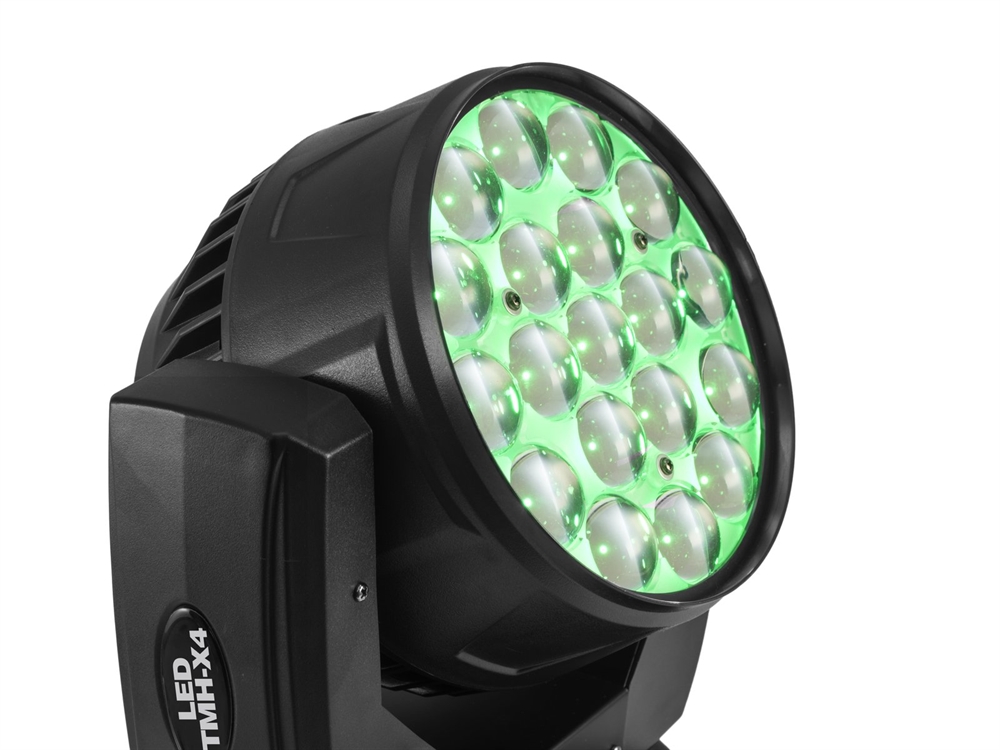

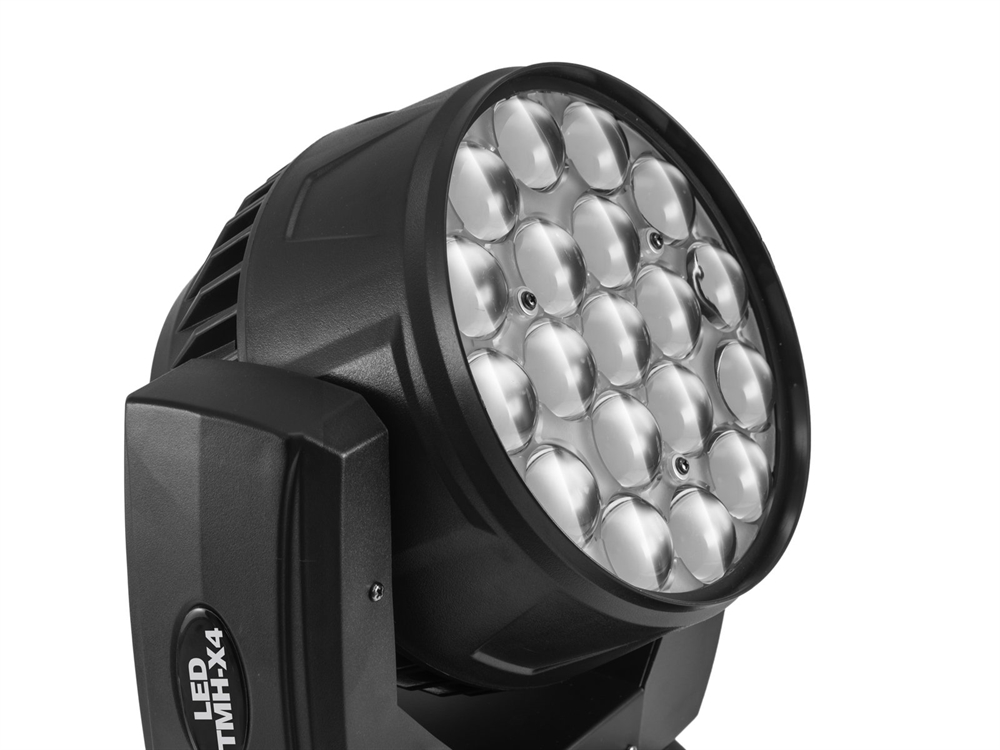

Washlight with 19 intense 15 W LEDs (4in1) and motorized zoom

19 high-power 15 W RGBW LEDs (4in1)
16 or 24 DMX channels selectable
Three different LED segments, which can be controlled individually via DMX
Positioning within 540° PAN and 270° TILT
Stepless RGBW color mixture, preset colors, color change and color fade
Built-in auto and music show programs
Strobe effect with variable speed
Strobe effect by random generator
Dimmer
Motorized zoom with 1-25° beam angle
Supports QuickDMX - the wireless DMX-system from Eurolite
Built-in phantom-powered USB port for QuickDMX receivers (accessories)
Sound-control via built-in microphone with adjustable microphone sensitivity
Automatic position correction
Exact positioning via 16 bit PAN/TILT movement resolution
Fan-cooled
Auto, music, master/slave and DMX mode
Control board with color LCD for adjusting the DMX-starting address, PAN/TILT Reverse, Reset
P-Con terminals for power linking up to 8 units
Switch-mode power supply for operation between 100 and 240 volts
LED: 19 x COB (chip-on-board) 15 W 4in1 QCL RGBW (homogenous color mix)
Control: Stand-alone; QuickDMX via USB (optional); DMX
Projection: flicker-free

Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	225 W
IP classification:	IP20

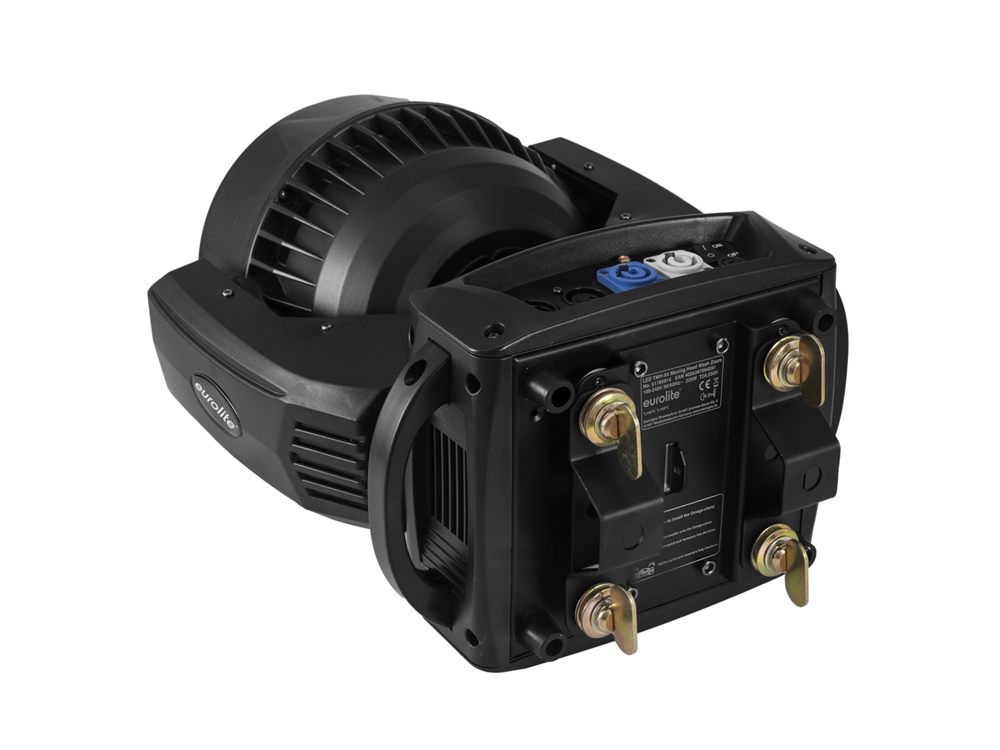

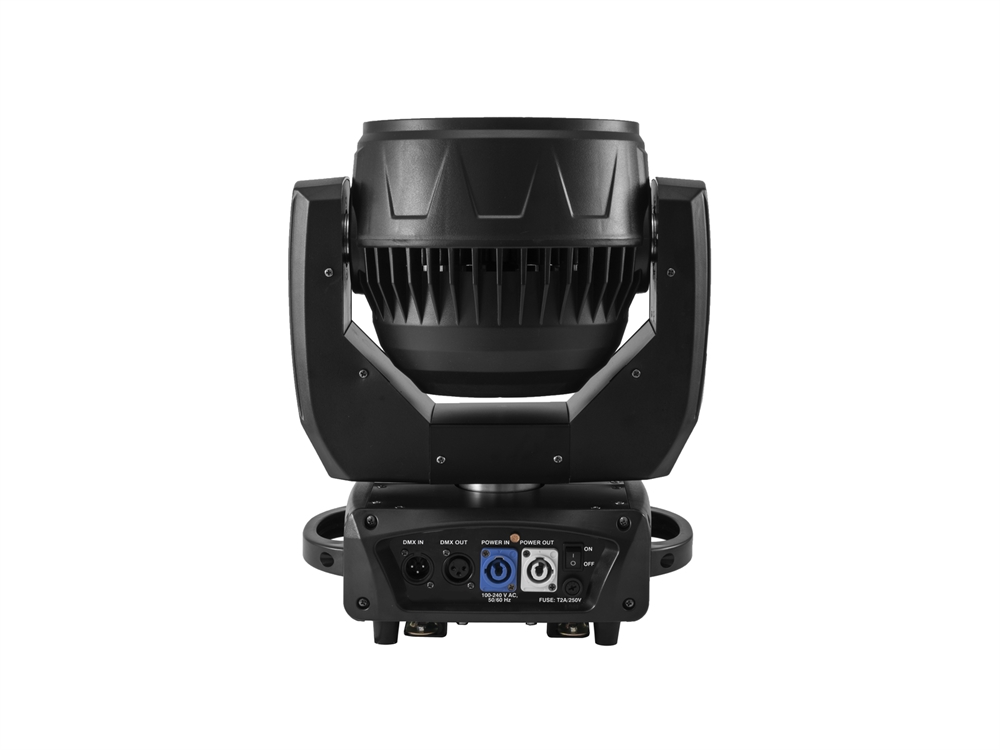

Power connection:	Mains input P-Con (blue), mounting version Power supply cord with safety plug
Power output:	P-Con (gray), mounting version
Fuse:	5 x 20 mm T time-lag, 2 A Fuse replaceable
LED:	19 x COB (chip-on-board) 15 W 4in1 QCL RGBW (homogenous color mix)
Max. TILT movement:	Exact positioning (16 bit resolution) 270° Auto position correction (feedback)
Max. PAN movement:	Exact positioning (16 bit resolution) 630° Auto position correction (feedback)
Equipment:	Zoom motor-driven
DMX channels:	16; 24
DMX input:	1 x 3-pin XLR (M) mounting version
DMX output:	1 x 3-pin XLR (F) mounting version
Cooling fan:	Yes, temperature-controlled Head
	Yes Base
Control:	Stand-alone
	QuickDMX via USB (optional)
	DMX
Beam angle (1/2 peak):	1 - 25°
Beam angle (1/10 peak):	8 - 40°
Illuminance in Lux (lx):	Narrow R red 3m: 2779 lx, 6m: 763 lx
	Narrow G green 3m: 7893 lx, 6m: 1841 lx
	Narrow B blue 3m: 1468 lx, 6m: 390 lx
	Narrow CW 3m: 9558 lx, 6m: 2468 lx
	Narrow all 3m: 19553 lx, 6m: 5001 lx
	Wide R red 3m: 272 lx, 6m: 73 lx
	Wide G green 3m: 583 lx, 6m: 160 lx
	Wide B blue 3m: 117 lx, 6m: 34 lx
	Wide CW 3m: 740 lx, 6m: 211 lx
	Wide all 3m: 1568 lx, 6m: 439 lx
Housing color:	Black
Width:	30,5 cm
Height:	40,0 cm
Depth:	20,0 cm
Weight:	8,20 kg
Legal specifications
Ecodesign regulation:	Yes
Special product:	Not designed for household room illumination
Purpose:	Show effect lighting
