| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 175 W |
| IP classification: | IP20 |
| Protection class: | Protection class I |

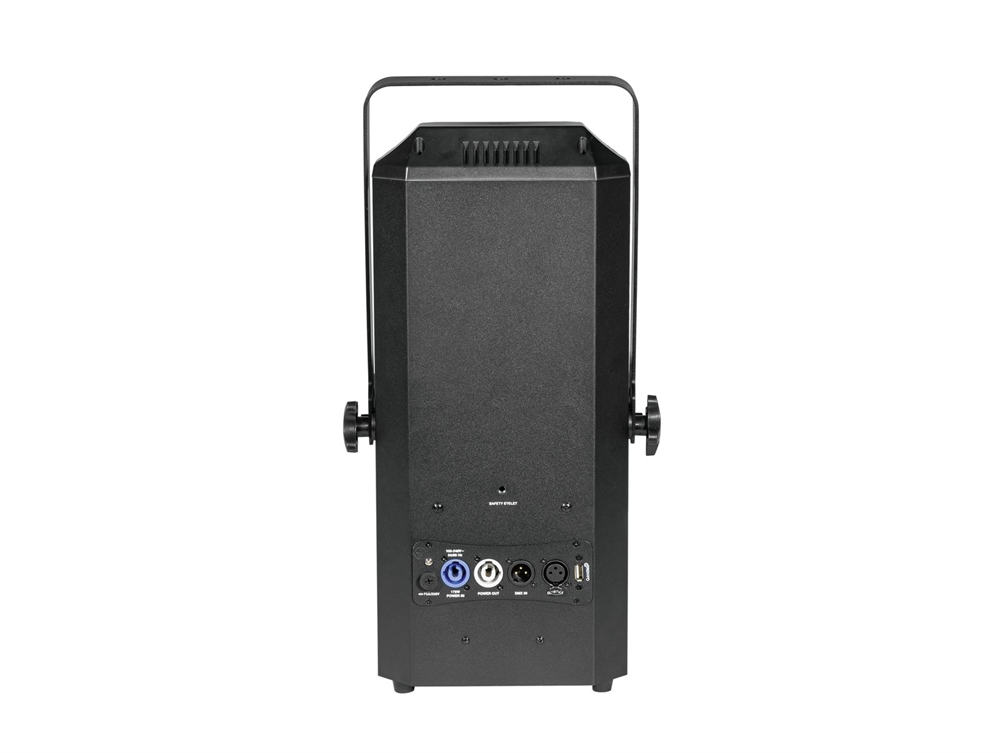

| Power connection: | Mains input via P-Con (blue), mounting version power supply cord with safety plug |
| Power output: | 1 x P-Con (gray), mounting version |
| Fuse: | 5 x 20 mm, F 5 A Fuse replaceable |
| Lamp type: | LED lamp |
| LED: | 1 x 150 W COB (chip-on-board) cold white (CW) |
| Color temperature: | 10000K |
| Max. TILT movement: | 70° Positioning |
| Max. PAN movement: | 180° |
| Flash rate: | 1 - 30 Hz |
| Equipment: | Focus motor-driven; color wheel; gobo wheel with rotating gobos; Prism 4-fold rotating |
| Color generation: | Color wheel with 8 dichroic filters plus open |
| Gobos: | Gobo wheel with rotating gobos, 7 gobos and open
Outside diameter 19,8mm
Image diameter 17mm
Shake effect
Gobos changeable
Slot-in gobo system for easy gobo replacement |
| DMX channels: | 13 |
| DMX input: | 1 x 3-pin XLR (M) mounting version |
| DMX output: | 1 x 3-pin XLR (F) mounting version |
| Cooling: | Temperature-controlled fan |
| Control: | Stand-alone; Sound to light via Microphone; Master/slave function; DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); Light Captain |
| Beam angle: | 11° |
| Beam angle (1/2 peak): | 11° |
| Illuminance in Lux (lx): | Cold white (CW) 3m: 15649 lx, 6m: 4147 lx |
| Housing color: | Black |
| Display type: | OLED display |
| Transport aid: | Rubber feet |
| Dimensions: | Width: 33,5 cm
Depth: 16,5 cm
Height: 47 cm |
| Weight: | 7,05 kg |
| Legal specifications |
| Special product: | Not designed for household room illumination |
| Intended use: | Show effect lighting |
