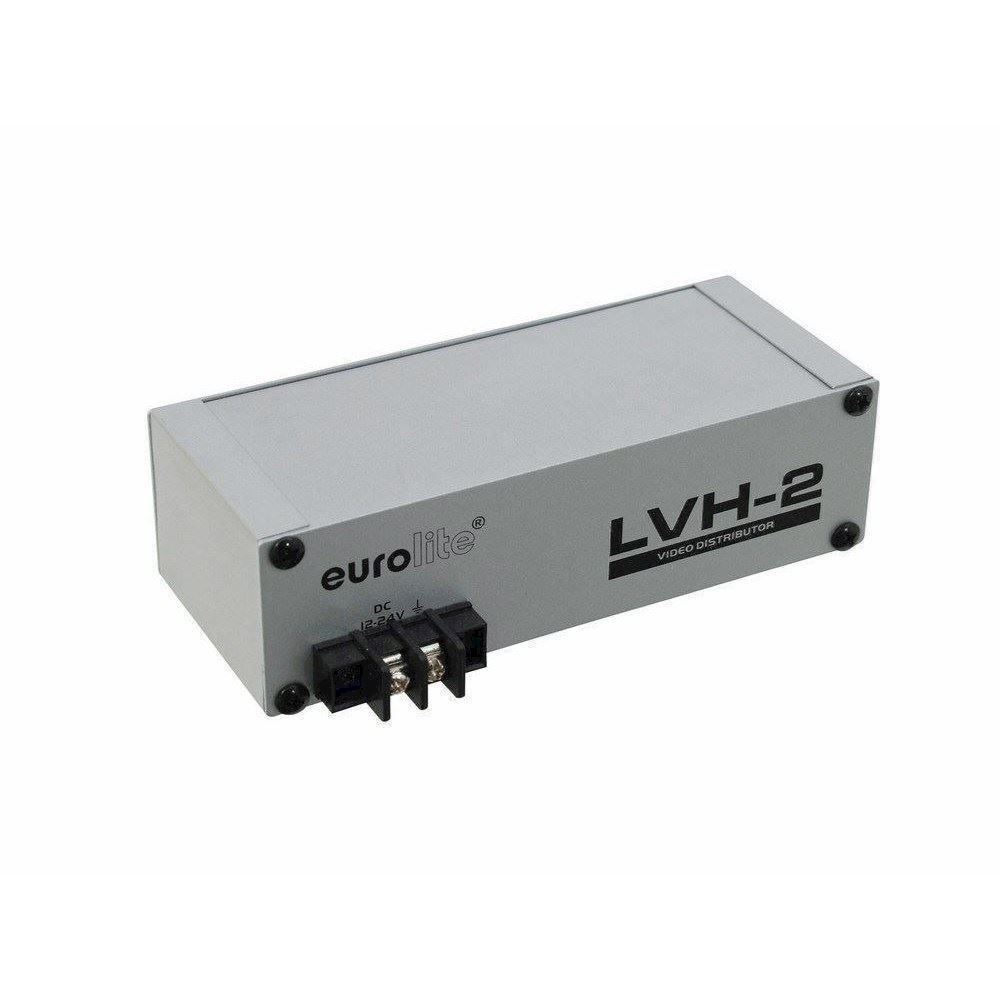

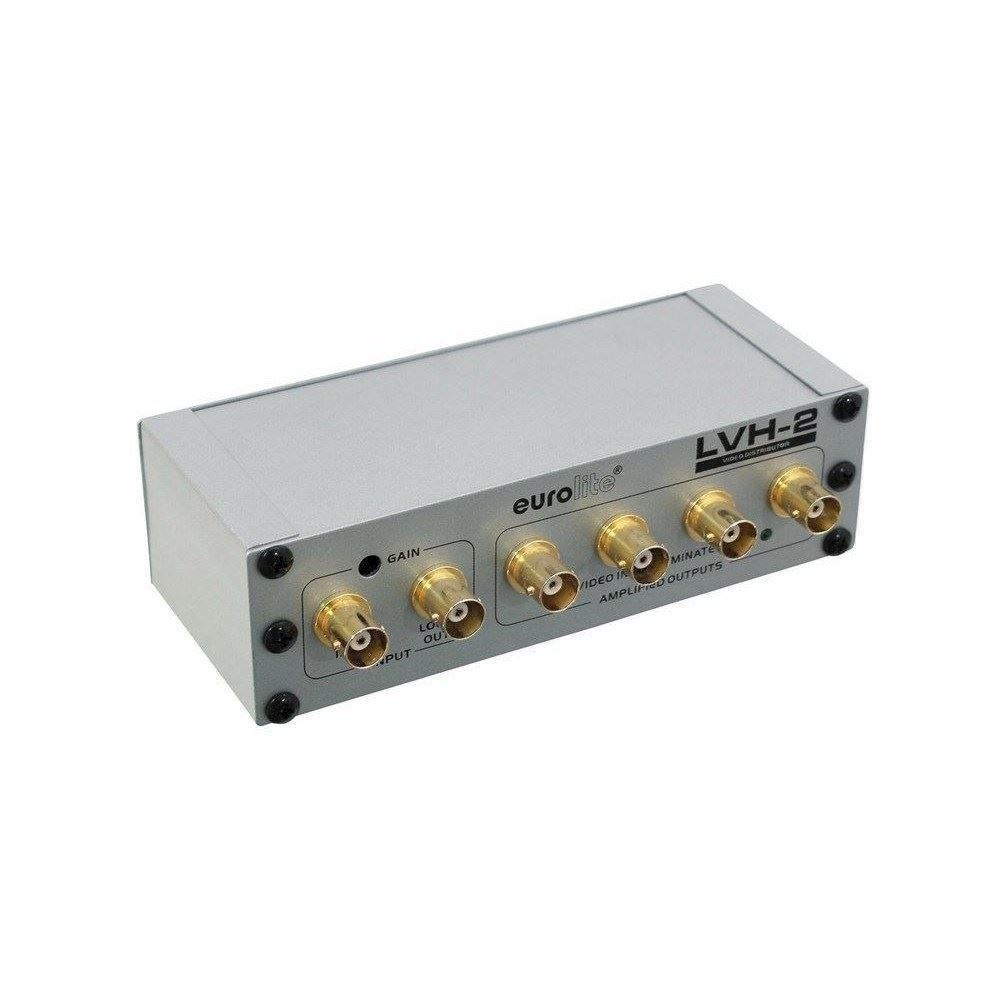

Her er du: Disconetto » KABEL & STIK » Kabler Til Billede » HDMI Splittere/ Bokse EUROLITE LVH-2 Video distribution amp På lager På lager, 3-5 hverdage Bedømmelse for EUROLITE LVH-2 Video distribution ampProduktet er endnu ikke bedømt 239,00DKK ved 1 stk. Vis uden moms Video distribution amplifier 1:4 Video distribution amplifier 1:4Distributes 1 input to 4 outputs1 parallel output for feed-through of the input signal75 ohms input and outputs via BNC plugsAdjustable gain amplification10 MHz bandwidth1 V video signal indicator12-24 V DC power supply via block terminals (PSU not included in the delivery) Power supply:12-24 V DC, 60 mA1 x video input:1 Vpp/ 1 kohms (bridged), 75 ohms (terminated), BNC5 x video outputs:1 Vpp/ 75 ohms, BNC (1 feed-through output, 4 amplified outputs)Gain range:0 dB to +6 dB (0.9 to 2.25 Vpp)S/N ratio:>70 dBOutput isolation:>40 dBDifferential gain:0.1%Differential phase:0.1 degreeDimensions (L x W x H):146 x 87 x 42 mmWeight:0,37 kgFrequency range:10 - 10000000 HzHeight:4,2 cmDepths:8,7 cmWidth:14,6 cm Varenr.: E-81013202 Trustpilot
