EUROLITE QuickDMX Wireless receiver

På lager
På lager, 3-5 hverdage
Bedømmelse for EUROLITE QuickDMX Wireless receiver
Produktet er endnu ikke bedømt

Compact wireless DMX receiver 2.4 GHz

Miniature wireless DMX receiver for the wireless transmission of up to 512 DMX channels
User-friendly 3-pin XLR plug (female) with swivel antenna
Wireless DMX eliminates extensive cabling between DMX controller and the DMX-controlled units in lighting installations
Due to GFSK modulation with 78 channels, interference-free operation also alongside other QuickDMX receivers and wireless devices in the 2.4 GHz band (e.g. Wi-Fi and Bluetooth)
Operating range up to 400 m (with line-of-sight)
1 to 512 QuickDMX receivers can be controlled by each transmitter
Plug & Play: quick and easy setup with one operating button for connecting/disconnecting QuickDMX receivers
LED indication for functions
Transceiver, to be used as transmitter or receiver

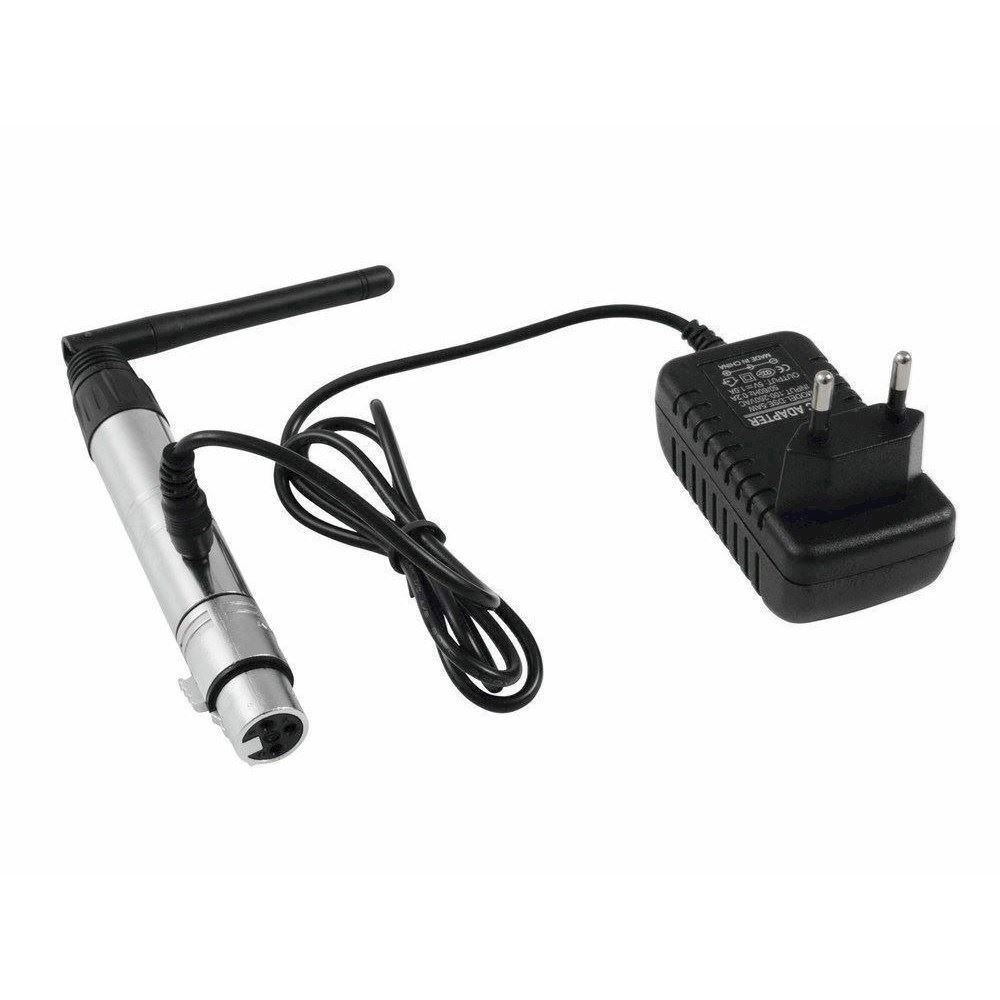

Powered via included PSU
2.4 GHz ISM band - license-free worldwide

Power supply:	100-240 V AC, 50/60 Hz
	via power unit included in the delivery
Carrier frequency:	2.4 GHz ISM band, 78 channels
Modulation:	GFSK
Coverage:	400 m (line-of-sight)
Parallel operation:	max. 6 transmitters
DMX conncector:	3-pin XLR (female)
DMX channels:	1 universe (512 channels)
Dimensions with antenna (L x W x H):	212 x 18 x 18 mm
Weight:	0,08 kg
Number of DMX channels:	512
IP classification:	IP20
Color:	Silver
Length:	21,2 cm

Varenr.: E-70064701
