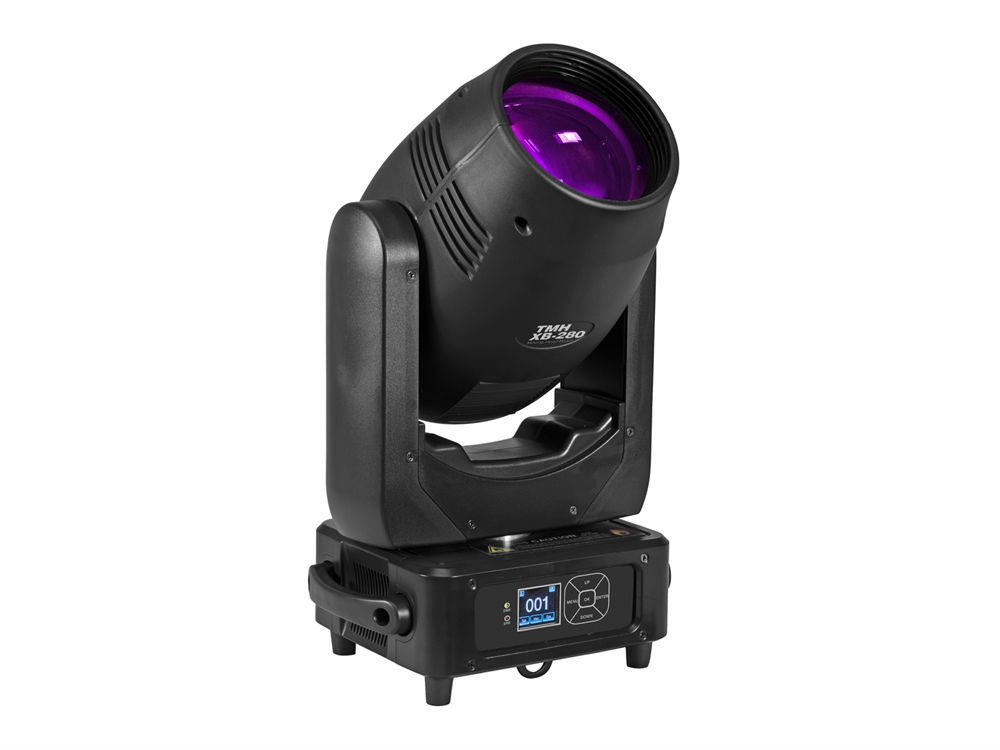

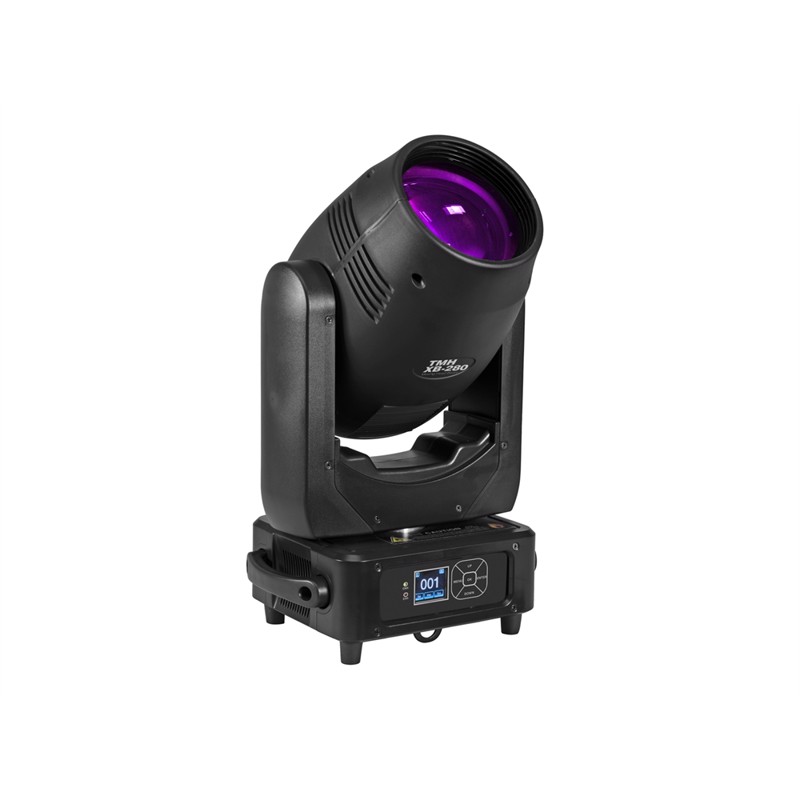

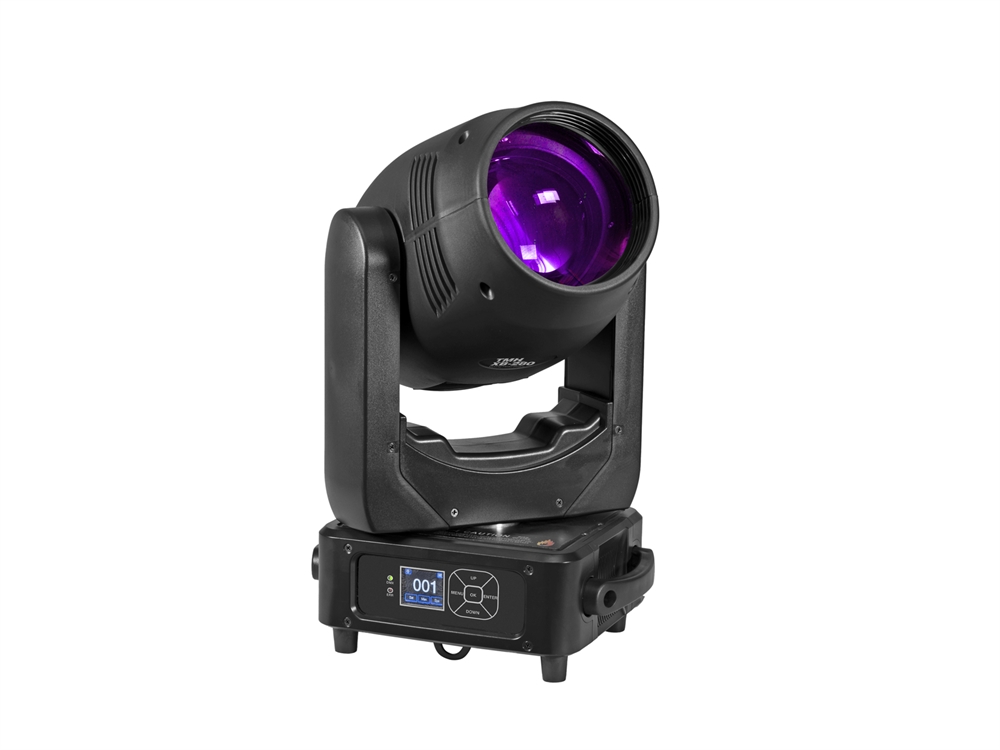

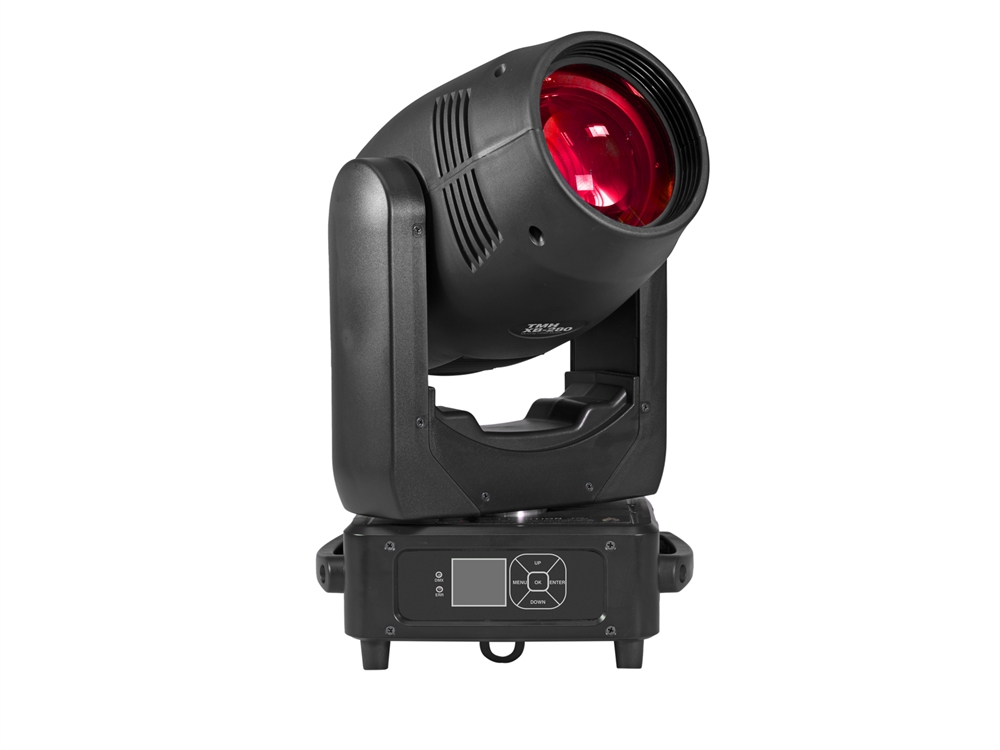

EUROLITE TMH XB-280 Moving-Head-Beam

På lager
På lager, 3-5 hverdage
Bedømmelse for EUROLITE TMH XB-280 Moving-Head-Beam
Produktet er endnu ikke bedømt

Bright, narrow beam with OSD 10 280W discharge lamp, color wheel, gobos and prisms

Equipped with an OSD 10 Reflector 280W discharge lamp
Very narrow beam angle of 2Â°
Positioning within 540Â° PAN and 270Â° TILT
Exact positioning via 16 bit PAN/TILT movement resolution
Auto, music, master/slave and DMX mode
16 or 19 DMX channels selectable
Sound-controlled via built-in microphone
Color wheel with 14 different dichroic color filters plus open
Rainbow effect with adjustable speed in both directions
Rotating 8-and 24-facet prism, combinable for multi-facet effects
The prisms rotate in both directions and at different speeds
Gobo wheel with 13 static gobos plus open
With gobo shake function
Frost-filter
Multi-color-filter
Strobe effect with adjustable speed
Random strobe effect
Dimmer
Motorized focus
Fan-cooled
Control board with graphic LCD for adjusting the DMX-starting address, PAN/TILT reverse, reset, lamp on/off, operating hours
P-Con power input
Switch-mode power supply for operation between 100 and 240 volts
Color wheel 14 dichroic filters plus open
Control: DMX; Stand-alone; Sound to light; Master/slave function

Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	385 W
IP classification:	IP20
Power connection:	Mains input P-Con (blue), mounting version Power supply cord with safety plug (provided)
Fuse:	T, 5 A Fuse replaceable
Max. TILT movement:	Exact positioning (16 bit resolution) 270Â°
Max. PAN movement:	Exact positioning (16 bit resolution) 540Â°
Flash rate:	1 - 18 Hz
Equipment:	Color wheel; Focus motor-driven; Gobo wheel with static gobos; Frost filter; Prisma rotating
Color generation:	Color wheel 14 dichroic filters plus open
Gobos:	Gobo wheel with static gobos, 13 gobos und open Shake effect
DMX channels:	16; 19
DMX input:	3-pin XLR (M) mounting version
DMX output:	1 x 3-pin XLR (F) mounting version
Cooling:	Cooling fan
Control:	DMX
	Stand-alone
	Sound to light
	Master/slave function
Beam angle (1/2 peak):	2Â°
Housing color:	Black
Width:	30.0 cm
Height:	50.5 cm
Depth:	20.5 cm
Weight:	14.40 kg

Varenr.: E-51786825
