Channels | 2 |
Zones | - |
Power rating | 100 W |
Power rating at 2 Ω | - |
Power rating at 4 Ω | 2 x 50 W |
Power rating at 8 Ω | 2 x 30 W |
Power rating at 100 V | - |
Power rating with 4 Ω bridged operation | - |
Power rating with 8 Ω bridged operation | - |
Peak music power output (PMAX) | 2 x 100 W |
Output impedance | - |
Inputs | 420 mV/6 kΩ |
Attenuation factor | - |
Frequency range | 20-20,000 Hz |
Crossover network | - |
Crossover frequency | - |
Integrated limiter | - |
Equalizer bass | - |
Equalizer midrange | - |
Equalizer treble | - |
S/N ratio | > 83 dB |
Crosstalk attenuation | - |
THD | - |
Power supply | ∼ 230 V/50 Hz/210 VA |
Mains voltage | ∼ 230 V |
Mains frequency | 50 Hz |
Power consumption, operation | 210 VA |
Power consumption, standby | - |
Standby current | - |
Operating voltage (possible alternative) | - |
Power supply (possible alternative) | - |
Admiss. ambient temp. | 0-40 °C |
Dimensions | 431 x 55 x 255 mm |
Width | 431 mm |
Height | 55 mm |
Depth | 255 mm |
Rack spaces, RS | 1 |
Weight | 4.4 kg |

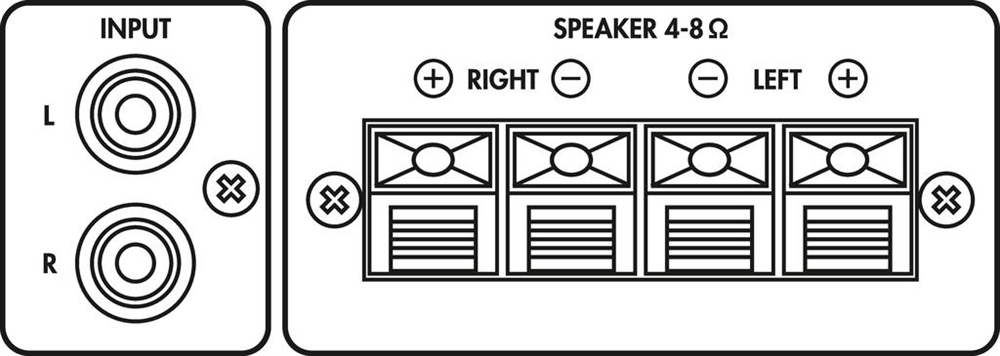

Connections | 1 x RCA L/R (line), 4 x spring-load. speaker term.(speakers) |
