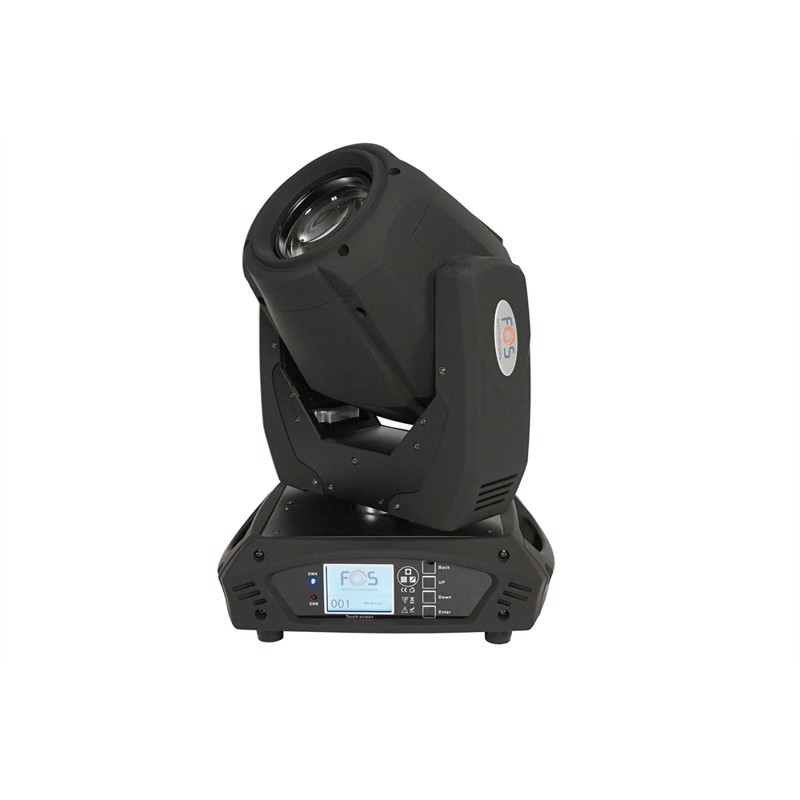

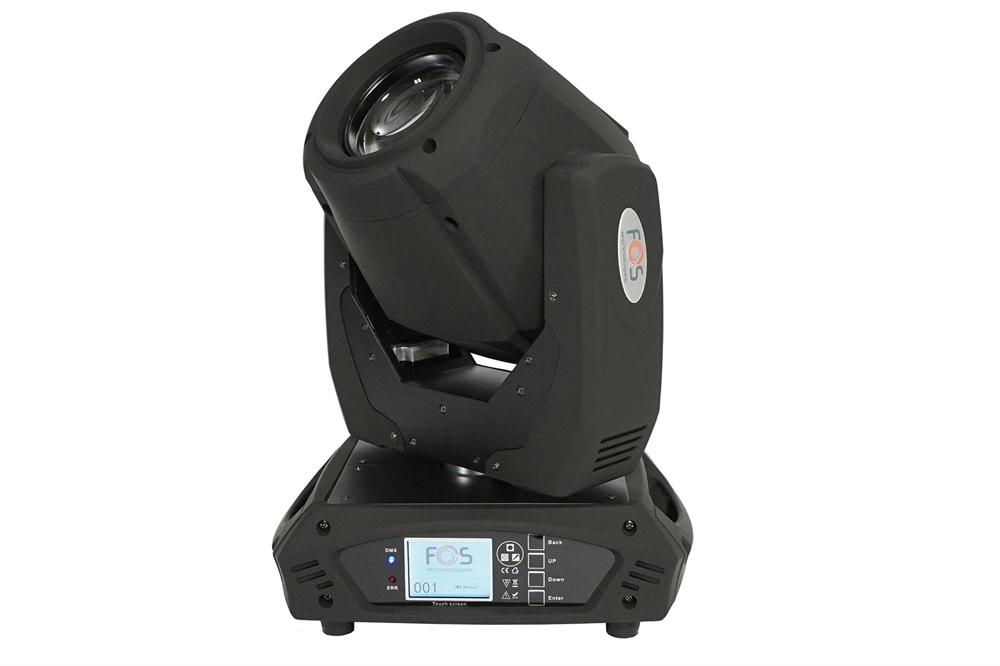

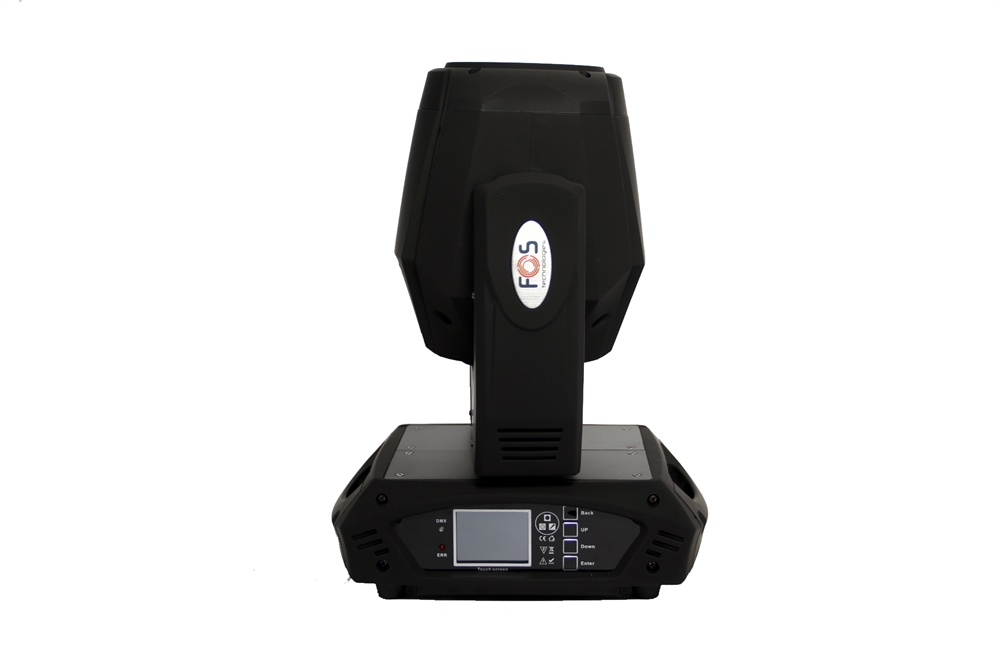

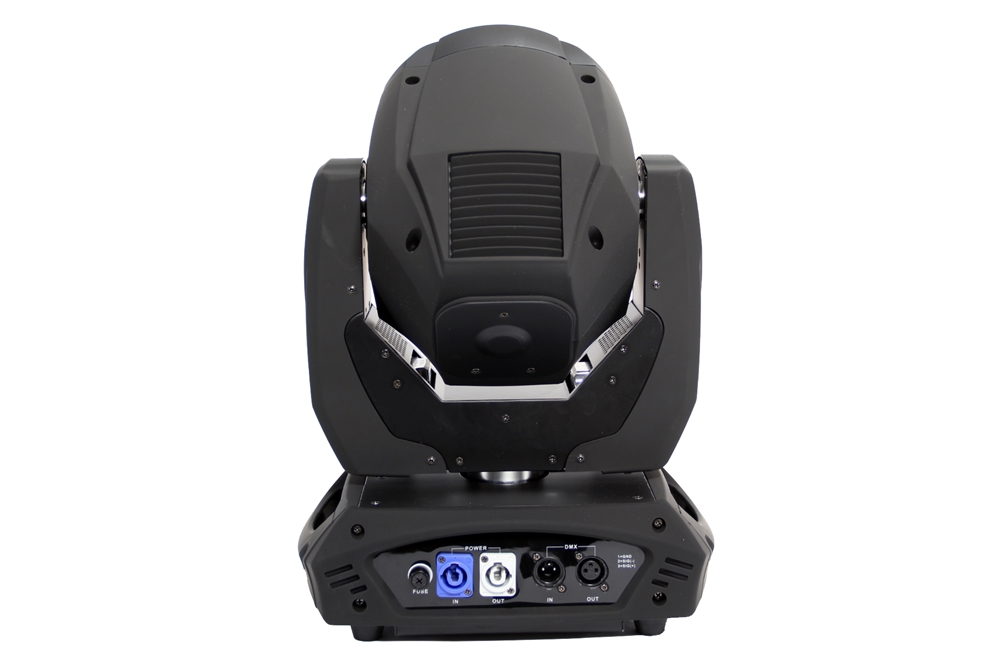

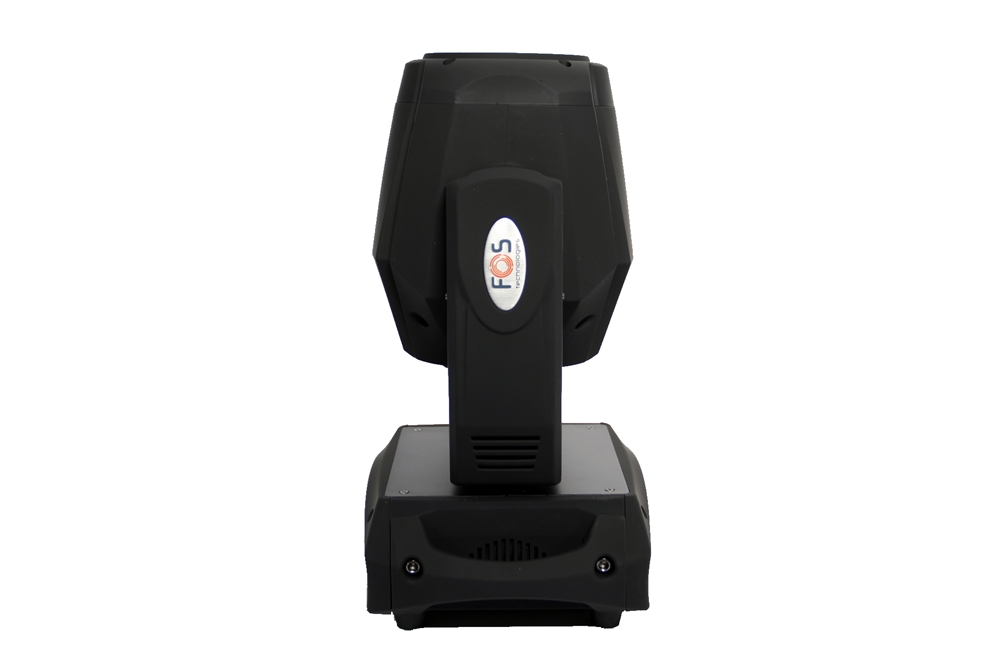

Ηigh Light output Beam Moving head 7R Hybrid 230 watt lamp, 3 phase motors, Beam aperture: 0-3.8°, 13 colors + white, 15 fixed gobos + white. Frost lens: wash effect 8 facet prism rotation,linear focus. 13kg, 2m-Infinity
Light Source/Optics Lamp:
7R 230W Osram (DMX on/off)
Lumen output: 120000 lm/10m
Color Temperature: 8000K
3 layer optic glass lens

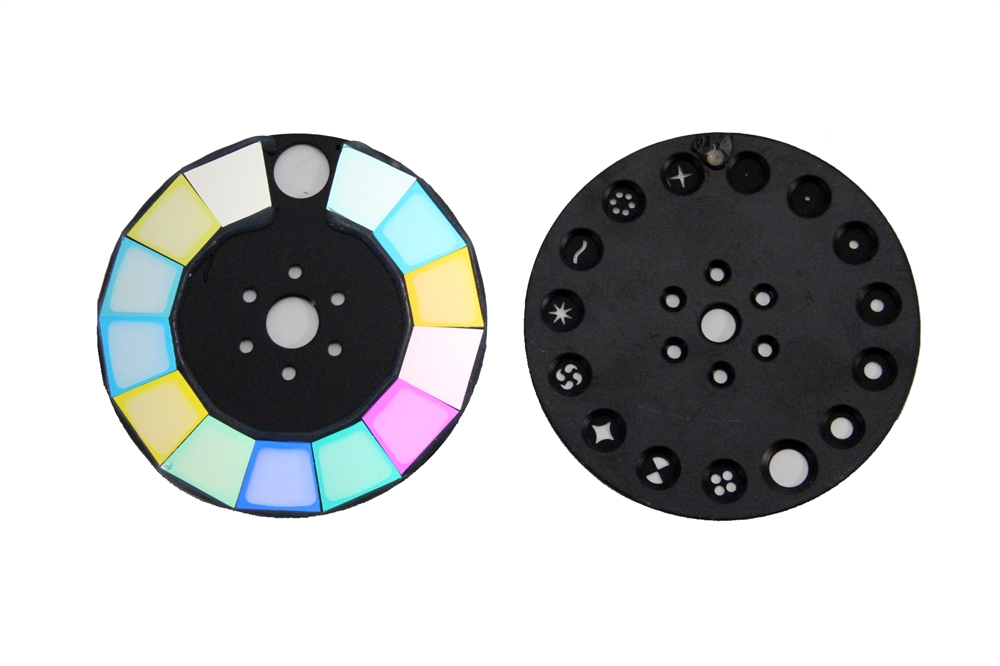

Effects Colors: Color wheel with 14 + white, single rotation rainbow effect Gobos: Gobo wheel with 14 + open gobos 8 facet rotated prism Frost function Focus 0 - 100% linear dimmer Srobe: 1-13 times/sec
Control Choice of two DMX Modes, 16 and 20 channels Auto / master - slave modes Pan 540º (16bit) electric correction Tilt 270º (16bit) electric correction Touch screen display Main settings include pan/tilt reverse and speed, reset, motor adjust, etc. Information menu include lamp hours, software version, etc.
Installation/Dimension Details Operating positions: all (device on floor or fixed to a support) Maximum permitted ambient temperature (Ta max): 45°C (113°F). Minimum permitted ambient temperature authorized (Ta min): -10°C (14°F) Minimum usage distance: 3 m Dimensions: 335 x 225 x 435 mm (W x D x H) Weight: 11,9 kg Packing Details: Carton Box: 400 x 335 x 500 - 14.3 kg
