Dmx Controller 48 channel, 24 sliders + 1 page button, Dip switch for addressing output channel, LED display for channel & DMX value, XLR In/Out: 3pin, LTP support in DMX output, 2kg.
Product description

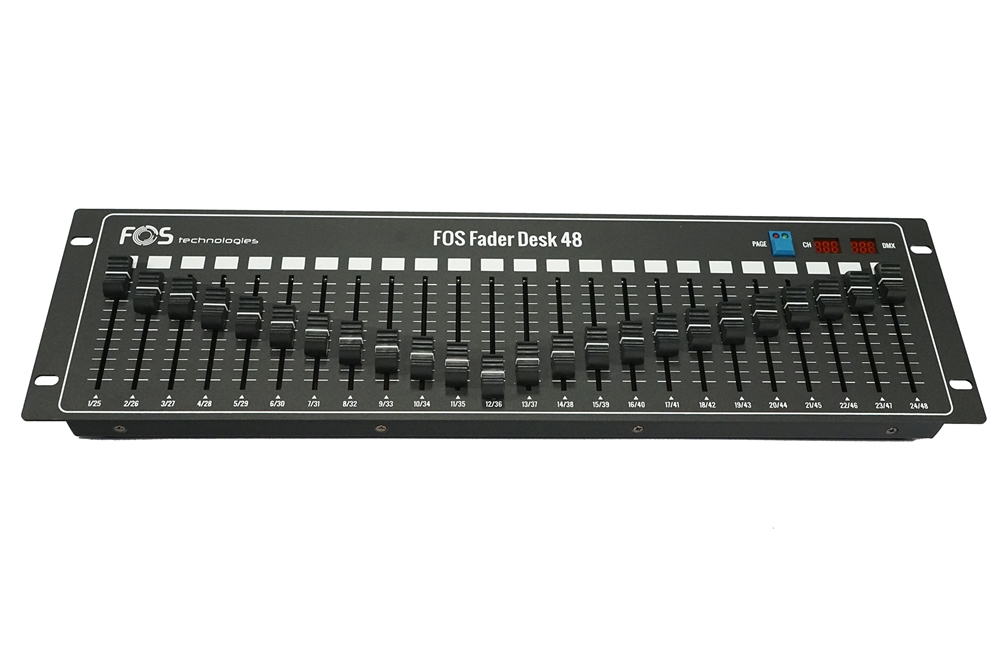

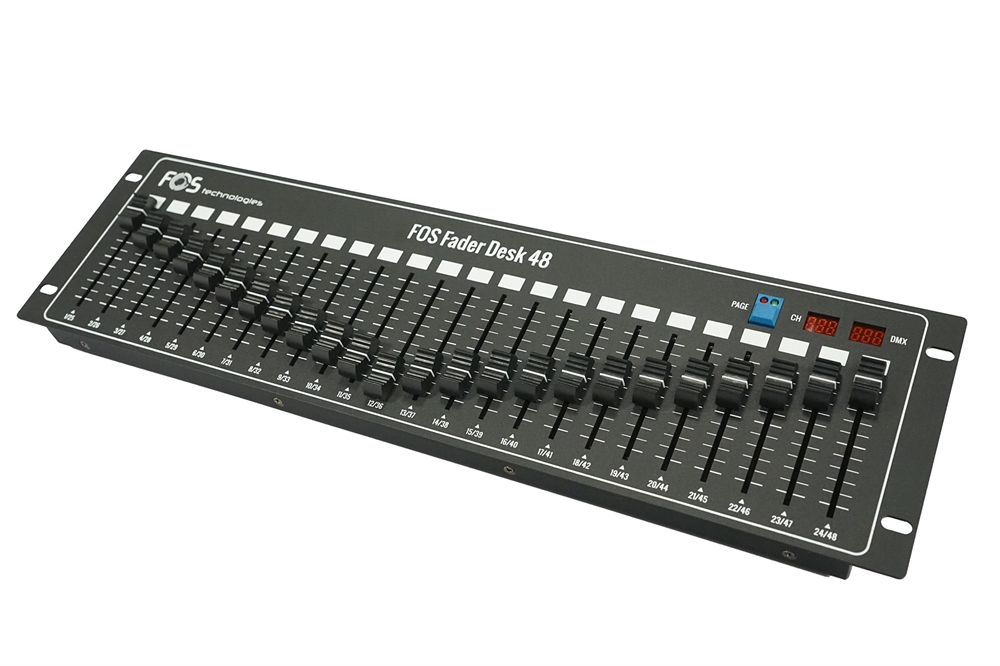

48 Channel control console, with 24x faders, on two pages. The console is addressable and can send DMX signal from 1 to 512 channels (in groups of 48 channels). It offers a channel and DMX value indication LED screens. Suitable for dimmer control, or testing purposes.
Technical specifications
24x faders, in two pages (total of 48 channels).

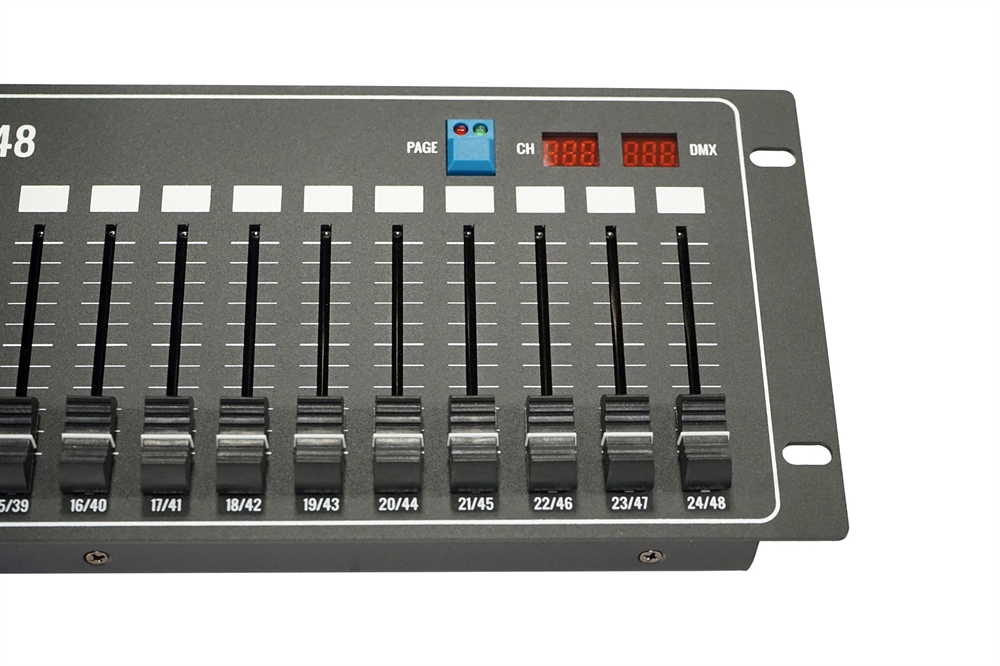

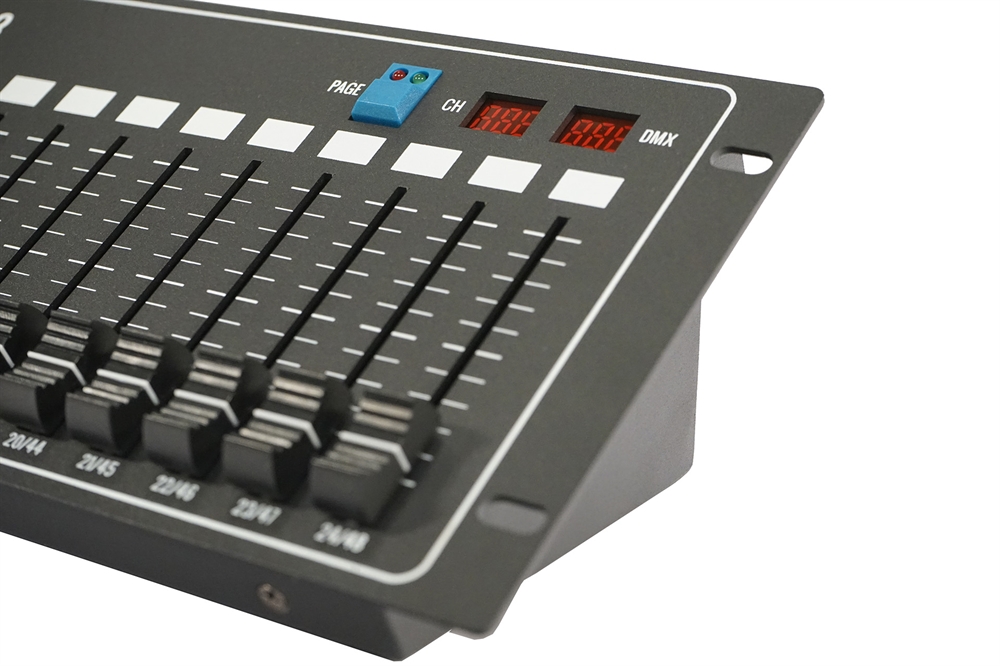

LED display for channel and DMX value.
Linkable via DMX in/out.

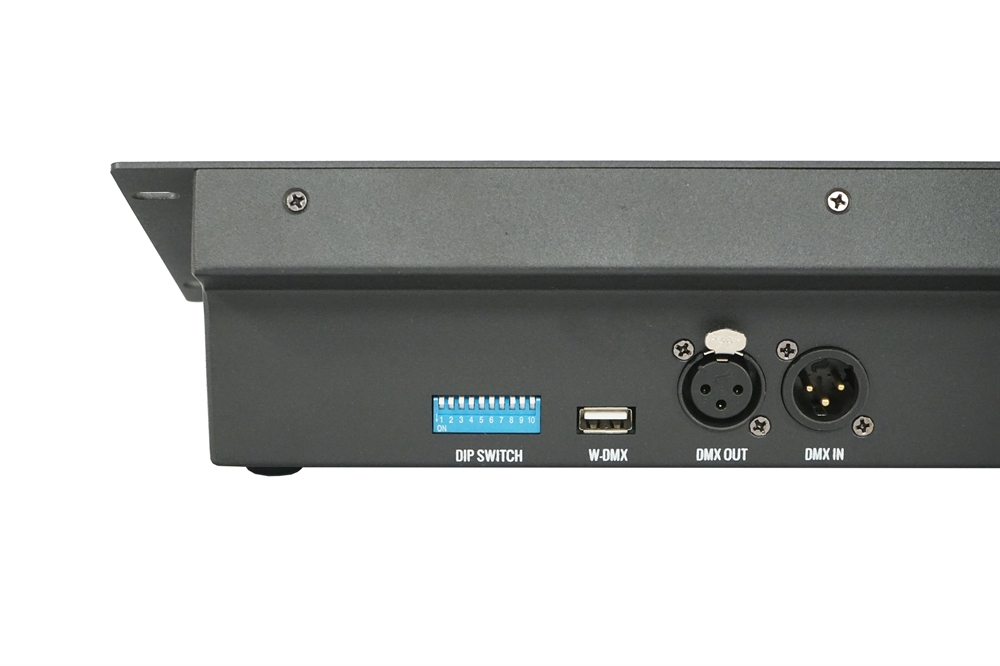

Dip switch for DMX addressing.
LTP support on DMX output.

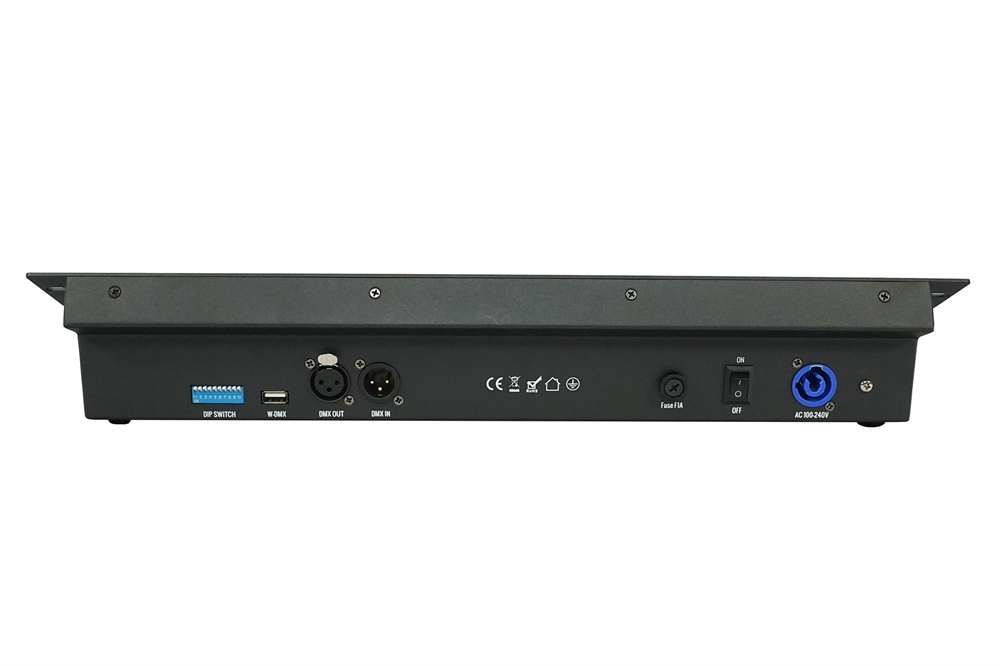

3pin XLR for DMX input/output.
Power supply: AC 100/240 V.
Power consumption: 5 Watt max.
Dimensions: 482 x 133 x 82 mm.
Weight: 2,3 Kg.
