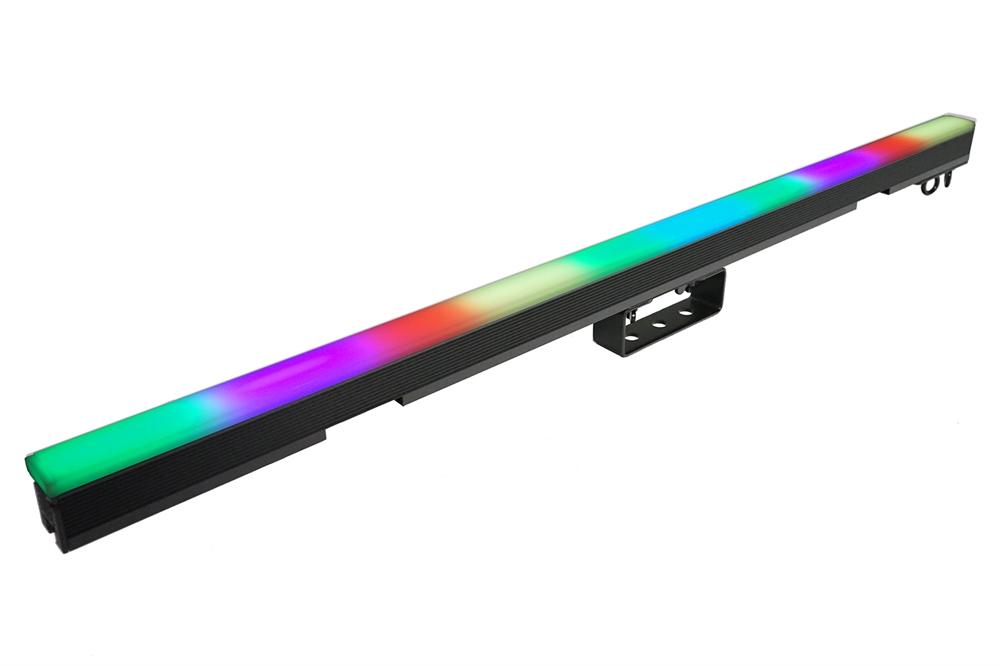

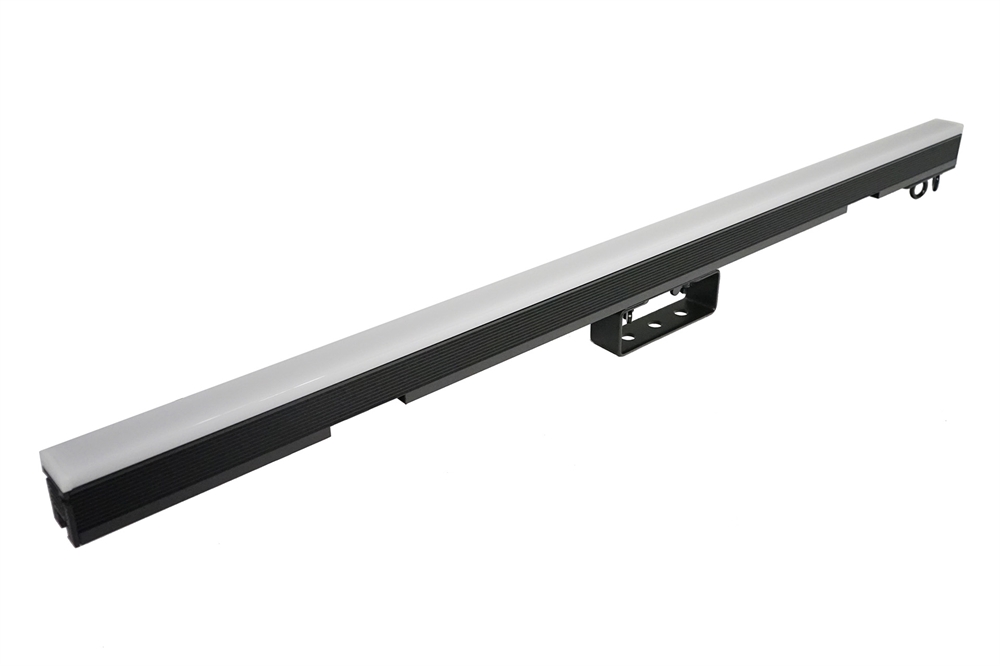

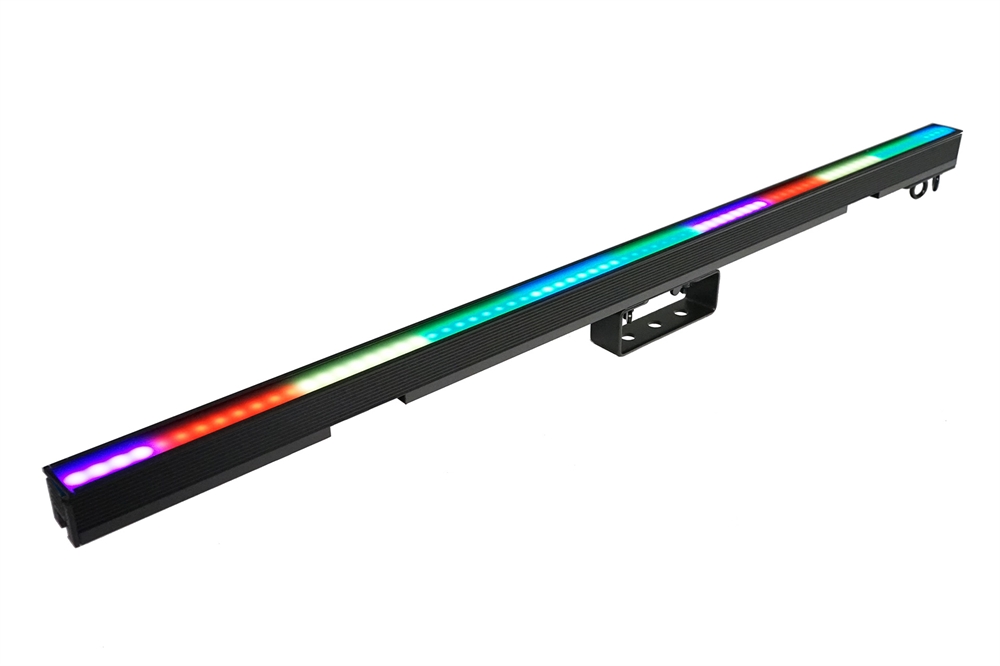

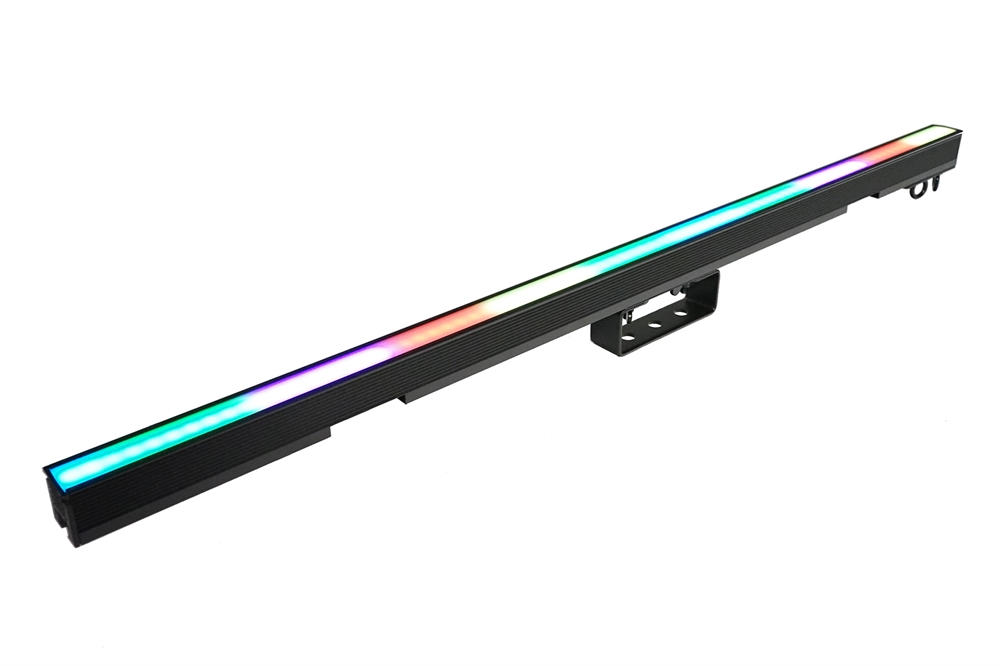

Pixel Bar 100 cm , 11.25 pitch, 80 LEDs (tri-color RGB) SMD 5050. Art-Net, Kling-Net,DMX,RDM, Viewing Angle: 120°, 2500 NITS (clear filter), IP Rating: IP20, Art-Net&DMX Channels: 10/55/480. Required pixel line driver, 1000 x 37 x 95 mm , 2 kg
Light Source
LED pixel bar, based on 80 SMD 5050 tricolor LEDs.
Pixel pitch: 11,25 mm.
Viewing angle: 120°.

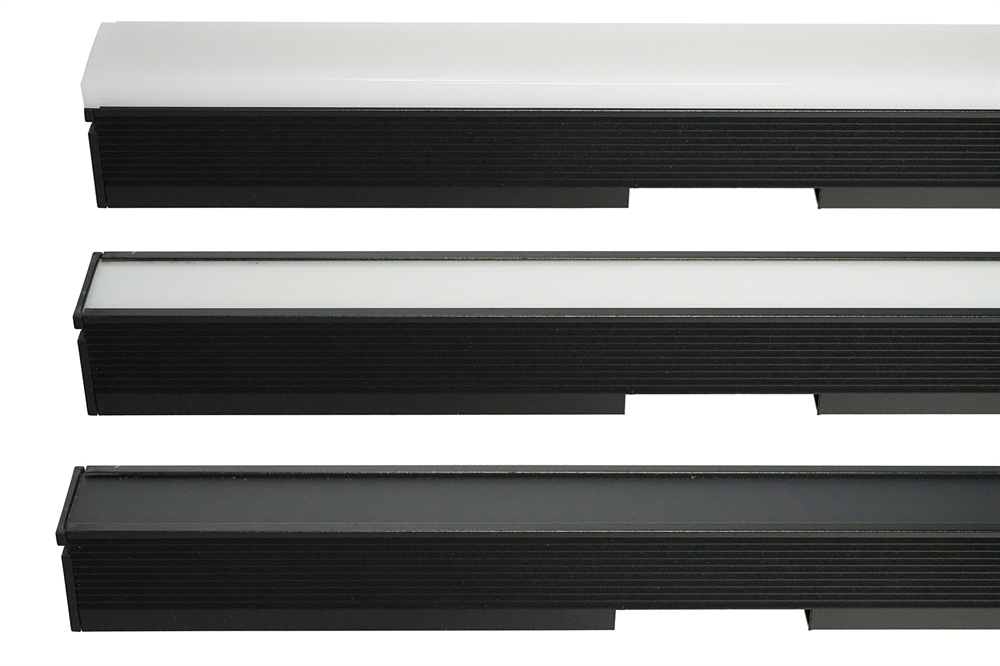

Illuminance: 2500 NITS (clear filter).
Technical Specifications

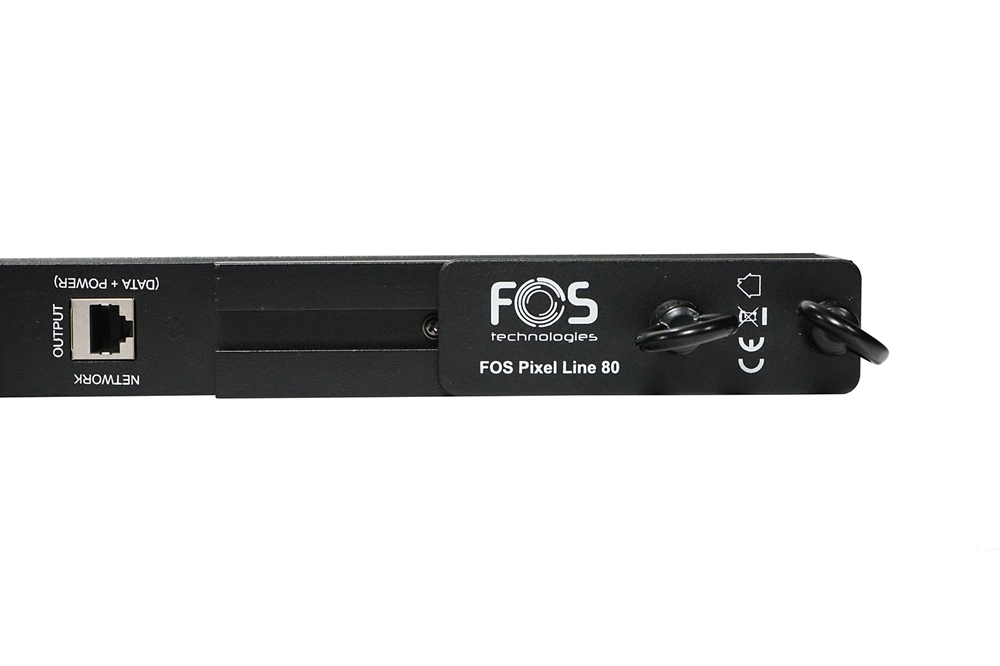

Control protocol: ArtNET, KlingNET, DMX, RDM.
ArtNET and DMX channels: 10/55/480/Pixel Model.
PWM Frequency: 3000 Hz.
IP20, for indoor use only.
Requires controller for power.
Dimensions: 1000 x 37 x 95 mm.
Weight: 2 Kg.
Packing Details:
Carton box for 8 pcs: 41 x 42 x 108 cm - 19 kg
