Innovative multi-use IP65 for outdoor and indoor applications strobe, total 24 pixels full controllable, 8 blinding pixels by 96 leds cool white 5 watt and 16 color paint pixels by 672 leds 0.3 watt RGB SMD, Beam angle: 120°, DMX channels: 12/59ch, weatherproof IP65 XLR and PowerCON Seetronic connectors, OLED display, 9.5 kg
Fixture Description
Innovative multi-use IP65 for outdoor and indoor applications strobe, total 24 pixels full controllable.
Static strobe effect, with pixel RGB (x16 zones) and White (x8 sections)!
IP65: Suitable for outdoor use as well, in events / stages / temporary installations.
Light Source / Optics
RGB SMD LEDs 672x 0,3 Watt.
Cool White LEDs, 96x 5 Watt.
Beam angle: 120°
Approximate LED lifespan: 50,000 hours.
Control
DMX, Auto, Manual, Master / Slave control modes.
DMX control with 12 or 59 Channels.
Full pixel section control with 59 channels, 8 sections of white and 16 sections of RGB LEDs, with independent shutter channels.
Technical Specifications
Power Supply: 100/240 Volt AC, 50/60 Hz.
Power Consumption: 400 Watt max.
Signal Connectors: SeeTronic 3 pin input and output XLR IP65.

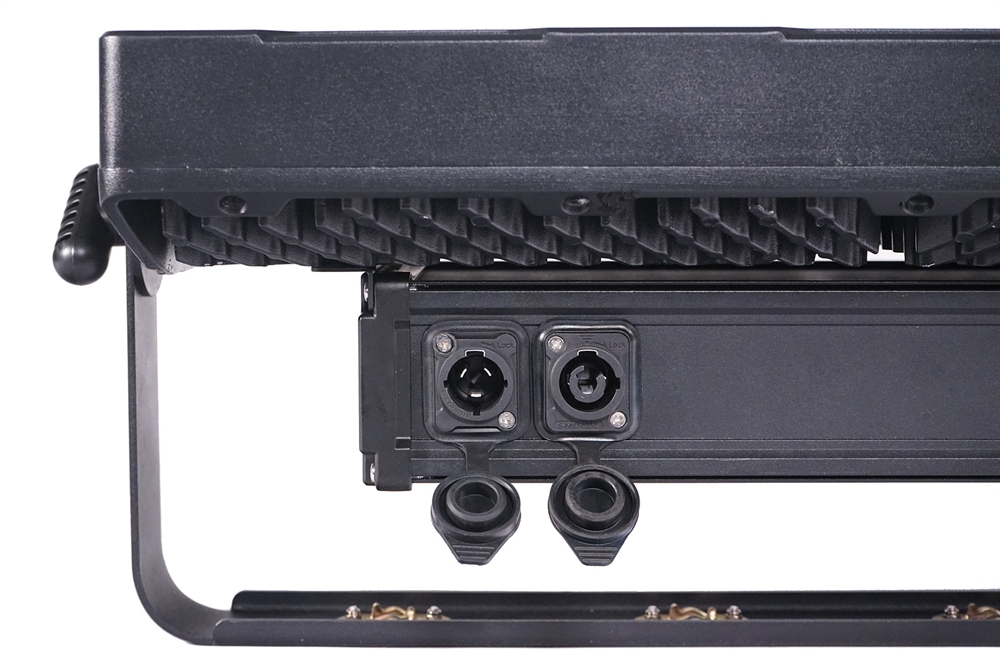

Power Connectors: See Tronic PowerCon input and output IP65.
IP65, suitable for indoor and outdoor use.
Dimensions: 546 x 257 x 132 mm.
Packing Details
Carton box for 1 pc: 57 x 33 x 24 cm - 12 kg
Carton box for 2 pcs: 59 x 35 x 52 cm - 24 kg
