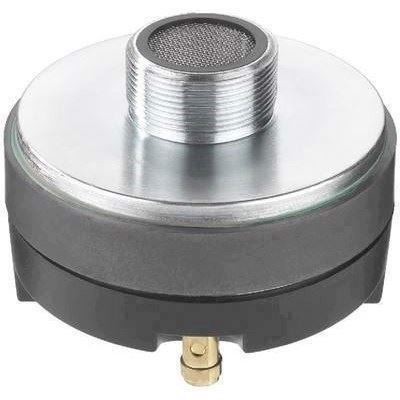

Horn driver - MRD-34PA - IMG STAGE LINE

• På lager
• På lager, 2-4 dage
• Bedømmelse for Horn driver - MRD-34PA - IMG STAGE LINE

  Produktet er endnu ikke bedømt

•
  310,00DKK ved 1 stk.

Vis uden moms

PA horn driver, 70WMAX, 8Ù

PA horn driver, 35 W, 8 Ω

• 35 mm (1 3/8 ") standard thread
• Component of the speakers PAB-108MK2, PAB-110MK2 and PAB-112MK2 as well as of the matching PAK speakers
• Matching replacement voice coil PAB-128/VC available at option
• Suitable for horns MRH-120, MRH-83, MRH-170 and MRH-80



Impedance (Z)	8 Ω
Transmission method	-

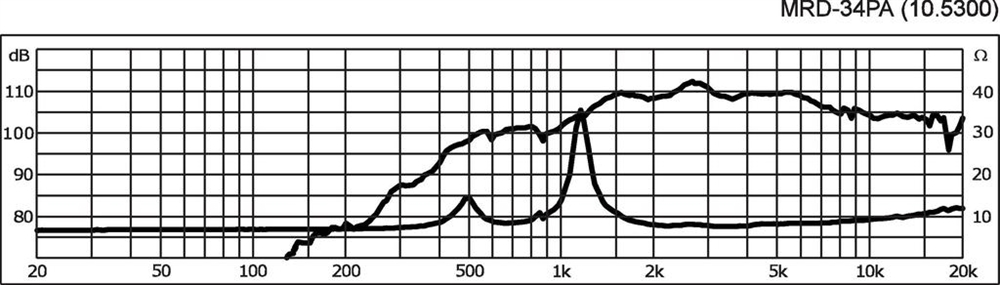

Frequency range	fx-20,000 Hz
Resonant frequency (fs)	1.2 kHz
Rec. crossov. frequ. (fmax.) (12 dB/oct.)	4,000 Hz
Power rating	35 W
Peak music power output	70 W
Sensitivity	104 dB/W/m
Max. rated SPL	-
Max. voltage	-
Radiation angle, horizontal	-
Radiation angle, vertical	-
Suspension compl. (Cms)	-
Moving mass (Mms)	-
Mech. Q factor (Qms)	-
Electr. Q factor (Qes)	-
Total Q factor (Qts)	-
Equivalent volume (Vas)	-
DC resistance (Re)	-
Force factor (BxL)	-
Voice coil induct. (Le)	-
Voice coil diameter	Ø 34.5 mm
Voice coil former	-
Linear excursion (XMAX)	-
Eff. cone area (Sd)	-
Magnet weight	-
Magnet diameter	Ø 87 mm
Mounting cutout	dep. on horn
Mounting depth	dep. on horn
Mounting hole diameter	-
Hole spacing X-axis	-
Hole spacing Y-axis	-

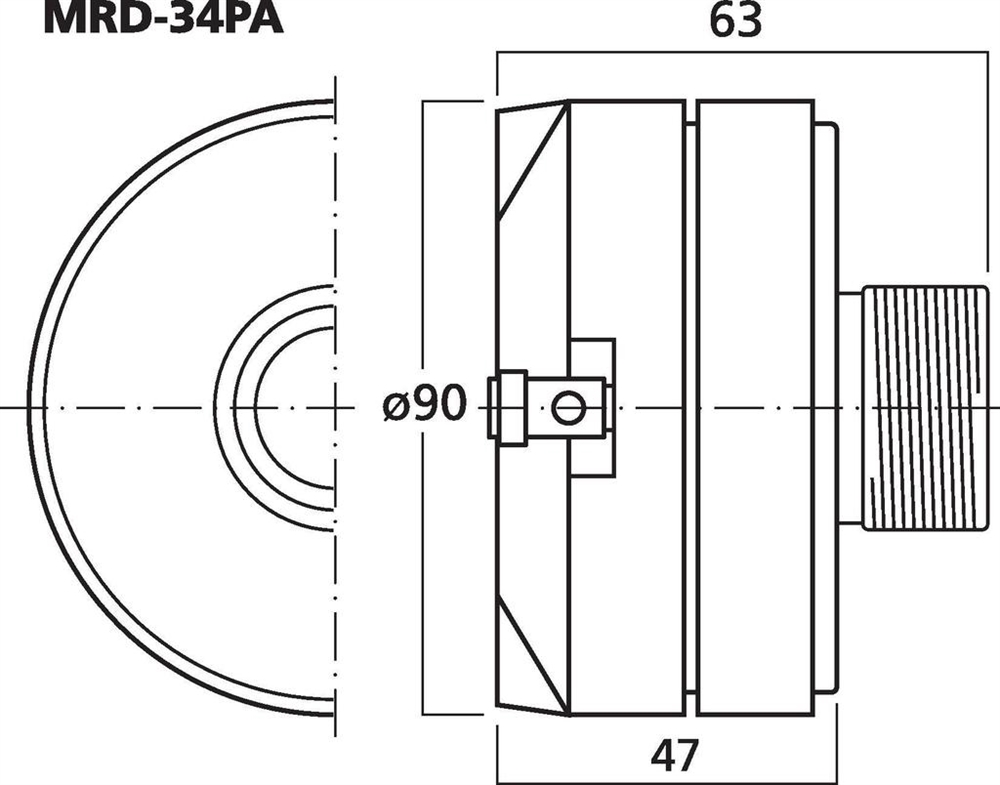

Dimensions	Ø 90 mm x 63 mm
Outside diameter	Ø 90 mm
Width	Ø 90 mm
Height	-
Depth	63 mm
Protective class	-
Admiss. ambient temp.	0-40 °C
Weight	0.945 kg
Packing unit	1
Type of speaker	1"

Varenr.: 105300
