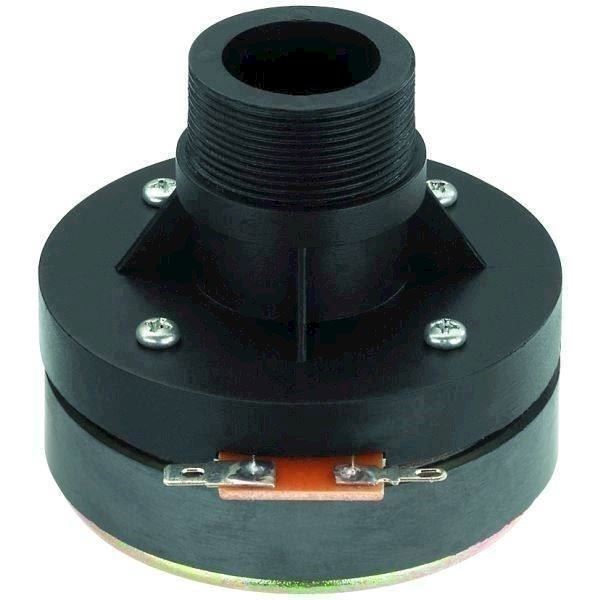

Horn driver - MRD-80 - IMG STAGE LINE

Horn driver - MRD-80 - IMG STAGE LINE
  • På lager
  • På lager, 2-4 dage
  • Bedømmelse for Horn driver - MRD-80 - IMG STAGE LINE
    Produktet er endnu ikke bedømt
  •
    217,00DKK ved 1 stk.
Vis uden moms
Billigst på PriceRunner


Spørg til denne vare


PA horn driver, 30 W, 8 Ω
  • PA tweeter driver with 35 mm (1 3/8 ") standard thread
  • Very compact size
  • High efficiency
  • Suitable for horns MRH-83, MRH-170 and MRH-80


Impedance (Z)8 Ω
Transmission method-
Frequency rangefx-17,500 Hz
Resonant frequency (fs)2 kHz
Rec. crossov. frequ. (fmax.) (12 dB/oct.)5,000 Hz
Power rating30 W
Peak music power output60 W
Sensitivity107 dB/W/m
Max. rated SPL-
Max. voltage-
Radiation angle, horizontal-
Radiation angle, vertical-
Suspension compl. (Cms)-
Moving mass (Mms)-
Mech. Q factor (Qms)-
Electr. Q factor (Qes)-
Total Q factor (Qts)-
Equivalent volume (Vas)-
DC resistance (Re)-
Force factor (BxL)-
Voice coil induct. (Le)-
Voice coil diameterØ 25.5 mm
Voice coil former-
Linear excursion (XMAX)-
Eff. cone area (Sd)-
Magnet weight-
Magnet diameterØ 80 mm
Mounting cutoutdep. on horn
Mounting depthdep. on horn
Mounting hole diameter-
Hole spacing X-axis-
Hole spacing Y-axis-

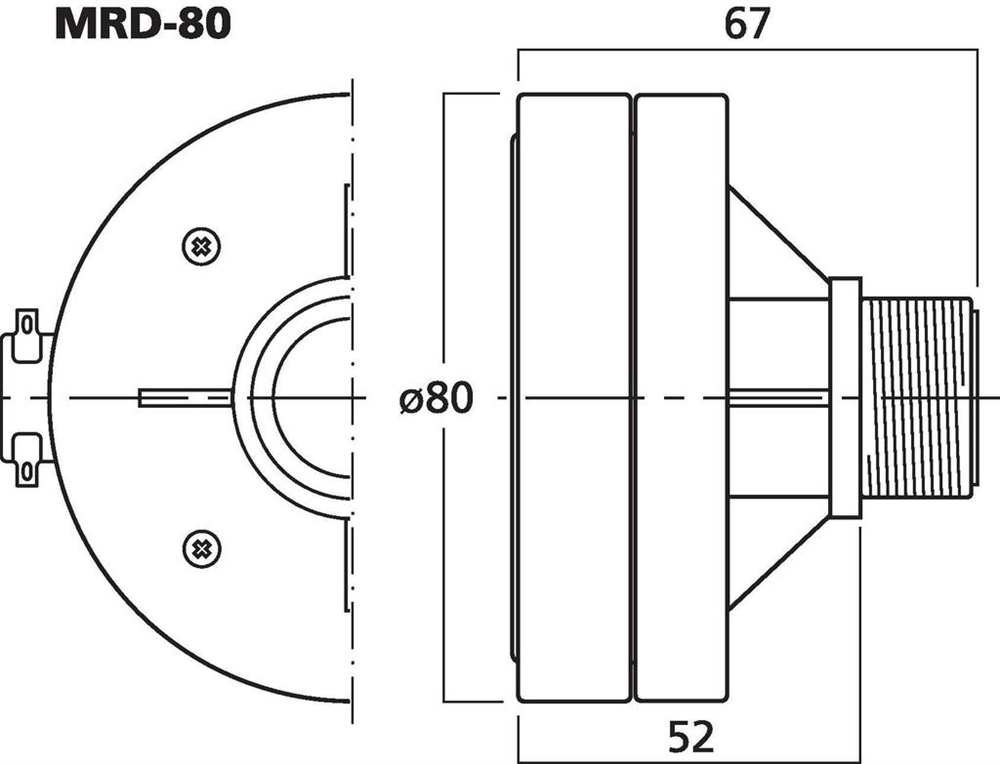

DimensionsØ 80 mm x 67 mm
Outside diameterØ 80 mm x 67 mm
Width-
Height-
Depth-
Protective class-
Admiss. ambient temp.0-40 °C
Weight715 g
Packing unit1
Type of speaker-

Varenr.: 104360
