Impedance (Z) | 8 Ω |
Transmission method | - |

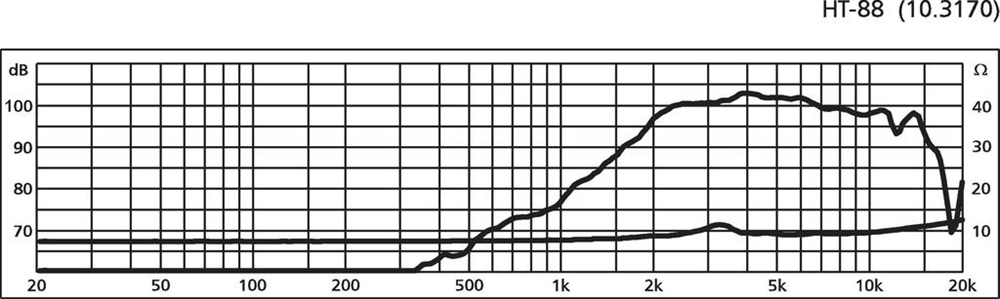

Frequency range | fx-18 kHz |
Resonant frequency (fs) | 2.5 kHz |
Rec. crossov. frequ. (fmax.) (12 dB/oct.) | 4 kHz |
Power rating | 50 W |
Peak music power output | 100 W |
Sensitivity | 99 dB/W/m |
Max. rated SPL | - |
Max. voltage | - |
Radiation angle, horizontal | - |
Radiation angle, vertical | - |
Suspension compl. (Cms) | - |
Moving mass (Mms) | - |
Mech. Q factor (Qms) | - |
Electr. Q factor (Qes) | - |
Total Q factor (Qts) | - |
Equivalent volume (Vas) | - |
DC resistance (Re) | - |
Force factor (BxL) | - |
Voice coil induct. (Le) | - |
Voice coil diameter | Ø 25 mm |
Voice coil former | - |
Linear excursion (XMAX) | - |
Eff. cone area (Sd) | - |
Magnet weight | - |

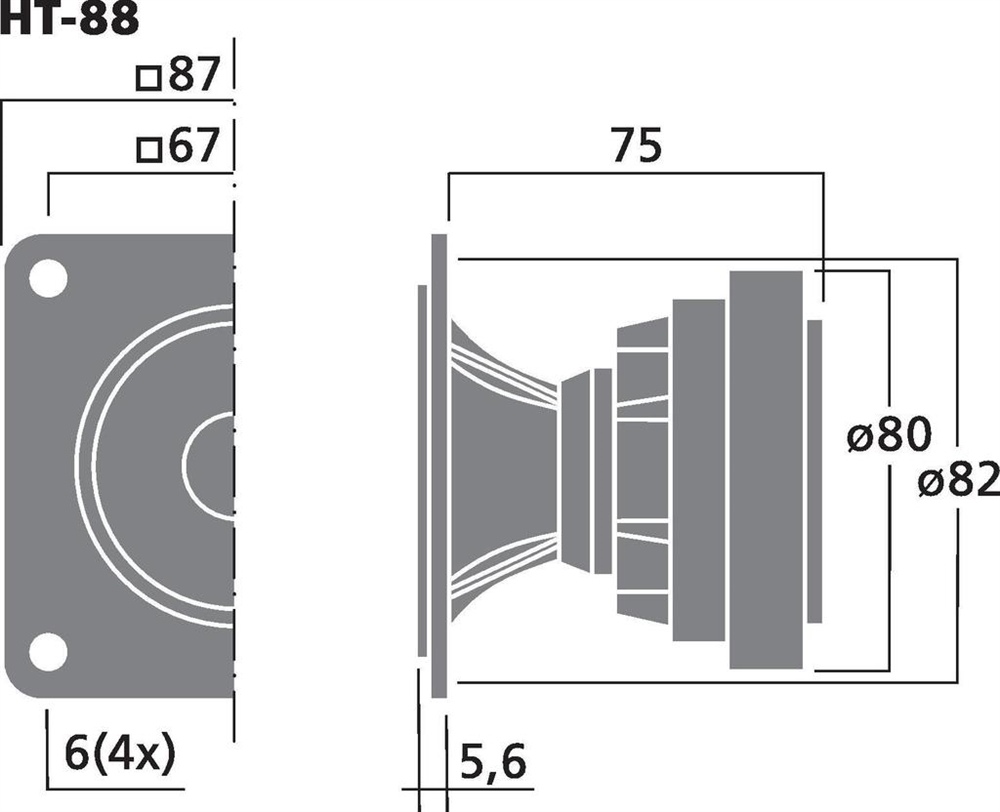

Magnet diameter | Ø 80 mm |
Mounting cutout | Ø 82 mm |
Mounting depth | 75 mm |
Mounting hole diameter | - |
Hole spacing X-axis | 67 mm |
Hole spacing Y-axis | 67 mm |
Dimensions | 87 x 87 x 75 mm |
Outside diameter | - |
Width | 87 mm |
Height | 87 mm |
Depth | 75 mm |
Protective class | - |
Admiss. ambient temp. | 0-40 °C |
Weight | 670 g |
Packing unit | 1 |
Type of speaker | - |
