Horn tweeter - MHD-55 - MONACOR

• På lager
• På lager, 2-4 dage
• Bedømmelse for Horn tweeter - MHD-55 - MONACOR

  Produktet er endnu ikke bedømt

•
  439,00DKK ved 1 stk.

Vis uden moms

Trustpilot

Spørg til denne vare

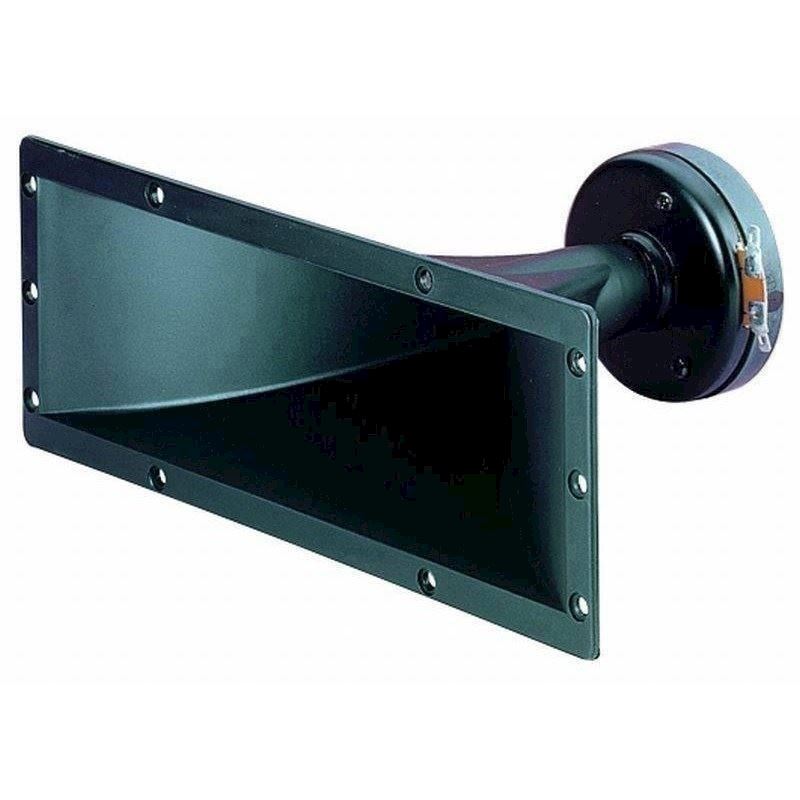

PA horn tweeter, 30 W, 8 Ω

• Plastic version
• Good efficiency
• Wide bandwidth, suitable for general PA applications
• Replacement voice coils are available at option (MHD-1255/VC)

Impedance (Z)	8 Ω
Transmission method	-

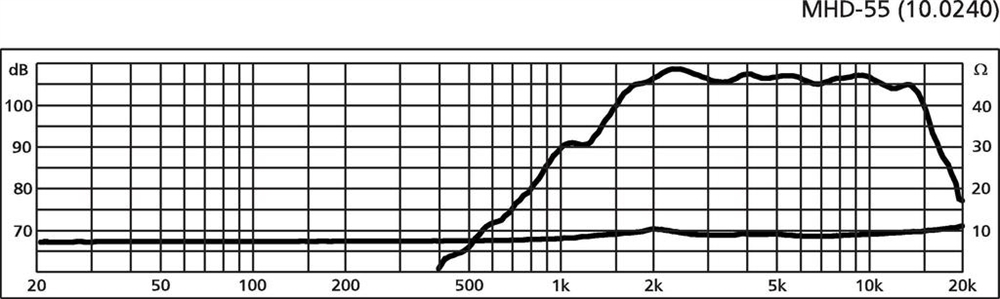

Frequency range	fx-15 kHz
Resonant frequency (fs)	2 kHz
Rec. crossov. frequ. (fmax.) (12 dB/oct.)	3,000 Hz
Power rating	30 W
Peak music power output	55 W
Sensitivity	103 dB/W/m
Max. rated SPL	-
Max. voltage	-
Radiation angle, horizontal	-
Radiation angle, vertical	-
Suspension compl. (Cms)	-
Moving mass (Mms)	-
Mech. Q factor (Qms)	-
Electr. Q factor (Qes)	-
Total Q factor (Qts)	-
Equivalent volume (Vas)	-
DC resistance (Re)	-
Force factor (BxL)	-
Voice coil induct. (Le)	-
Voice coil diameter	Ø 24.6 mm
Voice coil former	-
Linear excursion (XMAX)	-
Eff. cone area (Sd)	-
Magnet weight	-
Magnet diameter	Ø 80 mm
Mounting cutout	240 x 80 mm
Mounting depth	187 mm
Mounting hole diameter	-
Hole spacing X-axis	-
Hole spacing Y-axis	-

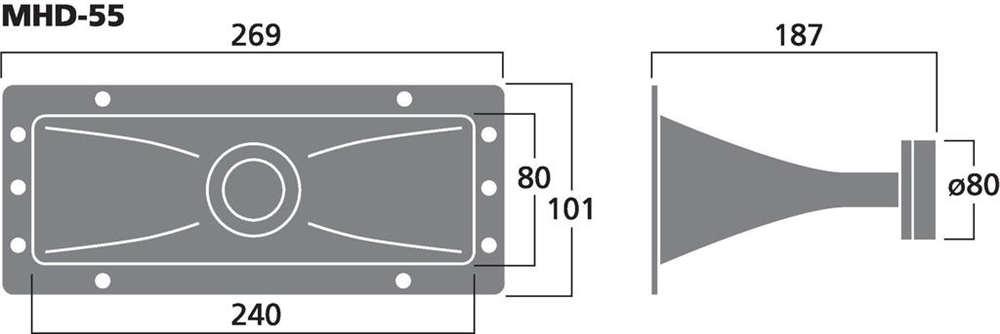

Dimensions	269 x 101 x 187 mm
Outside diameter	-
Width	269 mm
Height	101 mm
Depth	187 mm
Protective class	-
Admiss. ambient temp.	0-40 °C
Weight	0.88 kg
Packing unit	1
Type of speaker	-

Varenr.: 100240
