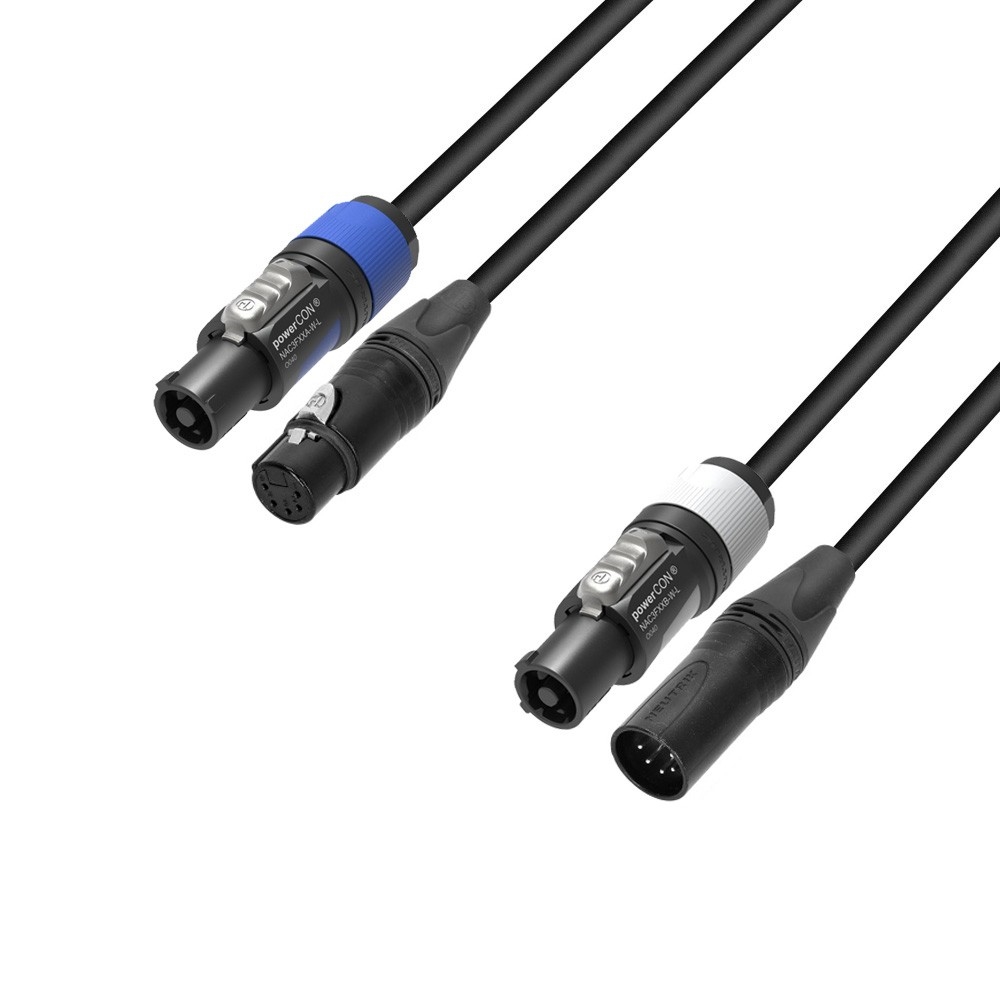

Hybrid Cable power- & DMX Neutrik powerCON® & 5-pole XLR - 5 m - Adam Hall Cables

Hybrid Cable power- & DMX Neutrik powerCON® & 5-pole XLR - 5 m - Adam Hall Cables
  • På lager
  • På lager, 3-8 Hverdage
  • Bedømmelse for Hybrid Cable power- & DMX Neutrik powerCON® & 5-pole XLR - 5 m - Adam Hall Cables
    Produktet er endnu ikke bedømt
  •
    919,00DKK ved 1 stk.
Vis uden moms
Billigst på PriceRunner




  • No more cable tangle thanks to only one cable for your devices
  • Conductor cross-section (mains cable): 3 x 2.5 mm²
  • Conductor cross-section (DMX): 2 x 0.22 mm² - Spliss length: 40 cm
  • Splice length: 40 cm
  • WitWith original Neutrik connectors (5-pole DMX to powerCON)h original Neutrik connectors (5-pole DMX to powerCON)
  • For parallel power supply and DMX transmission
  • Shielding: 95%
  • Includes two loose, transparent shrink tubes for labelling the cable yourself




General

Cable length5 m
Split end length40 cm
Cable jacketPVC
Cable diameter17 mm
Cable colourBlack

Line

Connector type plug 1XLR 5-pole female
Model name plug 1Neutrik NC5FXX-BAG
Connector type plug 2XLR 5-pole male
Model name plug 2Neutrik NC5MXX-BAG
Conductor materialOxygen-free copper (OFC)
Conductor diameter2 x 0,22 mm²
AWG24
Capacity/m55 pF
Conductor impedance/km85 Ohm
ShieldSpiral copper shielding
Shielding structure7 x 0.20 mm
Cable jacketPVC
Cable diameter5 mm

Mains line

Plug type connector 1Mains plug female power in
Model name connector 1Neutrik NAC3FCA-1
Plug type connector 2Mains plug female power out
Model name connector 2Neutrik NAC3FCB-1
Conductor materialOxygen-free copper (OFC)
Conductor diameter3 x 2,5 mm²
AWG13
Cable jacketPVC
Cable diameter10 mm

Environmental

Temperature range-20 - 70 °C

Dimensions & weight

Weight930 g
Varenr.: A-8101PSDT50500N
