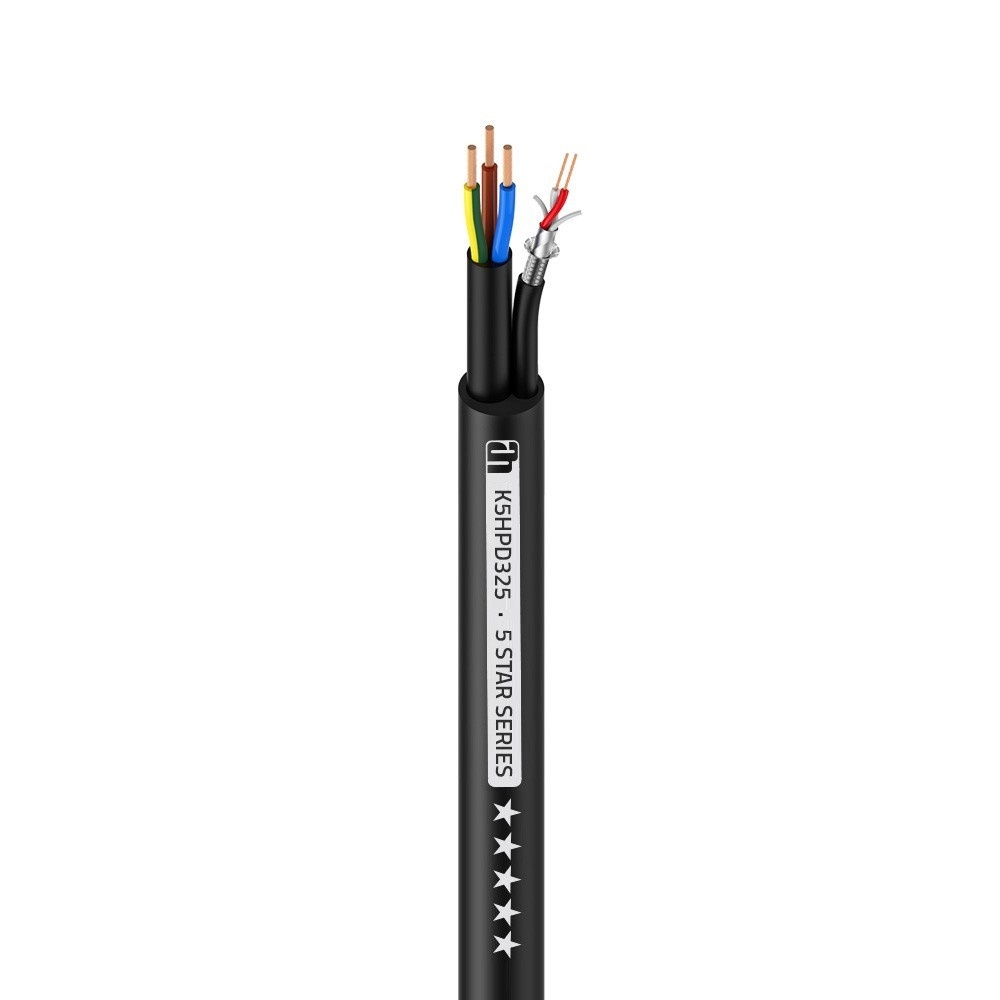

Hybrid Cable - Power & DMX - 3 x 2.5 mm² & 2 x 0.34 mm² - 100 m - Adam Hall Cables - 100 Linear m.

Hybrid Cable - Power & DMX - 3 x 2.5 mm² & 2 x 0.34 mm² - 100 m - Adam Hall Cables -  100 Linear m.
  • Ikke på lager
  • Forventet levering om -41 uger
  • Bedømmelse for Hybrid Cable - Power & DMX - 3 x 2.5 mm² & 2 x 0.34 mm² - 100 m - Adam Hall Cables - 100 Linear m.
    Produktet er endnu ikke bedømt
  •
    6.309,00DKK ved 1 pk. med 100 stk.
Vis uden moms
Billigst på PriceRunner




Becoming the best means becoming a 5 STAR cable!

With users in mind who demand strong power and superior signal transmission values, we at Adam Hall® Cables engineered a cable for simultaneous transmission of DMX / Audio signals and power. The inner conductor cross-section of 0.34 mm² (AWG22) gives your balanced signals the necessary space to unfold its wings.

The line is completely made in the EU and developed under highest quality standards.

  • The Hybrid Cables from our 5 STAR SERIES are made in the EU
  • Packaging unit: 100 m in one piece
  • Superior signal transmission values due to its larger conductor cross-section of 0.34 mm² AWG22
  • The mains line has a cross-section of 3 x 2.5 mm² AWG13
  • Made for simultaneous transmission of DMX / Audio signals and power



General

Cable length100 m
Cable jacketPVC (Polyvinyl chloride)
Cable diameter18 mm
Cable colourBlack

Line

Conductor materialOFC (Oxygen-free copper)
Conductor diameter0.34 mm²
AWG22
Characteristic impedance110 Ω
ShieldBraided copper shielding
Cable jacketPVC (Polyvinyl chloride)
Cable diameter6.5 mm

Mains line

Conductor materialOFC (Oxygen-free copper)
Conductor diameter2.5 mm²
AWG13
Cable jacketPVC (Polyvinyl chloride)
Cable diameter8 mm
Varenr.: A-K5HPD325
