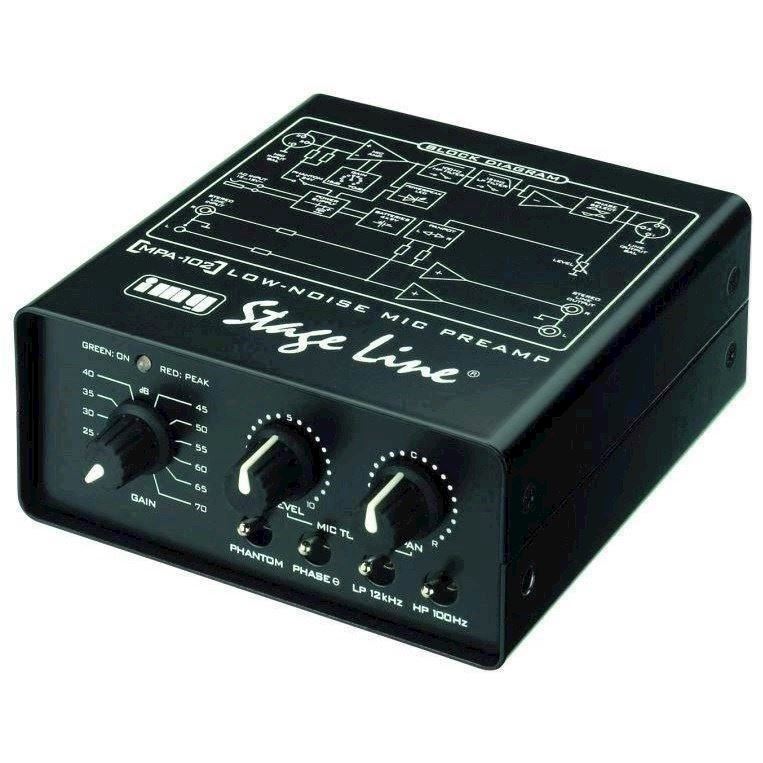

Type | microphone preamplifier |
Frequency range | 20-20,000 Hz |
Control range | - |
Control frequencies | - |
Input signal | - |
Input sensitivity | 0.3-150 mV, switchable |
Input impedance | 2.2 kΩ (mic) 10 kΩ (line) |
Output signal | 1-12 V (line, bal.) 1-6 V (line, stereo) |
Output impedance | 100 Ω |
Gain | 20-70 dB (mic) 0 db (line) |
Phantom power | - |
Compression | - |
Gate ratio | - |
Crossover frequency | 100 Hz/-3 dB, 12 dB/oct. (low cut) 12 kHz/-3 dB, 12 dB/oct. (high cut) |
High-pass filter | - |
Low cut | 100 Hz/-3 dB, 12 dB/oct. |
Transmission ratio | - |
S/N ratio | > 66 dB, unweighted (mic) 80 dB, unweighted (line) |
Channel separation | - |
THD | < 0.01% |
Admiss. ambient temp. | 0-40 °C |
Power supply | via encl. plug-in power supply; alternatively 4 x 9 V battery |
Dimensions | 116 x 55 x 125 mm |
Weight | 978 g |

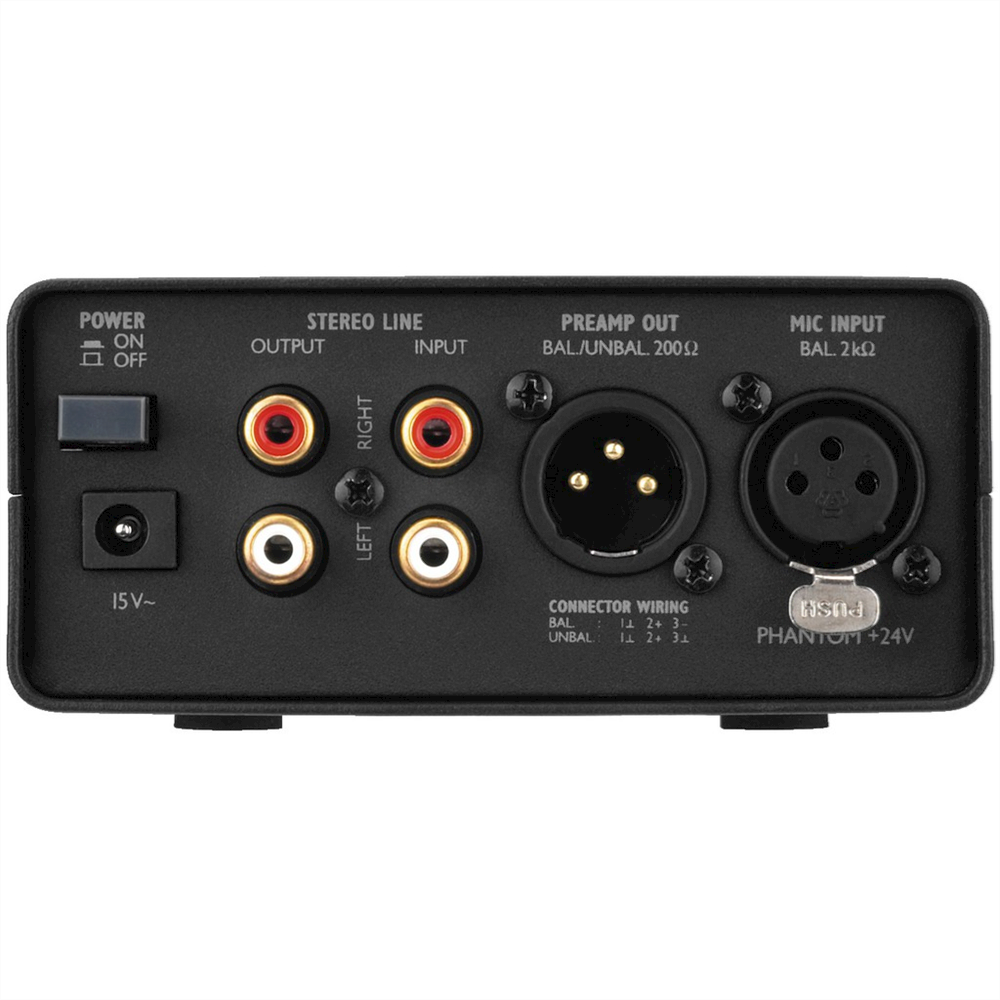

Inputs | 1 x XLR (mic) 1 x RCA L/R (line) |
Outputs | 1 x XLR (preamp) 1 x RCA L/R (line) |
Other features | - |
