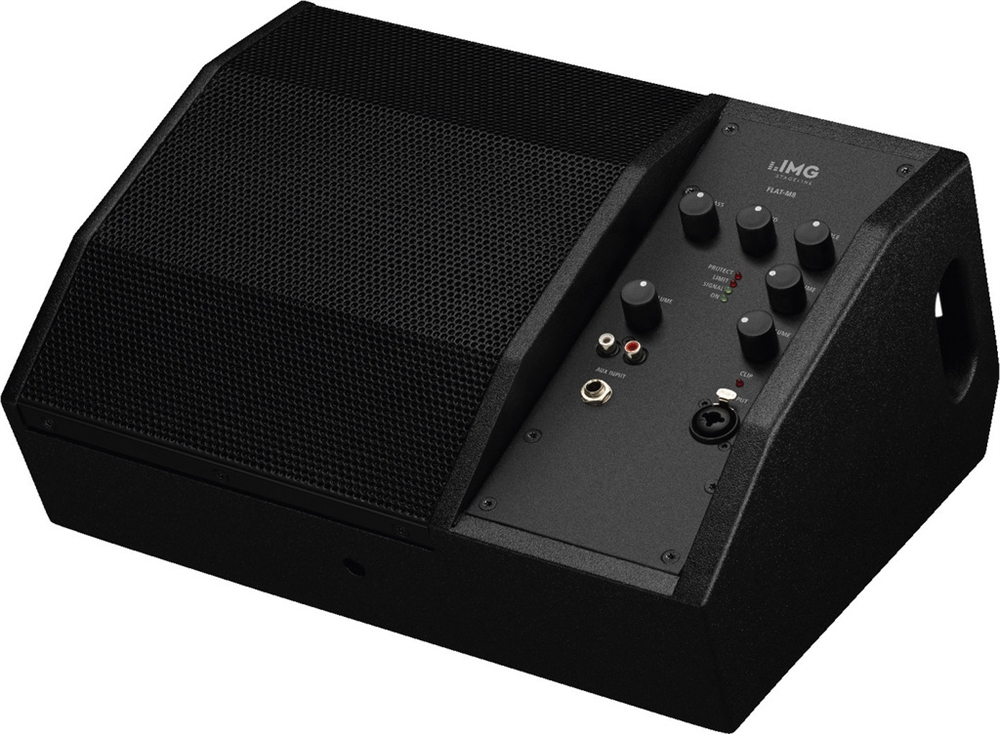

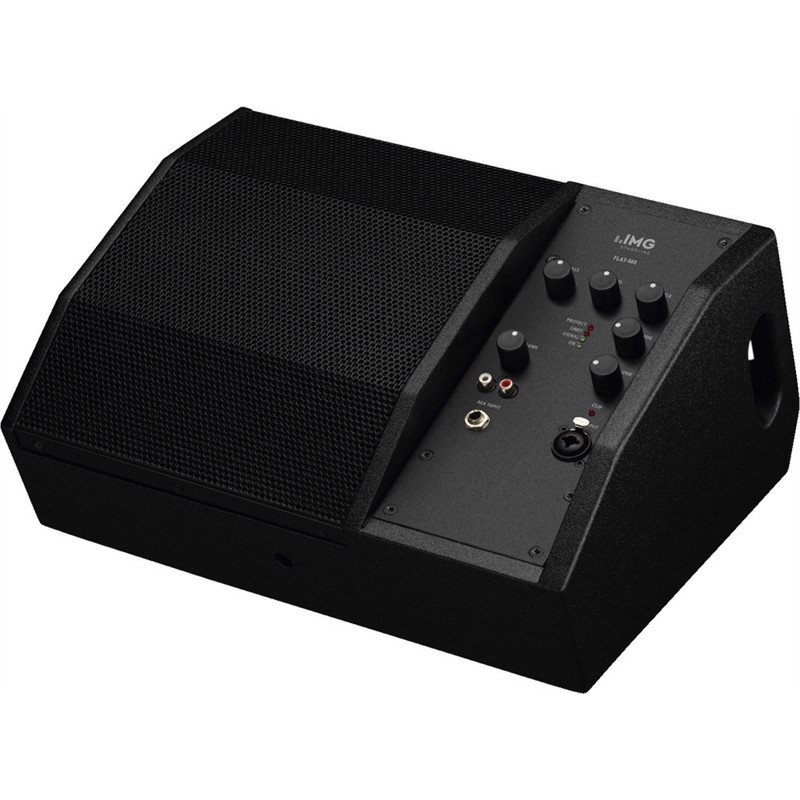

IMG STAGE LINE PA-monitor aktiv 300W - FLAT-M8

IMG STAGE LINE PA-monitor aktiv 300W - FLAT-M8
  • På lager
  • På lager, 2-4 dage
  • Bedømmelse for IMG STAGE LINE PA-monitor aktiv 300W - FLAT-M8
    Produktet er endnu ikke bedømt
  •
    3.269,00DKK ved 1 stk.
Vis uden moms
Billigst på PriceRunner




Active PA stage monitor speaker system, 300 W
  • Flat and very compact full range system
  • Fitted with a 20 cm (8") coaxial speaker with horn tweeter
  • Class D amplifier system
  • Sound pressure at nominal power: 121 dB
  • Indication of protect, limiter, signal and power-on
  • Volume control and 3-way tone control (bass, midrange and treble)
  • Balanced line/mic input and feed-through output
  • Unbalanced line input RCA L/R or 6.3 mm jack
  • Switchable automatic power-off
  • High-quality plywood cabinet with protective metal grille
  • M10 threaded insert for stand adapter or mounting device



Active/passiveactive
Transmission technologycable
Total output power300 W
Power rating (RMS)100 W
Total power rating-
Power rating (RMS)-
Impedance-
Frequency range70-21,000 Hz
THD-
S/N ratio-
Input signal180 mV/5,6 kΩ (line, bal.),

180 mV/5,6 kΩ (aux, RCA)

1.5 mV/1.2 kΩ (mic, bal.),

70 mV/4 kΩ (aux, 6.3 mm jack, asym.)

System1 x 2-way coaxial speaker
Full range speaker-
Bass speaker1 x 20 cm (8")
Midrange speaker-
Tweeter1 x coaxial horn tweeter
Number of speakers2
Speaker size20 cm (8")
SPL99 dB/W/m
Max. rated SPL121 dB
Beam angle-
Radiation angle, horizontal70°
Radiation angle, vertical50°
Features-
Housing materialMDF
Colourblack
Mounting device1 x M10 threaded insert
Protected against ball rebound-
Protection class-
Admiss. ambient temp.0-40 °C
Power supply∿ 230 V/50 Hz/100 VA
Dimensions375 x 185 x 330 mm
Width375 mm
Height185 mm
Depth330 mm
Weight7.48 kg
Inputs1 x comb. XLR/6.3 mm (mic),

1 x comb. XLR/6.3 mm (line),

1 x RCA L/R,

1 x 6.3 mm stereo jack

Outputs1 x XLR direct out
Replacement voice coil-
Other featureslimiter
AccessoriesFLAT-M8BAG
Packing dimensions (W x H x L)0.43 x 0.29 x 0.47 m
Gross weight8.82 kg
Net weight7.48 kg
Varenr.: 1000766
