Channels | 2 |
Zones | - |
Power rating | 400 W |
Power rating at 2 Ω | - |
Power rating at 4 Ω | 2 x 200 W |
Power rating at 8 Ω | 2 x 125 W |
Power rating at 100 V | - |
Power rating with 4 Ω bridged operation | - |
Power rating with 8 Ω bridged operation | - |
Peak music power output (PMAX) | 600 W |
Output impedance | - |
Inputs | 1.3 V/55 kΩ |
Attenuation factor | |
Frequency range | 10-20,000 Hz |
Crossover network | - |
Crossover frequency | - |
Integrated limiter | - |
Equalizer bass | - |
Equalizer midrange | - |
Equalizer treble | - |
S/N ratio | 64 dB |
Crosstalk attenuation | > 55 dB |
THD | < 0.05% |
Power supply | ∼ 230 V/50 Hz/730 VA |
Mains voltage | ∼ 230 V |
Mains frequency | 50 Hz |
Power consumption, operation | 730 VA |
Power consumption, standby | - |
Standby current | - |
Operating voltage (possible alternative) | - |
Power supply (possible alternative) | - |
Admiss. ambient temp. | 0-40 °C |
Dimensions | 482 x 95 x 300 mm, 2 RS |
Width | 482 mm |
Height | 95 mm |
Depth | 300 mm |
Rack spaces, RS | 2 |
Weight | 6.6 kg |

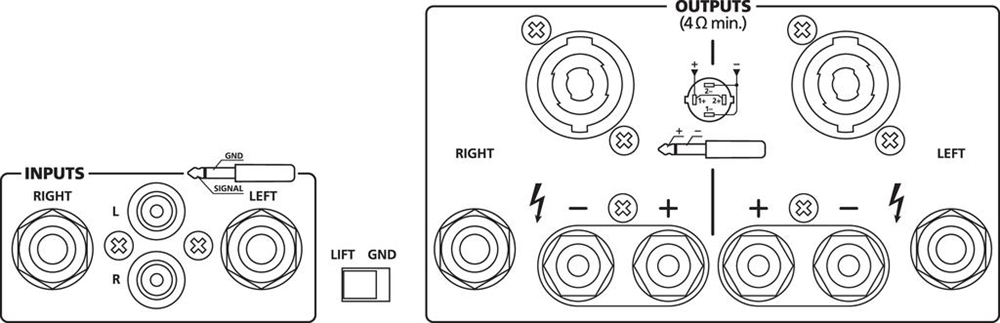

Connections | 1 x 6.3 mm jack L/R 1 x RCA L/R 2 x SPEAKER 1 x 6.3 mm jack L/R 2 x pair of screw terminals |
