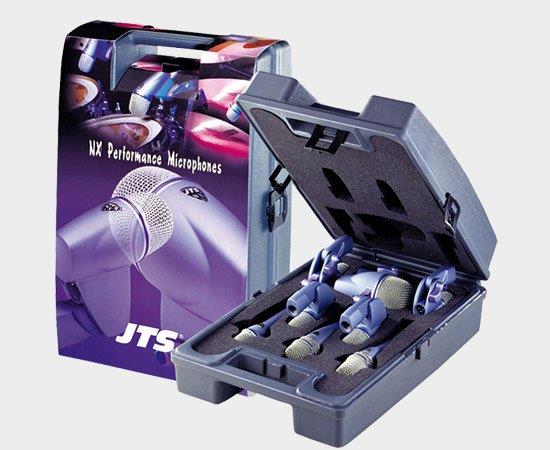

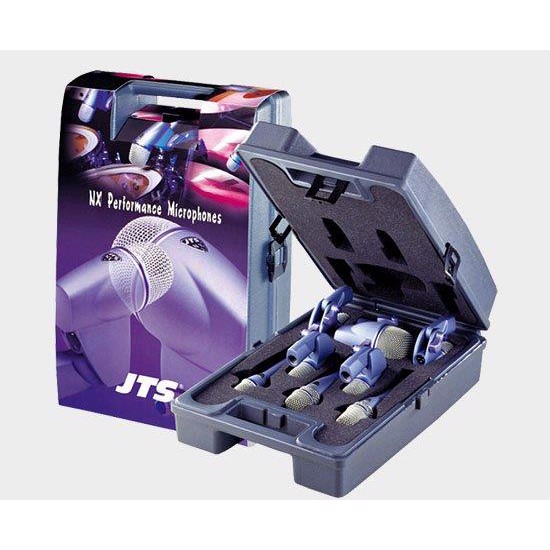

JTS NXB-8M instrument og scene mikrofon kit
NX-2 1 styk
NX-6 4 styk
NX-7 1 styk
NX-9 2 styk
* Robust, letvægtsdesign.
* Der er plads til 1 NX-2, 4 NX-6 og 3 håndholdte mikrofoner.
* Tilbyder stor bekvemmelighed og beskyttelse.
NX-2
Type Moving Coil Dynamic
Frequency Response 20~12,000 Hz
Polar Pattern Supercardioid,rotationally symmetrical about microphone axis, uniform with frequency
Sensitivity(at 1,000Hz) -85dB*(0.056mV)*0dB=1V/μbar
Impedance 600Ω
Phasing Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3
Connector Three-pin professional audio connector
(male XLR type)
Case Metallic enamel-painted die cast metal body with hardened, matte-finished steel grille Integral, dynamic locking, adjustable through
Adjustable Locking Mount 180°
Net Weight 815 grams (28.75 oz)

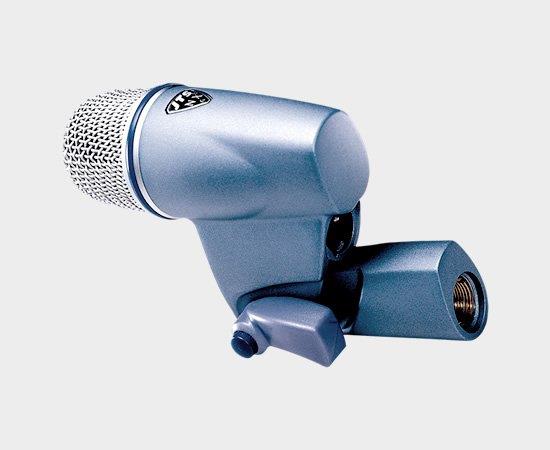

NX-6
IType Moving Coil Dynamic
Frequency Response 60~16,000 Hz
Polar Pattern Cardioid,rotationally symmetrical about microphone axis, uniform with frequency
Sensitivity(at 1,000Hz) -72dB* (0.25mV)*0dB=1V/μbar
Impedance 600Ω
Phasing Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3
Connector Three-pin professional audio connector (male XLR type)
Case Metallic enamel-painted die cast metal body with hardened, matte-finished steel grille Integral, dynamic locking, adjustable through
Adjustable Locking Mount 180°
Net Weight 610 grams (21.51 oz)
Touch Noise Super low

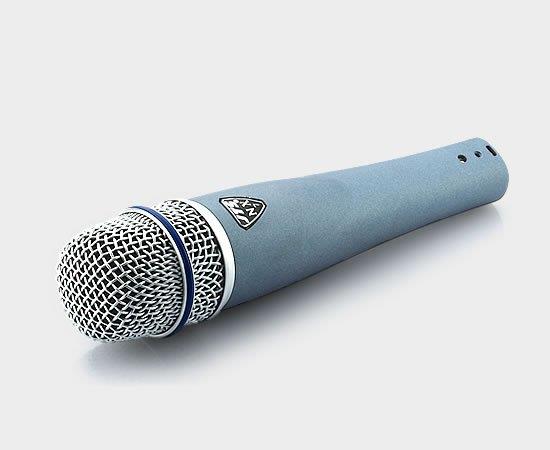

NX-7
Type Moving Coil Dynamic
Frequency Response 50~16,500 Hz
Polar Pattern Cardioid,rotationally symmetrical about microphone axis, uniform with frequency
Sensitivity(at 1,000Hz) -72dB*(0.25mV)*0dB=1V/μbar
Impedance 600Ω
Phasing Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3
Connector Three-pin professional audio connector
(male XLR type)
Case Metallic enamel-painted die cast metal body with hardened, matte-finished steel grille
Net Weight 235 grams (8.3 oz)

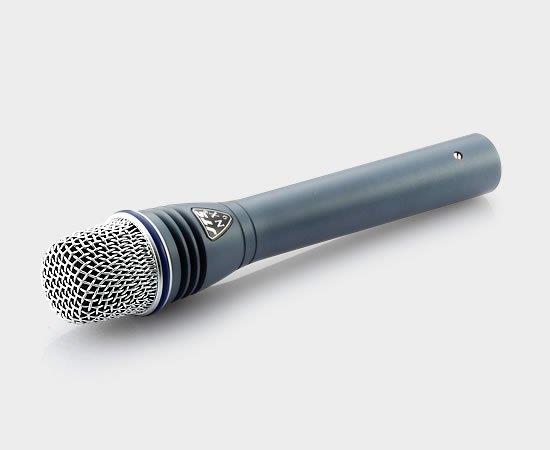

NX-9
Type Electret Condenser
Frequency Response 60~18,000 Hz
Polar Pattern Cardioid,rotationally symmetrical about microphone axis, uniform with frequency
Sensitivity(at 1,000Hz) -70dB*(0.32mV)*0dB=1V/μbar
Output Impedance 400Ω
Phasing Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3
Connector Three-pin professional audio connector
(male XLR type)
Case Metallic enamel-painted die cast metal body with hardened, matte-finished steel grille
Net Weight 230 grams (8.1 oz)
Touch Noise. Super low
Power Supply 9-52V phantom power or battery 1.5V AA
