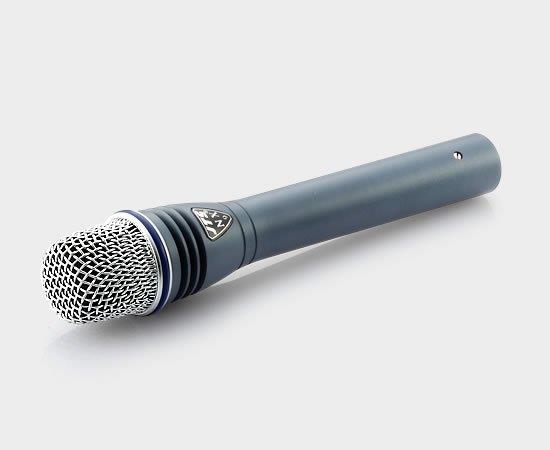

JTS NX-9 kondensator Vokal og instrument mikrofon
NX-9 er nyskabende til overheads, hi-hat, akustisk guitar og andre instrumenter.
NX-9 giver udvidet frekvensgang og udvidet dynamikområde.
Det giver en jævn og gennemsigtig gengivelse.
NX-9
Type Electret Condenser
Frequency Response 60~18,000 Hz
Polar Pattern Cardioid,rotationally symmetrical about microphone axis, uniform with frequency
Sensitivity(at 1,000Hz) -70dB*(0.32mV)*0dB=1V/μbar
Output Impedance 400Ω
Phasing Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3
Connector Three-pin professional audio connector
(male XLR type)
Case Metallic enamel-painted die cast metal body with hardened, matte-finished steel grille
Net Weight 230 grams (8.1 oz)
Touch Noise. Super low
Power Supply 9-52V phantom power or battery 1.5V AA
