JTS NXB-5M tromme mikrofon kit
Består af
CX-505 4 styk
NX-2 1 styk
NXB-5M

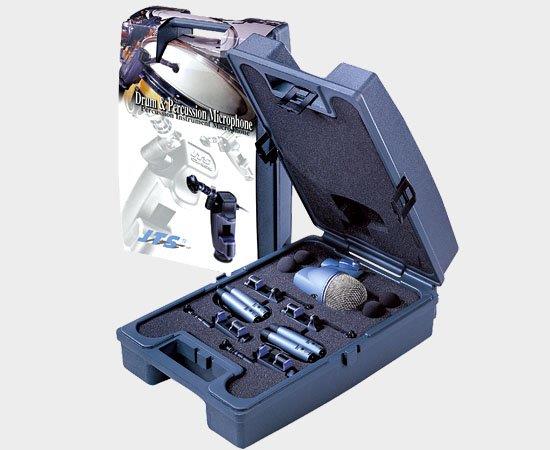

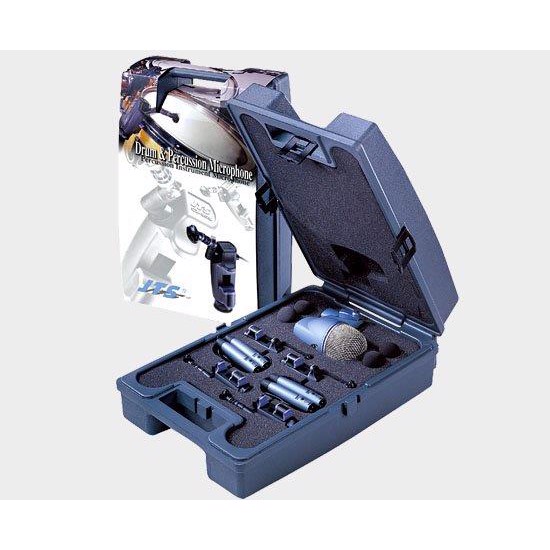

* Robust etui for skadefri transport af mikrofon sæt
( 4 stk CX-505 og 1 stk NX-2 er indeholdt.
* Det giver stor bekvemmelighed for ydeevne.

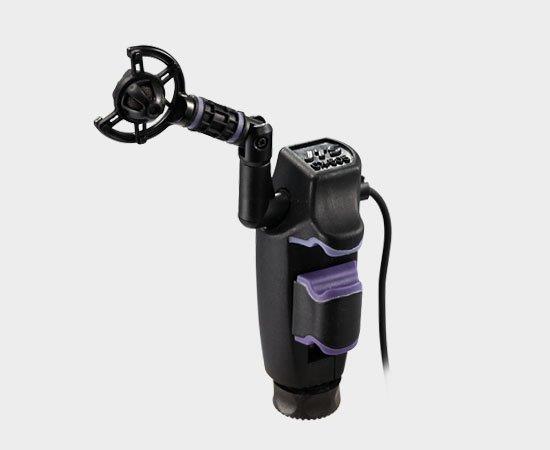

CX-505
Type Electret Condenser
Frequency Response 50~18,000 Hz
Polar Pattern Cardioid
Sensitivity(at 1,000Hz) -64dB*(0.63mV) at 1,000 Hz
Output Impedance 220Ω ± 30%
Max. SPL for 1% THD 130 dB
Output connector 3P. XLR (M) type
Net Weight Metallic enamel-painted die cast metal body
with hardened, matte-finished steel grille
Net Weight 230 grams (8.1 oz)
Touch Noise. Super low
Power Supply 9-52V phantom power
NX-2
Type Moving Coil Dynamic
Frequency Response 20~12,000 Hz
Polar Pattern Supercardioid,rotationally symmetrical about microphone axis, uniform with frequency
Sensitivity(at 1,000Hz) -85dB*(0.056mV)*0dB=1V/μbar
Impedance 600Ω
Phasing Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3
Connector Three-pin professional audio connector
(male XLR type)
Case Metallic enamel-painted die cast metal body with hardened, matte-finished steel grille Integral, dynamic locking, adjustable through
Adjustable Locking Mount 180°
Net Weight 815 grams (28.75 oz)
