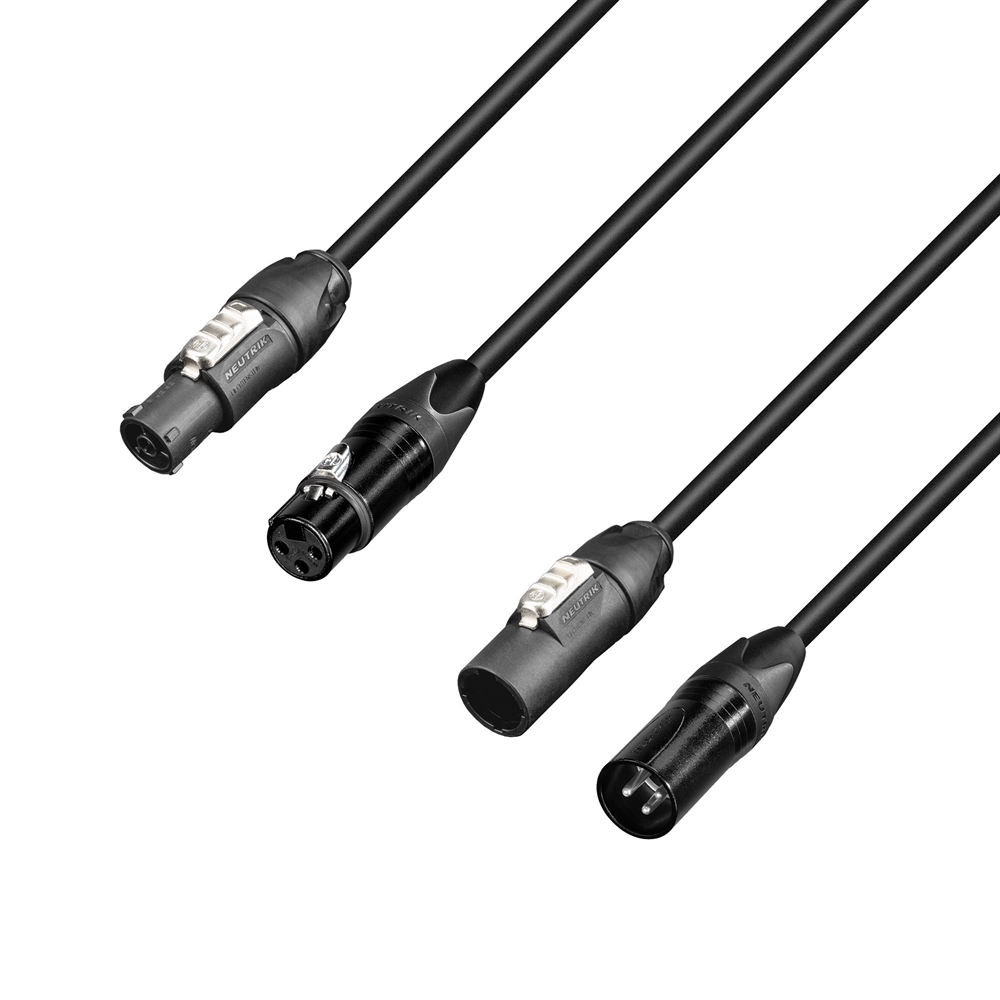

Kombi DMX & PowerCon True1 kabel. 3-pol DMX. 1,5 meter

Kombi DMX & PowerCon True1 kabel. 3-pol DMX. 1,5 meter
  • På lager
  • På lager, 3-8 Hverdage
  • Bedømmelse for Kombi DMX & PowerCon True1 kabel. 3-pol DMX. 1,5 meter
    Produktet er endnu ikke bedømt
  •
    729,00DKK ved 1 stk.
Vis uden moms
Billigst på PriceRunner




  • No more cable mess with just one cable to your equipment
  • For parallel power and DMX signal transmission
  • Equipped with Genunine Neutrik XLR and PowerCon True connectors
  • 3 x 1,5 mm² cross section for power
  • 2 x 0,22 mm² cross section for DMX






Product typePre-assembled Cables
TypePower / Signal Cable
Length1.5 m
Splice length40 cm
ColourBlack
Overall diameter15 mm
Jacket materialPVC
Connector 1-ANAC3FX-W
Connector 1-BNC3FXX-BAG
Connector 2-ANAC3MX-W
Connector 2-BNC3MXX-BAG
Assembly mains cable3 x 1.5 mm²
AWG24
Cross-section0.22 mm²
Assembly signal conductor2 x 0,22 mm²
IsolationPE 1.7 mm
Inner conductor construction7 x 0.20 mm, bare copper
Number of internal conductors2
Conductor resistance85 ohm/km
Current carrying capacity55 pF/m
Surge Impedance120 ohm/km
Operating Temperature-20 - 70 °C
ShieldPE filler, tinned copper braided shielding with 96 x 0.10 mm + AL
Weight0,43 kg

Varenr.: A-8101PSDP0150N
