Bedømmelse for Kombi DMX & PowerCon True1 kabel. 5-pol DMX. 1,5 meterProduktet er endnu ikke bedømt
Vis uden moms
- No more tangled cables thanks to just one cable for your equipment
- Conductor cross-section (mains cable): 3 x 2.5 mm²
- Wire cross-section (DMX): 2 x 0.22 mm²
- Splitting length: 40 cm

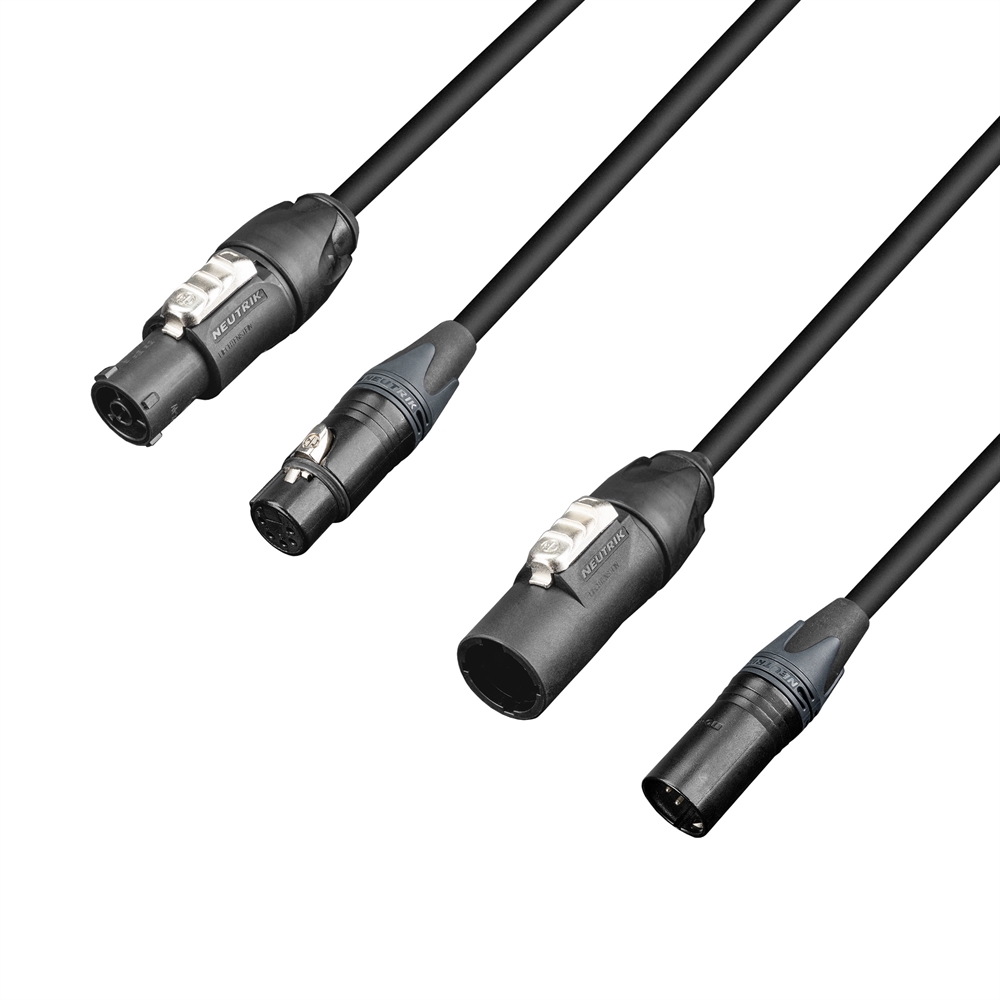

- With original Neutrik connectors (5-pin DMX on PowerCon True)

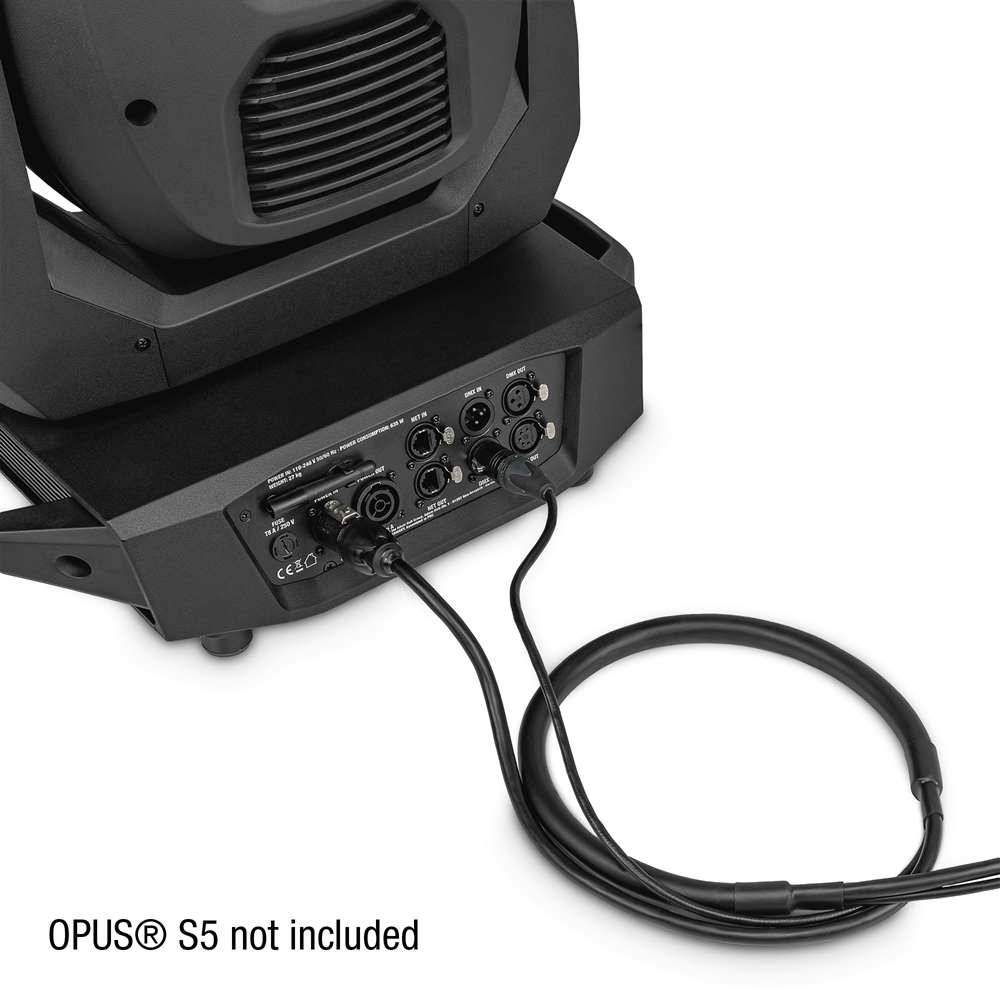

- For parallel power supply and DMX signal transmission
- Shielding 95 %
| Product type | Bulk Cable |
| Type | Power / Signal Cable |
| Cable Length | 1.5 m |
| Splice length | 40 cm |
| Color | Black |
| Overall diameter | 17 mm |
| Jacket material | PVC |
| Temperature range | -20 - 70 °C |
| Weight | 0,43 kg |
Mains line
| Connector 1-A | NAC3FX-W-TOP |
| Connector 2-A | NAC3MX-W-TOP |
| Center conductor material | bare copper |
| Center conductor cross section | 2.5 mm² |
| Number of internal conductors | 3 |
| Inner conductor construction | 96 x 0.10 |
| Diameter | 10 mm |
| AWG | 14 |
Signal line
| Connector 1-B | NAC5FXX-BAG |
| Connector 2-B | NAC5MXX-BAG |
| Center conductor material 2 | bare copper |
| Center conductor cross section 2 | 0.22 mm² |
| Number of inner conductors 2 | 2 |
| Diameter 2 | 5 mm |
| AWG 2 | 24 |
| Capacitance | 55 pF/m |
| Conductor resistance | 85 ohm/km |
| Surge Impedance | 120 ohm/km |
Varenr.: A-8101PSDP50150N
