General
The Laserworld FB4 MAX Interface is a network interface, which runs with Pangolin Quickshow or Pangolin BEYOND. Pangolin Quickshow is included. It has an SD memory to store content on that can be triggered by DMX or ArtNET or be run in Stand-Alone mode.
The Laserworld FB4 MAX Interface can be used with every show laser system, providing one of the features mentioned above, independent of the brand.
Features of Laserworld FB4 MAX Interface are:
- Full Ethernet control
- Stand-alone SD memory card
- Full color OLED display
- Support for DMX and/or ILDA
- Support scan speed of up to 120kpps
- Support for 6-color channels
- Improved laser output with interpolation
The integrated full color OLED display provides various setting options:
- Projector settings
- Network settings
- Color palette settings
- Geometric corrections
- Safety settings
- Clock
- etc.

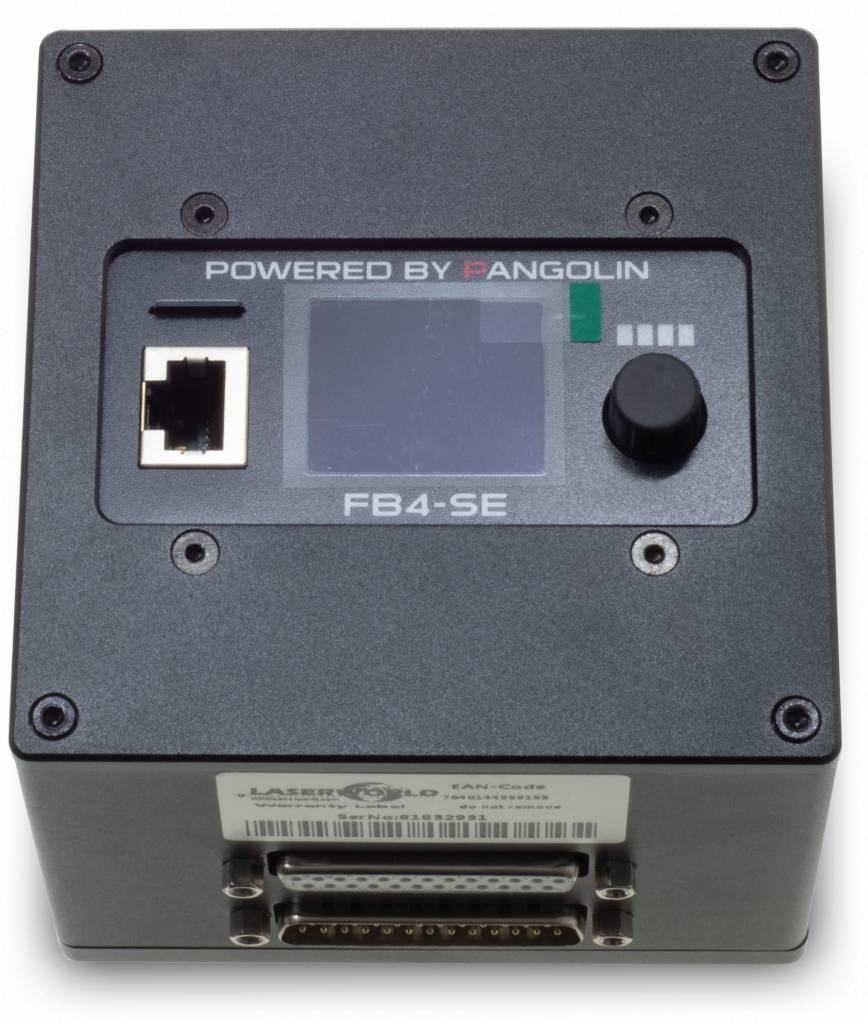

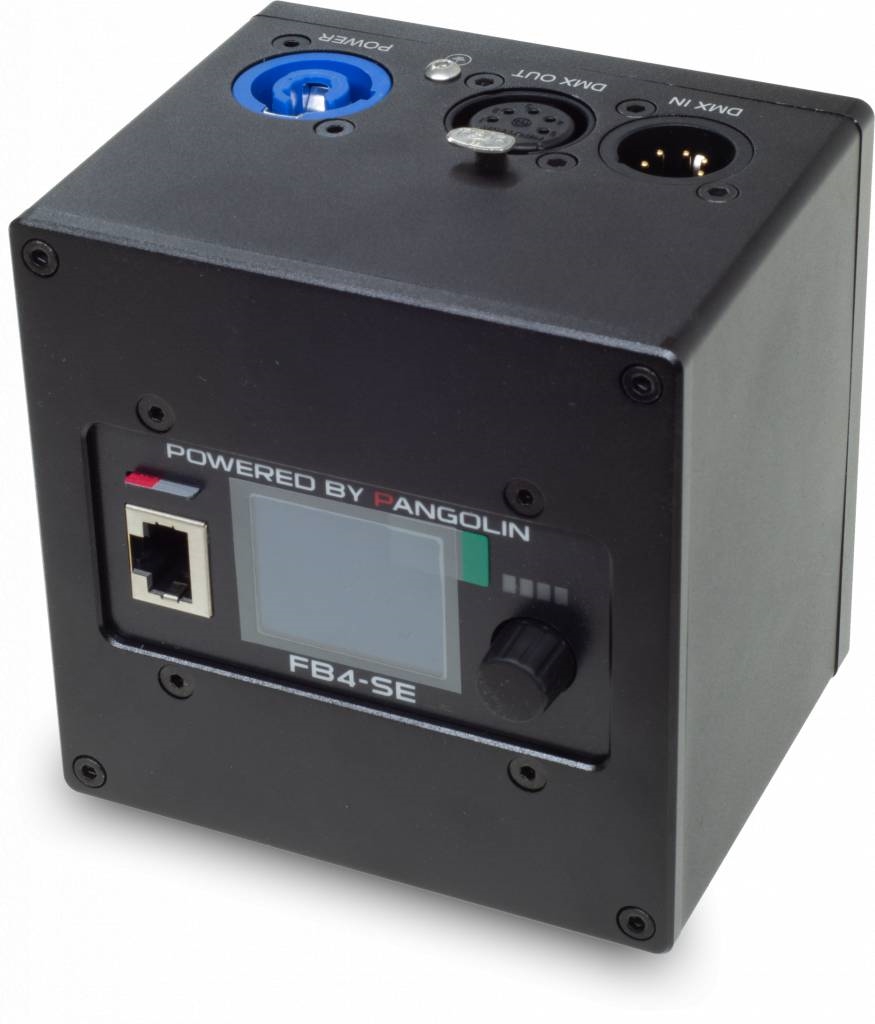

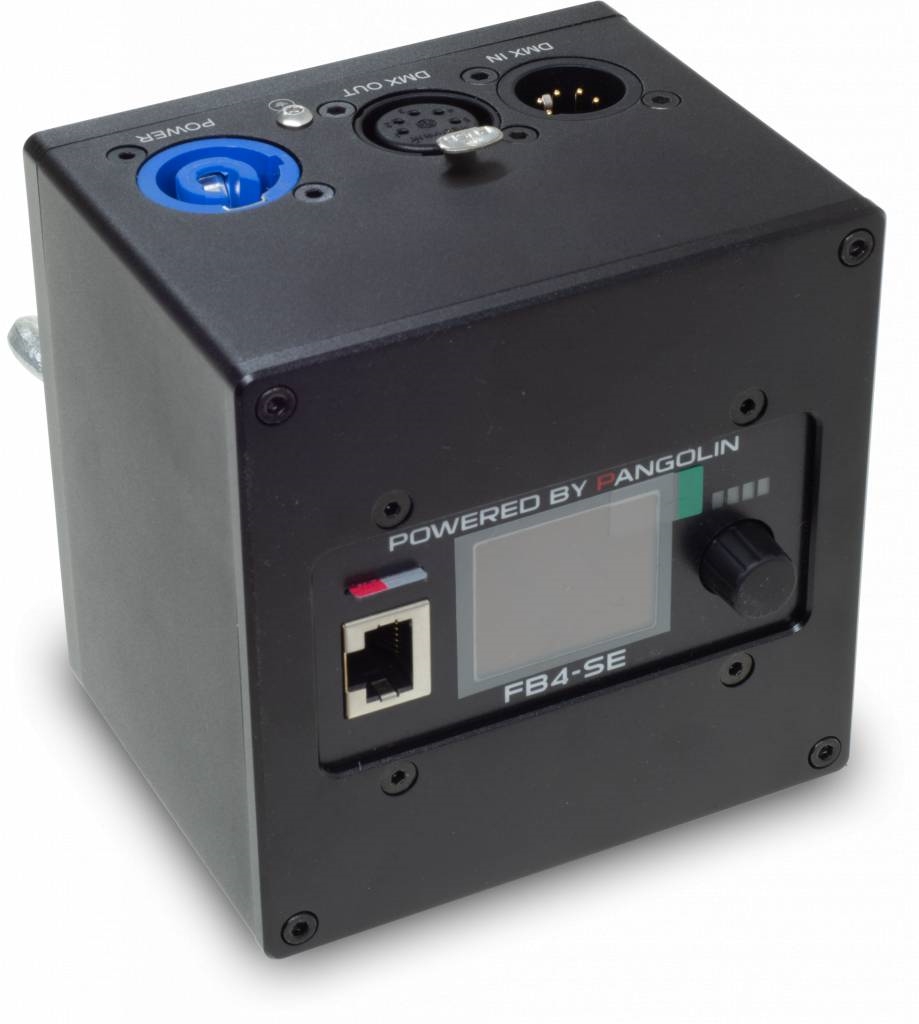

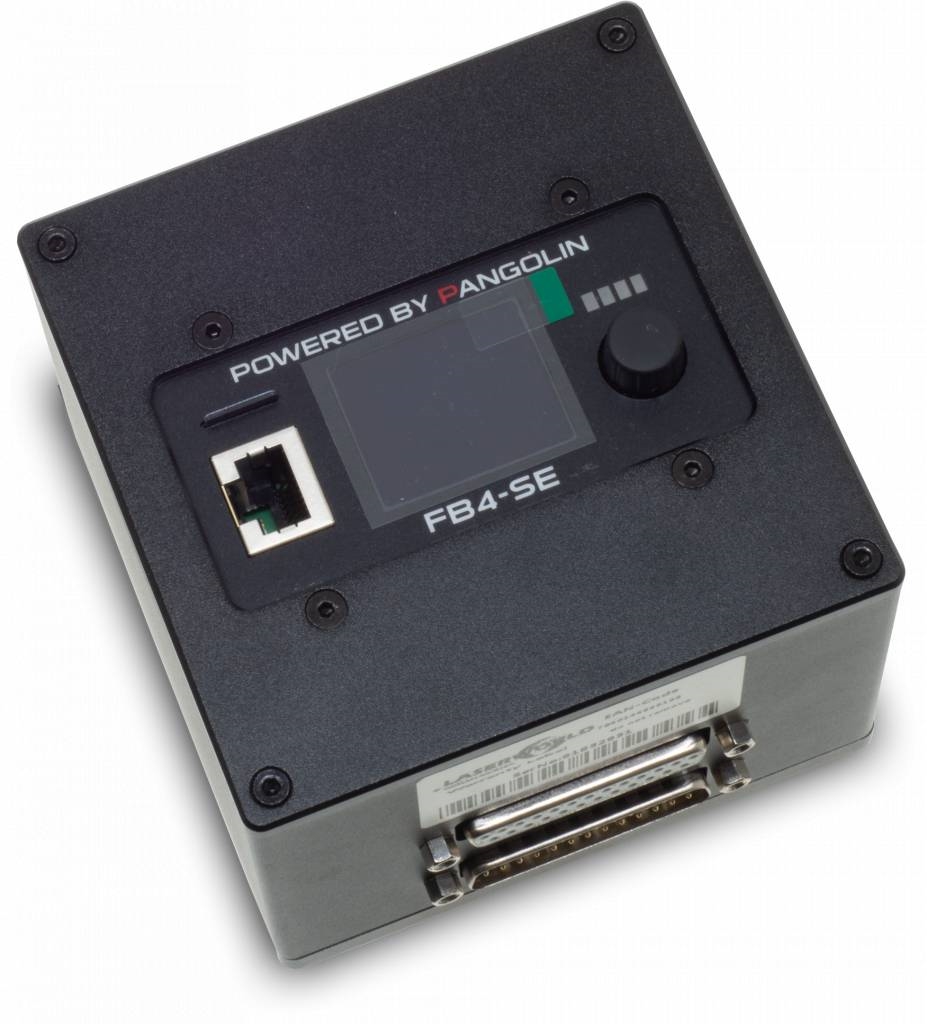

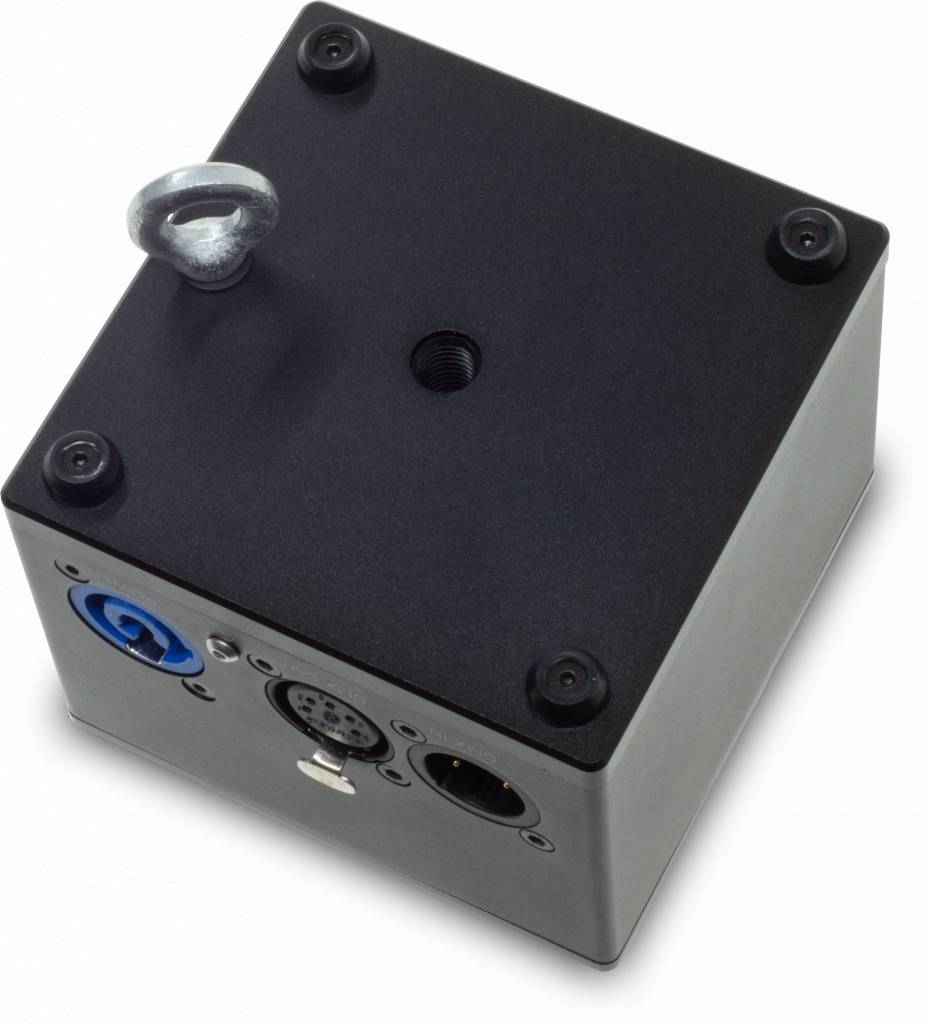

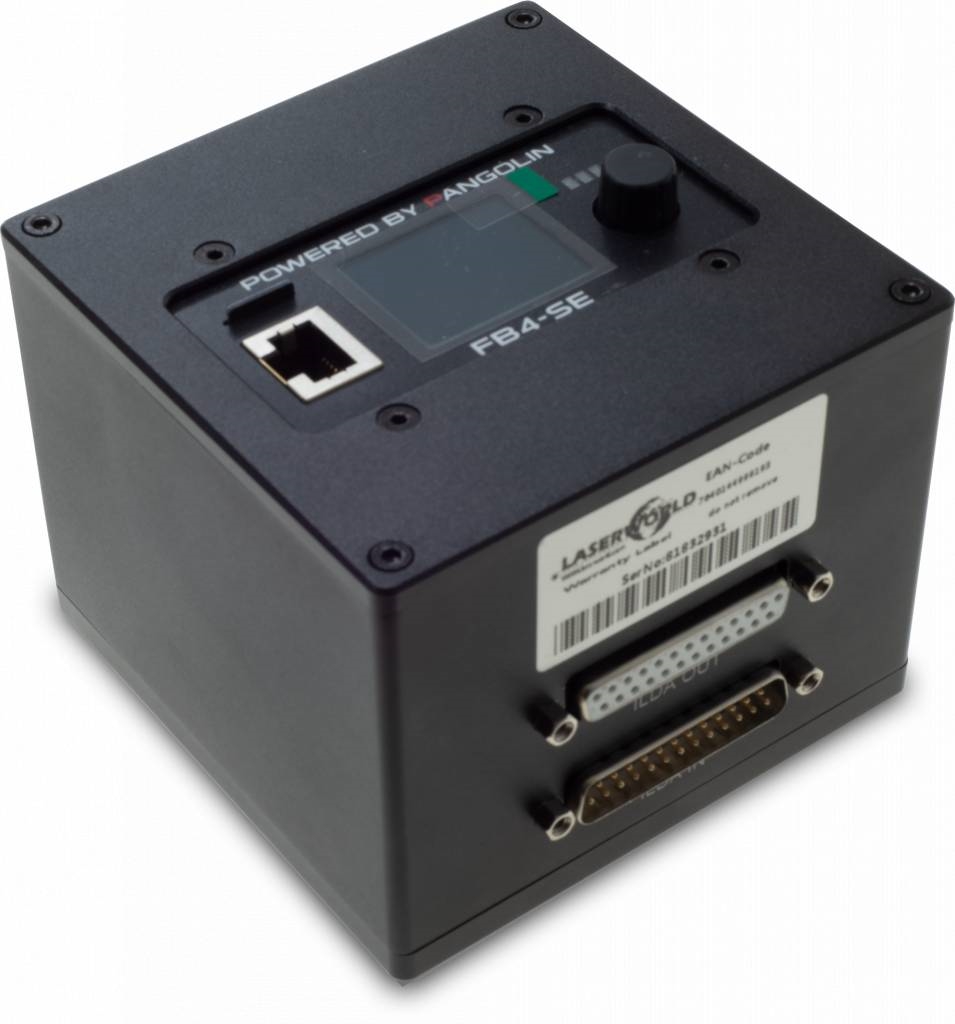

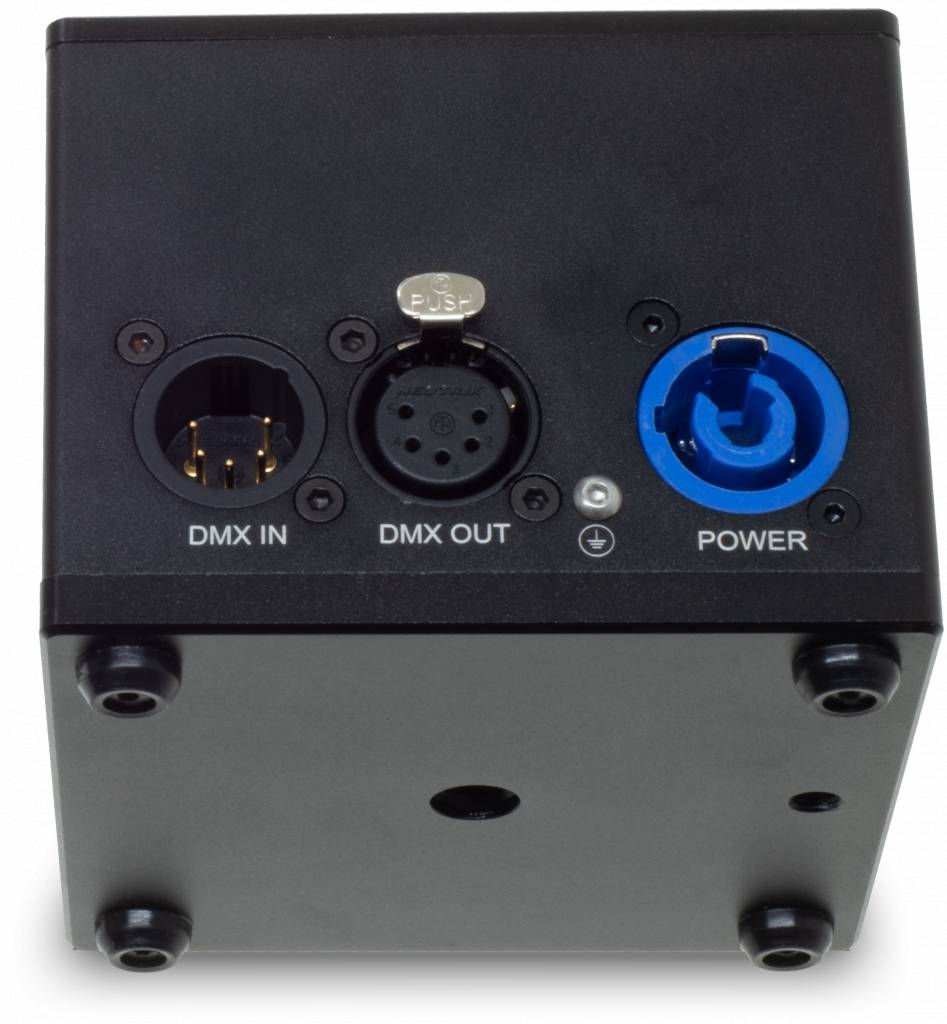

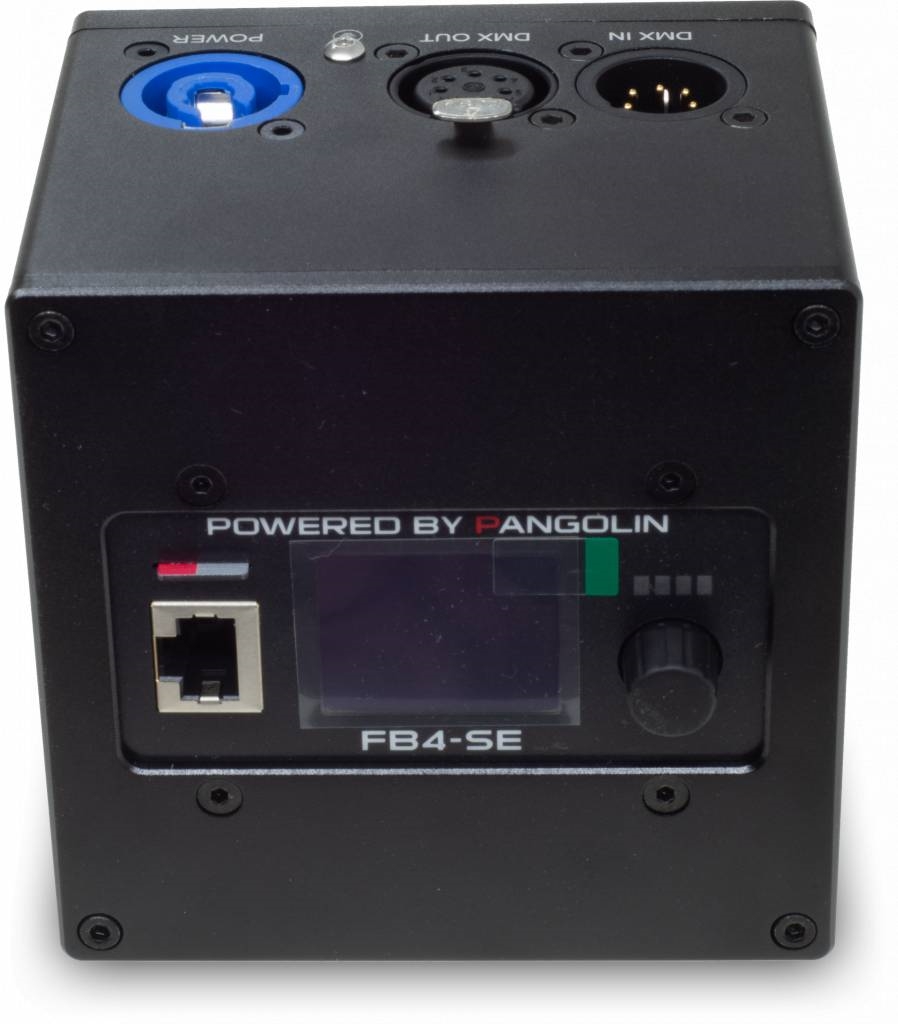

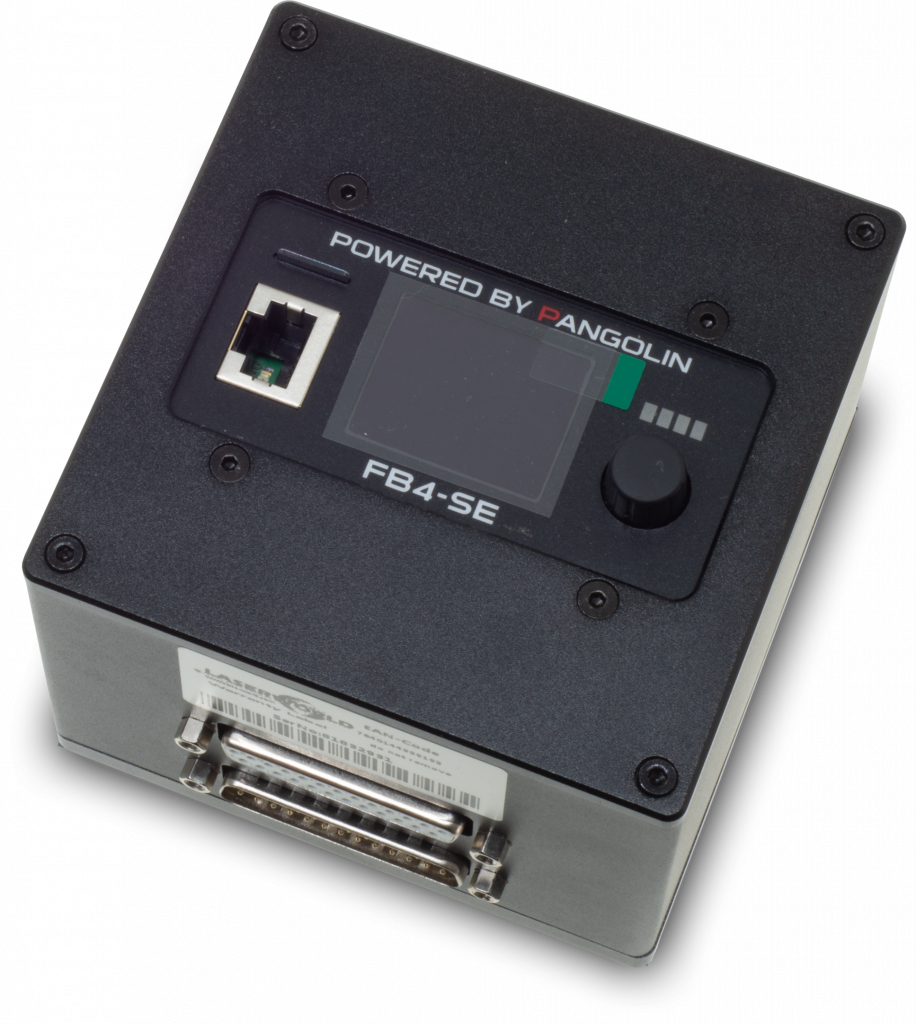

Laserworld FB4 MAX Interface
Laserworld FB4 MAX Interface runs the laser control software of Pangolin Quickshow and offers the possibility to control the show laser system through ILDA or DMX or by the onboard SD-memory. Furthermore it is possible to connect additional laser projectors via ILDA through and ILDA in.
For ILDA or DMX control:
Just connect a network cable (CAT5) from your computer, running Pangolin Quickshow (software is included in this package), to the network port of the Laserworld FB4 MAX Interface. Then connect an ILDA or DMX cable from this network interface to the laser system.
With SD-memory:
Lighting Console Mode: Create content in Pangolin software and then export this content to the onboard SD-memory (included in delivery). A computer is obsolete for this type of laser control setup, as control happens through a lighting console. This option is ideal for lighting designers.
Auto Mode:
Create content in Pangolin software and then export this content to the onboard SD-memory (included in delivery). It is possible to playback the content from the SD-memory automatically, without the need for a computer. The Laserworld FB4 MAX Interface features an internal clock, which allows setting a given time for playback (additional battery required).
