LD 19" Headphone Amplifier 6-channel - HPA 6

LD 19" Headphone Amplifier 6-channel - HPA 6
  • På lager
  • På lager, 3-8 Hverdage
  • Bedømmelse for LD 19" Headphone Amplifier 6-channel - HPA 6
    Produktet er endnu ikke bedømt
  •
    1.759,00DKK ved 1 stk.
Vis uden moms
Billigst på PriceRunner






LDHPA6 6-Channel Rackmount Headphone Amplifier

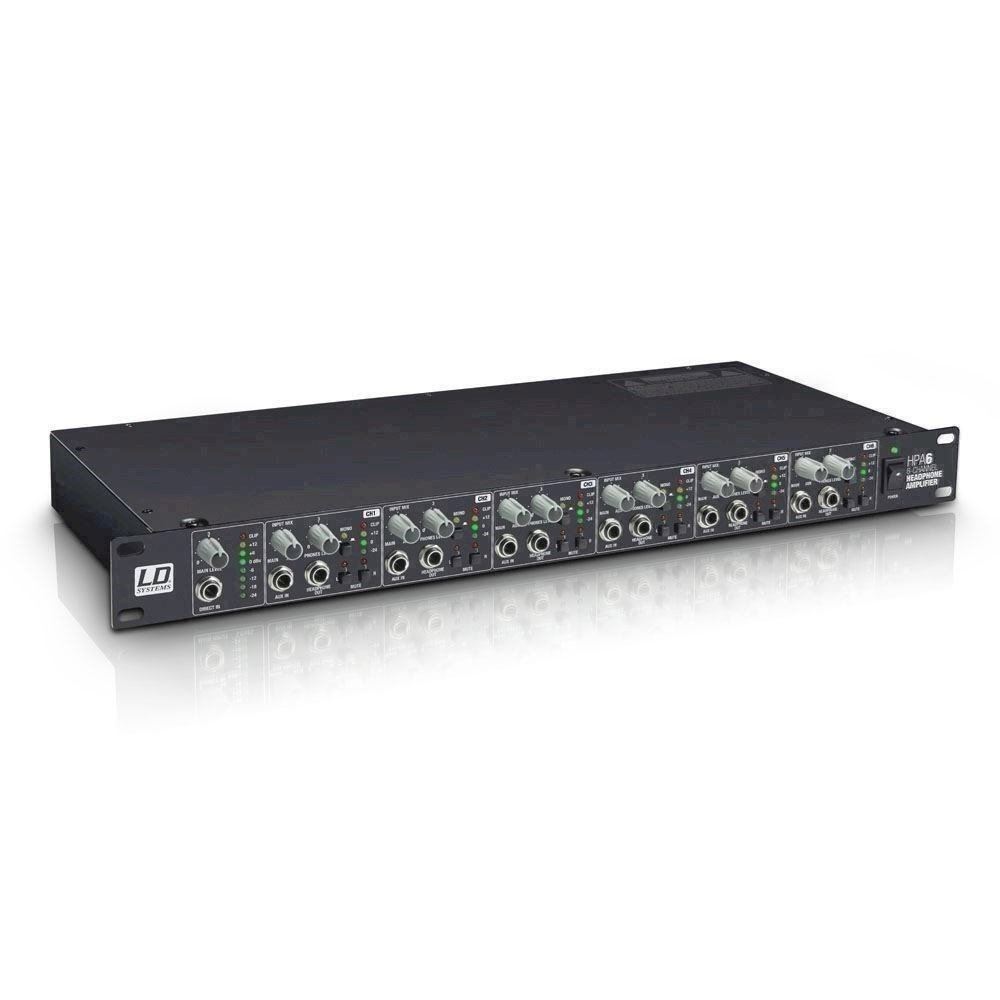

The LD Systems HPA 6 is a highly flexible 1U 19“ rack format headphone amplifier with 6 fully independent channels and comprehensive features for a wide range of professional audio monitoring applications.

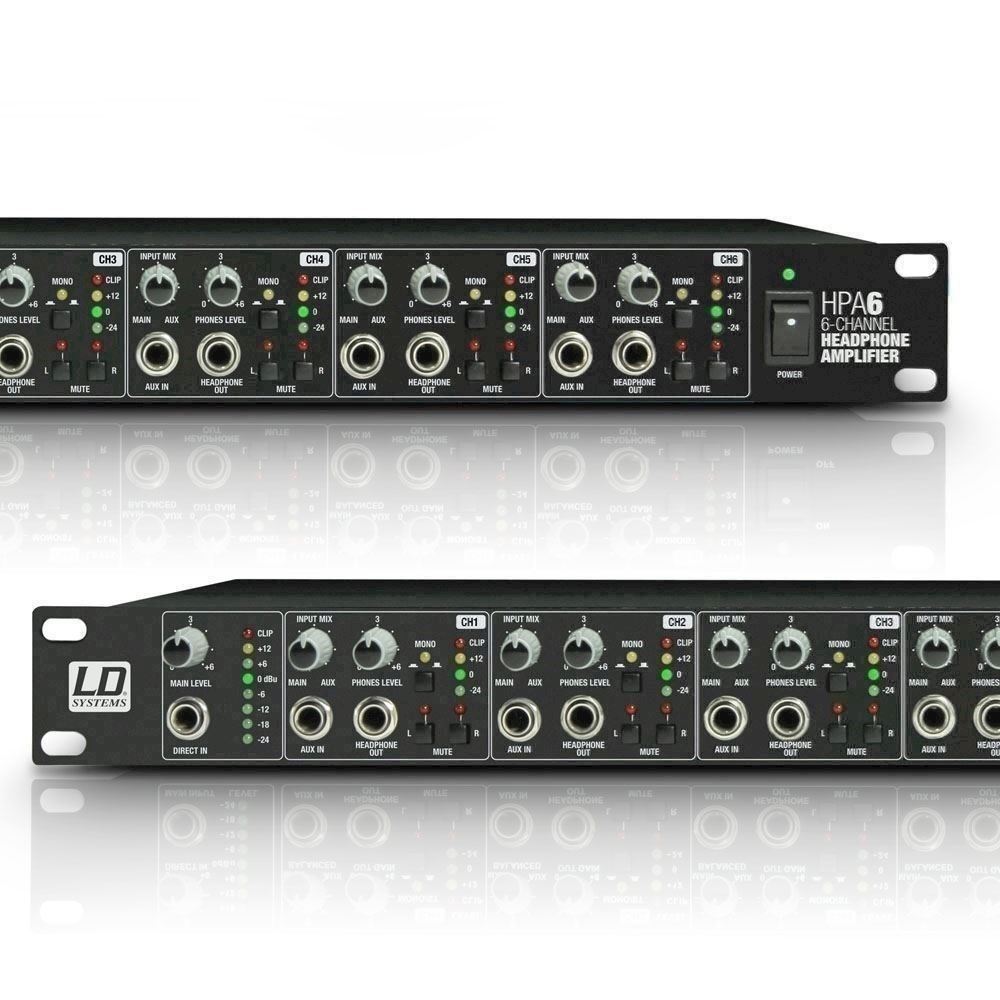

Each channel provides a 6.3 mm TRS headphone output on the front panel with level control, mono/stereo switching, discrete left/right muting and a 6.3 mm TRS Aux input with Main/Aux balance control for mixing in further signal sources. Four-segment LED meters permit visual output level monitoring, and two 6.3 mm TRS outputs per channel on the rear allow for connecting a total of 18 headphones.

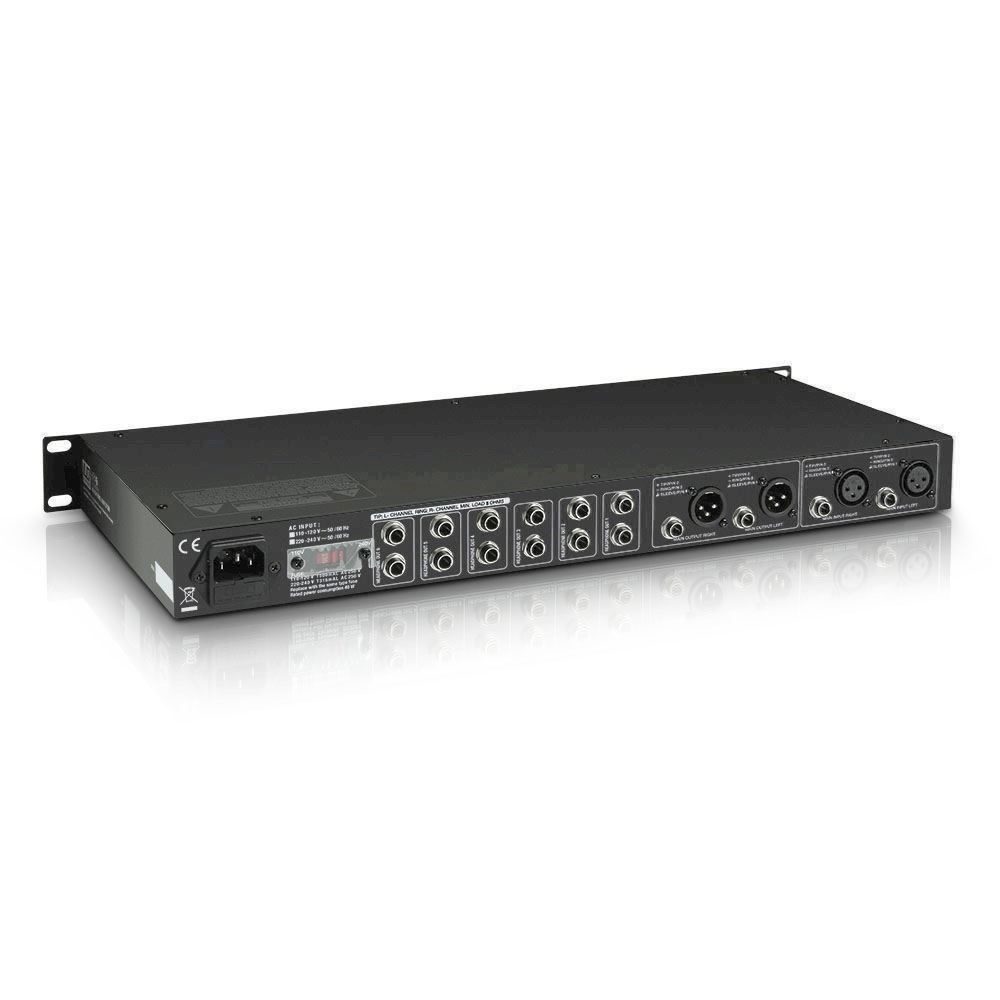

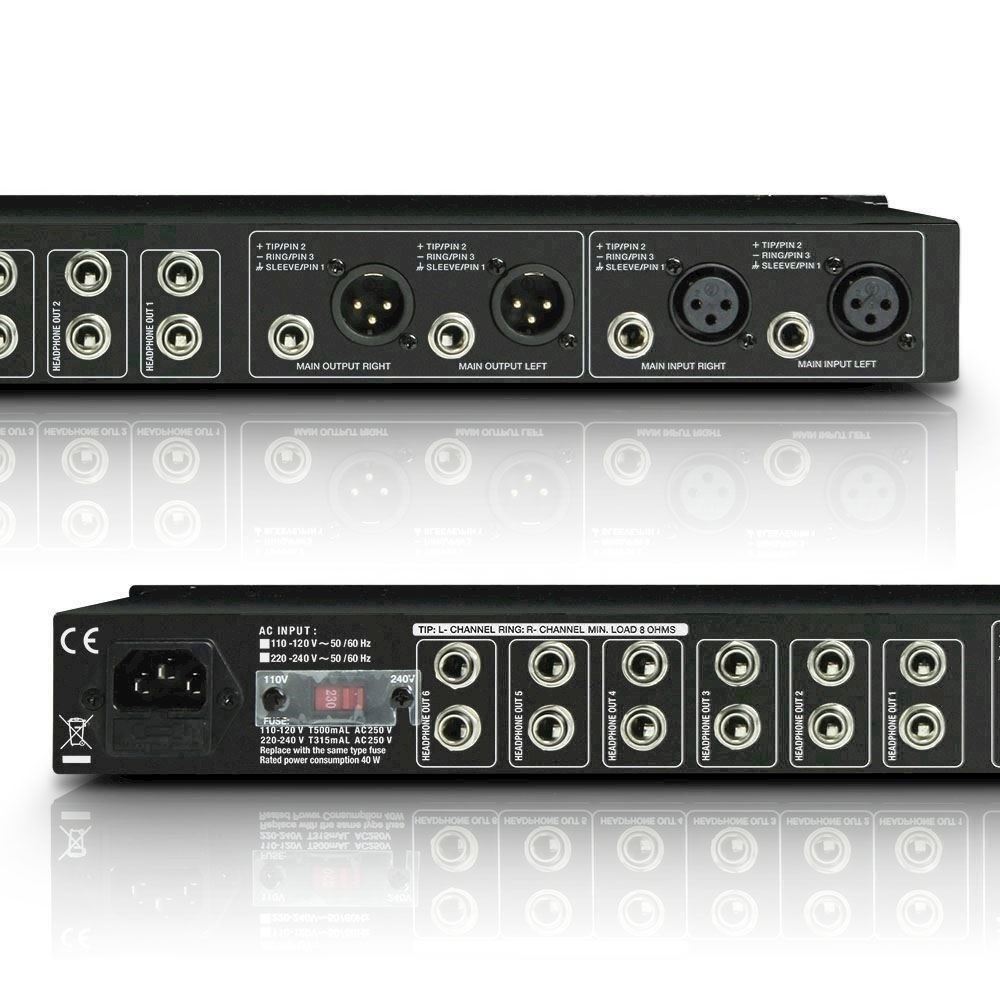

The HPA 6's main section features a master level control with eight-segment LED metering and 6.3 mm TRS input to mix in an additional source with all channels. The rear panel provides the main stereo inputs on balanced XLR and 6.3 mm TRS connectors and stereo outputs for daisy chaining multiple units.







Product typeHeadphone Amp:
Inputs8 (1 Main Input (Stereo), 1 Direct In (Stereo), 6 Aux In (Stereo))
Input connectors6.3 mm TRS, XLR
Input impedance13 k Ohm(s)
Line OutputsMain Output (stereo, balanced)
Line output connectors6.3 mm jack, XLR
Headphones ouputs6 x 3
Headphones outputs6.3 mm TRS
Power output6 x 125 mW
Minimum connected impedance8 Ohm(s)
Frequency response20 - 20000 Hz
Controls6 x Mono Switch, Main Input Level, 6 x Headphone Level, 6 x Input Mix Main/Aux, 6 x Mute L&R, Power
Indicators6 x mono LED, 6 x Mute L&R LEDs, power LED, 6 x channel level meter (4-segment LED chain), Main Input/Direct In Level Meter (8-segment LED chain)
Operating voltageIEC power connector, 110 - 120 V ~ 50/60 Hz or 220 - 240 V ~ 50/60 Hz, switchable
Cabinet materialmetal
Cabinet surfacepainted
Width483 mm
Height44 mm
Depth217 mm
Weight3 kg
Accessories (included)Power cord


Varenr.: A-LDHPA6
