LD Passive 2-Way Slave Loudspeaker to LD Systems MIX 10 A G3 - MIX 10 G3

LD Passive 2-Way Slave Loudspeaker to LD Systems MIX 10 A G3 - MIX 10 G3
  • På lager
  • På lager, 3-8 Hverdage
  • Bedømmelse for LD Passive 2-Way Slave Loudspeaker to LD Systems MIX 10 A G3 - MIX 10 G3
    Produktet er endnu ikke bedømt
  •
    2.209,00DKK ved 1 stk.
Vis uden moms
Billigst på PriceRunner

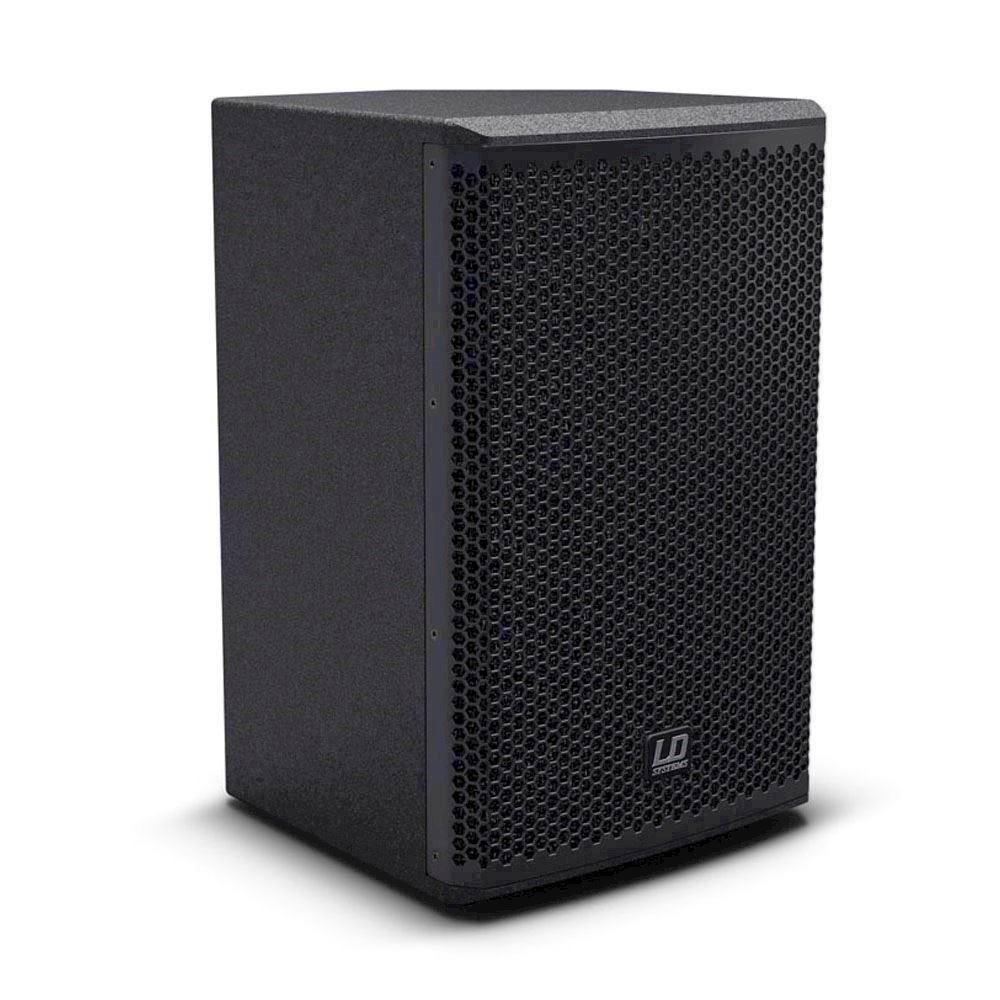

This passive 2-way loudspeaker has been designed as a companion to the active MIX 10 A G3 for small-scale PA and personal monitoring applications. It features the same 10" custom woofer and 1" Celestion HF driver complement, 65 Hz to 20 kHz frequency response and 80° x 70° dispersion delivering crystal clear sound with punch and detail.

The compact bass reflex enclosure is constructed with tough birch plywood sporting a speakON-compatible input, 50° monitor angle and Dual-Tilt pole receptacle for 0° or 5° mounting angles. In a master-and-slave setup with the active unit , the MIX 10 G3 provides amazing performance and versatility in a lightweight, easily portable package.





  • Passive 2-way loudspeaker
  • Ideal as a slave to MIX 10 A G3
  • 10” custom woofer and 1” Celestion HF driver
  • 200 watts RMS power handling
  • 121 dB maximum SPL
  • Rugged birch ply cabinet
  • Shock-resistant front grill provides maximum speaker protection
  • 36 mm dual-tilt pole receptacle for 0° or 5° orientation

Product typePA loudspeaker
Typepassive
Low/mid driver dimensions10 "
Woofer size254 mm
Woofer magnetFerrite
Woofer brandCustom-made
Woofer voice coil2 "
Woofer voice coil (mm)50.8 mm
HornCD horn
HF driver dimensions1 "
HF Driver Size25.4 mm
HF driver magnetFerrite
HF driver brandCelestion
HF driver voice coil1 "
HF Driver Voice Coil25.4 mm
Dispersion (H x V)80 x 70 °
Load rating (RMS)200 W
Peak power400 W
Frequency response65 - 20.000 Hz
SPL (1W/1m)95 dB
Max. SPL121 dB
Impedance4 Ohm(s)
Protection circuitsHF Driver
Loudspeaker inputs1
Speaker input connectionsSpeakon compatible
Cabinet material16 mm Plywood
Cabinet surfacePA painting
Cabinet constructionvented
Monitor angle50 °
Width315 mm
Height489 mm
Depth307 mm
Featuresdual-tilt flange (0°/5°), Ergonomic handle
Weight10,8 kg




Varenr.: A-LDMIX102G3
