Product type | Battery-powered PA speaker |

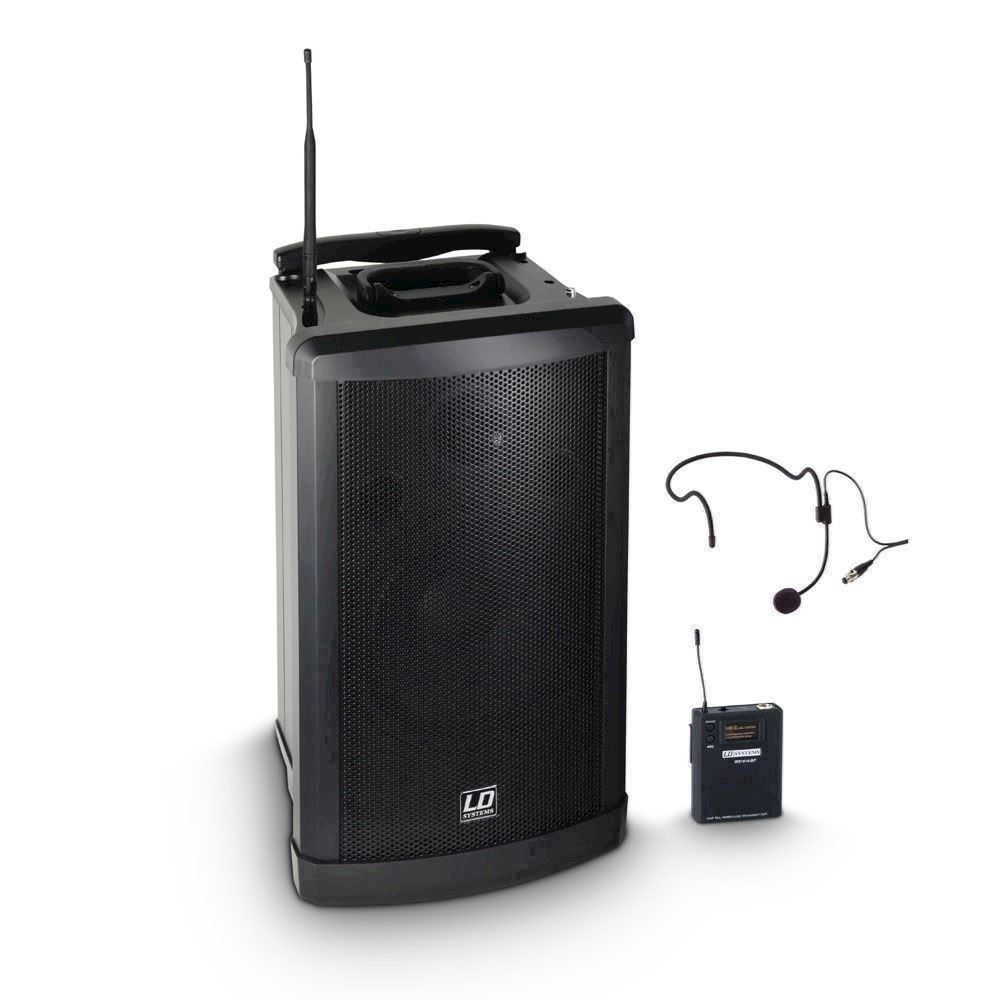

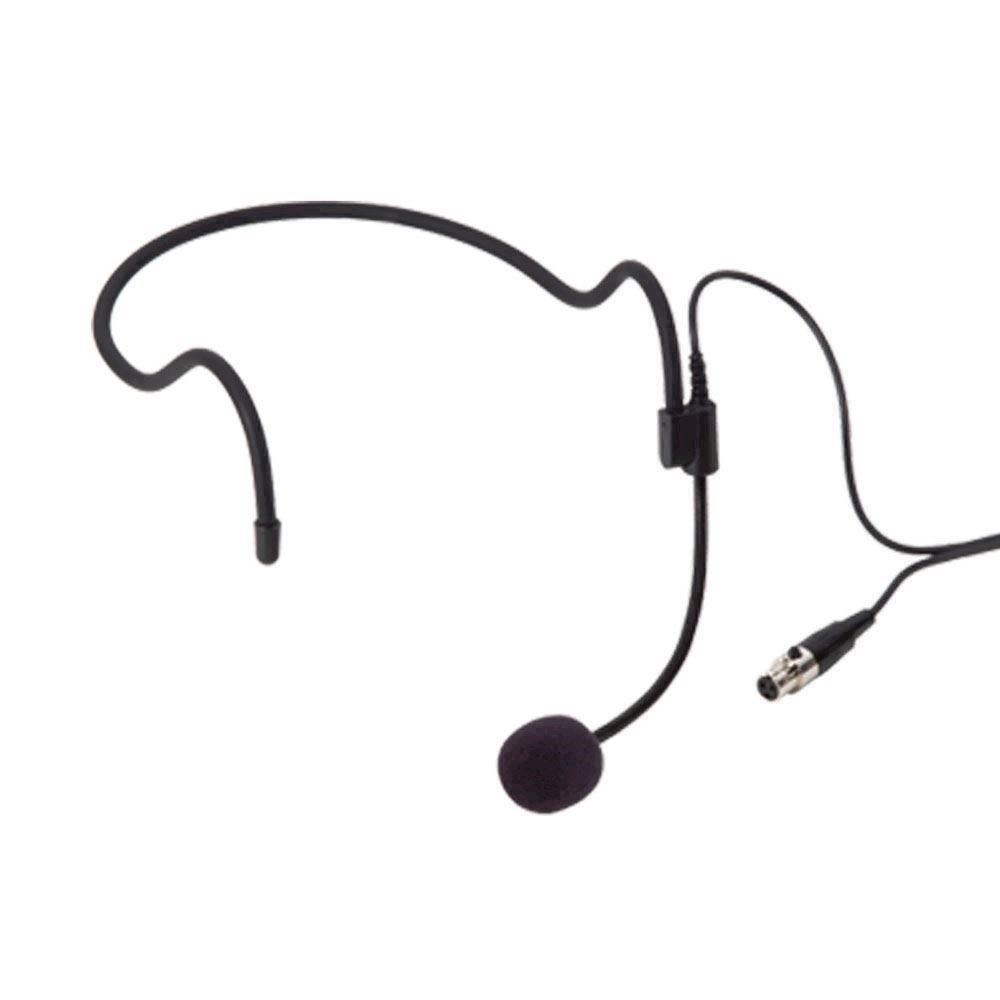

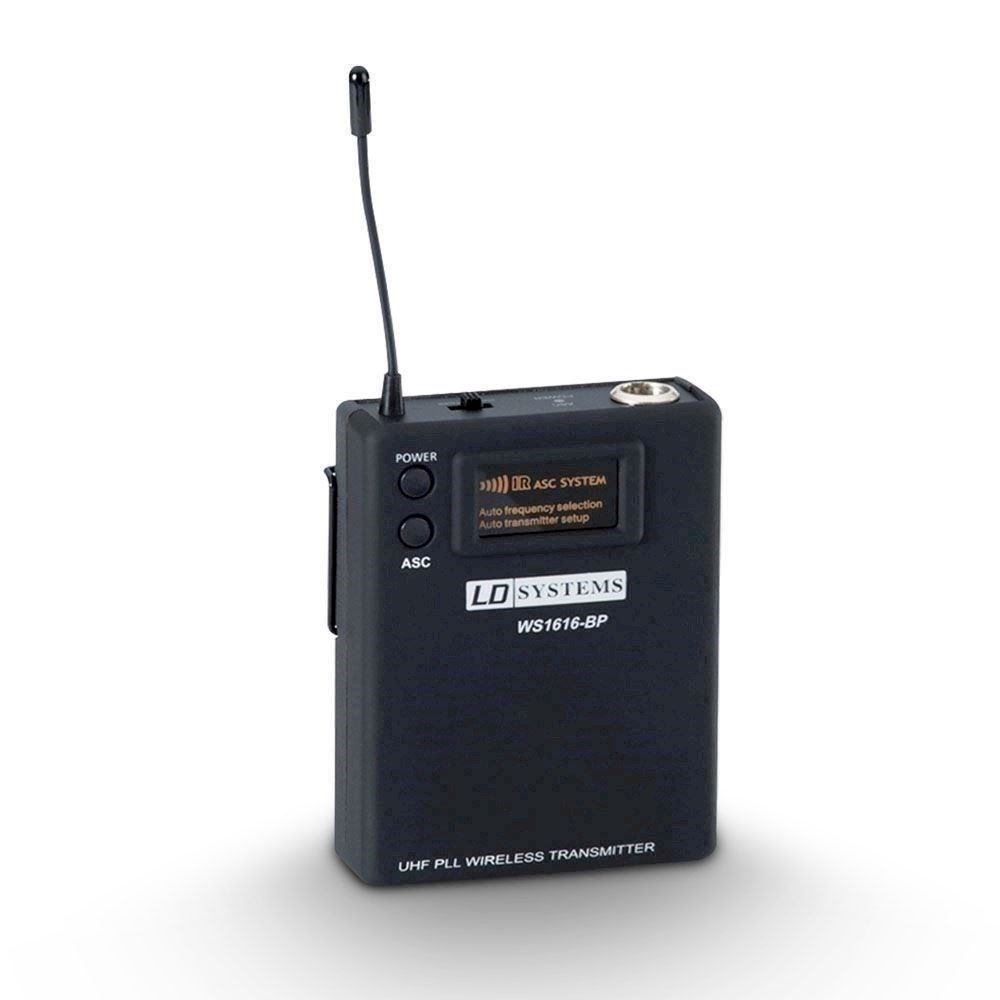

Type | Set with pocket transmitter and headset microphone |
Low/mid driver dimensions | 10 " |
Woofer size | 254 mm |
Woofer magnet | Ferrite |
Woofer brand | Custom-made |
HF driver dimensions | 1 " |
HF Driver Size | 25.4 mm |
HF driver magnet | Ferrite |
HF driver brand | Custom-made |
Amplifier | Class D |
RMS | 80 W |
Peak power | 320 W |
Frequency response | 70 - 16.000 Hz |
SPL (1W/1m) | 95 dB |
Max. SPL | 115 dB |
Protection circuits | short circuit |

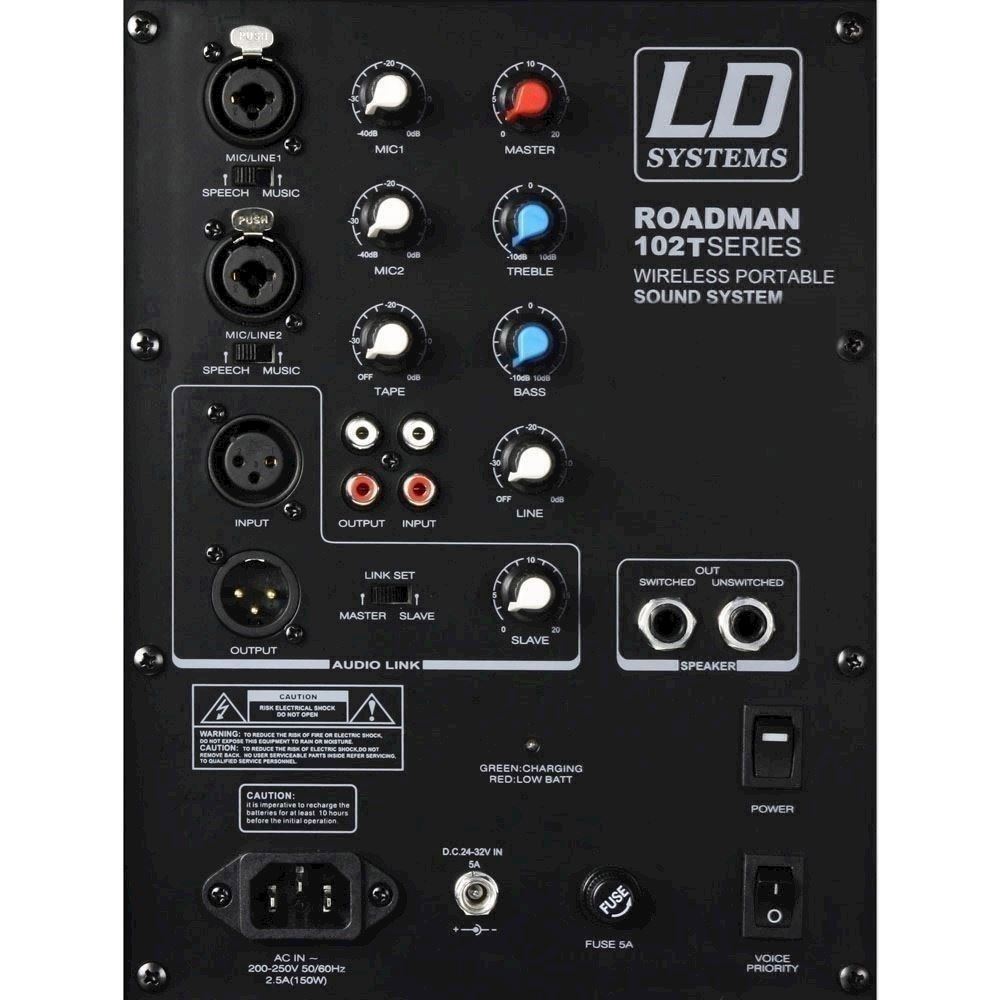

Controls | Audio-link set (master / slave), Audio-link slave volume, Speech / music switch (Mic / Line 1), Speech / music switch (Mic / Line 2), Voice priority on / off, Volume Mic 2, Line Gain, Master, Power, Treble, Volume Mic 1 |
Indicators | Charge/battery status, Power |
Supported media | CD-R, USB stick, Audio-CD, CD-R/W, SD Card |
Supported formats | MP3 file, MP3-CD, WMA file, WMA-CD, Audio-CD |

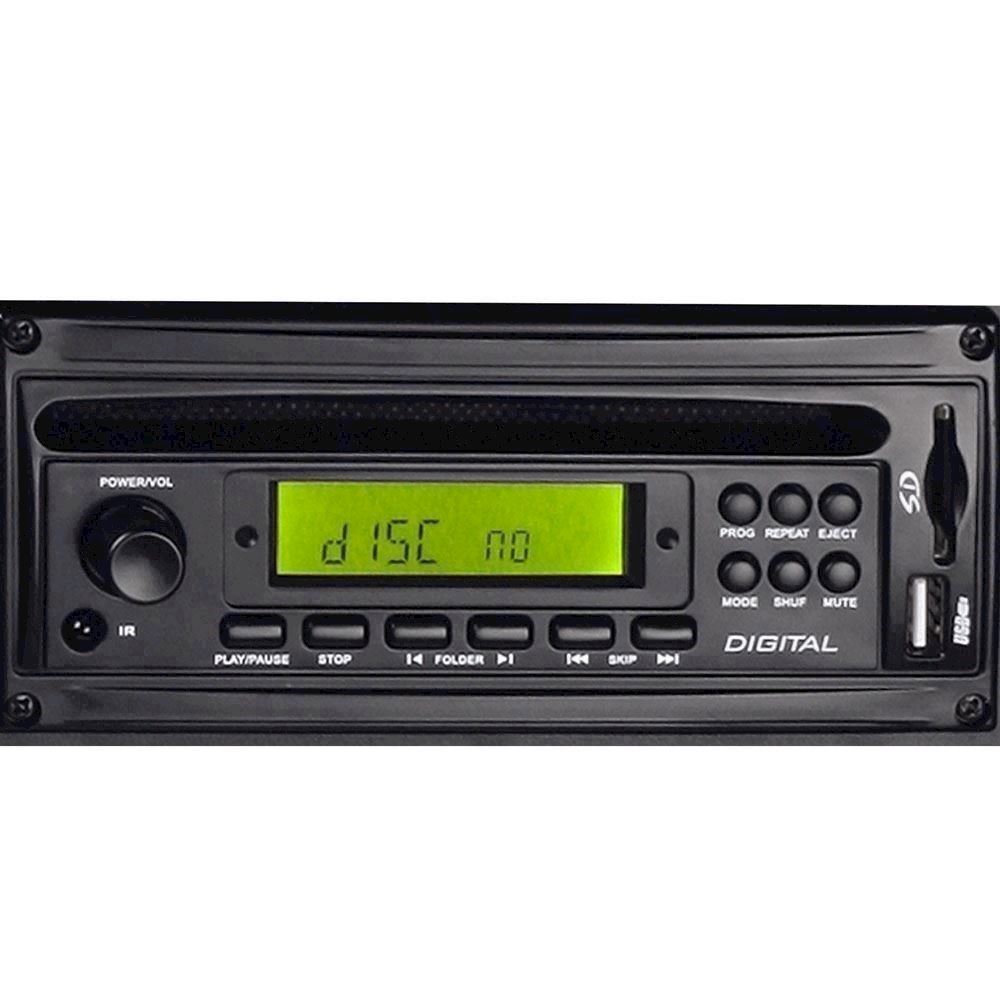

Media player controls | Next Track, Power / Volume, CD ejector, Folder -, Folder +, Mode (CD / SD / USB), mute, Play / Pause, Previous Track, Program, Repeat, Shuffle, Stop |
Media player display elements | Lighted multifunctional LC display |
Line inputs | 3 |
Line input connectors | 2 x RCA, Audio-link input XLR, female |
Mic inputs | 2, 6.3 mm jack, XLR |
Line outputs | 3 |
Line output connectors | 2 x RCA, Audio-link output XLR, male |
Loudspeaker outputs | Speaker Out Unswitched, Speaker Out Switched |
Speaker output connections | 6.3 mm jack |
Operating voltage | transformer, 200 V AC - 250 V AC, 24 V DC - 32 V DC (5A) |
Rechargeable batteries | 2 x 12 V / 4.5 AH |
Cabinet material | aluminium, plastic |
Cabinet construction | vented |
Width | 355 mm |
Height | 610 mm |
Depth | 315 mm |
Weight | 19 kg |

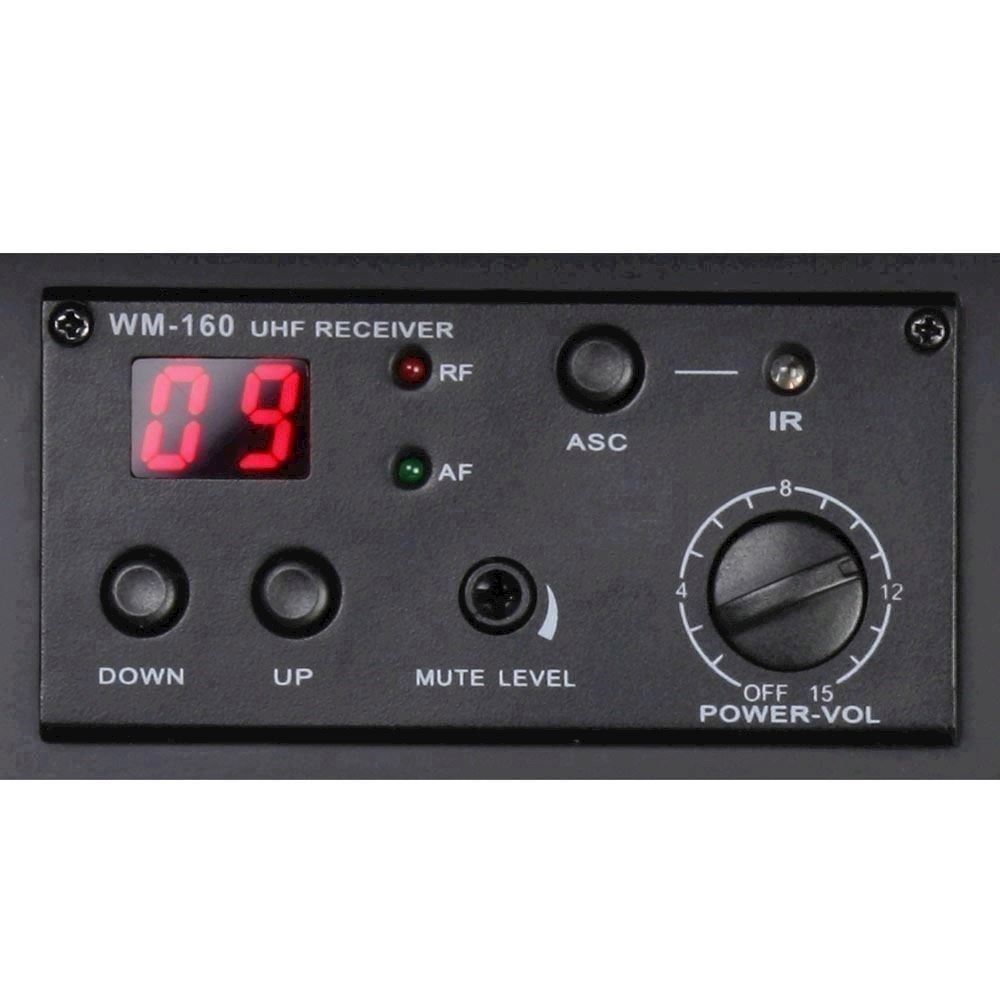

Other features | Audio-link function, Transport casters, additional radio receiver (LDRM102R) available optionally, Stand mount 36 mm, Transport bag available optionally, transport handle, Trolley handle |
