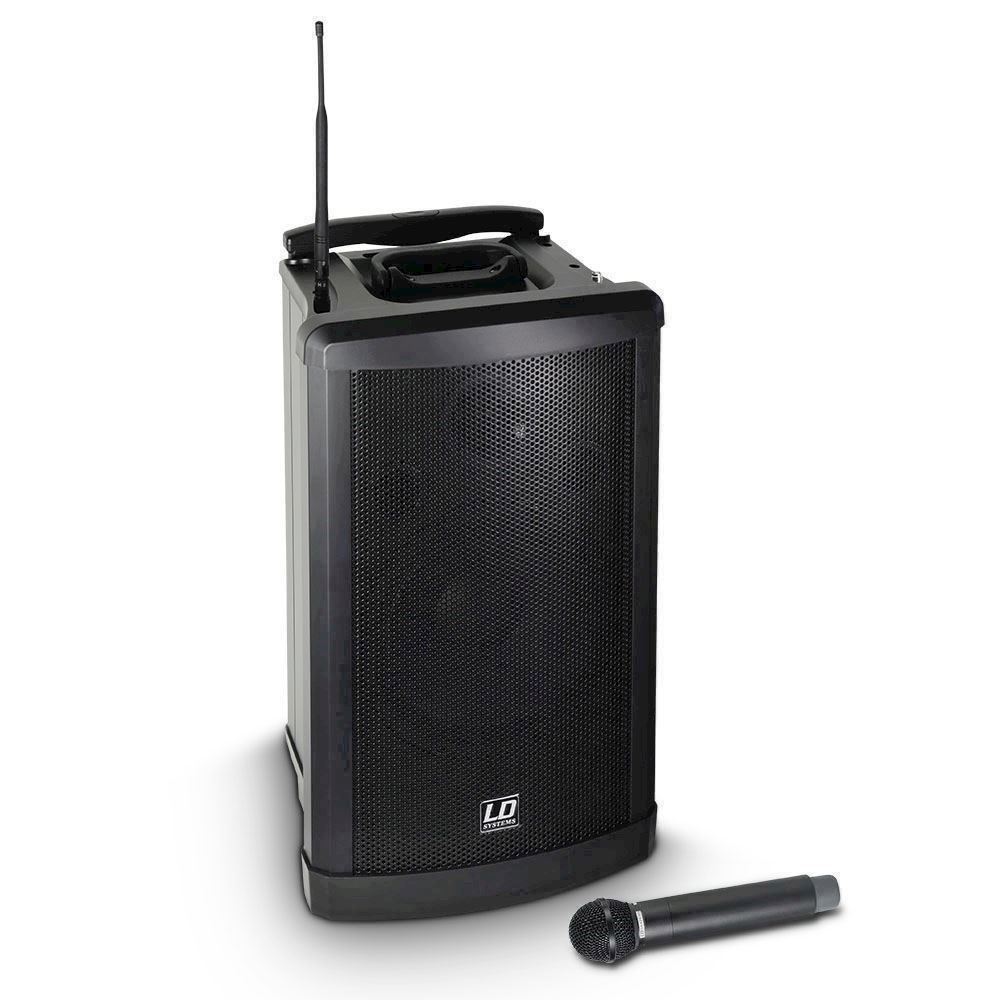

Product type | Battery-powered PA speaker |
Type | Set with Handheld Transmitter |
Low/mid driver dimensions | 10 " |
Woofer size | 254 mm |
Woofer magnet | Ferrite |
Woofer brand | Custom-made |
HF driver dimensions | 1 " |
HF Driver Size | 25.4 mm |
HF driver magnet | Ferrite |
HF driver brand | Custom-made |
Amplifier | Class D |
RMS | 80 W |
Peak power | 320 W |
Frequency response | 70 - 16.000 Hz |
SPL (1W/1m) | 95 dB |
Max. SPL | 115 dB |
Protection circuits | short circuit |
Controls | Bass, Speech / music switch (Mic / Line 1), Treble, Value Down, Voice priority on / off, Volume Mic 1, Volume Mic 2, Audio-link set (master / slave), Audio-link slave volume, Line Gain, Master, Power, Speech / music switch (Mic / Line 2) |
Indicators | Charge/battery status, Power |
Supported media | CD-R, CD-R/W, USB stick, Audio-CD, SD Card |
Supported formats | Audio-CD, WMA file, WMA-CD, MP3 file, MP3-CD |
Media player controls | Folder -, Mode (CD / SD / USB), Previous Track, Program, Shuffle, CD ejector, Folder +, mute, Next Track, Play / Pause, Power / Volume, Repeat, Stop |
Media player display elements | Lighted multifunctional LC display |
Line inputs | 3 |
Line input connectors | 2 x RCA, Audio-link input XLR, female |
Mic inputs | 2, 6.3 mm jack, XLR |
Line outputs | 3 |
Line output connectors | 2 x RCA, Audio-link output XLR, male |
Loudspeaker outputs | Speaker Out Unswitched, Speaker Out Switched |
Speaker output connections | 6.3 mm jack |
Transmission frequency range | 863 - 865 MHz |
Operating voltage | transformer, 200 V AC - 250 V AC, 24 V DC - 32 V DC (5A) |
Rechargeable batteries | 2 x 12 V / 4.5 AH |
Cabinet material | aluminium, plastic |
Cabinet construction | vented |
Width | 355 mm |
Height | 610 mm |
Depth | 315 mm |
Weight | 19 kg |
Other features | Stand mount 36 mm, Transport bag available optionally, additional radio receiver (LDRM102R) available optionally, Audio-link function, Transport casters, transport handle, Trolley handle |
