LED PAR Spotlight with 12 x 3-in-1 Tunable White LED - Cameo

LED PAR Spotlight with 12 x 3-in-1 Tunable White LED - Cameo
  • På lager
  • På lager, 3-8 Hverdage
  • Bedømmelse for LED PAR Spotlight with 12 x 3-in-1 Tunable White LED - Cameo
    Produktet er endnu ikke bedømt
  •
    3.599,00DKK ved 1 stk.
Vis uden moms
Billigst på PriceRunner




They can be found at almost every event - large or small, on live stages or corporate events, in the theatre or TV studio. LED PAR spotlights are permanent fixtures in the portfolio of every lighting designer and rental provider - and they have to meet the highest demands in terms of lighting quality, operation and flexible use.

With the second generation of the STUDIO PAR series, Cameo has revised the genre of classic LED PAR fixtures for static lighting on all levels and given the design an unmistakable facelift.

The extremely compact STUDIO PAR TW G2 is based on 12 x 10 W 3-in-1 Tunable White LEDs with an impressive luminous flux of 4,150 lm at an 18° beam angle and uniform light distribution. Thanks to its infinitely variable white light adjustment in the range from 2,800 to 6,800 K, variable PWM frequency (650 Hz to 25 kHz) and natural colour rendering (CRI>96), the STUDIO PAR TW G2 is also suitable for use in theatres, TV studios, on film sets or at indoor light art festivals. Even more versatile is its use in combination with the optionally available Cameo iDMX Stick to control the STUDIO PAR TW G2 wirelessly via W-DMX™.

For particularly flexible mounting, the STUDIO PAR TW G2 can be optionally retrofitted with a fold-out 16 mm TV spigot based on patented SPIN16® technology.

  • 12 x 10 W 3-in-1 Tunable White LED with 4,150 lm luminous flux
  • Variable white light (2,800 - 6,800 K) + amber
  • High colour fidelity: CRI>95
  • Revised design with many workflow optimisations
  • Selectable pulse width modulation (up to 25 kHz) for flicker-free operation
  • Virtually silent operation in "Silent Fan Mode"
  • Intuitive holding mechanism for colour filter frames
  • Wireless control via W-DMX™ via optional Cameo iDMX Stick
  • Simple configuration via OLED display
  • PowerCON compatible power connector
  • Fold-out 16 mm TV spigot (SPIN16®) can be retrofitted as an option


Product typeLED PAR Lighting
TypeStudio PAR
Colour spectrumTunable White
Colour spectrumWarm White/Cold White
Number of LEDs12
LED type3in1 WW/CW/A 10 W SMD LED
Color temperature2800 - 6800 K
Luminous flux4150 lm
DispersionBeam Angle: 18 °
DispersionField Angle: 35 °
Lens12 x acrylic lens
LED PWM Frequency650 Hz, 1530 Hz, 3600 Hz, 12000 Hz, 18900 Hz, 25000 Hz
Dimmer resolution16 bit
Dimmer curvesExponetial
Dimmer curvesLinear
Dimmer curvesLogarithmic
Dimmer curvesSquare
Strobe0 - 20 Hz
CRI>95 Ra
DMX input3-Pol
DMX inputiDMX slot
DMX output3-Pol
DMX mode11-channel
DMX mode1-channel
DMX mode2-channel
DMX mode3-channel
DMX mode4-channel
DMX mode5-channel
DMX mode8-channel
DMX FunctionsCW
DMX FunctionsDevice Settings
DMX FunctionsDimmer
DMX FunctionsDimmer Curve
DMX FunctionsEZ-Chase
DMX Functionsstrobe
DMX FunctionsWW
Standalone modesAuto Mode
Standalone modesStatic
System settingsDefault settings
System settingsDimmer
System settingsDimmer Response
System settingsDisplay
System settingsFan mode
System settingsLED PWM Frequency
System settingsSignal Fail
System settingsWireless
Controls4 x Buttons
ControlsDown
ControlsEnter
Controlsmenu
ControlsUp
IndicatorsOLED Display
Relative Humidity< 80 %, not condensing
Protection class IPIP20
Ambient temperature (operating)-10 - 40 °C
CoolingConvection
Coolinglow-noise fan
Operating voltage100 V AC - 240 V AC, 50 - 60 Hz

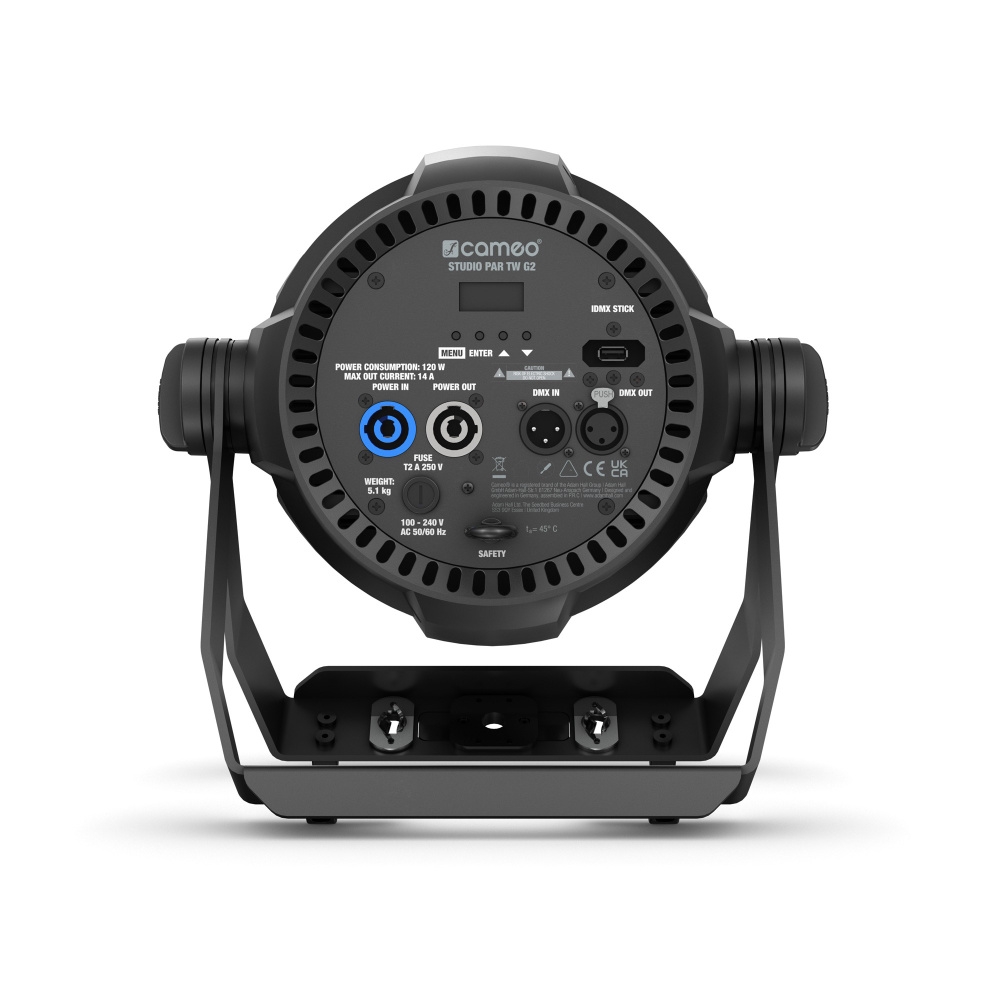

Power connectorPowerCon Blue I/O
FuseT2A
Max. Power consumption115 W
HousingDie-cast aluminium
Cabinet surfacePowder coated
Cabinet colourBlack
Height360 mm
Width310 mm
Depth250 mm
Weight5,1 kg
Varenr.: A-CLPSTTWG2
